Sapphire Nitro+ Radeon RX 9070 XT OC 16GB vs XFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

A

Product A: Sapphire

Nitro+ Radeon RX 9070 XT OC 16GB

79 of 100 known

Change Sapphire Nitro+ Radeon RX 9070 XT OC 16GB

Compare the XFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB with

Search graphics cards

B

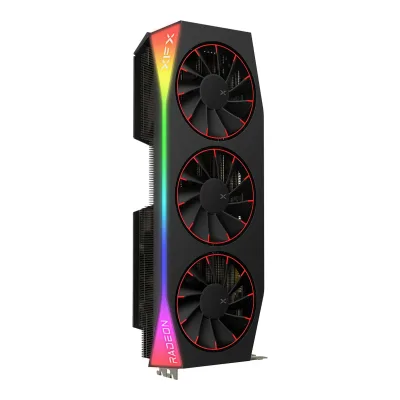

Product B: XFX

Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

75 of 100 known

Change XFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

Compare the Sapphire Nitro+ Radeon RX 9070 XT OC 16GB with

Search graphics cards

All 100 fields

Every value links to where we found it.

Only differences

ASapphire Nitro+ Radeon RX 9070 XT OC 16GB

BXFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

General

5 of 10 differ

Series

Nitro+1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026

Mercury1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026The Mercury class is described as XFX's flagship line. The product is named XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB.

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

11348-01-20G1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Specification tab: SKU 11348-01-20G.

RX-97TMARGB9, RX-97TMARGW9, RX-97TMARGBA1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Model Number RX-97TMARGB9 (black). The white page lists RX-97TMARGW9 and the page with the -2 suffix lists RX-97TMARGBA.2Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-white-magnetic-air-edition-with-rgbRead 15 October 2026Model Number RX-97TMARGW9, product name XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB.3Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgb-2Read 15 October 2026Model Number RX-97TMARGBA, same product name as RX-97TMARGB9 without a colour word.

GTIN / EAN

4895106295872, 084077709127221Spec databasebuildcores.com/products/GPU/n9f3tsbsx/Sapphire-NITRO%2B-Radeon-RX-9070-XT-16GB-GDDR6Read 14 October 2026Lists UPC 840777091272, EAN 0840777091272 and EAN 4895106295872 for part number 11348-01-20G. An Estonian retailer (arvutitark.ee) and awd-it.co.uk list 4895106295872 for the same part number.

840191502590, 840191502606, 8401915029411Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026UPC Number 840191502590 for RX-97TMARGB9. 840191502606 is on the white page and 840191502941 on the RX-97TMARGBA page.2Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-white-magnetic-air-edition-with-rgbRead 15 October 2026UPC Number 840191502606.3Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgb-2Read 15 October 2026UPC Number 840191502941.

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

28 February 202515Press articlekitguru.net/components/graphic-cards/matthew-wilson/sapphire-reveals-rx-9070-nitro-pure-and-pulse-series-graphics-cardsRead 14 October 2026KitGuru article dated 2025-02-28, AMD launch day: Sapphire reveals its Nitro+, Pure and Pulse RX 9070 and RX 9070 XT cards.

Not available

Status

Available1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Product page is live on 2026-10-14. BuildCores showed it in stock at Walmart and Newegg the same day.

Available1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026The product page and its three model pages are live on 2026-10-15. PC Perspective reported the card in stock at Newegg in July 2025. The maker has not marked the card as discontinued.

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

Not available

$8295Press articlewccftech.com/best-buy-lists-various-amd-radeon-rx-9070-xt-rx-9070-gpus-starting-at-599-up-to-849/ampRead 15 October 2026Article dated 2025-03-06, hours before the retail launch: Best Buy lists the Magnetic Air editions at 829 US dollars (black) and 849 US dollars (white), reported from VideoCardz. These are the retailer's launch-day listings in the US. XFX published no MSRP for the card. The price excludes sales tax.

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

Not available

US5Press articlewccftech.com/best-buy-lists-various-amd-radeon-rx-9070-xt-rx-9070-gpus-starting-at-599-up-to-849/ampRead 15 October 2026Best Buy in the US.

ColoursiThe maker's own colour names

Not available

Black, White1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026The black page is RX-97TMARGB9 and the white page is RX-97TMARGW9. Both use the colour in their product name.2Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-white-magnetic-air-edition-with-rgbRead 15 October 2026The product name has White.

GPUiThe graphics chip as the chip maker names it, without the card maker's name or the memory size, e.g. "NVIDIA GeForce RTX 5070 Ti", "AMD Radeon RX 9070 XT", "Intel Arc B580". The memory size is in VRAM.

AMD Radeon RX 9070 XT1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

AMD Radeon RX 9070 XT1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026

GPU brandiThe chip maker, not the card maker.

AMD1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

AMD18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Radeon RX 9000 Series, product page of the RX 9070 XT.

Reference launch price (US)iThe chip maker's launch price for this GPU in USD, excluding tax. It repeats in every card with this GPU and is not the card's own price. A price the card maker states goes in the launch price field.

$5994Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026The AMD Radeon RX 9070 XT has an SEP of $599 USD.

$59919Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026The AMD Radeon RX 9070 XT has an SEP of 599 USD. Dated 2025-02-28, with partner cards from XFX and others from 2025-03-06.

GPU

0 of 14 differ

GPU architectureiAs the chip maker names it, e.g. "Blackwell", "RDNA 4", "Xe2".

RDNA 44Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD unveils the AMD RDNA 4 graphics architecture with the Radeon RX 9070 XT.

RDNA 419Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026The RX 9000 Series is powered by the AMD RDNA 4 architecture.

GPU dieiThe die name, e.g. "GB203", "Navi 48", "BMG-G21". Cards with the same GPU name can use different dies.

Navi 485Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: Navi 48.

Navi 4820Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 15 October 2026Chip name Navi 48 (Navi 48 XTX).

ProcessiFoundry process name as the chip maker writes it, e.g. "TSMC 4N". When the chip maker names none, a spec table in a trusted review counts, and the source note says so. Node names are marketing names, not a physical size. Write the foundry and its node name with no unit, such as "Samsung 8N", not "Samsung 8 nm".

TSMC N4P5Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: TSMC N4P (4nm). An earlier Club386 pre-launch article and KitGuru wrote TSMC N4. Treated as pre-launch.

TSMC N4P20Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 15 October 2026Process TSMC N4P.

TransistorsiTransistors on the whole die, in billions. A cut-down GPU keeps the full count of its die.

53.9billion3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20265Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026

53.9billion18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Transistor Count 53.9 B.

Die sizeiArea of the whole die.

357mm²5Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Spec table: 357 mm2. TechPowerUp's review text gives 356.5 mm2.

357mm²20Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 15 October 2026Chip size 357 mm2, monolithic, 53.9 billion transistors.

Compute unitsiNVIDIA streaming multiprocessors (SM), AMD compute units (CU) or Intel Xe-cores, enabled on this GPU. The blocks differ between makers, so compare within one maker.

641Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

641Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 202618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Compute Units 64.

Shader coresiNVIDIA CUDA cores or AMD stream processors, as published. For Intel only a shader count a trusted source states, not a count of Xe Vector Engines. Makers count differently, so compare within one maker.

4,0961Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

4,0961Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 202618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Stream Processors 4096.

Ray tracing coresiNVIDIA RT cores, AMD Ray Accelerators or Intel Ray Tracing Units, enabled on this GPU.

641Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

6418Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Ray Accelerators 64.

AI coresiNVIDIA Tensor cores, AMD AI Accelerators or Intel XMX engines, enabled on this GPU.

1281Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

12818Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026AI Accelerators 128.

ROPsiRender output units enabled on this GPU.

1283Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

12818Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026ROPs 128.

L2 cacheiL2 cache enabled on this GPU.

8MB8Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 14 October 2026Chip configuration: 64 CU, 64 RT cores, 8 MiB L2 cache. AMD's product page states no L2 figure.9Reviewold.chipsandcheese.comRead 14 October 2026RDNA 4 doubles L2 per shader engine, so the RX 9070 XT with four shader engines has 8 MB of L2.

8MB20Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 15 October 2026Chip configuration: 8 MiB L2 cache.

Infinity Cache (L3)iAMD Infinity Cache, a last-level cache behind L2. Left out for a GPU whose maker states no such cache.

64MB1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

64MB18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026AMD Infinity Cache Technology 64 MB.

FP32 compute (claimed)iPeak single-precision shader throughput the chip maker publishes. Makers count operations differently. AMD includes dual-issue rates. Not a game performance figure.

48.7TFLOPS3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Peak Single Precision (FP32 Vector) performance, 48.7 TFLOPs. AMD counts dual-issue.

48.7TFLOPS18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Peak Single Precision (FP32 Vector) Performance 48.7 TFLOPs. AMD counts dual-issue.

AI performance (claimed)iPeak AI throughput the maker publishes, one row per precision and sparsity. A figure without a stated precision stays out. Compare rows with the same precision and sparsity only. NVIDIA: store the headline rows (FP8 and FP16 with FP16 accumulate, FP4 as listed) and name the accumulate precision in the source note. When a maker does not say whether a figure uses sparsity, leave the sparse key out of that row. The chip maker's figures are stored, the same in every card with that GPU. A card maker's higher figure for its own clocks, such as an OC mode, goes in the source note.

ASapphire Nitro+ Radeon RX 9070 XT OC 16GB

Precision	With sparsity	Throughput (TOPS)
FP16	No	195
FP16	Yes	389
FP8	No	389
FP8	Yes	779
INT8	No	389
INT8	Yes	779
INT4	No	779
INT4	Yes	1,557

Source3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026AMD lists FP16, FP8 (E5M2, E4M3), INT8 and INT4 matrix rates with and without structured sparsity. FP16 and FP8 figures are in TFLOPS, stored unchanged.

BXFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

Precision	With sparsity	Throughput (TOPS)
FP16	No	195
FP16	Yes	389
FP8	No	389
FP8	Yes	779
INT8	No	389
INT8	Yes	779
INT4	No	779
INT4	Yes	1,557

Source18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Matrix rates with and without structured sparsity: FP16 195 and 389 TFLOPs, FP8 (E5M2, E4M3) 389 and 779 TFLOPs, INT8 389 and 779 TOPs, INT4 779 and 1557 TOPs. FP16 and FP8 figures are in TFLOPS and stored unchanged. Figures are for the reference GPU.

Clocks

3 of 5 differ

Base clockiLowest rated clock under load that the card maker states for this card in MHz. NVIDIA's base clock in GHz is a chip value, and a figure such as 2.33 GHz gives no exact MHz value, so it is not converted. A row labelled only "Clock Speed" next to a boost clock row, as on PNY, is the base clock. On an NVIDIA card, a row labelled Graphics Clock next to a Boost Clock row, as on Palit, is the base clock too. A retail or distributor feed that repeats NVIDIA's reference base clock does not count. A card maker's own page that states the reference base clock for a card at reference clocks counts.

Not available

1,870MHz1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Primary Clock Speeds: Base Clock Up To 1870 MHz.

Game clockiAMD Game Clock or Intel Graphics Clock of this card. Both are a typical clock in games, below the peak boost. On an Intel card, a card maker figure labelled Graphics Clock or Engine Clock is this clock, also with "up to". A figure the card maker labels Boost Clock stays a boost clock.

2,520MHz1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Game Clock: up to 2520 MHz. Sapphire notes Game Clock is the expected clock in typical games at typical TGP.

2,570MHz1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Game Clock Up To 2570 MHz, set to typical TGP (footnote).

Boost clockiRated boost clock of this card out of the box, e.g. ASUS "Default mode" or MSI "Boost". Not a measured clock, the OC mode clock or another card's rating. AMD's boost clock is a maximum burst clock. NVIDIA's is its rated boost clock. Compare within one chip maker only. When the card ships in its OC BIOS position, as the PowerColor Hellhound does, that BIOS clock is stored here and the OC mode field stays empty. The other BIOS clock goes in the source note.

3,060MHz1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Boost Clock: up to 3060 MHz. Sapphire publishes one clock set and no separate OC mode.

3,100MHz1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Boost Clock Up To 3100 MHz. The key features read OC: 3100MHz Boost Clock. The page names no second clock mode.

Boost clock in OC modeiBoost clock the card maker states for its OC mode, set in its software or with a BIOS switch, e.g. ASUS "OC mode" or MSI "Extreme Performance".

Not available

Not available

Reference boost clockiThe chip maker's boost clock for this GPU. It shows how far the card is factory overclocked.

2,970MHz3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Boost Frequency: up to 2970 MHz.

2,970MHz18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Boost Frequency: Up to 2970 MHz. Game Frequency 2400 MHz for the reference GPU.

Memory

0 of 5 differ

VRAMiGraphics memory on the card. A card with another memory size is another product.

16GB1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

16GB1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 202618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Max Memory Size 16 GB.

VRAM type

GDDR61Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Published as 16GB/256 bit GDDR6. The menu text writes DDR6.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

GDDR61Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 202618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Memory Type GDDR6.

Memory bus width

256bits1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

256bits1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 202618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Memory Interface 256-bit.

Memory speediEffective data rate per pin, e.g. 28 for GDDR7 at 28 Gbps. A memory clock published as 28000 MHz effective is 28 Gbps.

20Gbps1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Memory Clock: 20 Gbps effective.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

20Gbps1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Memory Clock: 20 Gbps.18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Memory Speed Up to 20 Gbps.

Memory bandwidthiPeak bandwidth between the GPU and its VRAM, as published. Effective bandwidth figures that include the cache do not count.

640GB/s3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Published as up to 640 GB/s.

640GB/s1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Memory Bandwidth: Up to 640 GB/s.18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Memory Bandwidth Up to 640 GB/s.

Connectivity

3 of 12 differ

PCIe generationiHighest PCIe generation the card supports. In an older slot it runs at that slot's generation.

51Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20263Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026

51Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Bus Type: PCI-E 5.0.18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Bus Type PCIe 5.0 x16.

PCIe lanesiElectrical lanes the card uses. Many 8-lane cards have a full-length x16 connector. In a PCIe 4.0 slot an 8-lane card has half the link bandwidth of a 16-lane card.

161Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Interface PCI-Express 5.0 x16.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Bus Type PCIe 5.0 x16.

1618Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Bus Type PCIe 5.0 x16.

Display outputsiPhysical video connectors on the card, one row per type and version. USB-C is a USB Type-C port that carries video.

ASapphire Nitro+ Radeon RX 9070 XT OC 16GB

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	2	Not available
DisplayPort	2.1a UHBR13.5	2	54

Source1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 20262x HDMI and 2x DisplayPort 2.1a. Sapphire gives no HDMI version, no DisplayPort link class and no bandwidth. HDMI 2.1b is AMD's figure for the GPU. UHBR13.5 and 54 Gbps come from the 3DTested review of the GPU, and HWCooling confirms the Nitro+ has the usual UHBR13.5 ports.6Review3dtested.com/pc-components/gpus/amd-radeon-rx-9070-xt-review/2Read 14 October 2026Review of a PowerColor RX 9070 XT: the DisplayPort 2.1a ports are UHBR13.5, 54 Gbps, not UHBR20. A link rate of the GPU's display engine, so it holds for every RX 9070 XT board.

BXFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1a UHBR13.5	3	54

Source1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Outputs: DisplayPort 2.1 x3 and HDMI 2.1 x1. XFX names no HDMI revision and no DisplayPort link class. HDMI 2.1b and DisplayPort 2.1a are AMD's figures for the GPU. UHBR13.5 and 54 Gbps come from the reference table in the Guru3D review of this card.6Reviewguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-reviewRead 15 October 2026Page 4 reference specification table for the RX 9070 XT: HDMI 2.1b and DisplayPort 2.1*a UHBR13.5. UHBR13.5 is 54 Gbps.

Display outputs in totaliPhysical video connectors on the card.

4=CalculatedFrom Display outputs

4=CalculatedFrom Display outputs

HDMI ports

2=CalculatedFrom Display outputs

1=CalculatedFrom Display outputs

DisplayPort ports

2=CalculatedFrom Display outputs

3=CalculatedFrom Display outputs

Highest HDMI version

2.1b=CalculatedFrom Display outputs

2.1b=CalculatedFrom Display outputs

Highest DisplayPort version

2.1a UHBR13.5=CalculatedFrom Display outputs

2.1a UHBR13.5=CalculatedFrom Display outputs

Fastest DisplayPort linkiHighest stated DisplayPort link rate on the card.

54Gbps=CalculatedFrom Display outputs

54Gbps=CalculatedFrom Display outputs

Max displaysiDisplays the card drives at the same time.

41Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Displays: Maximum 4 Displays.

422Retailer pagepugetsystems.com/parts/Video-Card/AMD-Radeon-RX-9070-XT-16GB-16333Read 15 October 2026Description: up to four displays at a maximum resolution of 7680 x 4320. A chip-level figure, since XFX states none.

Max output resolutioniHighest stated output resolution and its refresh rate at that resolution. Do not combine a resolution and a refresh rate from different modes. DSC and port conditions belong in the source note. When the card maker states only the resolution, take the refresh rate at that resolution from the chip maker. When two ports differ, store the highest mode and name the port in the source note.

Resolution7680 × 4320 pxRefresh rate144 Hz1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Resolution: HDMI 7680x4320 and DisplayPort 2.1a 7680x4320. Sapphire gives no refresh rate. The 144 Hz is AMD's 8K figure.4Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 14 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, up to 8K 144 Hz with 12-bit HDR. Sapphire states 7680 x 4320 for both HDMI and DisplayPort and gives no refresh rate.

Resolution7680 × 4320 pxRefresh rate144 Hz19Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026AMD Radiance Display Engine supports DisplayPort 2.1a and HDMI 2.1b, with refresh rates up to 8K 144 Hz, 12-bit HDR. XFX states no output maximum.

HDCP version

Not available

Not available

Video engine

0 of 4 differ

Video encodersiHardware encode engines, e.g. 3 for "3x NVENC". Intel multi-format codec engines both encode and decode and count here and in video decoders. AMD publishes no engine counts. Leave it empty until an AMD document gives them.

Not available

Not available

Video decodersiHardware decode engines, e.g. 2 for "2x NVDEC". AMD publishes no engine counts. Leave it empty until an AMD document gives them.

Not available

Not available

Hardware video encodeiCodecs the maker states the GPU encodes in hardware.

H.264, H.265 (HEVC), AV13Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 encode: Yes.

H.264, H.265 (HEVC), AV118Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 encode: Yes.

Hardware video decodeiCodecs the maker states the GPU decodes in hardware.

H.264, H.265 (HEVC), VP9, AV12Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026Footnote 4 on the ASUS page: video codec acceleration includes at least HEVC (H.265), H.264, VP9 and AV1. AMD lists H.264, H.265 and AV1 decode only, so VP9 comes from this footnote about the GPU.3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 decode is from the ASUS page footnote on codec acceleration.

H.264, H.265 (HEVC), VP9, AV16Reviewguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-reviewRead 15 October 2026Page 4 codec table: decode VP9, H.264, H.265 and AV1 on RDNA 4. VP9 has no encode.18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 20264K H264, H265/HEVC and AV1 decode: Yes. VP9 decode is from the Guru3D codec table.

Graphics features

0 of 5 differ

DirectXiAs published, e.g. "12 Ultimate".

12 Ultimate1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026AMD Features: Microsoft DirectX 12 Ultimate.

12 Ultimate1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Technologies: Microsoft DirectX 12 Ultimate.

VulkaniAs published. It can rise with drivers.

1.47Certification listkhronos.org/conformance/adopters/conformant-products/vulkanRead 14 October 2026AMD submissions 969 and 970, dated 2026-01-01, list the Radeon RX 9070 XT as Vulkan 1.4 conformant.

1.421Certification listkhronos.org/conformance/adopters/conformant-products/vulkanRead 15 October 2026Conformant products list the Radeon RX 9070 XT with Vulkan 1.4 conformance tests (CTS 1.4.3.3 on Windows 10).

OpenGLiAs published.

4.62Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026ASUS tech spec page for an RX 9070 XT card states OpenGL 4.6. Sapphire and AMD publish no OpenGL version. A feature of the GPU and driver, not of the card.

4.620Spec databasehardwaredealz.com/hardware/gpu/amd-radeon-rx-9070-xt-16gb/technische-datenRead 15 October 2026OpenGL 4.6.

Upscaling technologiesiThe maker's upscaling names with version, e.g. "DLSS 4", "FSR 4", "XeSS 2". Game support varies. A bundle name such as FSR Redstone is not an upscaler name, so its upscaler is written with its version, such as FSR 4. When the card maker and the chip maker write different versions, the chip maker's spec table wins. When the chip maker names no version, as NVIDIA writes DLSS for RTX 30 cards, the name is stored without one.

FSR 41Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026AMD FidelityFX Super Resolution 4 with AI Upscaling.

FSR 419Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026AMD FidelityFX Super Resolution 4 (FSR 4) on the Radeon RX 9000 Series.

Frame generationiThe maker's frame generation names, e.g. "DLSS Multi Frame Generation", "FSR Frame Generation", "AMD Fluid Motion Frames 2". Driver-level features count. Game support varies. Chip-level lists are copied the same way into every card with that GPU. Versions are written with the major number only, so AMD Fluid Motion Frames 2.1 is AMD Fluid Motion Frames 2.

FSR Frame Generation, AMD Fluid Motion Frames 21Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026AMD Fluid Motion Frames 2 technology and AMD HYPR-RX with AFMF 2. FSR Frame Generation is from the ASUS page for the same GPU, which names FSR 4 with frame generation.2Maker product pageasus.com/us/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16gRead 14 October 2026ASUS page for an RX 9070 XT card: FSR 4 image upscaling with advanced frame generation in supported games. A feature of the GPU and driver, not of the card.

FSR Frame Generation, AMD Fluid Motion Frames 219Press releaseamd.com/en/newsroom/press-releases/2025-2-28-amd-unveils-next-generation-amd-rdna-4-architectu.htmlRead 15 October 2026FSR 4 combines with FSR 3.1 frame generation. HYPR-RX includes AMD Fluid Motion Frames 2.1, written as Fluid Motion Frames 2 like the other AMD cards.

Power

3 of 4 differ

Board poweriDefault board power or power limit of this card. Use the card maker's figure first: NVIDIA Total Graphics Power, AMD Total or Typical Board Power, Intel TBP. A row on the card maker's own page counts under any label, such as Power Consumption or TDP. When the card maker states none, a reviewer's reading of the default power limit counts, and the source note names the reader and the tool. Retail feed fields such as "Power consumption (typical)" do not count. AMD's Typical Board Power and the power limit can differ. When both are known, store the default-mode power limit. The reference figure is not proof of a partner card's power. Other BIOS modes go in the source note. A reviewer who only relays a maker figure has not read the power limit.

330W1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Power Consumption: 330W Typical Board Power. The reference card is 304 W.5Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026TBP rises to 330 W.20Reviewhwcooling.net/en/sapphire-nitro-radeon-rx-9070-xt-oc-review-aesthetics-firstRead 14 October 2026Page 1: power limit raised from the reference 304 W to 330 W, adjustable from -30 to +10 percent (231 to 363 W). Matches Sapphire's 330 W.

Not available

Reference board poweriThe chip maker's board power for this GPU. It is a chip spec and repeats in every card with this GPU.

304W3Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 14 October 2026Typical Board Power (Desktop) 304 W.

304W18Maker product pageamd.com/en/products/graphics/desktops/radeon/9000-series/amd-radeon-rx-9070xt.htmlRead 15 October 2026Typical Board Power (Desktop) 304W. Minimum PSU Recommendation 750W.

PSU wattage (card maker)iThe PSU wattage the card maker lists for a full system with this card, whether it calls it Recommended, Minimum or Required. NVIDIA calls it Required System Power, AMD Minimum PSU Recommendation. When a maker lists both a recommendation and a lower minimum, store the recommendation and note the minimum. Makers differ for the same GPU, so compare cards of one maker only.

850W1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026System Requirement: Minimum 850 Watt Power Supply. Sapphire states no separate recommendation. AMD's reference minimum is 750 W.

800W1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Requirements: Minimum Power Supply Requirement 800 watt. AMD's own figure for the GPU is 750 W.

Power connectoriSupplementary power inputs on the card. 16-pin with no revision means the maker does not say 12V-2x6 or 12VHPWR. Use 12V-2x6 or 12VHPWR only when the card maker's page or manual names it. Do not infer it from the GPU generation or from a reviewer's or retailer's wording.

12V-2x61Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 202612V-2x6(H++) external power connector. A 12V-2x6 to 3x8-pin adapter is included for power supplies without 12V-2x6. The connector is hidden under the magnetic backplate cover (STEALTH Hidden Power Cable).

3 x 8-pin PCIe1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026External Power: 3x PCI-E 8 pin connections.

Cooling

1 of 5 differ

Cooler typeiOpen air covers axial fans that blow onto the heatsink, including flow-through designs. All-in-one liquid is a card with an attached radiator. A water block needs a custom loop. Passive means no fan, and the fan count is 0.

Open air1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Tri-X Cooling with three AeroCurve fans. Free Flow design with tunneled fins. The fans blow onto a transverse fin stack, with a foam insert partly closing the rear (HWCooling).

Open air1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Thermal Solution: 3 Fan Magnetic Air. Nickel-plated copper vapor chamber, double ball bearing fans and 6 mm heatpipes. The fans blow onto the heatsink.

FansiFans mounted on the card. Radiator fans of an all-in-one cooler are not counted.

31Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Tri-X: a trio of fans running anticlockwise.

31Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Thermal Solution: 3 Fan Magnetic Air.

Radiator sizeiLiquid-cooled cards only. The nominal size class from the fan positions, e.g. 240 or 360.

Not available

Not available

Fan stop at low loadiThe fans stop below a temperature or load threshold, e.g. ASUS 0dB or MSI Zero Frozr. A maker's semi-passive or 0dB text counts. A threshold goes in the source note.

Yes17Reviewguru3d.com/review/sapphire-nitro-radeon-rx-9070-xt-review/page-8Read 14 October 2026Acoustic page: the card turns down the fans in passive mode at desktop idle. No temperature threshold is given.

Yes1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026The Zero DB Fan System lowers fan speed all the way down to Zero RPM. No temperature threshold is stated.

Dual BIOSiA switch on the card selects between two factory firmware profiles, e.g. Performance and Quiet.

No20Reviewhwcooling.net/en/sapphire-nitro-radeon-rx-9070-xt-oc-review-aesthetics-firstRead 14 October 2026Page 1: unlike earlier high-end Nitro+ models, this card has only one BIOS.

Yes6Reviewguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-reviewRead 15 October 2026Page 2 and page 3: the card has two BIOS, one set to an OC mode and one with factory defaults, but both are configured the same at stock (clocks and TGP).

Dimensions and weight

6 of 8 differ

LengthiCard length along the PCIe connector, from the bracket to the far end. Makers write it as L. Makers write L x W x H. W is the card height and H is the thickness. NVIDIA calls the height Width. Retail feeds relabel the sides as Height, Width or Depth, so decide by size: length is the longest side and thickness the shortest. When the maker lists sizes with and without the bracket, store the size with the bracket.

330.8mm1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Form Factor: Dimension 330.8(L) x 128.5(W) x 65.68(H) mm. Sapphire does not say whether the bracket is included.5Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Measuring 330.8 mm (L) x 128.5 mm (W) x 65.68 mm (H), the same as Sapphire.

360mm1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Card Dimension 36 x 15.5 x 7.2 cm, listed as estimated. PC Perspective gives 360 x 155 x 72 mm. The page does not say whether the bracket or the power plug is included.

HeightiFrom the PCIe connector edge to the top of the card. The source note says when the bracket or the power plug is included. Makers write L x W x H. W is the card height and H is the thickness. NVIDIA calls the height Width. Retail feeds relabel the sides as Height, Width or Depth, so decide by size: length is the longest side and thickness the shortest. When the maker lists sizes with and without the bracket, store the size with the bracket.

128.5mm1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Second value of 330.8 x 128.5 x 65.68 mm. Sapphire writes it as W.

155mm1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Second value of 36 x 15.5 x 7.2 cm.

ThicknessiFrom the bracket face to the back of the cooler. Makers often write it as H. Makers write L x W x H. W is the card height and H is the thickness. NVIDIA calls the height Width. Retail feeds relabel the sides as Height, Width or Depth, so decide by size: length is the longest side and thickness the shortest. When the maker lists sizes with and without the bracket, store the size with the bracket.

65.68mm1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Third value of 330.8 x 128.5 x 65.68 mm. Sapphire writes it as H.

72mm1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Third value of 36 x 15.5 x 7.2 cm.

Slot widthiThickness in expansion-slot units as the card maker states it, e.g. 2.5 or 3.125. Not the number of slots the card covers in a case. Only a slot figure the card maker states. Do not compute it from the thickness. Retail feeds give different values for the same card. A slot figure in a row labelled Height, as on Palit, counts.

3.2slots1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Form Factor: 3.2 slot, ATX.

3.5slots1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Card Profile: 3.5 slot.

Low profileiThe maker states the card fits low-profile slots, usually with a half-height bracket in the box. False when a data sheet says full-height bracket (FH/FL or FH/HL). Left out otherwise.

Not available

Not available

NVIDIA SFF-ReadyiThe card is on NVIDIA's SFF-Ready Enthusiast GeForce list. Only GeForce cards can qualify. For a GPU class the list covers, the list decides, and a card missing from it is false. Below the 70 class, which the list does not cover, the card maker's own SFF-Ready claim counts. A retail title does not.

Not available

Not available

WeightiThe card alone, without support bracket, adapter or packaging. A liquid-cooled card includes its attached radiator and tubes. A weight rounded to whole kilograms, as some retail and distributor feeds print it, is not stored. A colour edition can state its own weight, so it is per variant. A feed weight that does not say whether it is the card or the package is not stored.

1,898g(4.2 lb)5Reviewclub386.com/amd-radeon-rx-9070-xt-reviewRead 14 October 2026Review of the Sapphire Nitro+ Radeon RX 9070 XT: the card weighs 1.89 kg. Agrees with KitGuru 1898 g with the backplate cover.10Reviewkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/2Read 14 October 2026Page 2: the card weighs 1591 g without the removable MagniPlate backplate cover and 1898 g with it. The cover ships attached in normal use. HWCooling gives 1.9 kg without the power adapter. Stored: 1898 g.16Reviewigorslab.de/en/amd-radeon-9070xt-and-9070-in-the-test-clock-energy-with-crowbar-and-at-least-some-reason-as-a-counterpoint/11Read 14 October 2026Teardown page: the Sapphire RX 9070 XT Nitro weighs 1863 g, 1953 g with the adapter. This is 35 g below KitGuru. The scale and the backplate cover state are not described. Stored: KitGuru 1898 g, which Club386 (1.89 kg) and HWCooling (1.9 kg) support.

Not available

Package weightiOne retail box with its contents. A weight rounded to whole kilograms in a retail or distributor feed is not stored. A feed weight that does not say whether it is the card or the package is not stored. A feed's gross weight is the package weight, and the same rounding rule applies.

Not available

2,350g(5.2 lb)1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Estimated Dimensions & Weights: Package Weight 2.35 kg (5.18 lb). The same figure is on the white and RX-97TMARGBA pages.

Lighting and software

1 of 3 differ

RGB lightingiDecorative lighting with selectable colours. A white logo or a single fixed colour does not count.

Yes1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026ARGB light bar, controlled in TriXX or synced through a 3-pin header on the card.

Yes1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Key features: ARGB With Sync Cable and a full-length 5-volt ARGB strip across the shroud. The A-RGB guide names no sync standard, only motherboard RGB software and OpenRGB, so no lighting ecosystem is stored.

Lighting synciSync standards the maker names, as a short name without a version, e.g. "ASUS Aura Sync", "MSI Mystic Light", "Gigabyte RGB Fusion". Leave it empty when the maker names only its own app. That goes in Software.

Not available

Not available

SoftwareiThe card maker's tuning software, not the chip maker's driver.

Sapphire TriXX1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026TriXX Supported.

Not available

Measured performance

4 of 6 differ

GPU clock while gaming (measured)iAverage GPU clock a reviewer logged in a game at the card's default settings, after warm-up. Game, resolution and BIOS mode are in the source note.

2,878MHz11Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/5Read 14 October 2026Page 5: average GPU clock over 30 minutes of A Plague Tale: Requiem, GPU-Z log, 2878 MHz. Default clocks and BIOS. Ryzen 7 9800X3D, MSI MPG X870E Carbon WiFi, MSI MPG Gungnir 300R Airflow case, Windows 11 23H2, driver 24.30.31.03 supplied to press. KitGuru lowers the clocks of OC cards to reference only for its fps benchmarks.

Not available

3DMark Time Spy graphicsiGraphics score, not the overall score. Measured by a reviewer, not claimed by the maker. A score the review does not label as graphics is left out.

30,686points19Measurementguru3d.com/review/sapphire-nitro-radeon-rx-9070-xt-review/page-22Read 14 October 2026Chart "3DMark: Time Spy - Graphics Score", DirectX 12, Async on, Windows 11 x64: 30686 for the highlighted Sapphire Nitro RX 9070 XT. The chart lists a second Sapphire RX 9070 XT Nitro entry at 30694.

30,694points9Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-22Read 15 October 2026Chart 3DMark: Time Spy - Graphics Score (DirectX 12, Async on, Windows 11): 30694. Test platform not stated for this chart.

3DMark Steel NomadiMeasured by a reviewer, not claimed by the maker.

Not available

Not available

3DMark Port RoyaliMeasured by a reviewer, not claimed by the maker.

18,611points20Reviewhwcooling.net/en/sapphire-nitro-radeon-rx-9070-xt-oc-review-aesthetics-firstRead 14 October 2026Page 13 chart "Port Royal Score": 18611 (graphics test 86.2 fps). Ryzen 7 9800X3D, Gigabyte X870 Aorus Elite WiFi7, 64 GB DDR5-6000, Fractal Design Meshify 2 case.

Not available

3DMark Speed WayiMeasured by a reviewer, not claimed by the maker.

Not available

Not available

Game frame ratesiReviewer frame rates for this card. The test CPU, memory and driver, frame generation, and whether the card ran at factory or reference clocks are in the source note.

ASapphire Nitro+ Radeon RX 9070 XT OC 16GB

Game	Width (px)	Height (px)	Preset	Upscaling	Ray tracing	Average FPS
Cyberpunk 2077	2560	1440	Ultra	Off	No	134.7
Cyberpunk 2077	3840	2160	Ultra	Off	No	63.9
Cyberpunk 2077	2560	1440	RT Ultra	Off	Yes	54.6
Cyberpunk 2077	3840	2160	RT Ultra	Off	Yes	26.7
Cyberpunk 2077	2560	1440	RT Overdrive	Off	Yes	26
Cyberpunk 2077	3840	2160	RT Overdrive	Off	Yes	12.1
F1 24	2560	1440	Ultra High, TAA	Off	Yes	99
F1 24	3840	2160	Ultra High, TAA	Off	Yes	56
Metro Exodus Enhanced Edition	2560	1440	Extreme	Not available	Not available	86.2
Metro Exodus Enhanced Edition	3840	2160	Extreme	Not available	Not available	51.4

Source20Reviewhwcooling.net/en/sapphire-nitro-radeon-rx-9070-xt-oc-review-aesthetics-firstRead 14 October 2026Pages 4, 7 and 10: chart values with scaling off at 2560 x 1440 and 3840 x 2160 in Cyberpunk 2077 (Ultra without ray tracing, RT Ultra, RT Overdrive path tracing), F1 24 (Ultra High, TAA, Singapore lap in rain, ray tracing active) and Metro Exodus Enhanced Edition (Extreme). The charts show fps without naming the statistic. The review calls the F1 24 value the average frame rate. Ryzen 7 9800X3D, Meshify 2 case, system fans at 780 rpm. The review does not state 1 % lows. Metro Exodus ray tracing and upscaling are not stated, so those keys are left out. No frame generation.

BXFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

Game	Width (px)	Height (px)	Preset	Ray tracing	Average FPS
Hitman 3	1920	1080	Ultra	Not available	448
Hitman 3	2560	1440	Ultra	Not available	324
Hitman 3	3840	2160	Ultra	Not available	185
Assassin's Creed Mirage	1920	1080	Ultra	Not available	199
Assassin's Creed Mirage	2560	1440	Ultra	Not available	162
Assassin's Creed Mirage	3840	2160	Ultra	Not available	104
Shadow of the Tomb Raider	1920	1080	Highest Details, Pure Hair On, HBAO+	Not available	316
Shadow of the Tomb Raider	2560	1440	Highest Details, Pure Hair On, HBAO+	Not available	230
Shadow of the Tomb Raider	3840	2160	Highest Details, Pure Hair On, HBAO+	Not available	124
Far Cry 6	1920	1080	Ultra High quality	Not available	244
Far Cry 6	2560	1440	Ultra High quality	Not available	199
Far Cry 6	3840	2160	Ultra High quality	Not available	123
The Witcher 3: Wild Hunt	1920	1080	Max detail, 16:1 AF, AA	Not available	400
The Witcher 3: Wild Hunt	2560	1440	Max detail, 16:1 AF, AA	Not available	285
The Witcher 3: Wild Hunt	3840	2160	Max detail, 16:1 AF, AA	Not available	152
F1 2023	1920	1080	Ultra High quality, TAA	Yes	159
F1 2023	2560	1440	Ultra High quality, TAA	Yes	114
F1 2023	3840	2160	Ultra High quality, TAA	Yes	62
The Callisto Protocol	1920	1080	Ultra	Yes	259
The Callisto Protocol	2560	1440	Ultra	Yes	217
The Callisto Protocol	3840	2160	Ultra	Yes	148
Forspoken	1920	1080	Ultra	Yes	151
Forspoken	2560	1440	Ultra	Yes	115
Forspoken	3840	2160	Ultra	Yes	65

Source10Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-10Read 15 October 2026Hitman 3: Ultra quality, DirectX 12, 1080p 448, 1440p 324, 4K 185. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.11Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-11Read 15 October 2026Assassin's Creed Mirage: Ultra quality, DirectX 12, 1080p 199, 1440p 162, 4K 104. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.12Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-12Read 15 October 2026Shadow of the Tomb Raider: Highest details, Pure Hair on, HBAO+, DirectX 12, 1080p 316, 1440p 230, 4K 124. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.13Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-13Read 15 October 2026Far Cry 6: Ultra High quality, DirectX 12, 1080p 244, 1440p 199, 4K 123. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.14Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-14Read 15 October 2026The Witcher 3: Max detail, 16:1 AF and AA, DirectX 11, 1080p 400, 1440p 285, 4K 152. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.15Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-15Read 15 October 2026F1 2023: Ultra High quality, ray tracing, TAA, Bahrain, DirectX 12, 1080p 159, 1440p 114, 4K 62. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.16Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-16Read 15 October 2026The Callisto Protocol: Ultra quality, ray tracing enabled, 1080p 259, 1440p 217, 4K 148. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.17Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-17Read 15 October 2026Forspoken: Ultra quality, ray tracing enabled, 1080p 151, 1440p 115, 4K 65. Average fps. Upscaling is not stated and the chart shows no 1 percent lows. Radeon driver 25.3.1, Windows 11. The review lists two test platforms (Ryzen 9 7950X3D and Ryzen 7 9800X3D, 32 GB DDR5-6000) and does not say which one ran this game. Card at its default clocks. Values read from the bar of the XFX Mercury in the review chart.

Measured noise and temperature

5 of 5 differ

Fan noise per loadiSound pressure a reviewer measured from the card. Profile is the BIOS mode or fan profile as the reviewer names it. Fixed fan-speed tests are not a load. Compare only at the same distance. A row needs a distance. Take it from the review or from the site's test-method page. Leave the row out when neither states it. A synthetic or render load, such as a 3DMark loop or FurMark, is max load. Sone values are not converted. When a review gives two distances for one test, the row is left out.

ASapphire Nitro+ Radeon RX 9070 XT OC 16GB

Profile	Load	Distance (cm)	Noise (dB(A))
Default	Gaming	30	33

Source13Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/8Read 14 October 2026Page 8: sound meter 1 foot (about 30 cm) from the card, noise floor 32 dBA, passive PSU, CPU and system fans disabled. Reading under load from 30 minutes of Cyberpunk 2077. Total system noise 33 dBA with the fans at 25 percent, 1215 rpm. Default fan settings, the card has one BIOS.

BXFX Mercury Radeon RX 9070 XT OC Magnetic Air Edition with RGB

Profile	Load	Distance (cm)	Noise (dB(A))
Default	Max load	40	39

Source8Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-8Read 15 October 2026Guru3D noise chart (load, dBA): XFX Mercury 39 dBA. Acoustic Levels at 40 cm with a dBA meter in a room that is not a test chamber. The load is the GPU stress loop, so it is stored as max load. The page text says the card sits in a 39-40 dBA range under stress. The card is passive at idle. The BIOS mode is not named, and both BIOS are set the same at stock.

Fan noise while gamingiLoudest gaming row, so the loudest BIOS mode tested. Compare only at the same distance.

33dB(A)=CalculatedFrom Fan noise per load

Not available

GPU temperature while gamingiGPU core sensor after warm-up in a game, at default fan settings. Not the hot spot. A synthetic stress test does not count. The average or plateau reading after the card has warmed up, never the peak. A run of a few minutes does not count. The run length goes in the source note.

59°C12Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/6Read 14 October 2026Page 6: GPU temperature chart, steady state after 30 minutes of A Plague Tale: Requiem, 59.0 C. The review does not state the room temperature.

Not available

Hot spot temperature while gamingiHottest sensor on the GPU die under the same game load. The average or plateau reading after the card has warmed up, never the peak. A run of a few minutes does not count. The run length goes in the source note.

85°C12Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/6Read 14 October 2026Page 6: hot spot 85.0 C in the same 30-minute run.

Not available

Memory temperature while gamingiVRAM sensor under the same game load. The average or plateau reading after the card has warmed up, never the peak. A run of a few minutes does not count. The run length goes in the source note.

90°C12Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/6Read 14 October 2026Page 6: memory temperature chart, 90 C in the same 30-minute run.

Not available

Measured power

2 of 2 differ

Card power at idle (measured)iPower of the card alone at the desktop with one display. A hardware capture of slot and cable power comes first, a software reading of total board power second. The method is in the source note. Wall power does not count.

19W18Measurementguru3d.com/review/sapphire-nitro-radeon-rx-9070-xt-review/page-5Read 14 October 2026Page 5 chart "Idle power consumption Watt": 19 W for the Sapphire Nitro RX 9070 XT. Guru3D measures the 12 V rails and the slot with a power interposer. The review does not state the display count.

17W7Measurementguru3d.com/review/xfx-radeon-rx-9070-xt-mercury-magnetic-review/page-5Read 15 October 2026Guru3D idle power chart: XFX Mercury 17 W. Method on the page: a power interposer on the 12 V rails and the PCIe slot, polled every 100 ms, so the reading is the card alone and not wall power. Display setup is not stated. The same chart gives 16 W for the reference-class Radeon RX 9070 XT.

GPU power while gaming (measured)iAverage power of the card alone in a game at default settings. Same method rule as idle power. A mix of games, synthetic loads or stress tests does not count. Total board power, such as PCGH's Boardpower, not the GPU chip or Graphics Power reading alone.

346.5W14Measurementkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/10Read 14 October 2026Page 10: NVIDIA PCAT capture of slot and cable power, card only, A Plague Tale: Requiem at 3840 x 2160 Ultra, 346.5 W on the chart. Guru3D measured 349 W typical with a power interposer.

Not available

In the box

2 of 3 differ

In the box

Quick installation guide and leaflets, L-shape support bracket, 3-pin 5V ARGB cable, Magnetic backplate cover (MagniPlate), 12V-2x6 to 3 x 8-pin PCI Express power adapter1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Accessories Bundled: L-Shape Support Bracket, 3pin 5V ARGB Cable, Magnetic Backplate, 12V-2x6(H++) to PCI Express 3x8-pin power adapter. HWCooling and KitGuru add the quick installation manual and leaflets.10Reviewkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/2Read 14 October 2026Page 2: two quick-start guides, an ARGB cable, a triple 8-pin power adapter and a GPU support bracket.

Quick Installation Guide, GPU Support Stand, RGB Sync Cable1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026Package Contents: Quick Installation Guide 1, GPU Support Stand 1, RGB Sync Cable 1.

Power adapter cable includediAn adapter from PCIe 8-pin cables to the card's 16-pin input is in the box.

Yes1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Accessories Bundled: 12V-2x6(H++) to PCI Express 3x8-pin power adapter.10Reviewkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/2Read 14 October 2026

No1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026The package list names no adapter.

Support bracket includediAn anti-sag holder or support bracket is in the box.

Yes1Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026Accessories Bundled: L-Shape Support Bracket.10Reviewkitguru.net/components/graphic-cards/dominic-moass/sapphire-rx-9070-xt-nitro-review/2Read 14 October 2026

Yes1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026GPU Support Stand 1.

Links

Not compared

Product page

www.sapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr61Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026

xfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgb1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026

Spec sheet

www.sapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr61Maker product pagesapphiretech.com/en/consumer/nitro-radeon-rx-9070-xt-16g-gddr6Read 14 October 2026

xfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgb1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026

Manual

Not available

cdn.prod.website-files.com/5cfd6904982a74dce7f1d35c/67dd4fc644c9d343104940ed_quickinstallguide_2025.pdf4Owner's manualcdn.prod.website-files.com/5cfd6904982a74dce7f1d35c/67dd4fc644c9d343104940ed_quickinstallguide_2025.pdfRead 15 October 2026Quick Guide for the AMD Design Series graphics cards, linked from the product page under Support and Downloads. It is generic and covers installation only.

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

Not available

Not available

Warranty

1 of 1 differ

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

Not available

3years1Maker product pagexfxforce.com/shop/xfx-mercury-amd-radeon-rx-9070xt-oc-magnetic-air-edition-with-rgbRead 15 October 2026XFX Magnetic Air Warranty: 3 year limited hardware warranty, and 5 years for the Magnetic Air fans only. The page is XFX's US store.

Both are also in the API. Back to all graphics cards.
