Appliances / Cordless vacuums

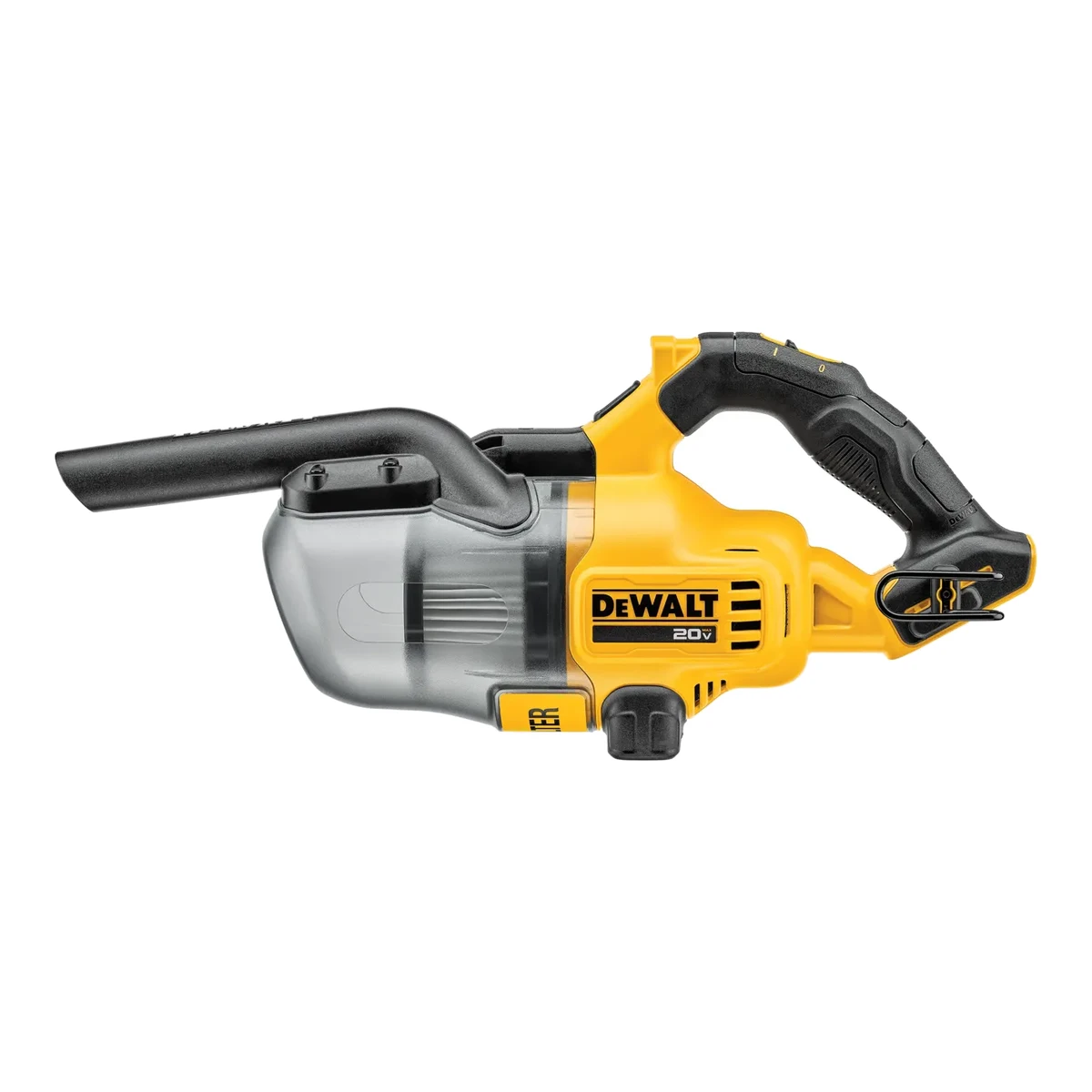

DEWALT 20V MAX Cordless Dry Hand Vacuum DCV501HB

DEWALTCordless vacuum

20V MAX Cordless Dry Hand Vacuum DCV501HB

Released April 2022.4Reviewprotoolreviews.com/dewalt-20v-max-cordless-dry-hand-vacuum-dcv501hbRead 23 October 2026Pro Tool Reviews article of 13 April 2022 calls the DCV501HB new and says it is available now where DeWalt products are sold. No maker press release was found, so the month is approximate. Last checked 23 October 2026.

Suction
65AW
Run time
21.4min
Bin
0.7L
Weight
Not available

24 of 65 fields known.

Compare with another cordless vacuumDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
DCV501HB1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page title is 20V Cordless Dry Hand Vacuum (Tool Only) and the SKU is DCV501HB.
GTIN / EAN
8859117187071Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Structured data lists Barcode 885911718707 for DCV501HB. The 12-digit UPC is stored.
Announced
Not available
Status
Available1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026US page lists DCV501HB as a current product with an Add to Cart control. The vacuum is sold as a bare tool.
Predecessor
Not available
Successor
Not available
Launch price (US)
$1494Reviewprotoolreviews.com/dewalt-20v-max-cordless-dry-hand-vacuum-dcv501hbRead 23 October 2026Article says the DCV501HB retails for $149 and was on sale for $129, bare tool. It is a US retail price in dollars, tax not included, and is stored as the launch price. The maker's page shows no price.
Launch price (EU)
Not available
Markets
US, CA1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026US page and the Canadian page dewalt.ca list the same model. Canada is added from the dewalt.ca page.2Maker product pagedewalt.ca/en-ca/product/dcv501hb/20v-max-cordless-dry-hand-vacuum-tool-onlyRead 23 October 2026Canadian page for DCV501HB titled 20V Cordless Dry Hand Vacuum (Tool only), with the same specification list and a bare tool notice.
Colours
Not available
Form factor
Handheld1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page calls it a Handheld Vacuum of vacuum type Hand. It comes with an extension tube, hose and floor nozzle, but the maker does not call it a stick vacuum or a 2-in-1.
Wet cleaning head
None1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Spec list shows Wet or Dry: Dry. The vacuum is a dry hand vacuum.3Owner's manualassets.dewalt.com/GLOBALBOM/QU/DCV501HB/1/Instruction_Manual/EN/DCV501_T1.pdfRead 23 October 2026Manual says this product is for dry pick-up only.

Suction and power

Suction power (claimed)
65AW1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Features list says 65 air watts with a 5.0Ah DCB205 battery pack, sold separately. The test standard is not stated. The page also says 46 CFM, which is the maker's airflow claim and is not stored as a measured value.2Maker product pagedewalt.ca/en-ca/product/dcv501hb/20v-max-cordless-dry-hand-vacuum-tool-onlyRead 23 October 2026Canadian page says 65 Air Watts with a 5.0Ah DCB205 battery pack, sold separately.
Max suction pressure (claimed)
Not available
Rated power
Not available
Motor speed (claimed)
Not available
Power modes
Not available
Automatic power adjustment
Not available
Dirt detection
Not available
Noise level (claimed)
Not available

Floor head and tools

We could not find any of these 4 fields. Show them
Floor heads included
Not available
Floor head light
Not available
Bending wand
Not available
Stands on its own
Not available

Bin and filtration

Dustbin capacity
0.7L4Reviewprotoolreviews.com/dewalt-20v-max-cordless-dry-hand-vacuum-dcv501hbRead 23 October 2026Article says the 23.5 ounce capacity fills 15 times per charge, which is 0.695 l. The maker states no volume.5Retailer pagethepowertoolstore.com/products/dewalt-dcv501hbRead 23 October 2026Technical specifications list tank capacity 0.7 L (23.6 oz). Tool Nut lists 0.184 gal and 23.6 oz, and a Canadian distributor lists 0.18 gal. The 0.7 l figure is stored.6Retailer pagetoolnut.com/dewalt-dcv501hb-20v-max-cordless-handheld-hepa-stick-vacuum-tool-only.htmlRead 23 October 2026Spec table lists capacity 0.184 gal / 23.6 oz, which is 0.697 l. Its table also lists a tool weight of 2.3 lbs, while Power Tool Store lists 3.3 lbs for the tool only and the maker lists an assembled product weight of 6.9 lbs. The weight is not stored.
Filter
HEPA1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page says a HEPA filter allows clean efficient cleanup of fine dust and drywall. The replacement filter is DCV5011H. No capture percentage or particle size is stated by the maker.
Sealed filtration
Not available
Particle capture (claimed)
Not available
Smallest captured particle (claimed)
Not available
Washable filter
Yes3Owner's manualassets.dewalt.com/GLOBALBOM/QU/DCV501HB/1/Instruction_Manual/EN/DCV501_T1.pdfRead 23 October 2026Cleaning section says to wash the filters regularly using warm, soapy water and to make sure they are completely dry before use. The filter is reusable and the maker recommends replacing it every 6 to 9 months.

Battery and run time

Battery voltage
18V1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Footnote says the maximum initial battery voltage, measured without a workload, is 20 and the nominal voltage is 18. The pack is not in the box, so 18 V is the nominal voltage of the 20V MAX packs the tool takes.
Battery capacity
Not available
Removable battery
Yes3Owner's manualassets.dewalt.com/GLOBALBOM/QU/DCV501HB/1/Instruction_Manual/EN/DCV501_T1.pdfRead 23 October 2026The battery pack slides into the tool handle and is removed by pressing the battery release button and pulling it out. No tools are needed.
Batteries included
01Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Spec list shows Tool Only: Yes, Total Number of Batteries: 0 and Charger Included: No.
Run time (claimed)
Power levelToolRun time (min)
HighestNon-motorized tool21.4
Source1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page says up to 21.4 minutes of runtime per charge using a DCB205 5.0Ah battery, sold separately, and up to 15 tank fills per charge. The tool has one on/off switch and no power modes, so it is stored as the highest level with a non-motorized tool. The manual gives 22 minutes of average effective usage when fully charged and names no battery.2Maker product pagedewalt.ca/en-ca/product/dcv501hb/20v-max-cordless-dry-hand-vacuum-tool-onlyRead 23 October 2026Canadian page says up to 21.4 minutes of runtime per charge using a DCB205 battery, sold separately.
Max run time (claimed)
21.4min
Run time at highest power (claimed)
21.4min
Full charge time (claimed)
Not available

Dock

Auto-empty dock
No1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026No dock is listed. The easy-empty canister is emptied by hand.3Owner's manualassets.dewalt.com/GLOBALBOM/QU/DCV501HB/1/Instruction_Manual/EN/DCV501_T1.pdfRead 23 October 2026The components list shows no dock. The dust bowl is removed and emptied by hand.
Dock dust container
Not available
Dock dust capacity
Not available
Days between dock emptying (claimed)
Not available

Display and app

Display
None3Owner's manualassets.dewalt.com/GLOBALBOM/QU/DCV501HB/1/Instruction_Manual/EN/DCV501_T1.pdfRead 23 October 2026The components list names an on/off switch, dust bowl, release button, filter, battery, handle, belt hook, nozzle, extension, hose and tools. It lists no indicator or screen.
Wi-Fi
Not available
Companion app
Not available

Measured

We could not find any of these 7 fields. Show them
Airflow at the wand (measured)
Not available
Sealed suction (measured)
Not available
Suction at the floor head (measured)
Not available
Embedded sand pickup on carpet (measured)
Not available
Run time at highest power (measured)
Not available
Noise at highest power (measured)
Not available
Handle weight (measured)
Not available

Dimensions and weight

We could not find any of these 5 fields. Show them
Dimensions
Not available
Weight
Not available
Handheld weight
Not available
Dimensions in the dock
Not available
Weight with dock
Not available

Certifications

Other certifications
OSHA Table 1 compliance under housekeeping rules1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page says the HEPA filter follows OSHA Table 1 compliance under housekeeping rules.

In the box

In the box
20V MAX* Cordless Dry Hand Vacuum, Extension Tube, Flexible Hose, Crevice Nozzle, Round Brush, Gulper Brush, Floor Nozzle, Accessory Bag1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Includes list shows the vacuum, extension tube, flexible hose, crevice nozzle, round brush, gulper brush, floor nozzle and accessory bag. The description also mentions a belt hook, an accessory holder and the HEPA filter, which are not on the list.

Warranty

Manufacturer warranty (source market)
3years1Maker product pagedewalt.com/product/dcv501hb/20v-max-handheld-vacuumRead 23 October 2026Page lists a 3 Year Limited Warranty, 1 Year Free Service and a 90 Days Satisfaction Guarantee.

Compare with

Pick a cordless vacuum to see both side by side. Differences are marked yellow.

More cordless vacuum comparisons

Sources

We read 6 sources for this cordless vacuum. The numbers match the markers in the sheet.

  1. Read 23 October 2026Backs 16 fields
  2. Read 23 October 2026Backs 3 fields
  3. Read 23 October 2026Backs 6 fields
  4. Read 23 October 2026Backs 3 fields
  5. Read 23 October 2026Backs 1 field
  6. Read 23 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
