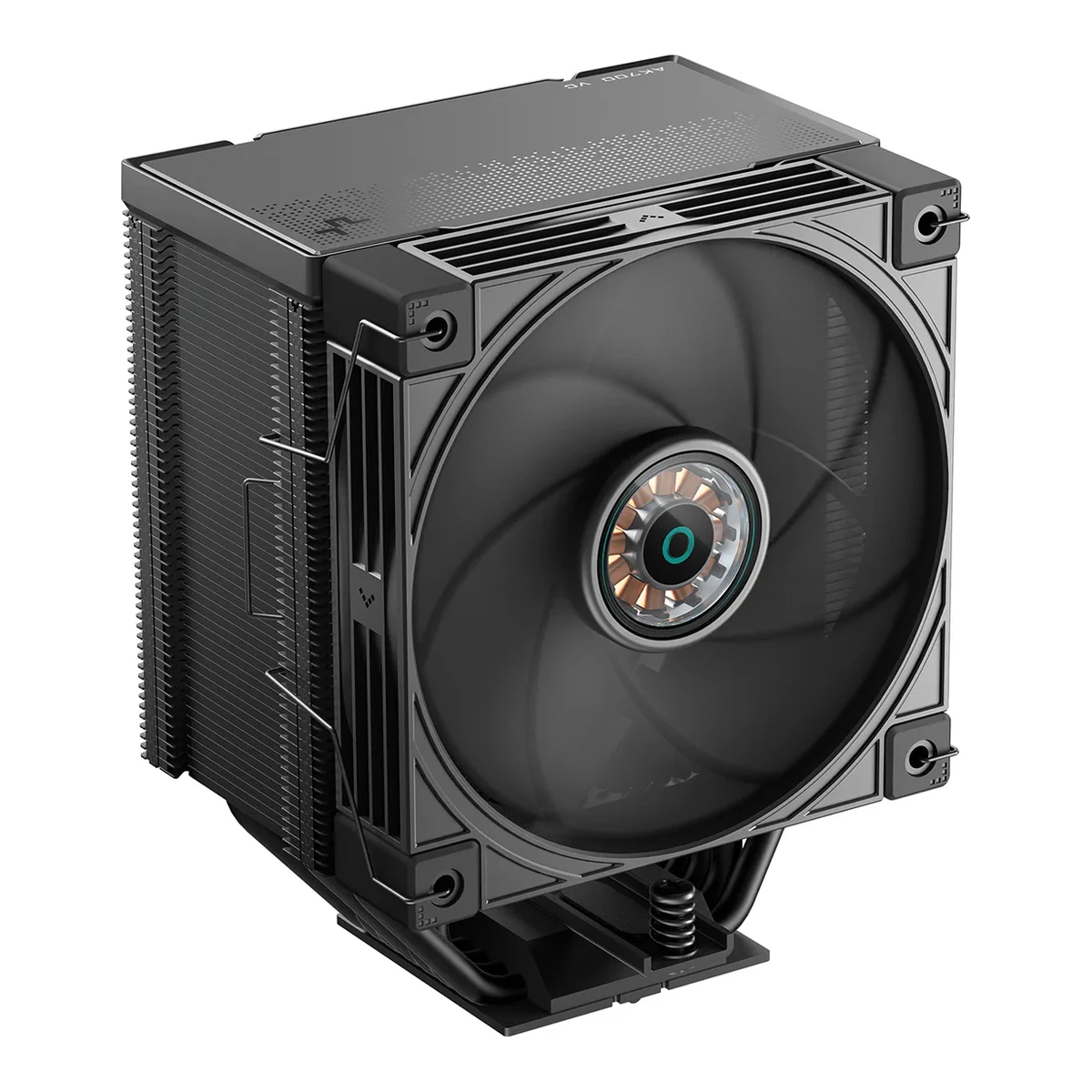

DeepCool AK700 VC

DeepCoolCPU cooler

AK700 VC

Released August 2026.4Press releasedeepcool.com/company/pressroom/newsrelease/2026/23338.shtmlRead 16 October 2026Release dated July 28 2026. It says the coolers will be available at authorized retailers and names no price. The first confirmed sale is Japan on 21 August 2026, so August is stored. Last checked 16 October 2026.

Cooler type
Air
Fans
1
Rated TDP
300W
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1155, LGA1151, LGA1150

29 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
AK1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026The page presents the AK700 VC as a new model of the AK series.
Model numbers
R-AK700VC-BKNNMN-GJD, R-AK700VC-WHNNMN-GJD1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026P/N R-AK700VC-BKNNMN-GJD for the black model. The white page (23084) gives R-AK700VC-WHNNMN-GJD.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-WH-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23084.shtmlRead 16 October 2026P/N R-AK700VC-WHNNMN-GJD.9Retailer pagegrosbill.com/deepcool-ak700-vc-169593Read 16 October 2026Manufacturer reference R-AK700VC-WHNNMN-GJD for the white model.
GTIN / EAN
6933412730385, 6933412730378, 4537694406901, 45376944069181Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Black EAN 6933412730385 on this page. The white page gives EAN 6933412730378. The Japan JAN codes 4537694406901 and 4537694406918 come from DeepCool's Japanese distributor ASK.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-WH-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23084.shtmlRead 16 October 2026EAN 6933412730378.7Retailer pageask-corp.jp/products/deepcool/cpu-cooler/ak700-vc.htmlRead 16 October 2026JAN 4537694406901 (black) and 4537694406918 (white), ASK codes FN2832 and FN2833. ASK is DeepCool's distributor in Japan.9Retailer pagegrosbill.com/deepcool-ak700-vc-169593Read 16 October 2026The white AK700 VC page lists EAN 6933412730378, which matches the DeepCool white page. The shop lists it at EUR 54.99 on order, which is a selling price and is not stored as a launch price.
Announced
3 June 20265Press articlepcgameshardware.de/CPU-Kuehler-Hardware-255512/News/Deepcool-ueberrascht-Kompakt-Vapor-Chamber-1542105Read 16 October 2026News of 3 June 2026: DeepCool showed the AK700 VC at Computex with no availability or price yet.
Status
Available6Press articlegdm.or.jp/pressrelease/2026/0817/648230Read 16 October 2026Japanese distributor news of 17 August 2026: sales of the black and white models start on 21 August 2026. The expected market prices are 11,980 JPY (black) and 12,980 JPY (white) with tax.
Predecessor
Not available
Successor
Not available
Launch price (US)
$69.998Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026Review of 29 September 2026: this cooler has an MSRP of USD 69.99. The review does not name the colour or the market and does not say if tax is included. The white price is not published, so the white variant has no price.
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026This page is the black AK700 VC. The white AK700 VC WH page has the same spec table and a white-coated fin tower.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-WH-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23084.shtmlRead 16 October 2026The page text names a single white-coated fin tower.4Press releasedeepcool.com/company/pressroom/newsrelease/2026/23338.shtmlRead 16 October 2026The AK700 VC air coolers come in black and white editions.
Cooler type
Air1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Side-flow single-tower cooler with one 120 mm fan.
Air cooler layout
Single tower1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Dense single-tower heatsink with seven heat pipes. The offset heat pipes give more clearance for tall memory and an unobstructed view of the RAM slots. The page gives no clearance height, so ram_clearance_mm is left out.
Rated TDP (claimed)
300W4Press releasedeepcool.com/company/pressroom/newsrelease/2026/23338.shtmlRead 16 October 2026Rated to handle up to 300W TDP.
Base material
Copper7Retailer pageask-corp.jp/products/deepcool/cpu-cooler/ak700-vc.htmlRead 16 October 2026The page says the second-generation vapor chamber has an optimized copper base (銅製ベース). The gdm article adds that the vapor chamber has a 1.2 mm copper cover. DeepCool's own pages do not name the material.
Thermal paste
Pre-applied8Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026The cooler comes with pre-applied thermal paste. The reviewer removed it and used Noctua NT-H2. The accessory list also names a thermal paste tube.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1155, LGA1151, LGA11501Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Application For: Intel LGA1851/1700/1200/1151/1150/1155 and AMD AM5/AM4. The overview says LGA115X and the list names LGA1151, LGA1150 and LGA1155, so only those three are stored.3Owner's manualdeepcool.com/download/pdf/AK700_VC.pdfRead 16 October 2026Install sections: Intel LGA1851, LGA1700, LGA1200 and LGA115X, AMD AM5 and AM4.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

Heat pipes
71Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Heatpipe: 6 mm x 7 pcs.
Heat pipe diameter
6mm1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026
Direct-contact heat pipes
No1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026The page describes a second-generation vapor chamber base that takes heat from the CPU and passes it into the seven heat pipes. The pipes do not touch the CPU.

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
Size (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
12012,70080.374.9836Fluid dynamic (FDB)4-pin PWM
Source1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Technical Spec: fan 120 x 120 x 25 mm, 2700 +/-10% rpm (max), 80.37 CFM, 4.98 mmAq (read as mmH2O), 36.0 dB(A) labelled Fan Noise, 4-pin PWM, fluid dynamic bearing, 12 VDC 0.41 A. One fan. The page gives no fan model name. 0-RPM start and stop is not stored as a minimum speed.
Fans
1

Display and lighting

RGB lighting
Yes1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 202612 white LEDs in the fan hub reveal the motor. They are single-colour white, not RGB and not addressable. The page lists no lighting header or controller.8Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026The fan has a white static LED in the centre and is not RGB.
Lighting standard
Not available
Built-in screen
None1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026The page lists no screen. EnosTech says the quad-segment display of the AK700 Digital NYX is not available on the AK700 VC.8Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026The AK700 Digital NYX has a quad-segment display that the AK700 VC does not have.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
No3Owner's manualdeepcool.com/download/pdf/AK700_VC.pdfRead 16 October 2026The only cable in the install steps is the fan lead to a 4-pin CPU_FAN or CPU_OPT header (pages 5 and 10). No USB cable is shown.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingCPU temperature (°C)
AMD Ryzen 9 9900XCinebench R23 multi-core, 30-minute run after 10 minutes idle, PBO enabled at a 243 W setting, other settings auto, open bench243100% PWM duty cycle89
AMD Ryzen 9 9900XCinebench R23 multi-core, 30-minute run after 10 minutes idle, PBO enabled at a 200 W setting, other settings auto, open bench200100% PWM duty cycle77.7
Source8Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026EnosTech, John S, review of 29 September 2026. Ryzen 9 9900X on an ASRock X870E Nova WiFi in an open Thermaltake Core P6 TG test bench, G.Skill Trident Z Neo DDR5-6400, 22 C room, Noctua NT-H2 paste (factory paste removed), fans at 100% PWM duty cycle, Cinebench R23 multi-core 30-minute run after 10 minutes idle, PBO enabled, other settings auto, HWiNFO64. Load temperatures from the two charts: 89 C at the 243 W setting (idle 37.4 C) and 77.7 C at the 200 W setting (idle 37 C). The review gives no noise figure. The 243 W and 200 W values are the setting named in the chart titles, not a logged package power.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width126Height157Depth98mm(5 × 6.2 × 3.9 in)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Product Dimensions 126 x 98 x 157 mm (L x W x H), read as width 126, depth 98, height 157 by the DeepCool rule in the dimensions help.
Heatsink dimensions
Width124Height151Depth76mm(4.9 × 5.9 × 3 in)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Heatsink Dimensions 124 x 76 x 151 mm (L x W x H), read as width 124, depth 76, height 151. The depth is below the 98 mm with the fan, so it is stored.
Weight
1,248g(2.8 lb)1Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23083.shtmlRead 16 October 2026Net Weight 1248 g. The white page gives the same figure.2Maker product pagedeepcool.com/products/Cooling/cpuaircoolers/AK700-VC-WH-Vapor-Chamber-2.0-Air-Cooler-with-CoreAlign-Winding/2026/23084.shtmlRead 16 October 2026Net Weight 1248 g, the same as the black page.
Heatsink weight
Not available

In the box

In the box
1x Intel Metallic Backplate, 2x AMD Mounting Brackets, 2x Intel Mounting Brackets, 4x AMD Standoff Screws, 4x Intel Standoff Screws, 4x Nuts, 1x Thermal Paste Tube, 1x Screwdriver, User Guide, Warranty Guide3Owner's manualdeepcool.com/download/pdf/AK700_VC.pdfRead 16 October 2026The manual text is images only. Its parts page shows the heatsink, one fan, an Intel backplate, four Intel standoffs, two Intel brackets, two AMD brackets, four AMD standoffs, four nuts, two fan clips and a screwdriver, and no paste tube. The stored list is EnosTech's accessory list, which agrees apart from the fan clips and the tube.8Reviewenostech.com/deepcool-ak700-vc-review-vapor-chamber-coolingRead 16 October 2026Accessory box list: 1x Intel Metallic Backplate, 2x AMD Mounting Brackets, 2x Intel Mounting Brackets, 4x AMD Standoff Screws, 4x Intel Standoff Screws, 4x Nuts, 1x Thermal Paste Tube, 1x Screwdriver, User Guide, Warranty Guide.

Warranty

Manufacturer warranty (source market)
3years4Press releasedeepcool.com/company/pressroom/newsrelease/2026/23338.shtmlRead 16 October 2026It is backed by a three-year warranty. No market is named.6Press articlegdm.or.jp/pressrelease/2026/0817/648230Read 16 October 2026Warranty period of 3 years.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Colours
R-AK700VC-BKNNMN-GJD6933412730385$69.99Black
R-AK700VC-WHNNMN-GJD6933412730378Not availableWhite

Sources

We read 9 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 16 October 2026Backs 18 fields
  2. Read 16 October 2026Backs 5 fields
  3. Read 16 October 2026Backs 4 fields
  4. Read 16 October 2026Backs 4 fields
  5. Read 16 October 2026Backs 1 field
  6. Read 16 October 2026Backs 3 fields
  7. Read 16 October 2026Backs 2 fields
  8. Read 16 October 2026Backs 6 fields
  9. Read 16 October 2026Backs 2 fields
