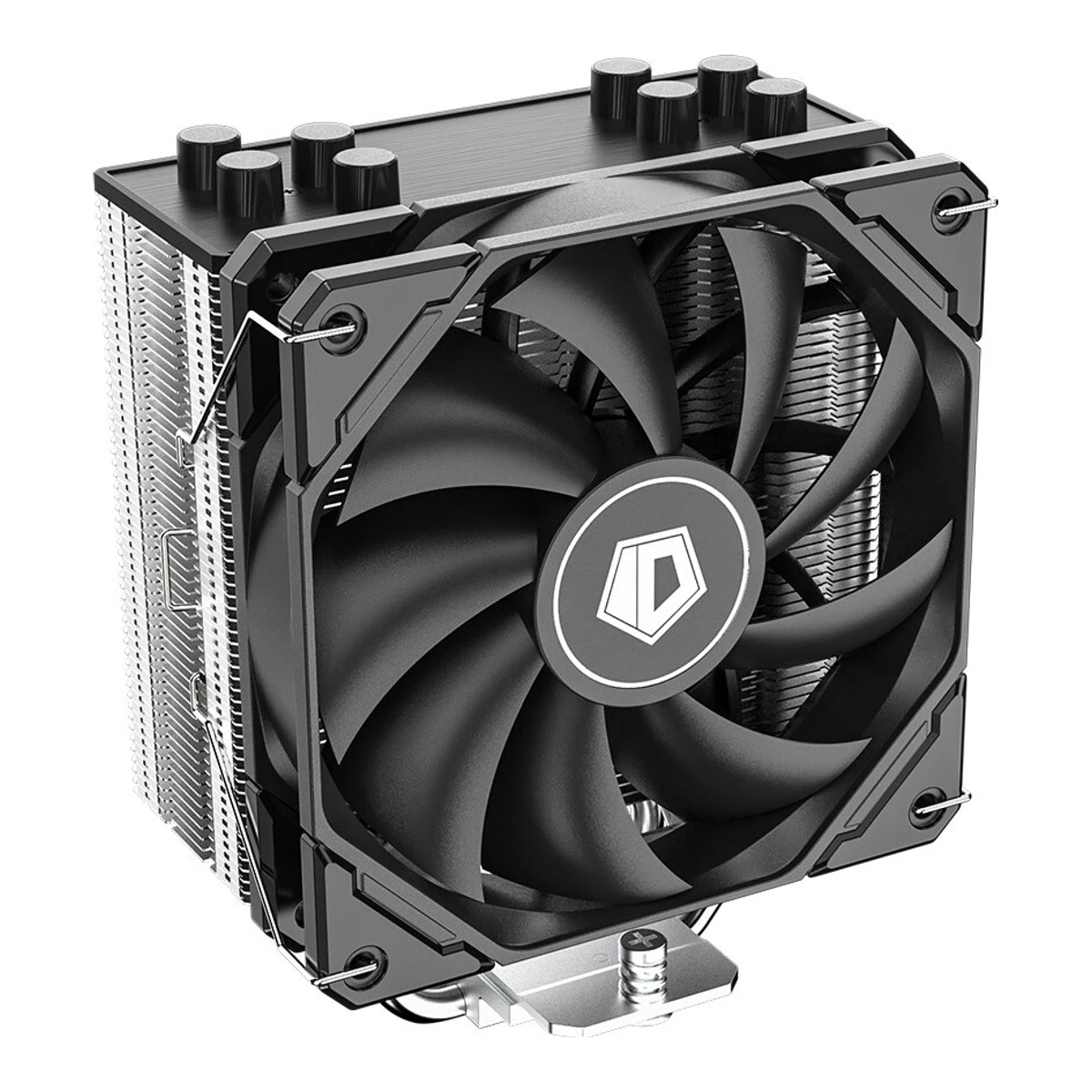

ID-COOLING SE-224-XTS

ID-COOLINGCPU cooler

SE-224-XTS

Released November 2022.7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 20263DNews review of the SE-224-XTS (Black) published 2022-11-17 with a Russian retail price of 1,200 rubles for the base model. It says the XTS also comes in white and with backlit fans. The GDM review (2023-02) and the ixbt ARGB review (2023-03) came later. Last checked 15 October 2026.

Cooler type
Air
Fans
1
Rated TDP
220W
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150

24 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
SE Series1Maker product pageidcooling.com/product/detailRead 15 October 2026Breadcrumb: Air Cooling, SE Series.
Model numbers
SE-224-XTS, SE-224-XTS BLACK, SE-224-XTS WHITE, SE-224-XTS ARGB, SE-224-XTS ARGB WHITE1Maker product pageidcooling.com/product/detailRead 15 October 2026ID-COOLING publishes no part numbers. The five model names come from its SE Series list.2Maker product pageidcooling.com/product/detailRead 15 October 2026Page title SE-224-XTS BLACK.3Maker product pageidcooling.com/product/detailRead 15 October 2026Page title SE-224-XTS WHITE.4Maker product pageidcooling.com/product/detailRead 15 October 2026Page title SE-224-XTS ARGB.5Maker product pageidcooling.com/product/detailRead 15 October 2026Page title SE-224-XTS ARGB WHITE.
GTIN / EAN
6931393304564, 6931393304571, 6931393304618, 6931393304649, 69313933046561Maker product pageidcooling.com/product/detailRead 15 October 2026EAN 6931393304564 on the SE-224-XTS page. The BLACK, WHITE, ARGB and ARGB WHITE pages give the other four.2Maker product pageidcooling.com/product/detailRead 15 October 2026EAN 6931393304571.3Maker product pageidcooling.com/product/detailRead 15 October 2026EAN 6931393304618.4Maker product pageidcooling.com/product/detailRead 15 October 2026EAN 6931393304649.5Maker product pageidcooling.com/product/detailRead 15 October 2026EAN 6931393304656.
Announced
Not available
Status
Available1Maker product pageidcooling.com/product/detailRead 15 October 2026The page is live and the retail listings are active.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White9Retailer pageecommerce.datablitz.com.ph/products/id-cooling-se-224-xts-argb-120mm-cpu-air-cooler-blackRead 15 October 2026Datablitz names the ARGB model Black, with the same EAN as the maker page. ID-COOLING itself names only BLACK and WHITE in the titles.10Retailer pageecommerce.datablitz.com.ph/products/id-cooling-se-224-xts-argb-120mm-cpu-air-cooler-whiteRead 15 October 2026Datablitz names the ARGB WHITE model White, with the same EAN as the maker page.
Cooler type
Air1Maker product pageidcooling.com/product/detailRead 15 October 2026
Air cooler layout
Single tower7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 2026Calls it a classic tower on heat pipes with one 120 mm fan.
Rated TDP (claimed)
220W1Maker product pageidcooling.com/product/detailRead 15 October 2026TDP: 220W.
Base material
Not available
Thermal paste
Included7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 2026The box holds ID-Cooling Frost X25 paste, 10.5 W/(m.K), 1.5 g, as a separate item. The base is not pre-coated.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA11501Maker product pageidcooling.com/product/detailRead 15 October 2026Compatibility: Intel LGA1851/1700/1200/1151/1150/1155/1156 and AMD AM5/AM4. The Intel 115x family is written as LGA1150, LGA1151, LGA1155 and LGA1156 as the page names them.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

Heat pipes
41Maker product pageidcooling.com/product/detailRead 15 October 2026Heatsink Material: 4 x 6 mm heatpipe (Direct Touch) with aluminum fins.
Heat pipe diameter
6mm1Maker product pageidcooling.com/product/detailRead 15 October 2026Heatsink Material: 4 x 6 mm heatpipe.
Direct-contact heat pipes
Yes1Maker product pageidcooling.com/product/detailRead 15 October 2026Heatsink Material: 4 x 6 mm heatpipe (Direct Touch). The Overview graphic is titled H.D.T 3.0 Direct Contact Heat Pipes.

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
TF-12025-PRO12016001,500702.1528.9Hydraulic4-pin PWM
Source1Maker product pageidcooling.com/product/detailRead 15 October 2026Fan Dimension 120 x 120 x 25 mm. Fan Speed 600 +/-200 to 1500 +/-10% RPM. Max air flow 70 CFM. Max static pressure 2.15 mmH2O. Noise 28.9 dB(A) max. Bearing Type Hydraulic. Connector 4Pin PWM. The bottom of the speed range is stored as 600. The page names no fan model and no fan count. One fan is shown and described by 3DNews.7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 2026Fan model TF-12025-PRO, weighed 152 g, hydrodynamic bearing in the review's wording. ID-COOLING writes Hydraulic, so the maker word is stored. Fan range 600 to 1500 rpm with PWM and 305 mm cable. This is the model of the non-lit editions. ID-12025M12B is the ARGB edition fan per ixbt. The maker gives the same speed, airflow, pressure, noise and bearing for both.8Reviewixbt.com/live/comments/2775096Read 15 October 2026ARGB edition fan: model ID-12025M12B, 120 x 120 x 25 mm, hydrodynamic bearing, 600 to 1500 rpm, 70 CFM.
Fans
1

Display and lighting

RGB lighting
No1Maker product pageidcooling.com/product/detailRead 15 October 2026The SE-224-XTS page lists no lighting. The ARGB editions have their own pages.7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 2026The SE-224-XTS and SE-224-XTS Black have no fan backlight. Three other versions have one.
Lighting standard
Not available
Built-in screen
None1Maker product pageidcooling.com/product/detailRead 15 October 2026The page lists a heatsink and fan only. No screen is mentioned.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
No1Maker product pageidcooling.com/product/detailRead 15 October 2026The only connector on the plain edition is 4Pin PWM. No USB connection or software is listed.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadFan settingNoise (dB(A))CPU temperature (°C)
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 4.9 GHz at 1.170-1.175 V, E-cores 3.9 GHz, power limits removed, heat output over 160 W1490 rpm48.675
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 4.9 GHz at 1.170-1.175 V, E-cores 3.9 GHz, power limits removed, heat output over 160 W1200 rpm43.579
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 4.9 GHz at 1.170-1.175 V, E-cores 3.9 GHz, power limits removed, heat output over 160 W1000 rpm37.580.9
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 4.9 GHz at 1.170-1.175 V, E-cores 3.9 GHz, power limits removed, heat output over 160 W800 rpm31.683.9
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 5.0 GHz at 1.220-1.225 V, E-cores 4.0 GHz, power limits removed, heat output over 182 W1490 rpm48.680
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 5.0 GHz at 1.220-1.225 V, E-cores 4.0 GHz, power limits removed, heat output over 182 W1200 rpm43.582.7
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 5.0 GHz at 1.220-1.225 V, E-cores 4.0 GHz, power limits removed, heat output over 182 W1000 rpm37.586.7
Intel Core i5-12600KPrime95 30.8 Small FFTs without AVX, P-cores 5.0 GHz at 1.220-1.225 V, E-cores 4.0 GHz, power limits removed, heat output over 182 W800 rpm31.692
Source7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 20263DNews on a Core i5-12600K, ASUS ROG Strix Z690-A Gaming WiFi D4 (BIOS 1404), Thermalright LGA 17XX-BCF contact frame, ID-Cooling Frost X25 paste, Thermaltake Core X71 case with six 140 mm be quiet! Silent Wings 3 fans, Windows 11 21H2, Prime95 30.8 build 16 Small FFTs without AVX (two cycles of 13 to 14 minutes), HWiNFO64 7.31. Room 24.4 to 25.1 C, not air conditioned. Power limits were removed, and the review states only that heat output was over 160 W at 4.9 GHz and over 182 W at 5.0 GHz, so cpu_power_w is left out. The temperature is the hottest P-core maximum at peak load, read from the review chart. Fan speed was set by an external controller. Noise is from an Octava-110A meter at 150 mm from the fan rotor outside the case, in a room of about 20 m2 at night, so it does not compare with Cybenetics values at 1 m. The dB(A) values are the chart labels of the temperature charts. The review's separate noise curve differs by up to 0.9 dB(A) at some speeds. The reviewed unit had no fan backlight. A third test at 5.1 GHz is only a screenshot and is not stored.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width120Height151Depth75mm(4.7 × 5.9 × 3 in)1Maker product pageidcooling.com/product/detailRead 15 October 2026Overall Dimension 120 x 75 x 151 mm (L x W x H). L runs across the fins, W along the airflow and H is the height, so width 120, depth 75 and height 151. The page does not say whether the fan is included. 3DNews measured 151 mm high and 75 mm deep with the fan fitted, so depth 75 is taken as fan included.
Heatsink dimensions
Not available
Weight
650g(1.4 lb)1Maker product pageidcooling.com/product/detailRead 15 October 2026Weight: 650 g (heatsink+fan). The same figure is on all five edition pages. 3DNews weighed 703 g with the fan and 549 g for the heatsink, so the maker figure is stored.
Heatsink weight
Not available

In the box

In the box
Heatsink, 120 mm fan, Mounting kit with backplate and two pairs of steel brackets, Three sets of standoffs and screws, Four wire fan clips, Installation guide, ID-Cooling Frost X25 thermal paste (1.5 g)7Review3dnews.ru/1076988/obzor-id-cooling-se224xts-blackRead 15 October 2026Described in the review of the SE-224-XTS Black, translated. Foam-packed heatsink, fan in its own bag, accessory box with a reinforcement plate, two pairs of steel brackets and three labelled sets of standoffs and screws, four wire fan clips, instructions and Frost X25 paste. It is not a printed parts list. The ARGB editions were not opened.

Warranty

Manufacturer warranty (source market)
2years6Maker product pageidcooling.com/Support/warrantyRead 15 October 2026CPU air coolers: SE- Series 2 years. The page says terms differ by country. Alza lists 36 months for its own market, which is not stored.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColoursRGB lightingLighting standard
SE-224-XTS6931393304564Not availableNoNot available
SE-224-XTS BLACK6931393304571BlackNoNot available
SE-224-XTS WHITE6931393304618WhiteNoNot available
SE-224-XTS ARGB6931393304649BlackYesARGB 5 V
SE-224-XTS ARGB WHITE6931393304656WhiteYesARGB 5 V
