PC parts / CPU coolers

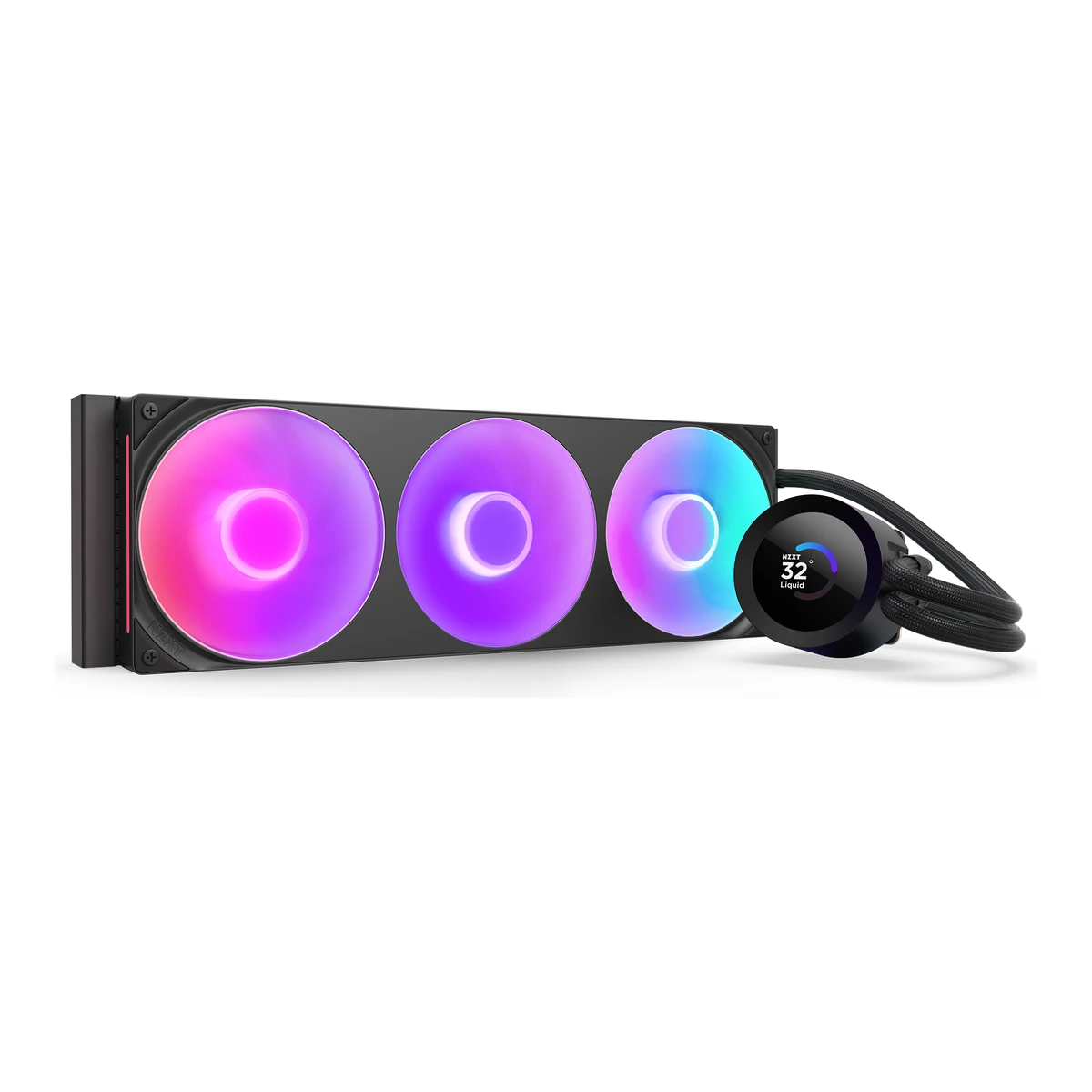

NZXT Kraken Plus 360 RGB

NZXTCPU cooler

Kraken Plus 360 RGB

Released May 2025.6Press articlehardcoregamer.com/nzxt-launches-four-new-pc-componentsRead 14 October 2026Article of May 20, 2025: the Kraken Plus AIO coolers are available now on NZXT's website and through NZXT retail partners. NZXT's Kraken Plus (2025) downloads article was created on May 13, 2025. Last checked 14 October 2026.

Cooler type
AIO liquid
Fans
3
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150

30 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Kraken Plus1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026The page family selector reads Plus RGB 1.54 LCD. NZXT sells the line as Kraken Plus.
Model numbers
RL-KR360-B2, RL-KR360-W21Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Product info: RL-KR360-W2 (White) and RL-KR360-B2 (Black).2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Product info Kraken Plus RGB (2025): Black RL-KR360-B2, White RL-KR360-W2 for the 360. The RL-KN360-B2 is the non-RGB Kraken Plus 360 and is not this product.
GTIN / EAN
5056547205274, 810074845366, 5056547205267, 8100748453591Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Product info: UPC 810074845366 (Black) and 810074845359 (White). EAN 5056547205274 (Black) and 5056547205267 (White).2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026UPC 810074845366 and EAN 5056547205274 for Black, UPC 810074845359 and EAN 5056547205267 for White.
Announced
Not available
Status
Available1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026On sale on nzxt.com on the access date.
Predecessor
Not available
Successor
Not available
Launch price (US)
$219.996Press articlehardcoregamer.com/nzxt-launches-four-new-pc-componentsRead 14 October 2026Kraken Plus 360 RGB $219.99. US prices exclude tax.7Reviewhardcoregamer.com/nzxt-kraken-plus-reviewRead 14 October 2026Review of May 21, 2025 lists $219.99 as the price of the tested Kraken Plus 360 RGB.
Launch price (EU)
Not available
Markets
Not available
Colours
Black, White1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Colour selector: White and Black.6Press articlehardcoregamer.com/nzxt-launches-four-new-pc-componentsRead 14 October 2026Available in black or white.
Cooler type
AIO liquid1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026
Air cooler layout
Not available
Rated TDP (claimed)
Not available
Base material
Copper1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Pump tech specs: cold plate material copper, a 56 x 56 mm split-flow plate.
Thermal paste
Pre-applied1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Easy installation: pre-applied thermal paste.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA11501Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Intel LGA 1851, 1700 and 1200/115X, AMD AM5 and AM4. 115X is stored as LGA1150, LGA1151, LGA1155 and LGA1156.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Intel LGA 1851, 1700, 1200 and 115X, AMD AM5 and AM4.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

We could not find any of these 3 fields. Show them
Heat pipes
Not available
Heat pipe diameter
Not available
Direct-contact heat pipes
Not available

Liquid cooling

Radiator size
360mm1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026
Radiator dimensions
Length401Width120Thickness27mm(15.8 × 4.7 × 1.1 in)1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Radiator dimensions (L x W x H) 401 x 120 x 27 mm.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Kraken Plus 360: 401 x 120 x 27 mm, aluminum.8Reviewocinside.de/review/nzxt_kraken_plus_360_rgb/2Read 14 October 2026Radiator 401 x 120 x 27 mm, 53 mm with a fan.
Radiator material
Aluminium1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026
Tube length
420mm1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Tubing length 420 mm, CIIR rubber with nylon braided sleeve.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Kraken Plus 360: 420 mm.
Max pump speed
2,800rpm1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026NZXT Turbine pump, motor speed 1,200 - 2,800 +/-300 RPM. The rated top of 2,800 is stored.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Motor speed 1,200 - 2,800 +/-300 RPM.
Pump power connector
SATA power2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Connectors of the breakout cable: 3-pin DC pump (RPM sense only), SATA power, USB 2.0 internal 9-pin and the NZXT 8-pin PWM fan and RGB connector. The pump gets its power from the SATA connector, and the 3-pin plug only reports the pump speed.3Owner's manualcdn-g.nzxt.com/dl/Kraken%20Plus%20RGB_Manual_240919_V2-WEB.pdfRead 14 October 2026Powering the pump and fans: step 3 plugs the pump 3-pin connector into the CPU_FAN or AIO_PUMP header, and step 5 connects the pump SATA power connector to a SATA power cable from the PSU.8Reviewocinside.de/review/nzxt_kraken_plus_360_rgb/2Read 14 October 2026Connections list: SATA (power), 3-pin pump connector (speed only), internal USB, 8-pin female connector and 18-pin connector.
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMin speed (rpm)Max speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
F360 RGB Core Fan12035002,40075.053.0731.9Fluid dynamic (FDB)Proprietary
Source1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Included fan specs for the F360 RGB Core Fan: single-frame array with three 120 mm fans, 500 - 2,400 +/-250 RPM, 75.05 CFM, 3.07 mmH2O, noise 31.9 dBA, fluid dynamic bearing, 8-pin connector for PWM and RGB. NZXT's support spec page gives the speed, airflow and pressure per fan. The product page gives no per-fan label for the noise.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026F360 RGB Core (2024) (EV): 3 fans per frame, 500 - 2,400 +/-250 RPM per fan, 75.05 CFM per fan, 3.07 mm H2O per fan, 8 LEDs per fan, 8-pin NZXT PWM fan and RGB connector.
Fans
3

Display and lighting

RGB lighting
Yes1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026RGB Core fan with 8 LEDs per fan.5Maker product pagenzxt.com/blogs/news/nzxt-kraken-aio-coolers-explained-elite-plus-and-coreRead 14 October 2026RGB on the fans only for Kraken Plus, as the comparison table says.
Lighting standard
Proprietary2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026The fan connects with NZXT's own 8-pin PWM and RGB connector to the pump cap breakout cable. Lighting runs through NZXT CAM.5Maker product pagenzxt.com/blogs/news/nzxt-kraken-aio-coolers-explained-elite-plus-and-coreRead 14 October 2026Kraken Plus is controlled with NZXT CAM. Only the Kraken Core uses a motherboard 5V ARGB header.
Built-in screen
LCD1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Display: 1.54 in square transmissive TFT, 262K colours, 30 Hz, 300 cd/m2.5Maker product pagenzxt.com/blogs/news/nzxt-kraken-aio-coolers-explained-elite-plus-and-coreRead 14 October 2026Blog of October 1, 2025: Kraken Plus has a square 1.54-inch TFT LCD, 240 x 240, 30 Hz.
Screen size
1.54in(3.9 cm)1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Diagonal 39.1 mm (1.5 in). The overview text and the support page say 1.54 in, and 39.1 mm is 1.54 in.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026Display panel active area 39.1 mm (1.54 in).
Screen resolution
240 × 240px1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026240 x 240 px.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 2026240 x 240 px.
Software
NZXT CAM1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026NZXT CAM controls the display, fans and pump.4Maker product pagesupport.nzxt.com/hc/en-us/articles/39718034351515-Is-the-CAM-software-required-for-the-Kraken-PlusRead 14 October 2026NZXT CAM is needed for full control of the screen, pump and fan speeds. Without it the cooler runs in a limited default mode.
Needs a USB header
Yes3Owner's manualcdn-g.nzxt.com/dl/Kraken%20Plus%20RGB_Manual_240919_V2-WEB.pdfRead 14 October 2026Powering the pump and fans, step 4: connect the USB connector to an available USB 2.0 internal header on the motherboard.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadFan settingCPU temperature (°C)
AMD Ryzen 7 9800X3DPrime95 30.19 build 20, about 5 minutes, PBO +200 MHz, Curve Optimizer -20 on all cores25%81
AMD Ryzen 7 9800X3DPrime95 30.19 build 20, about 5 minutes, PBO +200 MHz, Curve Optimizer -20 on all cores50%76
AMD Ryzen 7 9800X3DPrime95 30.19 build 20, about 5 minutes, PBO +200 MHz, Curve Optimizer -20 on all cores75%75
AMD Ryzen 7 9800X3DPrime95 30.19 build 20, about 5 minutes, PBO +200 MHz, Curve Optimizer -20 on all cores100%74
Source9Reviewocinside.de/review/nzxt_kraken_plus_360_rgb/6Read 14 October 2026OC inside review. Ryzen 7 9800X3D with PBO +200 MHz and Curve Optimizer -20 on all cores on an ASRock X870 Pro RS, Prime95 version 30.19 build 20 for about 5 minutes until the temperature stopped rising, ambient about 22 C, pump at 100% (2940 rpm measured against the 2800 rpm rating). Fan settings 25%, 50%, 75% and 100% (1750 rpm at 75% and 2400 rpm at 100%). The review does not name the paste, the case or open bench, or the noise meter and distance. It reports 49, 51, 55 and 60 dB(A), which are far above NZXT's 31.9 dBA fan rating and have no stated distance, so the noise values are not stored. CPU power is not stated. The review gives no temperature above ambient.

Dimensions and weight

We could not find any of these 4 fields. Show them
Dimensions
Not available
Heatsink dimensions
Not available
Weight
Not available
Heatsink weight
Not available

In the box

In the box
1x Kraken Plus RGB 240 / 360, 1x Intel Backplate, 1x Intel Retention Bracket (Pre-Installed), 4x Intel Socket 1851/1700 Standoff, 4x Intel Socket 1200/115X Standoff, 1x AMD AM5/AM4 Retention Bracket, 4x AMD Socket AM5/AM4 Standoff, 4x Thumbscrew, 12x Long Screws (30mm UNC 6-32), 12x Short Screws (5mm UNC 6-32), 12x Washer, 1x F Series RGB Core Fan, 1x Breakout Cable Set3Owner's manualcdn-g.nzxt.com/dl/Kraken%20Plus%20RGB_Manual_240919_V2-WEB.pdfRead 14 October 2026Component list of the Kraken Plus RGB 240 / 360 user's manual, with the 360 quantities (240: 16 long screws, 8 short screws, 8 washers). Names are copied as printed. The manual is a poster whose text is in images.

Warranty

Manufacturer warranty (source market)
6years1Maker product pagenzxt.com/product/kraken-360-plus-rgbRead 14 October 2026Product info: warranty 6 years. The page names no market.2Maker product pagesupport.nzxt.com/hc/en-us/articles/47510572562075-Kraken-Plus-2025-SpecsRead 14 October 20266 Years.

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
RL-KR360-B25056547205274Black
RL-KR360-W25056547205267White

Sources

We read 9 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 23 fields
  2. Read 14 October 2026Backs 12 fields
  3. Read 14 October 2026Backs 4 fields
  4. Read 14 October 2026Backs 1 field
  5. Read 14 October 2026Backs 3 fields
  6. Read 14 October 2026Backs 3 fields
  7. Read 14 October 2026Backs 1 field
  8. Read 14 October 2026Backs 2 fields
  9. Read 14 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
