PC parts / CPU coolers

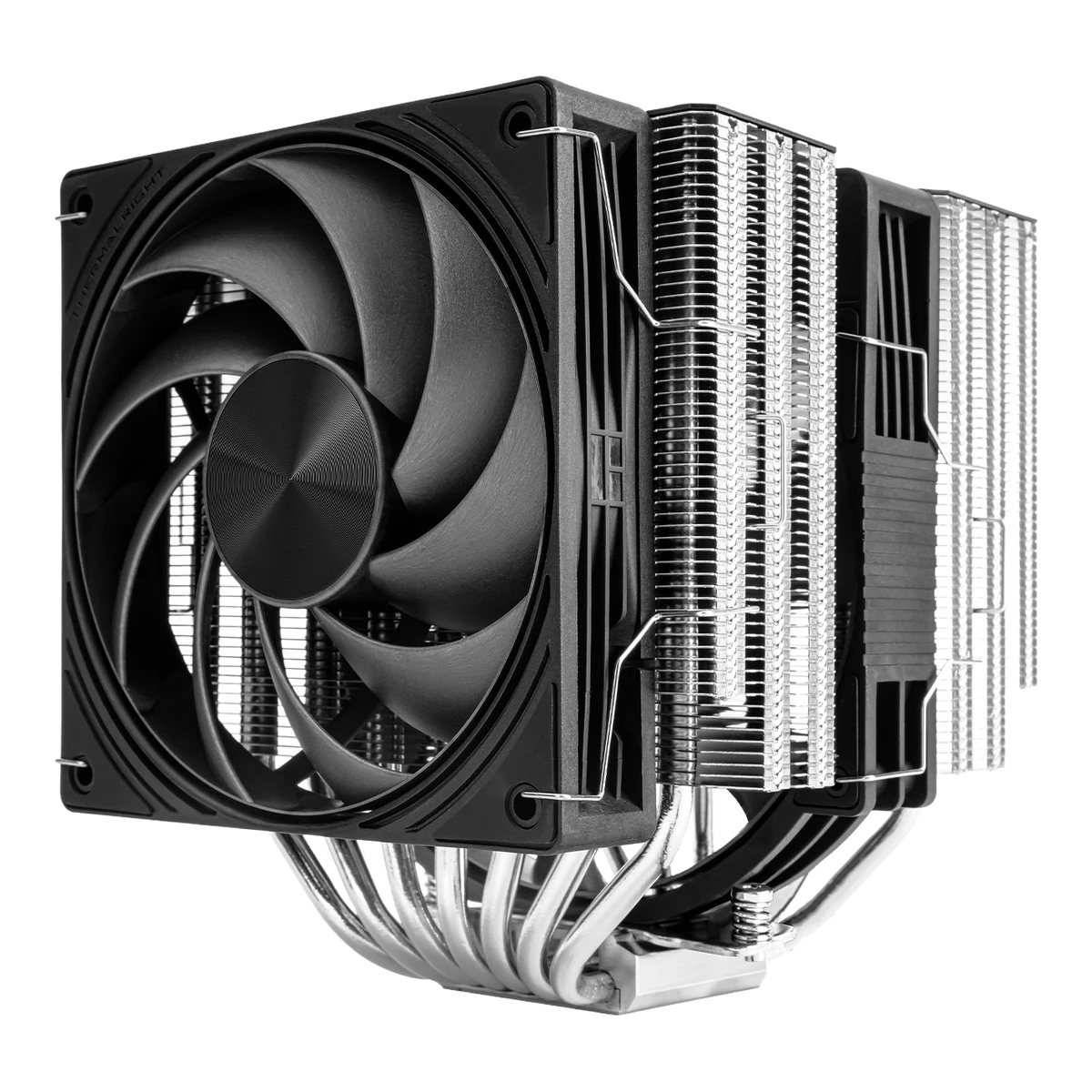

Thermalright Frost Tower 140

ThermalrightCPU cooler

Frost Tower 140

Released March 2026.7Retailer pageus.computerorbit.com/products/thermalright-frost-tower-140-dual-tower-air-coolerRead 15 October 2026The store feed created the standard, black and white pages on 2026-03-24, the earliest retail listing found. LDLC referenced the black and white editions on 1 Jun 2026. Guru3D wrote on 2026-02-05 that retail availability was still to follow. A first retail sale earlier in 2026 cannot be ruled out. Last checked 16 October 2026.

Cooler type
Air
Fans
2
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA2066

25 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Frost Tower1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Category Dual Towers, tag and series Frost Tower. The Frost Tower 120 has its own page and is a separate product.
Model numbers
FRTOW140BK, FRTOW140WH5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Model FRTOW140BK for the black edition.6Retailer pageldlc.com/en/product/PB00744021.htmlRead 15 October 2026Model FRTOW140WH for the white edition.
GTIN / EAN
814256021975, 814256021951, 8142560219687Retailer pageus.computerorbit.com/products/thermalright-frost-tower-140-dual-tower-air-coolerRead 15 October 2026Store feed barcode (UPC) 814256021975 for the standard edition, SKU FROST TOWER 140.8Retailer pageus.computerorbit.com/products/thermalright-frost-tower-140-black-dual-tower-air-coolerRead 15 October 2026Store feed barcode (UPC) 814256021951, SKU FROST TOWER 140 BLACK.9Retailer pageus.computerorbit.com/products/thermalright-frost-tower-140-white-dual-tower-air-coolerRead 15 October 2026Store feed barcode (UPC) 814256021968, SKU FROST TOWER 140 WHITE.
Announced
January 202610Press articleguru3d.com/story/thermalright-frost-tower-140-mixes-120mm-and-140mm-fansRead 15 October 2026News of 2026-02-05, sourced from Elmitage Akihabara. The maker's WordPress pages were created on 2026-01-08 and Techolam and KitGuru covered the cooler on 13 and 15 January 2026, so January 2026 is stored.11Press articlekitguru.net/components/cooling/joao-silva/thermalright-unveils-frost-tower-140-with-asymmetrical-fan-configRead 15 October 2026News of 2026-01-15, via Vortez: Thermalright has kicked off 2026 by introducing the Frost Tower 140. The cooler was not yet priced.
Status
Available5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Listed In stock at EUR 89.95 on the access date, product referenced 1 Jun 2026.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Standard, Black, White1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026The base page names no colour. KitGuru calls this edition standard. Computer Orbit's photos show silver fins with black fans. The stored name is Standard.2Maker product pagethermalright.com/product/frost-tower-140-blackRead 15 October 2026Page title Frost Tower 140 BLACK.3Maker product pagethermalright.com/product/frost-tower-140-whiteRead 15 October 2026Page title Frost Tower 140 WHITE.10Press articleguru3d.com/story/thermalright-frost-tower-140-mixes-120mm-and-140mm-fansRead 15 October 2026Colour options include black and white variants.11Press articlekitguru.net/components/cooling/joao-silva/thermalright-unveils-frost-tower-140-with-asymmetrical-fan-configRead 15 October 2026Launching in three aesthetics: standard, all-black and all-white, the latter two with colour-matched fins and heatpipes.
Cooler type
Air1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Heatsink with fans, listed under Heatsink.
Air cooler layout
Dual tower1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Listed under Dual Towers. Guru3D and KitGuru describe a dual-tower side-flow design with the 120 mm fan in front and the 140 mm fan between the towers.
Rated TDP (claimed)
Not available
Base material
Nickel-plated copper1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Heatsink specifications: Copper Base C1100 Pure Copper nickel plated.11Press articlekitguru.net/components/cooling/joao-silva/thermalright-unveils-frost-tower-140-with-asymmetrical-fan-configRead 15 October 2026Seven 6 mm heatpipes branch out from a nickel-plated copper base.
Thermal paste
Included4Owner's manualdownload.thermalright.com/manuals/FROSTTOWER140.pdfRead 15 October 2026Parts list: Thermal Greasa x1 (sic, thermal grease). The sheet also says to remove the protective film from the copper base before installing.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2011, LGA20661Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Header and compatibility line: Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5. LGA115X is stored as LGA1150, LGA1151, LGA1155 and LGA1156 by the field rule. The manual's parts list includes LGA20xx screws and Intel brackets in the box, so LGA2011 and LGA2066 need no extra kit.4Owner's manualdownload.thermalright.com/manuals/FROSTTOWER140.pdfRead 15 October 2026Installation columns for AMD AM4/AM5, Intel LGA115X/1200, Intel LGA2011/2066 and Intel LGA1700/1851.
RAM height clearance
Not available
Offset mounting
Not available

Heatsink

Heat pipes
71Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Heat pipes: 6mm heatpipe x 7 units.11Press articlekitguru.net/components/cooling/joao-silva/thermalright-unveils-frost-tower-140-with-asymmetrical-fan-configRead 15 October 20267x 6-mm-thick heatpipes.
Heat pipe diameter
6mm1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Heat pipes: 6mm heatpipe x 7 units.
Direct-contact heat pipes
No10Press articleguru3d.com/story/thermalright-frost-tower-140-mixes-120mm-and-140mm-fansRead 15 October 2026Text: a copper contact plate finished with nickel plating feeds heat into seven 6 mm heatpipes. The pipes sit in a base plate and do not touch the CPU.

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
TL-N12-R912012,40085.352.9533.3Dual ball4-pin PWM
TL-N14D-R714011,8501202.436.25Dual ball4-pin PWM
Source1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Fan specification tables. TL-N12-R9: 120 x 120 x 25 mm, 2400 RPM +/-10% (MAX), 33.3 dBA, 85.35 CFM (MAX), 2.95 mm H2O (MAX), 4 Pin (PWM Fan connector), Dual Ball Bearing. TL-N14D-R7: 140 x 140 x 27 mm, 1850 RPM +/-10% (MAX), 36.25 dBA, 120 CFM (MAX), 2.4 mm H2O (MAX), 4 Pin (PWM Fan connector), Dual Ball Bearing. The page gives no minimum speed. The page does not label the noise as per fan. Each row holds one fan, so the figure is per fan. The box holds one fan of each model (manual parts list B and C).2Maker product pagethermalright.com/product/frost-tower-140-blackRead 15 October 2026Same fan names and figures as the standard page: TL-N12-R9 and TL-N14D-R7.3Maker product pagethermalright.com/product/frost-tower-140-whiteRead 15 October 2026White edition fans are named TL-N12W-R9 and TL-N14DW-R7, with the same speed, airflow, pressure, noise, bearing and connector figures as the standard fans, so the edition is a variant row.4Owner's manualdownload.thermalright.com/manuals/FROSTTOWER140.pdfRead 15 October 2026Parts list: one 120 mm fan (B) and one 140 mm fan (C). The 4-pin PWM plug goes into the CPU FAN socket, with a Y cable for two fans.
Fans
2

Display and lighting

RGB lighting
No5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Luminous: No.
Lighting standard
Not available
Built-in screen
None5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Integrated display: No.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
No4Owner's manualdownload.thermalright.com/manuals/FROSTTOWER140.pdfRead 15 October 2026The installation steps use only the fan's 4-pin PWM plug into the CPU FAN socket (Chinese line: insert the 4-pin PWM plug into the motherboard CPU FAN socket, use the Y cable for two fans). No USB cable is part of the cooler.

Measured

We could not find any of these 6 fields. Show them
Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width140Height158Depth146mm(5.5 × 6.2 × 5.7 in)5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Height (fan included) 158 mm, Width (fan included) 140 mm, Depth (fan included) 146 mm. This matches Guru3D's 140 wide, 146 deep and 158 tall.10Press articleguru3d.com/story/thermalright-frost-tower-140-mixes-120mm-and-140mm-fansRead 15 October 2026Text: the cooler measures 140 mm wide, 146 mm deep and 158 mm tall. This is with the fans, as the 120 mm fan sits in front of the towers.
Heatsink dimensions
Width140Height158Depth121mm(5.5 × 6.2 × 4.8 in)1Maker product pagethermalright.com/product/frost-tower-140Read 15 October 2026Heatsink specifications: Dimension L140 mm x W121 mm x H158 mm. The blueprint is read by direction: 140 mm across the fins, 121 mm along the airflow, 158 mm high. It is the heatsink without fans. The 121 mm depth plus the 25 mm front fan equals the 146 mm depth with fans that LDLC and Guru3D give.5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Without fans: Width 140 mm, Depth 121 mm, matching the maker's heatsink size.
Weight
1,340g(3 lb)5Retailer pageldlc.com/en/product/PB00744018.htmlRead 15 October 2026Weight 1340 g, the same on the black and white listings. LDLC does not say whether this includes packaging. Computer Orbit prints 1.5 kg, which looks like a rounded shipping weight and is higher, as a box would add. The maker publishes no weight.6Retailer pageldlc.com/en/product/PB00744021.htmlRead 15 October 2026Weight 1340 g, as on the black listing.
Heatsink weight
Not available

In the box

In the box
Heatsink x1, 120mm FAN x1, 140mm FAN x1, Backplate x1, Intel Bracket x2, AM4/AM5 Bracket x2, 120mm FAN Clip x2, 140mm FAN Clip x2, 115X screw bolt x4, LGA20xx Screw x4, Tightening Nut x4, AM4/AM5 Standoffs x4, AM4/AM5 Screw x4, Thermal Grease x1, 1700 screw bolt x4, FAN Y Cable x14Owner's manualdownload.thermalright.com/manuals/FROSTTOWER140.pdfRead 15 October 2026Parts list A to N in English, copied as printed with the typo in the thermal grease line corrected and a missing space in the 1700 screw bolt line restored: heatsink, 120mm fan, 140mm fan, backplate, Intel brackets, AM4/AM5 brackets, fan clips for each fan size, 115X screw bolts, LGA20xx screws, tightening nuts, standoffs and screws for AM4/AM5, thermal grease, 1700 screw bolts and a fan Y cable. The black and white manuals list the same parts.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a CPU cooler to see both side by side. Differences are marked yellow.

More CPU cooler comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINColours
Not available814256021975Standard
FRTOW140BK814256021951Black
FRTOW140WH814256021968White

Sources

We read 11 sources for this CPU cooler. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 13 fields
  2. Read 15 October 2026Backs 3 fields
  3. Read 15 October 2026Backs 3 fields
  4. Read 15 October 2026Backs 6 fields
  5. Read 15 October 2026Backs 8 fields
  6. Read 15 October 2026Backs 3 fields
  7. Read 15 October 2026Backs 3 fields
  8. Read 15 October 2026Backs 2 fields
  9. Read 15 October 2026Backs 2 fields
  10. Read 15 October 2026Backs 4 fields
  11. Read 15 October 2026Backs 4 fields

See a wrong value? Tell us and name the field.
