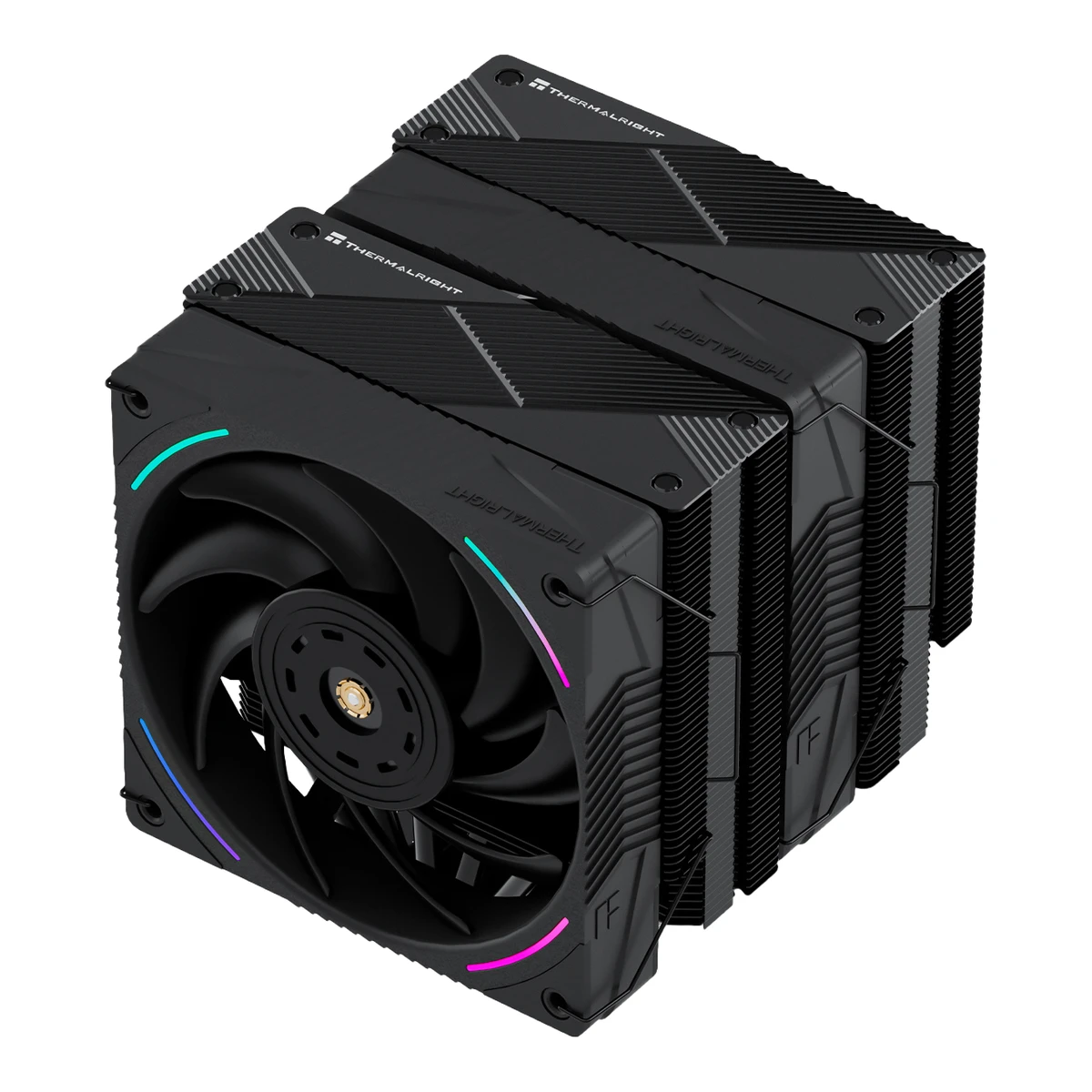

Thermalright Phantom Spirit 120 EVO

ThermalrightCPU cooler

Phantom Spirit 120 EVO

Released October 2023.1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026The page record in the WordPress REST API is dated 2023-10-12 and was last modified 2023-12-14. Tom's Hardware reviewed the cooler on 2024-02-24 and says it came less than six months after the Phantom Spirit 120 review. A Russian review says it reached sale in December 2023. Thermalright issued no press release that could be read. Last checked 16 October 2026.

Cooler type
Air
Fans
2
Rated TDP
Not available
CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011

27 of 54 fields known.

Compare with another CPU coolerDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Phantom Spirit1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026
Model numbers
PS120-EVO9Retailer pageavadirect.com/Phantom-Spirit-120-EVO-157mm-Height-280W-TDP-Copper-Nickel-CPU-Cooler/Product/17876148Read 14 October 2026Manufacturer part number PS120-EVO. The maker publishes no part number. The title says 280W TDP, and an older title of the same SKU said 260W TDP. The maker states no TDP, so no rated TDP is stored.
GTIN / EAN
08142560155858Retailer pageparadigit.ie/thermalright-phantom-spirit-120-evo/21985155/productRead 14 October 2026Product number manufacturer 814256015585. Computer Orbit's product data lists barcode 0814256015585.
Announced
Not available
Status
Available1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026The page is live and its product image was updated in August 2026. heise Preisvergleich listed 12 offers on the access date.
Predecessor
Not available
Successor
Not available
Launch price (US)
$42.994Reviewtomshardware.com/pc-components/air-cooling/thermalright-phantom-spirit-120-evo-reviewRead 14 October 2026Cooler specifications table: MSRP $42.99. Review of 2024-02-24. Tax treatment is not stated, as is usual for US MSRP.
Launch price (EU)
Not available
Markets
Not available
Colours
Black7Retailer pageldlc.com/en/product/PB00650635.htmlRead 14 October 2026Color: Black. heise lists a black heatsink, fan frame and rotor, and the maker's photo shows an all-black cooler.
Cooler type
Air1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026
Air cooler layout
Dual tower1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Listed under Dual Towers in the Phantom Spirit series.
Rated TDP (claimed)
Not available
Base material
Nickel-plated copper1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Heatsink Specifications, Copper Base: C1100 Pure copper nickel plated.
Thermal paste
Included2Owner's manualdownload.thermalright.com/manuals/PHANTOMSPIRIT120EVO.pdfRead 14 October 2026Parts list item L: Thermal Grease x1, a loose tube. The installation steps say to apply thermal paste before fitting the main body.

Compatibility

CPU sockets
AM5, AM4, LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA20111Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Page header: Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5. LGA115X is written as LGA1150, LGA1151, LGA1155 and LGA1156. The page names 2011 without a variant, so it is stored as LGA2011. Retailer copies add 2011-3, which is not stored.2Owner's manualdownload.thermalright.com/manuals/PHANTOMSPIRIT120EVO.pdfRead 14 October 2026Installation pages for AMD AM4/AM5, Intel LGA115X/1200, LGA2011/2066 and LGA1700. The manual has no LGA1851 page. The product page lists it.7Retailer pageldlc.com/en/product/PB00650635.htmlRead 14 October 2026Processor support: AMD AM4, AM5 and Intel 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2066.
RAM height clearance
42mm4Reviewtomshardware.com/pc-components/air-cooling/thermalright-phantom-spirit-120-evo-reviewRead 14 October 2026The review says the cooler is designed to be used with RAM 42mm or lower in height. With taller 45 mm memory the fans have to be set higher on the clips, which is a moved fan position and is not stored. The maker publishes no clearance. PCUnboxing recommends memory below 40 to 42 mm and found that 44 mm memory needs the front fan raised.
Offset mounting
Not available

Heatsink

Heat pipes
71Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Heat pipes: 6mm heatpipe x 7 units.
Heat pipe diameter
6mm1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026
Direct-contact heat pipes
Not available

Liquid cooling

We could not find any of these 7 fields. Show them
Radiator size
Not available
Radiator dimensions
Not available
Radiator material
Not available
Tube length
Not available
Max pump speed
Not available
Pump power connector
Not available
VRM fan
Not available

Fans

Included fans
ModelSize (mm)FansMax speed (rpm)Airflow (CFM)Static pressure (mmH₂O)Noise (claimed) (dB(A))BearingConnector
TL-K1212022,150692.8727Fluid dynamic (FDB)4-pin PWM
Source1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026TL-K12 FAN Spec: 120 x 120 x 25 mm, rated speed 2150 RPM +/-10% (MAX), noise 27 dBA, air flow 69 CFM (MAX), air pressure 2.87 mm H2O (MAX), 4 Pin PWM connector, S-FDB V2 bearing. S-FDB V2 is stored as fluid dynamic. The page lists a fan weight of 220 g without saying whether that covers one fan or both. The page does not state the fan count. The count of 2 comes from the manual. No minimum speed is published.2Owner's manualdownload.thermalright.com/manuals/PHANTOMSPIRIT120EVO.pdfRead 14 October 2026Parts list item B: Fan x 2.3Maker product pagethermalright.com/product/tl-k12Read 14 October 2026TL-K12 specification: 120 x 120 x 25 mm, 2150 RPM +/-10% (MAX), 27 dBA (MAX), 69 CFM (MAX), 2.87 mm H2O (MAX), 4 PIN PWM, ARGB port 5V/3Pin, S-FDB V2 bearing. The standalone fan is listed at 220 g. The EVO's fan figures are the same.
Fans
2

Display and lighting

RGB lighting
Yes1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026The fan spec lists an ARGB Connector of 3 PIN 5V. Tom's Hardware describes four small RGB strips on each fan frame.
Lighting standard
ARGB 5 V1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026ARGB Connector: 3 PIN 5V.
Built-in screen
None1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026The page lists a heatsink and fans only. No screen is mentioned.
Screen size
Not available
Screen resolution
Not available
Software
Not available
Needs a USB header
No2Owner's manualdownload.thermalright.com/manuals/PHANTOMSPIRIT120EVO.pdfRead 14 October 2026The Fan Wiring page shows only a 4-pin PWM CPU_FAN header, a Y cable for two fans and a 3-pin 5V ARGB header. No USB connection is shown.

Measured

Cybenetics THETA, AMD AM5
Not available
Cybenetics THETA, Intel LGA1851
Not available
Overall performance at 30 dB(A), AM5 (measured)
Not available
Overall performance at 30 dB(A), LGA1851 (measured)
Not available
Noise at 100% fan setting (Cybenetics)
Not available
Thermal tests (measured)
Test CPULoadCPU power (W)Fan settingNoise (dB(A))Above ambient (°C)
Intel Core i7-13700KNo power limit, CPU throttles at its peak temperature, average package power the cooler held, 10 minute run238100%45.6Not available
Intel Core i7-13700KNo power limit, noise normalized, average package power the cooler held, 10 minute run23238.2 dB(A)38.2Not available
Intel Core i7-13700KCinebench, 175 W CPU power limit, 10 minute run175Not available39.654
Intel Core i7-13700KCinebench, 125 W CPU power limit, 10 minute run125Not availableNot available41
Source5Reviewtomshardware.com/pc-components/air-cooling/thermalright-phantom-spirit-120-evo-review/2Read 14 October 2026Tom's Hardware, Albert Thomas, review of 2024-02-24. Intel Core i7-13700K on an MSI Z690 A Pro DDR4 in a be quiet! Silent Base 802 with the system fans on speed 1, Thermalright LGA1700 contact frame fitted, ambient 23 C, 10 minute runs. The noise distance and the paste are not stated. Row 1: no power limit, the CPU hits its peak temperature and the reviewer records the package power the cooler held, 238 W, with a maximum noise of 45.6 dBA (spec table: Max TDP with the i7-13700K, our testing, 238W). Row 2: noise normalized to 38.2 dBA, 232 W. Row 3: 175 W Cinebench load, the text says the temperature averaged 54 degrees over the 23 C ambient, and the maximum noise was 39.6 dBA. Row 4: 125 W Cinebench load, 41 degrees, with noise below the 37.3 dBA ambient system noise and not stated as a number. The text does not say 'over ambient' for row 4. It is read that way because 41 C absolute would need a cooler far stronger than the 238 W result allows. The charts give no other numbers, so no more rows are stored.

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width125Height157Depth135mm(4.9 × 6.2 × 5.3 in)6Spec databasepreisvergleich.heise.de/thermalright-phantom-spirit-120-evo-a3092806.htmlRead 14 October 2026Abmessungen: 125x157x135mm (BxHxT), and 125x157x110mm without fans. The 135 mm depth is the 110 mm heatsink plus one 25 mm fan on the front. LDLC lists the same 157 mm height, 135 mm and 125 mm with the fans included, with its width and depth labels swapped. The middle fan sits between the towers. heise and LDLC list a total weight of 1.03 kg, which is not stored because the maker states no total and the fan weight of 220 g is unclear.7Retailer pageldlc.com/en/product/PB00650635.htmlRead 14 October 2026Dimensions: height with fan 157 mm, width with fan 135 mm, depth with fan 125 mm. Read by direction as width 125 and depth 135, as heise states.
Heatsink dimensions
Width125Height157Depth110mm(4.9 × 6.2 × 4.3 in)1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Heatsink Specifications, Dimension: L110 mm x W125 mm x H157 mm. The blueprint shows the heatsink without fans. heise gives 125 x 157 x 110 mm without fans (W x H x D). Width 125 runs across the fins and depth 110 along the airflow.
Weight
Not available
Heatsink weight
810g(1.8 lb)1Maker product pagethermalright.com/product/phantom-spirit-120-evoRead 14 October 2026Heatsink Specifications, Weight: 810g (Without Fan). A Russian review weighed the heatsink at 833 g, which is not stored.

In the box

In the box
Heatsink x1, Fan x 2, Y model patch cord, INTEL Bracket x2, AM4/AM5 Bracket x2, FAN Clip x4, 115X screw bolt x4, LGA20XX Screw x4, Tightening Nut x4, AM4/AM5 Standoff x4, AM4/AM5 Screw x4, Thermal Grease x1, 1700 screw bolt x4, LGA115X/1700 Backplate x12Owner's manualdownload.thermalright.com/manuals/PHANTOMSPIRIT120EVO.pdfRead 14 October 2026Parts list, items A to N, copied as printed except for two obvious typos and three missing spaces. Stsndoff is written Standoff and Greasa is written Grease. Ymodel, 115Xscrew and 1700screw are written Y model, 115X screw and 1700 screw.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available
