PC parts / CPUs

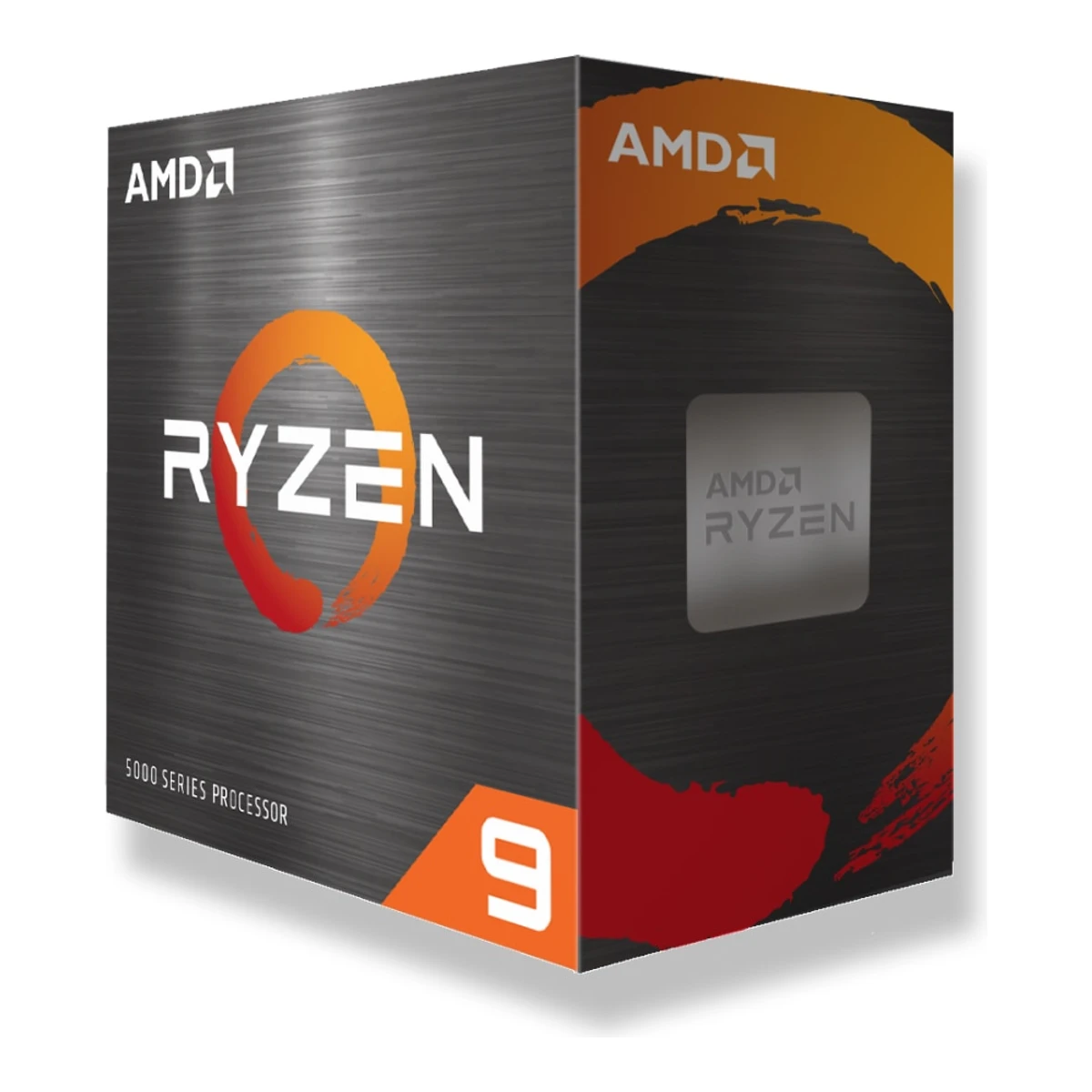

AMD Ryzen 9 5900XT

AMDDesktop CPU

Ryzen 9 5900XT

Released July 2024.1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Launch Date 07/31/2024 on the AMD page. Last checked 14 October 2026.

Cores
16
Max boost clock
4.8GHz
L3 cache
64MB
Socket or package
AM4

38 of 74 fields known.

Compare with another CPUDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Ryzen 5000 Series1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Series row: Ryzen 5000 Series.
Model numbers
100-100001581WOF, 100-100001581WOZ, 100-0000015811Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Product ID Boxed 100-100001581WOF and 100-100001581WOZ, Product ID Tray 100-000001581. No MPK or CPK code is listed, unlike on the Ryzen 7 5800XT page.
GTIN / EAN
7301433165524Spec databasebuildcores.com/products/CPU/4jgrhngdm/AMD-Ryzen-9-5900XT-3.3-GHz-16-Core-AM4Read 14 October 2026BuildCores page metadata: UPC 730143316552, EAN 0730143316552, part number 100-100001581WOF. A German distributor datasheet lists the same EAN for the WOF code. No barcode was found for the WOZ or tray codes.5Retailer pagemedia.jacob.de/media/fe/b6/59/1761663628/100496486_68ffd603d8b9b.pdfRead 14 October 2026JACOB distributor datasheet for 100-100001581WOF: EAN/UPC 0730143316552, which is UPC 730143316552 with a leading zero.
Announced
2 June 20242Press releaseamd.com/en/newsroom/press-releases/2024-6-2-amd-unveils-next-gen-zen-5-ryzen-processors-to-p.htmlRead 14 October 2026AMD press release dated 2 June 2024 (Computex, Taipei) announces the Ryzen 9 5900XT and Ryzen 7 5800XT as new Ryzen 5000 Series desktop processors, expected from July 2024. It gives no price.
Status
Available1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Product is listed and current on AMD's page.
Predecessor
Not available
Successor
Not available
Launch price (US)
$3493Press articletomshardware.com/pc-components/cpus/amds-ryzen-9-5900xt-ryzen-7-5800xt-launch-today-for-dollar349-and-dollar249-respectively-existing-ryzen-5000-is-less-expensiveRead 14 October 2026Tom's Hardware, 31 July 2024: launch-day pricing for the Ryzen 9 5900XT is $349, listed at Newegg and Best Buy. US prices are before sales tax. No euro launch price is stored, since no AMD euro list price was found.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Desktop1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Form Factor row: Boxed Processor, Desktops. Market Segment: Enthusiast Desktop.
Instruction set
x86-641Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
Codename
Vermeer1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Former Codename row reads Vermeer.
CPU process (as published)
TSMC 7nm FinFET1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Processor Technology for CPU Cores: TSMC 7nm FinFET. The I/O die is 12nm (Globalfoundries). Package Die Count is 3.
CPU process node
7nm1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
AVX-512
No1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026The Supported Extensions list names AVX and AVX2 and has no AVX512.

Cores and clocks

Core configuration
CountCoreBase clock (GHz)Max clock (GHz)
16Zen 33.34.8
Source1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026AMD names no core roles. Processor Architecture is Zen 3 and # of CPU Cores is 16. Base Clock is AMD's average effective base frequency of all cores. Max. Boost Clock is the highest single-core clock, Up to 4.8 GHz.
Cores
16
Cores labelled performance
Not available
Cores labelled efficiency
Not available
Threads
321Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026# of Threads 32. Multithreading (SMT): Yes.
Max boost clock
4.8GHz1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
Unlocked for overclocking
Yes1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026

Cache

L2 cache
8MB1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
L3 cache
64MB1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 202664 MB L3. L2 is 8 MB and L1 is 1024 KB. Press and retailers list 72 MB, which is L2 plus L3 together.
AMD 3D V-Cache
No1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026AMD lists 64 MB L3 and no stacked cache or 3D V-Cache technology.

Power and thermals

Base power (TDP)
105W1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Default TDP 105W.
Max turbo power
Not available
Configurable power range
Not available
Max operating temperature
90°C1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Max. Operating Temperature (Tjmax) 90C.

Memory

Memory support
Memory typeModule typeModulesMax speed (MT/s)
DDR4UDIMM2x1R3,200
DDR4UDIMM2x2R3,200
DDR4UDIMM4x1R2,933
DDR4UDIMM4x2R2,667
Source1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Max Memory Speed rows: 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, 4x2R DDR4-2667. System Memory Subtype is UDIMM.
Max memory speed (official)
3,200MT/s
Memory channels
21Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
Memory bandwidth (claimed)
Not available
Max memory
128GB1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
ECC memory support
Yes1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Page says ECC Support: Yes (Requires mobo support).

Platform

Socket or package
AM41Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026
Compatible chipsets
AMD X570, AMD B550, AMD A520, AMD X470, AMD B4501Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Supporting Chipsets row, in AMD's order.
CPU PCIe lanes
PCIe generationLanes
420
Source1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026PCI Express Version is PCIe 4.0. Native PCIe Lanes (Total/Usable) is 24 and 20. The 20 usable lanes are stored.
CPU PCIe lanes in total
20
Highest PCIe generation
4
Native USB ports
StandardCount
USB 3.2 Gen 2 (10 Gbps)4
Source1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Native USB 3.2 Gen 2 (10Gbps) 4. The page lists 0 for Native USB 3.2 Gen 1 and 0 for Native USB 2.0, so those rows are not stored. It also lists 2 native SATA ports, which the schema has no field for.
Native USB4 or Thunderbolt
No

Integrated graphics

Integrated graphics
No1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Graphics Model: Discrete Graphics Card Required.
Integrated GPU
Not available
GPU cores
Not available
Max GPU clock
Not available
Max displays
Not available
DisplayPort version
Not available
HDMI version
Not available
Hardware video encode
Not available
Hardware video decode
Not available

NPU

We could not find any of these 2 fields. Show them
NPU performance
Not available
Total AI performance
Not available

Measured performance

We could not find any of these 7 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Cinebench 2026 single-thread
Not available
Cinebench 2026 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
Game frame rates
Not available

Measured power and temperature

We could not find any of these 5 fields. Show them
CPU power in multi-thread load (measured)
Not available
CPU power while gaming (measured)
Not available
CPU power at idle (measured)
Not available
CPU temperature in stress test
Not available
All-core clock in stress test
Not available

In the box

Cooler in the box
No1Maker product pageamd.com/en/products/processors/desktops/ryzen/5000-series/amd-ryzen-9-5900xt.htmlRead 14 October 2026Thermal Solution (PIB) row reads Not Included.5Retailer pagemedia.jacob.de/media/fe/b6/59/1761663628/100496486_68ffd603d8b9b.pdfRead 14 October 2026The same datasheet describes the WOF box as a processor in a box without cooler or fan (ohne Kühler/Gebläse).
Included cooler
Not available

Warranty

Manufacturer warranty (source market)
3years6Maker product pageamd.com/en/resources/support-articles/warranty/PIB.htmlRead 14 October 2026AMD Processor in a Box (PIB) 3-Year Limited Warranty for boxed processors bought new at retail. A tray processor is handled by the seller, not AMD. Global.

Compare with

Pick a CPU to see both side by side. Differences are marked yellow.

More CPU comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)
100-100001581WOF730143316552$349
100-100001581WOZNot availableNot available
100-000001581Not availableNot available

Sources

We read 6 sources for this CPU. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 31 fields
  2. Read 14 October 2026Backs 1 field
  3. Read 14 October 2026Backs 1 field
  4. Read 14 October 2026Backs 1 field
  5. Read 14 October 2026Backs 2 fields
  6. Read 14 October 2026Backs 1 field
