PC parts / CPUs

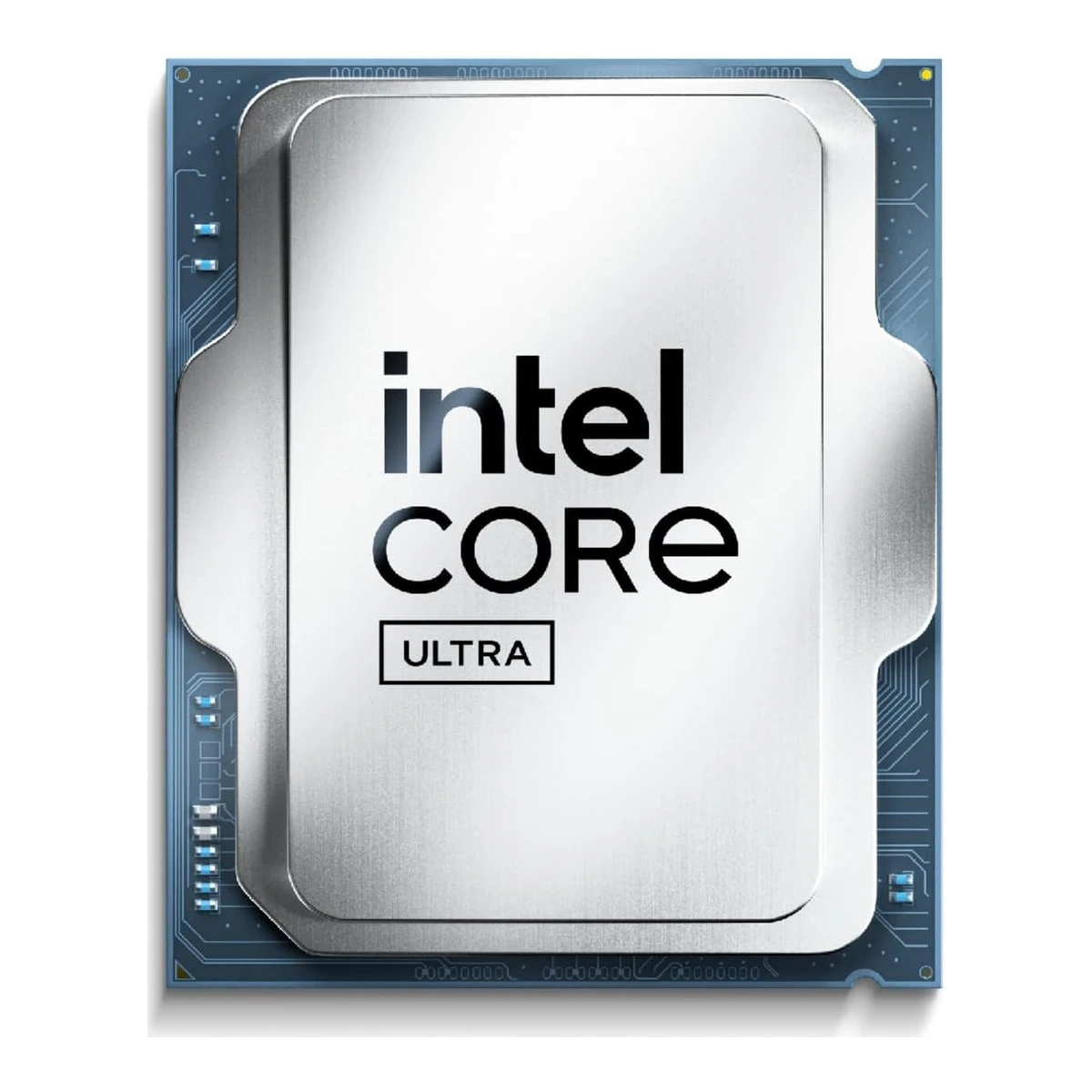

Intel Core Ultra 9 285

IntelDesktop CPU

Core Ultra 9 285

Released January 2025.5Press articletomshardware.com/pc-components/cpus/intel-lists-non-k-and-t-series-core-ultra-200s-processors-for-desktop-pcsRead 15 October 2026The article says the 65 W and 35 W Core Ultra 200S chips go on sale starting 13 January 2025. ARK lists Launch Date Q1'25. Japanese retailers began selling the 285 on 7 March 2025 and the Core Ultra 5 non-K chips on 24 January 2025, so the 285 may have reached some shops later than the family start. Stored as 2025-01. Last checked 15 October 2026.

Cores
24
Max boost clock
5.6GHz
L3 cache
36MB
Socket or package
LGA1851

53 of 74 fields known.

Compare with another CPUDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Core Ultra 200S5Press articletomshardware.com/pc-components/cpus/intel-lists-non-k-and-t-series-core-ultra-200s-processors-for-desktop-pcsRead 15 October 2026The article calls the family the non-K Core Ultra 200S processors. ARK lists the Product Collection as Intel Core Ultra Processors (Series 2). Stored as Core Ultra 200S, in the same form as on the 285K and the 225.
Model numbers
BX80768285, BXC80768285, AT80768050CE, AT80768064182Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/ordering.htmlRead 15 October 2026Ordering codes: BX80768285 (box, spec code SRQD4), BXC80768285 (China box, SRQD4), AT8076806418 (tray, SRQD4) and AT80768050CE (tray, spec code Q32H), all stepping B0 and package FCLGA18W.
GTIN / EAN
73585855086410Retailer pagefleetnetwork.ca/products/intel-core-ultra-9-285-processor-box-64-bit-processing-bx80768285.htmlRead 15 October 2026Fleet Network lists BX80768285 with UPC 0735858550864, which is the UPC 735858550864 with a leading zero. BuildCores lists UPC 735858550864 and a second UPC 675902155471 with part number BX80768285. Japanese shops Tsukumo and K's Denki key BX80768285 to 0735858550864. Only 735858550864 is stored. The EAN codes 5032037282390 and 5032037282406 are not stored.
Announced
6 January 20255Press articletomshardware.com/pc-components/cpus/intel-lists-non-k-and-t-series-core-ultra-200s-processors-for-desktop-pcsRead 15 October 2026Tom's Hardware, 6 January 2025: on Monday Intel published the list of 11 non-K Core Ultra 200S desktop processors with 65 W and 35 W base power, at CES 2025. The table lists the Core Ultra 9 285.
Status
Available1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Marketing Status: Launched. Launch Date: Q1'25. Product Collection: Intel Core Ultra Processors (Series 2). Vertical Segment: Desktop. The ordering tab shows no discontinuance notice.
Predecessor
Not available
Successor
Not available
Launch price (US)
$5497Press article4gamers.com.tw/news/detail/69476/intel-launches-core-ultra-200s-non-k-series-processors-with-b860-and-h810-chipsetRead 15 October 20264Gamers, 8 January 2025, table of the CES 2025 Core Ultra 200 desktop lineup with a pricing column in US dollars: Core Ultra 9 285 US$549, next to the Core Ultra 9 285K at US$589. Intel ARK lists the same $549.00 as the recommended customer price of the tray code AT8076806418. It does not say tray or box, so it is stored for the tray. US dollars, excluding tax. Pre-launch leaks of about $600 are not used.
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Segment
Desktop1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Vertical Segment row reads Desktop.
Instruction set
x86-641Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Instruction Set: 64-bit. Instruction Set Extensions list Intel SSE4.1, SSE4.2 and AVX2, which are x86 extensions.
Codename
Arrow Lake1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Code Name row reads Products formerly Arrow Lake.
CPU process (as published)
TSMC N3B1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026CPU Lithography row: TSMC N3B.
CPU process node
3nm1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026TSMC N3B is stored as 3 nm, as on the other Arrow Lake desktop products. Intel prints no nm figure.
AVX-512
No1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Instruction Set Extensions lists Intel SSE4.1, SSE4.2 and AVX2 only.

Cores and clocks

Core configuration
Core typeCountCoreBase clock (GHz)Max clock (GHz)
Performance8Lion Cove2.55.4
Efficiency16Skymont1.94.6
Source1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Total cores 24: Performance-cores 8, Efficient-cores 16, Low Power Efficient-cores 0. Performance-core base 2.5 GHz and max turbo 5.4 GHz. Efficient-core base 1.9 GHz and max turbo 4.6 GHz. Core names Lion Cove and Skymont come from Intel's Core Ultra 200S launch presentation, which names them for the 200S series.6Maker spec sheet (PDF)download.intel.com/newsroom/2024/client-computing/Intel-Core-Ultra-200S-Series-Presentation.pdfRead 15 October 2026Intel's Core Ultra 200S launch presentation (embargo 10 October 2024) names Lion Cove P-cores and Skymont E-cores for the 200S series. It is a series statement and the deck lists no 285 column, so the core names are not tied to a clock row.
Cores
24
Cores labelled performance
8
Cores labelled efficiency
16
Threads
241Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Total Threads 24. Intel Hyper-Threading Technology: No.
Max boost clock
5.6GHz1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Max Turbo Frequency 5.6 GHz, which is also the Thermal Velocity Boost Frequency. Turbo Boost Max Technology 3.0 Frequency is 5.5 GHz and Performance-core Max Turbo Frequency is 5.4 GHz.
Unlocked for overclocking
No4Maker product pageintel.com/content/www/us/en/products/docs/processors/core-ultra/core-ultra-desktop-processors-series-2-brief.htmlRead 15 October 2026Mainstream SKU chart row Unlocked: No, shown once for the 285 and the other non-K columns. The K SKU chart reads Yes.

Cache

L2 cache
40MB1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Total L2 Cache 40 MB.
L3 cache
36MB1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 202636 MB Intel Smart Cache.
AMD 3D V-Cache
No1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026AMD technology. ARK lists only the 36 MB Smart Cache and no stacked cache.

Power and thermals

Base power (TDP)
65W1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Processor Base Power 65 W.
Max turbo power
182W1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Maximum Turbo Power 182 W.
Configurable power range
Not available
Max operating temperature
105°C1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Max Operating Temperature 105 C. ARK prints no row named TJUNCTION for this chip.

Memory

Memory support
Memory typeModule typeModulesMax speed (MT/s)
DDR5CUDIMM2x1R6,400
DDR5CUDIMM2x2R6,400
Source1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Memory Types: Up to DDR5 6400 MT/s. ARK names no module type. The module types and configurations come from Intel's product brief.4Maker product pageintel.com/content/www/us/en/products/docs/processors/core-ultra/core-ultra-desktop-processors-series-2-brief.htmlRead 15 October 2026The Maximum Memory Speed row of the Mainstream chart reads DDR5-6400 for all columns. Footnote 6: maximum speeds are for one DIMM per channel, up to DDR5-6400 MT/s 1DPC CUDIMM 1Rx8, 1Rx16, 2Rx8. One DIMM per channel in dual channel is two modules, so 2x1R (1Rx8 or 1Rx16) and 2x2R (2Rx8). The footnote names CUDIMM only and no speed for plain UDIMMs. Tom's Hardware wrote in January 2025 that Intel did not mention CUDIMM for the non-K chips, so this is the brief's wording for the whole chart. The brief's 192 GB capacity is replaced by ARK's 256 GB.
Max memory speed (official)
6,400MT/s
Memory channels
21Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Max # of Memory Channels 2.
Memory bandwidth (claimed)
Not available
Max memory
256GB1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Max Memory Size (dependent on memory type) 256 GB on ARK. Intel's product brief lists 192 GB, so the figure was raised after launch. ARK is the current maker figure.
ECC memory support
Yes1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026ECC Memory Supported: Yes. A supporting board such as one with the W880 chipset is still required.

Platform

Socket or package
LGA18511Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Sockets Supported: FCLGA1851. Stored without the FC prefix.
Compatible chipsets
Intel Q870, Intel H810, Intel W880, Intel B860, Intel Z8903Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/compatible.htmlRead 15 October 2026Compatible tab lists the Intel Q870, H810, W880, B860 and Z890 chipsets.
CPU PCIe lanes
PCIe generationLanes
520
44
Source1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026PCI Express Revision 5.0 and 4.0, up to 24 lanes, configurations 1x16+2x4, 2x8+2x4 and 1x8+4x4. The split into 20 Gen 5 and 4 Gen 4 lanes comes from Intel's product brief and Tom's Hardware. The 8 DMI 4.0 lanes are not counted.4Maker product pageintel.com/content/www/us/en/products/docs/processors/core-ultra/core-ultra-desktop-processors-series-2-brief.htmlRead 15 October 2026Features: up to 20 PCIe 5.0 lanes. The SKU chart gives CPU PCIe Lanes 24. The 4 Gen 4 lanes are 24 minus 20.5Press articletomshardware.com/pc-components/cpus/intel-lists-non-k-and-t-series-core-ultra-200s-processors-for-desktop-pcsRead 15 October 2026The article says all the non-K Core Ultra 200S chips have 24 PCIe lanes: 16 PCIe 5.0 lanes for graphics, four PCIe 5.0 lanes for an SSD and four PCIe 4.0 lanes for another drive. That makes 20 Gen 5 lanes and 4 Gen 4 lanes.
CPU PCIe lanes in total
24
Highest PCIe generation
5
Native USB ports
Standard
Thunderbolt 4
Source1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Intel Thunderbolt 4: Yes. Intel gives no port count, so the row has no count.
Native USB4 or Thunderbolt
Yes

Integrated graphics

Integrated graphics
Yes1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026GPU Name: Intel Graphics, with Xe-cores listed.
Integrated GPU
Intel Graphics1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026GPU Name: Intel Graphics.
GPU cores
41Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Xe-cores: 4.
Max GPU clock
2,000MHz1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Graphics Max Dynamic Frequency 2 GHz. Graphics base frequency 300 MHz.
Max displays
41Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026# of Displays Supported: 4.
DisplayPort version
2.1 UHBR201Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Graphics Output: eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL.
HDMI version
2.1 FRL1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Graphics Output: eDP 1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL.
Hardware video encode
H.264, H.265 (HEVC), AV11Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026H.264, H.265 (HEVC) and AV1 encode and decode are all listed as Yes.
Hardware video decode
H.264, H.265 (HEVC), AV11Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026H.264, H.265 (HEVC) and AV1 are listed. ARK has no VP9 row, so VP9 is left out.

NPU

NPU performance
13TOPS1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026NPU Peak TOPS (Int8): 13.
Total AI performance
36TOPS1Maker product pageintel.com/content/www/us/en/products/sku/241061/intel-core-ultra-9-processor-285-36m-cache-up-to-5-60-ghz/specifications.htmlRead 15 October 2026Overall Peak TOPS (Int8): 36. GPU Peak TOPS (Int8) is 8.

Measured performance

We could not find any of these 7 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Cinebench 2026 single-thread
Not available
Cinebench 2026 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
Game frame rates
Not available

Measured power and temperature

We could not find any of these 5 fields. Show them
CPU power in multi-thread load (measured)
Not available
CPU power while gaming (measured)
Not available
CPU power at idle (measured)
Not available
CPU temperature in stress test
Not available
All-core clock in stress test
Not available

In the box

Cooler in the box
Yes8Maker product pageintel.com/content/www/us/en/support/articles/000100171/processors.htmlRead 15 October 2026Intel article Intel Laminar RH2 Cooler Specifications for Intel Core Ultra Processors (Series 2): this cooler comes in-box with Intel Core Ultra 9 Processor 285. It is not sold separately. BuildCores lists Includes Cooler: No for the 285, which Intel's article contradicts, so the maker wins. Tray processors have no cooler.
Included cooler
Intel Laminar RH28Maker product pageintel.com/content/www/us/en/support/articles/000100171/processors.htmlRead 15 October 2026Cooler named Intel Laminar RH2.

Warranty

Manufacturer warranty (source market)
3years9Maker spec sheet (PDF)intel.com/content/dam/support/us/en/documents/processors/Intel-Core-Ultra-Desktop-Processor-Series-2-Limited-Warranty-Terms-and-Conditions.pdfRead 15 October 2026Intel Boxed Processors Limited Warranty for Core Ultra desktop processors (Series 2): 3 years from the purchase date of the boxed product. A tray processor is covered by the seller. Global terms, with consumer-law exceptions outside the US.

Compare with

Pick a CPU to see both side by side. Differences are marked yellow.

More CPU comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)MarketsCooler in the boxIncluded cooler
BX80768285735858550864Not availableNot availableYesIntel Laminar RH2
BXC80768285Not availableNot availableCNNot availableNot available
AT80768050CENot availableNot availableNot availableNoNot available
AT8076806418Not available$549Not availableNoNot available
