Computers / Desktop PCs

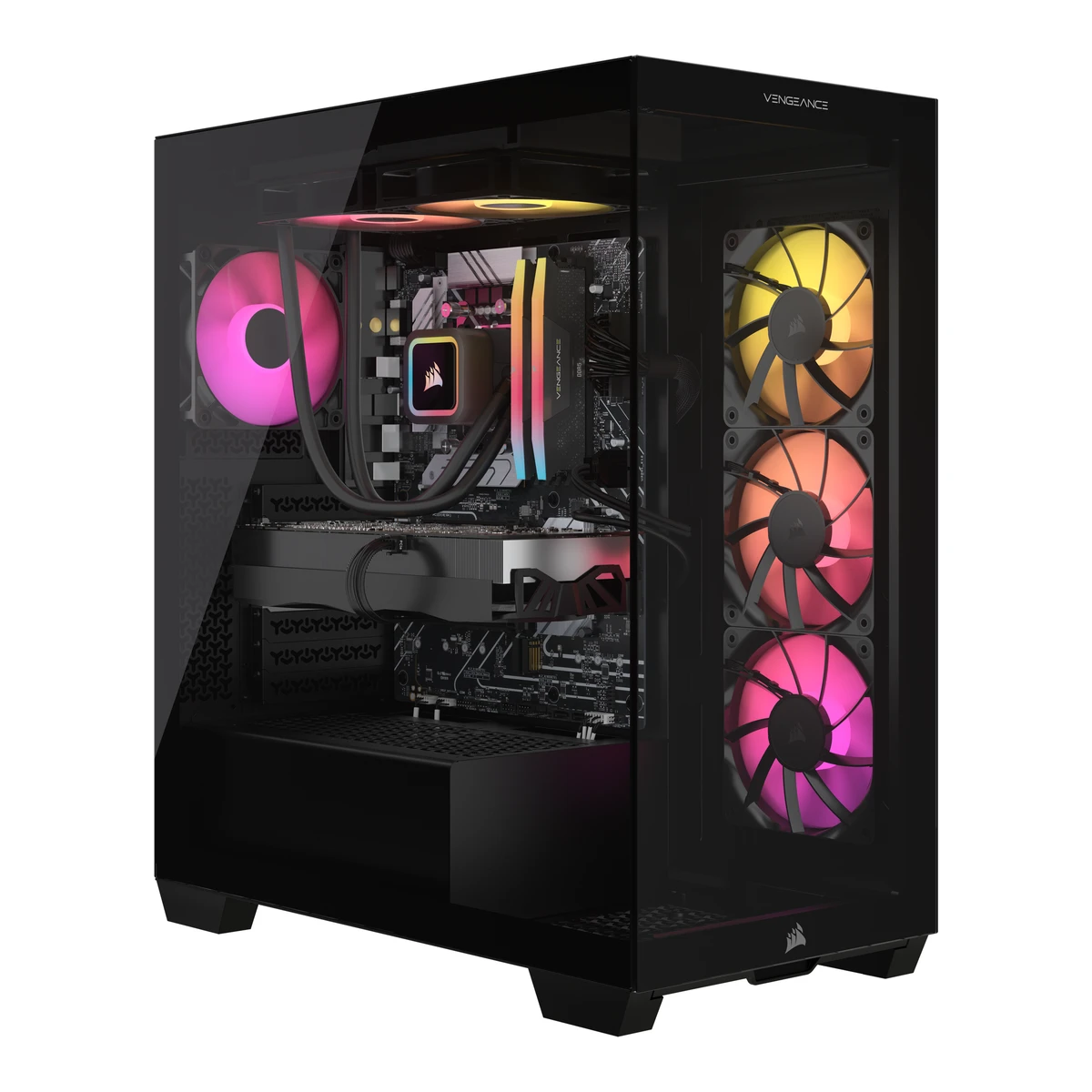

CORSAIRGaming desktop PC

VENGEANCE a7500

Released January 2025.6 Last checked 16 October 2026.

Form factor: Mid tower
Processor: AMD Ryzen 7 9800X3D
GPU: NVIDIA GeForce RTX 5080
RAM: 32GB

79 of 160 fields known.

Compare with another desktop PC Download JSON Download CSV Get it from the API

At a glance

Rear USB ports
10
Higher than 93% of other desktop PCs.
Power supply
1,000W1
Higher than 91% of other desktop PCs.

Ports

2 USB-A USB 3.2 Gen 1
USB-C USB 3.2 Gen 2
3.5 mm audioUser-facing ports
4 USB-A USB 2.0
4 USB-A
2 USB-C
Ethernet (RJ45)
3 3.5 mm audioRear ports
3 DisplayPort
HDMI

All specs

SourceCalculatedHide missing

General

Series: VENGEANCE1
Model numbers: CS-9050121-NA1
GTIN / EAN: 08404404980631
Announced: Not available
Status: Available1
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: US1
Colours: Black1
Segment: Gaming1
Form factor: Mid tower2

Case

Front and side, drawn to scale.

Case dimensions: Width240Height506Depth460mm(9.4 × 19.9 × 18.1 in)3
Case volume: Not available
Weight: 17kg(37.5 lb)1
Case model: CORSAIR 3500X ARGB1
Case materials: Steel, Tempered glass2
Side panel: Tempered glass2
Front panel: Glass2
Tool-less side panel: Yes3
Dust filters: Yes2
VESA mount: Not available

Display

We could not find any of these 6 fields. Show them

Screen size: Not available
Native resolution: Not available
Panel type: Not available
Max refresh rate: Not available
Touchscreen: Not available
Brightness (SDR, claimed): Not available

Motherboard

Motherboard: Not available
Chipset: AMD X8701
Motherboard form factor: ATX1
CPU socket: AM55
Expansion slots: Not available
PCIe x16 slots: Not available
Free expansion slots: Not available
Fan headers: Not available
Overclocking in BIOS: Not available

Processor

Processor: AMD Ryzen 7 9800X3D1
Processor brand: AMD5
Processor codename: Granite Ridge5
Core configuration: Core type Count Core Base clock (GHz) Max core turbo clock (GHz)
Performance 8 Zen 5 4.7 5.2
Source5
CPU cores: 8
Performance cores: 8
Efficiency cores: 0
Threads: 165
Max core turbo clock: 5.2GHz
L3 cache: 96MB5
CPU core process node: 4nm5
CPU base power (chip rating): 120W5
Peak CPU power (configured): Not available
Unlocked multiplier: Yes5
NPU performance: Not available
Integrated GPU: AMD Radeon Graphics5

Core type	Count	Core	Base clock (GHz)	Max core turbo clock (GHz)
Performance	8	Zen 5	4.7	5.2

Cooling

CPU cooler: AIO liquid1
CPU cooler model: CORSAIR NAUTILUS 240 RS ARGB1
Radiator size: 240mm1
Radiator position: Not available
Case fans: Size (mm) Fan rotors RGB PWM
120 6 Yes Yes
Source1 2
Number of case fans: 6

Size (mm)	Fan rotors	RGB	PWM
120	6	Yes	Yes

Graphics

Discrete GPU: Yes1
GPU: NVIDIA GeForce RTX 50801
GPU brand: NVIDIA1
Graphics card: Not available
VRAM: 16GB1 4
VRAM type: GDDR74
GPU board power: Not available
GPU boost clock: Not available
Graphics card length: Not available
Graphics card thickness: Not available
GPU power connector: Not available

Memory

RAM: 32GB1
RAM type: DDR51
Configured RAM speed: Not available
Rated kit speed: Not available
Memory kit: CORSAIR VENGEANCE DDR51
RAM upgrade: Slots1
Memory slots: Not available
RAM slots: Not available
Free RAM slots: Not available
Max RAM for this CPU and GPU: Not available
ECC memory: Not available

Storage

Storage: 2TB
Installed drives: Capacity (GB) Type
2,000 NVMe SSD
Source1
Storage slots and bays: Not available
M.2 slots: Not available
Free M.2 slots: Not available
Free drive bays: Not available
Fastest storage-slot PCIe generation: Not available

Capacity (GB)	Type
2,000	NVMe SSD

Power supply

PSU rated output: 1,000W1
PSU form factor: ATX1
PSU efficiency: 80 PLUS Gold1
Modular cables: Fully modular1
PSU model: Not available
ATX version: Not available
Native 12V-2x6 cable: Not available

Ports

User-facing I/O position: Top3
User-facing ports: Type Version Count Max stated link rate (Gbps)
USB-A USB 3.2 Gen 1 2 5
USB-C USB 3.2 Gen 2 1 10
3.5 mm audio Not available 1 Not available
Source1 3
Rear ports: Type Version Count Max stated link rate (Gbps)
USB-A USB 2.0 4 Not available
USB-A Not available 2 5
USB-A Not available 2 10
USB-C Not available 1 20
USB-C Not available 1 40
Ethernet (RJ45) Not available 1 5
3.5 mm audio Not available 3 Not available
DisplayPort Not available 3 Not available
HDMI Not available 1 Not available
Source1
User-facing USB ports: 3
User-facing USB-C ports: 1
Rear USB ports: 10
Thunderbolt: Not available
Ethernet speed: 5Gbps
Discrete GPU output ports: Not available

Type	Version	Count	Max stated link rate (Gbps)
USB-A	USB 3.2 Gen 1	2	5
USB-C	USB 3.2 Gen 2	1	10
3.5 mm audio	Not available	1	Not available

Type	Version	Count	Max stated link rate (Gbps)
USB-A	USB 2.0	4	Not available
USB-A	Not available	2	5
USB-A	Not available	2	10
USB-C	Not available	1	20
USB-C	Not available	1	40
Ethernet (RJ45)	Not available	1	5
3.5 mm audio	Not available	3	Not available
DisplayPort	Not available	3	Not available
HDMI	Not available	1	Not available

Wireless

Wi-Fi: Wi-Fi 71
Wi-Fi bands: Not available
Wi-Fi module: Not available
Wi-Fi antenna: External, included7
Bluetooth: 5.41
Ethernet controller: Not available

Camera and audio

We could not find any of these 5 fields. Show them

Webcam: Not available
Built-in speaker drivers: Not available
Total speaker power: Not available
Microphones: Not available
Audio features: Not available

Lighting

RGB lighting: Yes1
Lit parts: Case fans, CPU cooler1
Lighting standard: ARGB 5 V2
Lighting software: Not available

Software

Operating system: Windows 11 Home1
OS family: Windows1
Control software: CORSAIR DIAGNOSTICS7

Upgradeability

Proprietary parts: Not available
Max graphics card length: 410mm3
Max CPU cooler height: 170mm3
Warranty kept after upgrade: Yes8

Measured performance

We could not find any of these 8 fields. Show them

Cinebench 2024 single-core: Not available
Cinebench 2024 multi-core: Not available
Geekbench single-core: Not available
Geekbench multi-core: Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
SSD sequential read (measured): Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 6 fields. Show them

Fan noise per load: Not available
Highest measured fan noise: Not available
Measured fan noise at idle: Not available
CPU temperature in stress test: Not available
CPU clock in stress test: Not available
GPU temperature while gaming: Not available

Measured power

We could not find any of these 6 fields. Show them

Power draw idle: Not available
Power draw gaming: Not available
Power draw max: Not available
Power draw sleep or off: Not available
Sustained CPU power (measured): Not available
GPU power while gaming (measured): Not available

Certifications

We could not find any of these 5 fields. Show them

ENERGY STAR: Not available
EPEAT: Not available
Copilot+ PC: Not available
Typical annual energy consumption (TEC): Not available
Other certifications: Not available

In the box

In the box: CORSAIR VENGEANCE PC, Power cable, Wi-Fi antennas, Top sheet7
Included extras: Wi-Fi antennas7

Warranty

Manufacturer warranty (source market): 2years1
Warranty service: Mail-in9

Compare with

Pick a desktop PC to see both side by side. Differences are marked yellow.

More desktop PC comparisons

Sources

We read 9 sources for this desktop PC. The numbers match the markers in the sheet.

Maker product pagecorsair.com/us/en/p/gaming-computers/cs-9050121-na/vengeance-a7500-gaming-pc-amd-ryzen-7-9800x3d-geforce-rtx-5080-32gb-ddr5-2tb-ssd-win11-home-cs-9050121-na
Read 8 October 2026Backs 40 fields
Maker product pagecorsair.com/us/en/p/pc-cases/cc-9011278-ww/3500x-argb-mid-tower-pc-case-cc-9011278-ww
Read 30 September 2026Backs 7 fields
Owner's manualcorsair.com/us/en/explorer/diy-builder/cases/3500x-mid-tower-case
Read 30 September 2026Backs 6 fields
Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080
Read 30 September 2026Backs 2 fields
Maker product pageamd.com/en/products/processors/desktops/ryzen/9000-series/amd-ryzen-7-9800x3d.html
Read 30 September 2026Backs 10 fields
Maker product pagecorsair.com/newsroom/press-release/corsair-launches-the-vengeance-gaming-pcs-powered-by-geforce-rtx-50-series
Read 30 September 2026Backs 1 field
Owner's manualcorsair.com/us/en/explorer/gamer/gaming-pcs/vengeance-pc
Read 8 October 2026Backs 5 fields
Maker product pagecorsair.com/us/en/explorer/gamer/corsair-one-gaming-pcs/upgrading-your-corsair-vengeance-gaming-pc
Read 8 October 2026Backs 1 field
Maker product pagehelp.corsair.com/hc/en-us/articles/360031261871-Systems-Corsair-Systems-Limited-Warranty
Read 8 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
