PC parts / Graphics cards

ASRockGraphics card

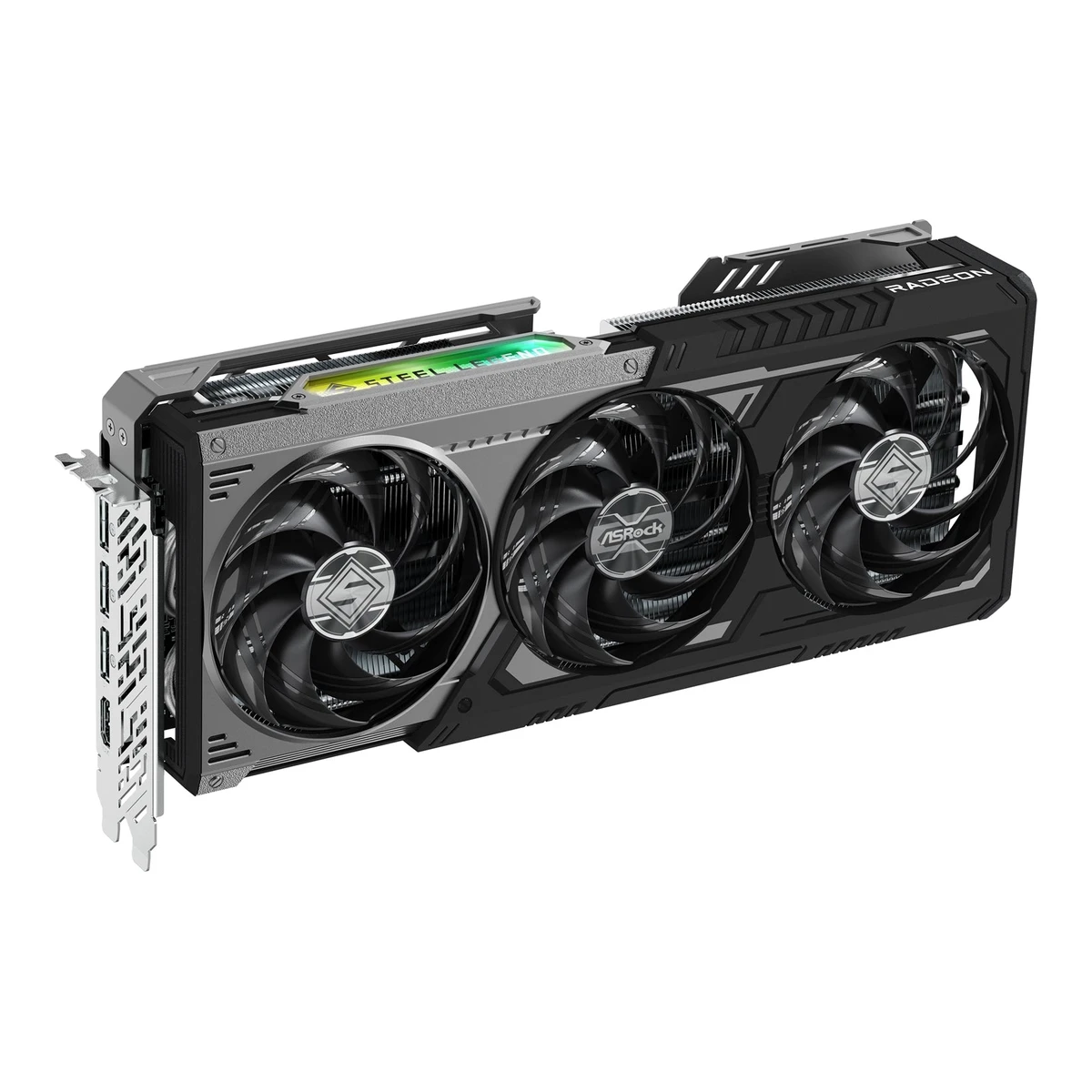

Radeon RX 9070 GRE Steel Legend Dark 12GB OC

Released June 2026.10 Last checked 15 October 2026.

GPU: AMD Radeon RX 9070 GRE
VRAM: 12GB
Length: 298mm
Board power: 220W

66 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Boost clock
2,920MHz2 10 11
Higher than 82% of other graphics cards.
Reference boost clock
2,790MHz7
Higher than 79% of other graphics cards.

Ports

HDMI 2.1b
3 DisplayPort 2.1a UHBR13.5

All specs

SourceCalculatedHide missing

General

Series: Steel Legend Dark2 3
Model numbers: RX9070GRE SLD 12GO, 90-GA5WZZ-00UANF, 90-GA5WZZ-00CANF2 3 4 5 6
GTIN / EAN: 47115814912294 5
Announced: Not available
Status: Available4
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Black6
GPU: AMD Radeon RX 9070 GRE2 7
GPU brand: AMD7
Reference launch price (US): $54912

GPU

GPU architecture: RDNA 42 12
GPU die: Navi 4812 14 15
Process: TSMC N4P13 14
Transistors: 53.9billion7
Die size: 357mm²13 14
Compute units: 482 7
Shader cores: 3,0722 7
Ray tracing cores: 487
AI cores: 967
ROPs: 967
L2 cache: 8MB15
Infinity Cache (L3): 48MB7
FP32 compute (claimed): 34.3TFLOPS7
AI performance (claimed): Precision With sparsity Throughput (TOPS)
FP16 No 137
FP16 Yes 274
FP8 No 274
FP8 Yes 549
INT8 No 274
INT8 Yes 549
INT4 No 549
INT4 Yes 1,097
Source7

Precision	With sparsity	Throughput (TOPS)
FP16	No	137
FP16	Yes	274
FP8	No	274
FP8	Yes	549
INT8	No	274
INT8	Yes	549
INT4	No	549
INT4	Yes	1,097

Clocks

Base clock: Not available
Game clock: 2,340MHz2
Boost clock: 2,920MHz2 10 11
Boost clock in OC mode: Not available
Reference boost clock: 2,790MHz7

Memory

VRAM: 12GB2 7
VRAM type: GDDR62 7
Memory bus width: 192bits2 7
Memory speed: 18Gbps2 7
Memory bandwidth: 432GB/s7

Connectivity

PCIe generation: 52 7
PCIe lanes: 162 7
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1a UHBR13.5 3 54
Source2 14
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1a UHBR13.5
Fastest DisplayPort link: 54Gbps
Max displays: 42
Max output resolution: Resolution7680 × 4320 pxRefresh rate144 Hz2 8
HDCP version: Not available

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1a UHBR13.5	3	54

Video engine

Video encoders: Not available
Video decoders: Not available
Hardware video encode: H.264, H.265 (HEVC), AV17
Hardware video decode: H.264, H.265 (HEVC), VP9, AV17 9

Graphics features

DirectX: 12 Ultimate2
Vulkan: 1.416
OpenGL: 4.62 13
Upscaling technologies: FSR 48
Frame generation: FSR Frame Generation, AMD Fluid Motion Frames 28

Power

Board power: Not available
Reference board power: 220W7
PSU wattage (card maker): 700W2
Power connector: 2 x 8-pin PCIe2 7

Cooling

Cooler type: Open air2 10 11
Fans: 32 5 10
Radiator size: Not available
Fan stop at low load: Yes4
Dual BIOS: Not available

Dimensions and weight

Length: 298mm2 3
Height: 131mm2
Thickness: 58mm2
Slot width: 2.9slots2 3
Low profile: No5
NVIDIA SFF-Ready: Not available
Weight: 1,135g(2.5 lb)2 3 5
Package weight: Not available

Lighting and software

RGB lighting: Yes2 10
Lighting sync: ASRock Polychrome SYNC2 3 10
Software: Not available

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

In the box: 1x Quick Installation Guide2 4
Power adapter cable included: No2
Support bracket included: No2

Warranty

We could not find any of these 1 fields. Show them

Manufacturer warranty (source market): Not available
