PC parts / Graphics cards
ASUSGraphics card

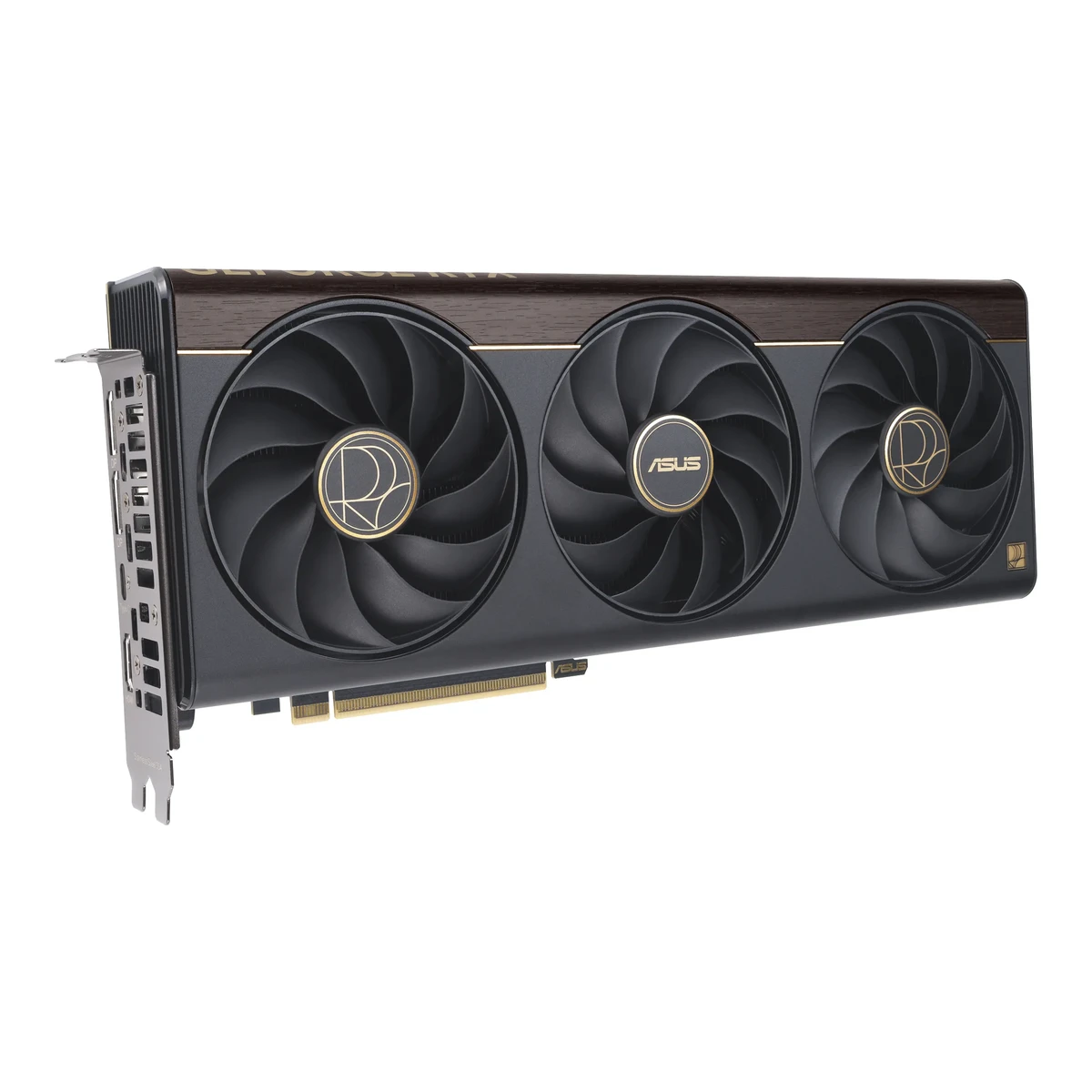

ProArt GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
Released October 2025.5Press releaseedgeup.asus.com/2025/the-proart-geforce-rtx-5080-stands-out-with-a-wood-patterned-laminate-trim-and-usb-type-c-portRead 15 October 2026The article says ASUS plans to release the ProArt RTX 5070 Ti later in 2025. The Tech Revolutionist lists Singapore availability for the RTX 5070 Ti at the end of October 2025. Month is approximate, and the exact first retail date was not found. Last checked 15 October 2026.
- GPU
- NVIDIA GeForce RTX 5070 Ti
- VRAM
- 16GB
- Length
- 304mm
- Board power
- 300W
83 of 100 fields known.
At a glance
Ports
- HDMI 2.1b
- 2 DisplayPort 2.1b UHBR20
- USB-C
General
- Model numbers
- PROART-RTX5070TI-O16G, 90YV0NR0-M0AA00, 90YV0NR0-MVAA00, 90YV0NR0-M0NA001Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Model PROART-RTX5070TI-O16G. The ASUS where-to-buy page lists the US codes 90YV0NR0-M0AA00 and 90YV0NR0-MVAA00. A European feed lists 90YV0NR0-M0NA00.4Maker product pageeshop.asus.com/us/90yv0nr0-m0aa00-proart-geforce-rtxtm-5070-ti-oc-edition-16gb-gddr7.htmlRead 15 October 2026Part Number 90YV0NR0-M0AA00. The eShop still shows TBD for the clocks.12Retailer pagemultitronic.fi/en/products/4540354/asus-geforce-rtx-5070-ti-proart-oc-16-gb-grafikkortRead 15 October 2026ID 90YV0NR0-M0NA00.13Spec databasehinta.fi/5460755/asus-proart-rtx5070ti-o16g/tuotetiedotRead 15 October 2026Manufacturer code 90YV0NR0-M0NA00.
- Status
- Available4Maker product pageeshop.asus.com/us/90yv0nr0-m0aa00-proart-geforce-rtxtm-5070-ti-oc-edition-16gb-gddr7.htmlRead 15 October 2026ASUS eShop USA lists part number 90YV0NR0-M0AA00 with Add to Cart and an in-stock availability tag on 2026-10-15.12Retailer pagemultitronic.fi/en/products/4540354/asus-geforce-rtx-5070-ti-proart-oc-16-gb-grafikkortRead 15 October 2026Finnish retailer lists the card with delivery estimated for 21 to 22 October 2026.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Not available
- GPU
- NVIDIA GeForce RTX 5070 Ti1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
GPU
- GPU architecture
- Blackwell7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Architecture Blackwell. CUDA cores 8960.
- Transistors
- 45.6billion8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: 45.6 billion.
- Shader cores
- 8,9601Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 43.9TFLOPS8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: peak FP32 TFLOPS 43.9, based on the reference GPU boost clock.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP4 No 703 FP4 Yes 1,406 FP8 No 351.5 FP8 Yes 703 FP16 No 175.8 FP16 Yes 351.5 INT8 No 351.5 INT8 Yes 703
Clocks
- Base clock
- Not available
- Game clock
- Not available
Memory
- VRAM
- 16GB1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
- VRAM type
- GDDR71Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: 16 GB GDDR7.
- Memory bus width
- 256bits1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
- Memory speed
- 28Gbps1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: memory clock (data rate) 28 Gbps.
Connectivity
- PCIe generation
- 51Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 20268Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 2 80 USB-C Not available 1 Not available Source1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Interface: HDMI 2.1b x 1 (native) and DisplayPort 2.1b x 2 (native). The row also lists one USB Type-C port that outputs video, stored as a USB-C row. ASUS names no version for it. The UHBR20 class and 80 Gbps come from NVIDIA's RTX 50 page.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps.14Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 2: two DP 2.1b, one HDMI 2.1b and one USB Type-C. The reviewer weighed the card at 1404 g and measured 30.4 cm long. Not stored, since the maker gives 304 mm and the feed gives 1390 g.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 2
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 41Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Maximum Display Support: 4, for simultaneous displays.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Multi monitor: up to 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Digital Max Resolution 7680 x 4320. ASUS gives no refresh rate, so the 165 Hz at 8K with DSC comes from NVIDIA's RTX 5070 Ti footnote.7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Maximum digital resolution: 4K at 480 Hz or 8K at 165 Hz with DSC.
Video engine
- Video encoders
- 27Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026NVENC: 2x ninth generation for the RTX 5070 Ti.8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: 2 x NVENC (9th gen).9Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 Ti row: 1 chip, 2 NVENC.
- Video decoders
- 17Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026NVDEC: 1x sixth generation.8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: 1 x NVDEC (6th gen).9Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 Ti row: 1 chip, 1 NVDEC.
- Hardware video encode
- H.264, H.265 (HEVC), AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 Ti row: H.264, H.265 (HEVC) and AV1 encode are marked YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV19Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5070 Ti row: H.264, H.265, VP9 and AV1 decode are marked YES.
Graphics features
- DirectX
- 12 Ultimate7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Microsoft DirectX 12 Ultimate.
- OpenGL
- 4.61Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 20267Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026
- Upscaling technologies
- DLSS 47Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026The DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 300W7Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 15 October 2026Total Graphics Power 300 W for the RTX 5070 Ti. It is the chip figure. NVIDIA makes no 5070 Ti Founders Edition.8Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 5: TGP 300 W.
- PSU wattage (card maker)
- 850W1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Recommended PSU 850W, based on a fully overclocked GPU and CPU system. NVIDIA lists 750 W required system power.
- Power connector
- 16-pin (revision not stated)1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Power Connectors: 1 x 16-pin. The row does not name 12V-2x6 or 12VHPWR, so the 16-pin option is stored, although reviewers write 12V-2x6.
Cooling
- Cooler type
- Open air2Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 2026Axial-tech fans, heatpipes and a vapor chamber over a heatsink, with a vented backplate. The two outer fans spin counterclockwise.14Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 2: vapor chamber with six heatpipes, black aluminium fins and a vented backplate with a cut-out at the GPU.
- Fans
- 32Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 2026Three Axial-tech fans.14Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 2: three Axial-tech fans of 85 mm.
- Radiator size
- Not available
- Fan stop at low load
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 20260dB Technology: all three fans stop below 50 C and start again above 55 C.14Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 2 (20 May 2026): the three fans stop completely under 50 C.20Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-hodnoceni.aspxRead 15 October 2026Page 10: the 0dB Fan function stops all fans at low temperatures.
- Dual BIOS
- Yes2Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 2026Dual BIOS: Performance mode and Quiet mode, with the same power target and top-end settings.14Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 2: a switch selects Performance or Quiet.20Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-hodnoceni.aspxRead 15 October 2026Page 10: Dual BIOS with a Performance (P-mode) and a Quiet (Q-mode) fan curve.
Dimensions and weight
- Length
- 304mm1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Dimensions: 304 x 126 x 50 mm. NVIDIA's SFF-Ready list gives the same card as 126 x 304 x 50 (height x length x width). The bracket is not mentioned.19Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-recenze-testy.aspxRead 15 October 2026The review gives 304 mm and a weight of 1.378 kg, which is not stored.
- Slot width
- 2.5slots1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Slot: 2.5 Slot.
- Low profile
- No12Retailer pagemultitronic.fi/en/products/4540354/asus-geforce-rtx-5070-ti-proart-oc-16-gb-grafikkortRead 15 October 2026Form factor Full-Height/Full-Length (FH/FL), so not low profile. hinta.fi lists a Full-Height bracket.13Spec databasehinta.fi/5460755/asus-proart-rtx5070ti-o16g/tuotetiedotRead 15 October 2026Bracket height Full-Height (FH), form factor FH/FL.20Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-hodnoceni.aspxRead 15 October 2026Page 10: the card is over 300 mm long and meets NVIDIA's SFF-Ready size limits. It is a full-height card.
- NVIDIA SFF-Ready
- Yes1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026SFF Ready: Compatible. The NVIDIA list below confirms it.11Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026The SFF-Ready Enthusiast list names ASUS ProArt GeForce RTX 5070 Ti OC Edition at 126 x 304 x 50 mm.
- Weight
- 1,390g(3.1 lb)12Retailer pagemultitronic.fi/en/products/4540354/asus-geforce-rtx-5070-ti-proart-oc-16-gb-grafikkortRead 15 October 2026Spec feed: Weight 1.39 kg. The hinta.fi feed gives 1390 g. Two reviewers weighed the card: Hardware & Co 1404 g and gpureport 1378 g. The feed lies between them and is stored.13Spec databasehinta.fi/5460755/asus-proart-rtx5070ti-o16g/tuotetiedotRead 15 October 2026Weight 1390 g in the feed's weight and dimensions block.
- Package weight
- 2,040g(4.5 lb)12Retailer pagemultitronic.fi/en/products/4540354/asus-geforce-rtx-5070-ti-proart-oc-16-gb-grafikkortRead 15 October 2026Spec feed: Package weight 2.04 kg, box 405 x 233 x 88.5 mm. hinta.fi gives 2040 g.13Spec databasehinta.fi/5460755/asus-proart-rtx5070ti-o16g/tuotetiedotRead 15 October 2026Package weight 2040 g.
Lighting and software
- Lighting sync
- ASUS Aura Sync1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026AURA SYNC row. The product page names Aura Sync lighting.2Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 2026Page text: Aura-lit logo and Aura Sync lighting.
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Ray tracing Average FPS 1 % low FPS A Plague Tale: Requiem 3840 2160 Ultra No 68.9 50.2 Cyberpunk 2077 3840 2160 Ultra No 61.3 44.7 Metro Exodus Enhanced Edition 3840 2160 Ultra Yes 65.1 47.5 STALKER 2: Heart of Chornobyl 3840 2160 Ultra No 43.5 30.7
Measured noise and temperature
- Fan noise per load
Profile Load Distance (cm) Noise (dB(A)) Performance BIOS Gaming 15 36 Quiet BIOS Gaming 15 35 Performance BIOS (P-mode) Max load 50 37.3 Quiet BIOS (Q-mode) Max load 50 34.6 Source16Reviewhardwareand.co/dossiers/gpu/test-geforce-rtx-5070-ti-custom-asus-rtx-5070-ti-proart-oc-editionRead 15 October 2026Page 5: sound level meter 15 cm from the card, foam-mounted, with a 30 dB(A) floor and a room under 30 dB(A). Gaming reading during A Plague Tale: Requiem at 3840 x 2160, maximum details, after a 10 minute session: 36 dB(A) Performance BIOS, 35 dB(A) Quiet BIOS. The 58 dB(A) readings at a fixed 100 percent fan speed are not a load and are not stored.18Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-testy-provoznich-vlastnosti.aspxRead 15 October 2026Page 4 (5 Aug 2026): 3DMark Steel Nomad Stress Test, 20 minutes at 3840 x 2160, treated as max load. Noise 37.3 dBA in P-mode and 34.6 dBA in Q-mode, interpolated from the fan speed (1560 and 1280 rpm) with a noise curve measured on the isolated card. The test method page gives a distance of 50 cm, a room noise floor of 33.1 dBA and 24 C ambient. The same table gives GPU 66 and 70 C and hot spot 77 and 81 C at the end of the stress test. Those are not stored, because a synthetic stress test is not a game run.- Fan noise while gaming
- 36dB(A)
- Hot spot temperature while gaming
- Not available
Measured power
In the box
- In the box
- 1 x Speedsetup Manual, 1 x PROART Graphics Card Holder, 1 x ASUS Velcro Hook & Loop, 1 x Thank You Card, 1 x Adapter Cable (1 to 3)1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Accessories as listed, verbatim.
- Power adapter cable included
- Yes1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Accessories list an Adapter Cable (1 to 3).19Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-recenze-testy.aspxRead 15 October 2026The box holds a manual, a thank-you card, a Velcro strap and a 16-pin to 3x 8-pin adapter.
- Support bracket included
- Yes1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026Accessories list a PROART Graphics Card Holder.19Reviewgpureport.cz/recenze/555/asus-proart-rtx-5070-ti-o16g-recenze-testy.aspxRead 15 October 2026A short height-adjustable support with a cross screwdriver is in the box.
Links
- Product page
- www.asus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g2Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16gRead 15 October 2026
- Spec sheet
- www.asus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspec1Maker product pageasus.com/us/motherboards-components/graphics-cards/proart/proart-rtx5070ti-o16g/techspecRead 15 October 2026
- Manual
- www.asus.com/us/supportonly/proart-rtx5070ti-o16g/helpdesk_manual3Maker product pageasus.com/us/supportonly/proart-rtx5070ti-o16g/helpdesk_manualRead 15 October 2026ASUS support page for PROART-RTX5070TI-O16G with the quick start guides and the recommended PSU table. No full manual PDF was opened.
- EPREL registration number
- Not available
Warranty
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Sources
We read 20 sources for this graphics card. The numbers match the markers in the sheet.
- Maker product pageasus.com/us/supportonly/proart-rtx5070ti-o16g/helpdesk_manual
- Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-family
- Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrix
- Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-ready
See a wrong value? Tell us and name the field.
