PC parts / Graphics cards

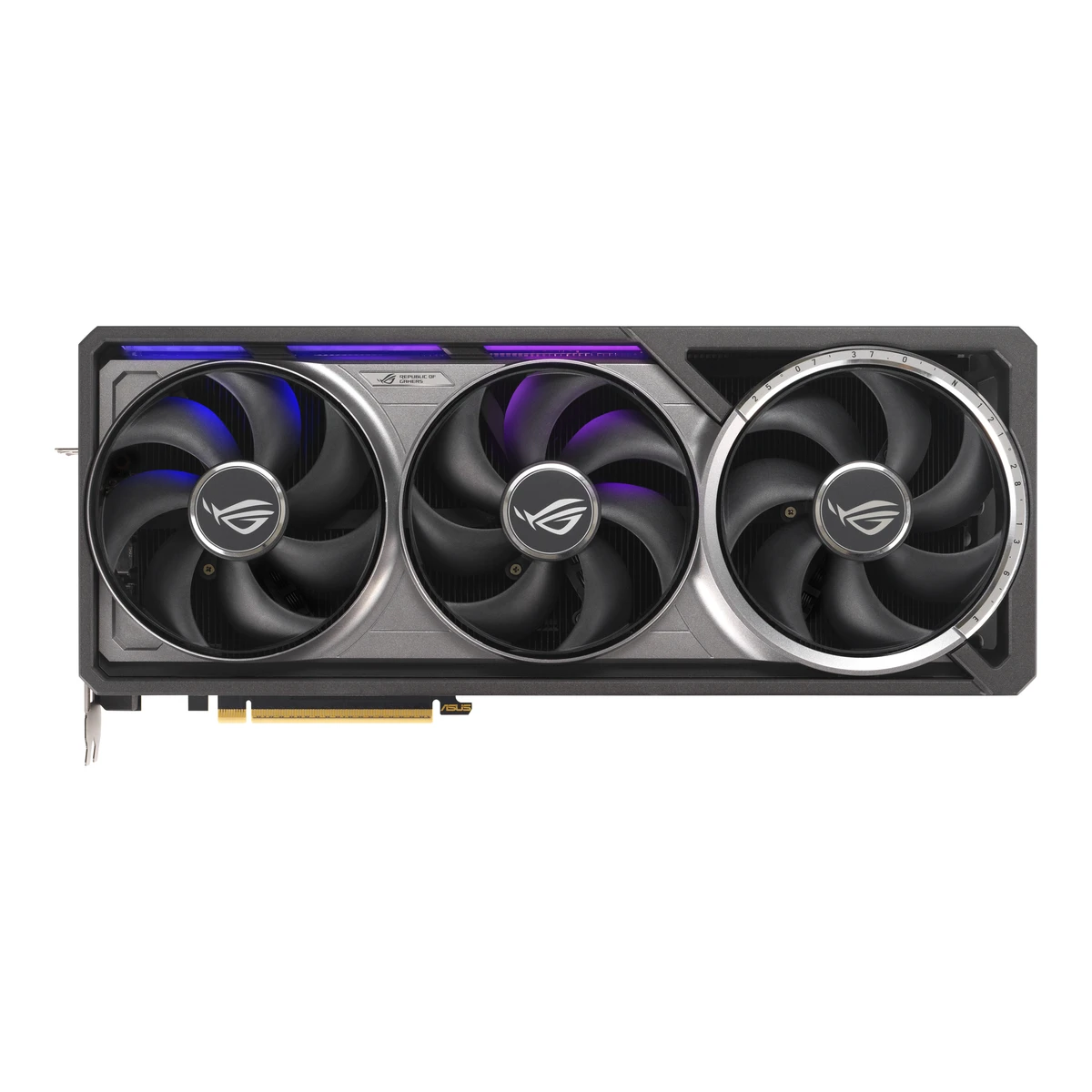

ASUS ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition

ASUSGraphics card

ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition

Released January 2025.10Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026The RTX 5080 chip launched on 2025-01-30 and partner cards went on sale the same day. Last checked 16 October 2026.

GPU
NVIDIA GeForce RTX 5080
VRAM
16GB
Length
357.6mm
Board power
400W

82 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
ROG Astral2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Product name: ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition. ROG Astral is the card line.
Model numbers
ROG-ASTRAL-RTX5080-O16G-GAMING, 90YV0LV0-M0AA00, 90YV0LV0-M0NA00, 90YV0LV0-MVAA001Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Model row: ROG-ASTRAL-RTX5080-O16G-GAMING. The ASUS US store page sells it as 90YV0LV0-MVAA00.4Maker product pageeshop.asus.com/ca-en/90yv0lv0-mvaa00-rog-astral-rtx5080-o16g-gaming.htmlRead 14 October 2026ASUS eShop Canada: ROG-ASTRAL-RTX5080-O16G-GAMING, part number 90YV0LV0-MVAA00.5Retailer pagenotebookstore.cl/tarjeta-de-video-asus-rog-astral-rtx-5080-16gbRead 14 October 2026Chilean retailer lists SKU 90YV0LV0-M0AA00 for the ROG Astral RTX 5080 16GB GDDR7 OC Edition with the same spec table as ASUS.18Spec databaseboxxe.com/shop/computers-and-peripherals/computer-components/system-components/graphics-cards/asus-rog-astral-rtx5080-o16g-gaming-nvidia-geforce-rtx-5080-16-gb-gddr7Read 14 October 2026Product code 90YV0LV0-M0NA00 for the ROG Astral RTX 5080 O16G Gaming.
GTIN / EAN
471138783791719Spec databasebuildcores.com/products/GPU/4a0mjb360/Asus-ROG-Astral-OC-GeForce-RTX-5080-16-GB-GDDR7Read 14 October 2026Lists EAN 4711387837917 for the card. ASUS Switzerland and two retailers give the same EAN for 90YV0LV0-M0NA00. BuildCores also lists three UPCs, which are not stored because the mapping to part numbers is not stated.
Announced
7 January 202511Press releasepress.asus.com/news/press-releases/asus-nvidia-geforce-rtx-50-series-graphics-cardsRead 14 October 2026Dated 2025-01-07: the ROG Astral GeForce RTX 5080 is among the cards coming soon from the ROG, TUF Gaming and Prime families, and the first quad-fan ROG cards.
Status
Available2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Product page is live with a Buy Now link and an ASUS Store price on 2026-10-14.
Predecessor
Not available
Successor
Not available
Launch price (US)
$1,499.9912Press articlepcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/News/Asus-offizielle-Preisempfehlungen-1464849Read 14 October 2026Article dated 2025-01-30: ASUS US launch price of the ROG Astral GeForce RTX 5080 OC is 1,499.99 USD before tax. The article gives no euro price for this model. HWCooling also names a suggested price of 1,499 USD.
Launch price (EU)
Not available
Markets
Not available
Colours
Black19Spec databasebuildcores.com/products/GPU/4a0mjb360/Asus-ROG-Astral-OC-GeForce-RTX-5080-16-GB-GDDR7Read 14 October 2026Manufacturer Color: Cosmic Matte Black.
GPU
NVIDIA GeForce RTX 50801Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026
GPU brand
NVIDIA1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026
Reference launch price (US)
$99910Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026Dated 2025-01-06: the GeForce RTX 5080 is available on Jan. 30 at $999. No tax is included in the figure.

GPU

GPU architecture
Blackwell6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB2037Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4 in Appendix B, GPU codename GB203.
Process
TSMC 4N7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
45.6billion7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 45.6 billion.
Die size
378mm²7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 378 mm2.
Compute units
847Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 84 SMs on the GeForce RTX 5080. The full GB203 also has 84.
Shader cores
10,7521Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026NVIDIA CUDA Cores 10752.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 10752 CUDA cores.
Ray tracing cores
847Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 84 RT Cores (4th Gen).
AI cores
3367Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 336 Tensor Cores (5th Gen).
ROPs
1127Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 112 ROPs.
L2 cache
64MB7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 65536 KB, which is 64 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
56.3TFLOPS7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: peak FP32 TFLOPS (non-Tensor) 56.3, based on the 2617 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No900.4
FP4Yes1,801
FP8No450.2
FP8Yes900.4
FP16No225.1
FP16Yes450.2
INT8No450.2
INT8Yes900.4
Source7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4, dense and effective with sparsity. FP4 uses FP32 accumulate (900.4 and 1801). FP8 and FP16 use FP16 accumulate. FP8 and FP16 with FP32 accumulate are half as high.

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,760MHz1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Engine Clock, Default mode: 2760 MHz (Boost Clock).
Boost clock in OC mode
2,790MHz1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Engine Clock, OC mode: 2790 MHz.
Reference boost clock
2,617MHz7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: GPU Boost Clock 2617 MHz.

Memory

VRAM
16GB1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Video Memory: 16GB GDDR7.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Standard memory config 16 GB GDDR7.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 16 GB GDDR7.
VRAM type
GDDR71Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Video Memory: 16GB GDDR7.
Memory bus width
256bits1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Memory Interface: 256-bit.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Memory interface width 256-bit.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 256-bit.
Memory speed
30Gbps1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Memory Speed: 30 Gbps.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: memory clock (data rate) 30 Gbps.
Memory bandwidth
960GB/s7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 960 GB/sec.

Connectivity

PCIe generation
51Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Bus Standard: PCI Express 5.0.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026PCI Express Gen 5.
PCIe lanes
169Owner's manualnvidia.com/content/geforce-gtx/geforce-rtx-5080-user-guide-r2.pdfRead 14 October 2026Quick Start Guide of the RTX 5080 Founders Edition: install the card in the primary PCI Express x16 slot. This is the GB203 link. The ASUS card is a Full-Height/Full-Length card with a full-length connector.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b2Not available
DisplayPort2.1b UHBR20380
Source1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Yes x 2 (Native HDMI 2.1b) and Yes x 3 (Native DisplayPort 2.1b). The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5080 page footnote for the GPU. HWCooling also states DP 2.1b with UHBR20 for this card.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Footnote: DisplayPort 2.1b with UHBR20 up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. HDMI 2.1b.15Reviewhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/2Read 14 October 2026Page 2: three DisplayPort and one HDMI are listed with the DisplayPort side as DP 2.1b with UHBR20. The review does not count the second HDMI port.
Display outputs in total
5
HDMI ports
2
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
41Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Maximum Display Support: 4. ASUS notes it applies to simultaneous display use.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Up to 4 displays, the same as ASUS.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Resolution: Digital Max Resolution 7680 x 4320. ASUS gives no refresh rate. The 165 Hz is NVIDIA's figure for 8K with DP 2.1b and DSC.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Footnote: 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC. 4K at 480 Hz.
HDCP version
2.31Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026HDCP Support Yes (2.3).6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026HDCP 2.3, the same as ASUS.

Video engine

Video encoders
26Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026NVIDIA Encoder (NVENC): 2x ninth generation.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 2 x NVENC (9th Gen).
Video decoders
26Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026NVIDIA Decoder (NVDEC): 2x sixth generation.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: 2 x NVDEC (6th Gen).
Hardware video encode
H.264, H.265 (HEVC), AV18Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5080 row: H.264, H.265 (HEVC) and AV1 encode are marked YES.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV18Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 14 October 2026GeForce RTX 5080 row: H.264, H.265, VP9 and AV1 decode are marked YES. The table has no VVC column.

Graphics features

DirectX
12 Ultimate6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Microsoft DirectX 12 Ultimate: Yes. The ASUS datasheet of the sister White card also says 12 Ultimate.
Vulkan
1.46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Vulkan 1.4, OpenGL 4.6.
OpenGL
4.61Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026OpenGL: OpenGL 4.6.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Vulkan 1.4, OpenGL 4.6.
Upscaling technologies
DLSS 42Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026NVIDIA DLSS 4 with Multi Frame Generation.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026The DLSS cell lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026NVIDIA DLSS 4 with Multi Frame Generation. Frame generation itself is named on the NVIDIA page.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.

Power

Board power
400W13Reviewclub386.com/asus-boosts-rog-astral-geforce-rtx-5080-power-limits-to-450w-via-bios-updateRead 14 October 2026Article dated 2025-04-04: the ROG Astral arrives out of the box at 400 W. The reference RTX 5080 is 360 W. A BIOS released on 2025-03-14 raises the limit to 450 W. ASUS states no board power on its page, so this is a reviewer figure. HWCooling reads 400 W for the Performance BIOS and 360 W (adjustable to 400 W) for the Quiet BIOS.14Reviewhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/1Read 14 October 2026Page 1: the Performance BIOS has a fixed power limit of 400 W. The Quiet BIOS is set to 360 W and can be raised to 400 W. The page does not say which BIOS is the factory default. Club386 says 400 W out of the box.
Reference board power
360W6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Total Graphics Power 360 W for the RTX 5080 reference design.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 4: TGP 360 W.
PSU wattage (card maker)
850W1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Recommended PSU 850W. ASUS says the figure assumes a fully overclocked GPU and CPU. NVIDIA also states 850 W minimum system power for the chip.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5080Read 14 October 2026Required system power 850 W minimum for the chip.
Power connector
16-pin (revision not stated)1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Power Connectors: 1 x 16-pin. The spec table does not name the revision. The feature text on the ROG page writes 12VHPWR cable in the Power Detector+ paragraph, which is not a naming of the card's connector, so the unnamed pcie_16pin is stored.

Cooling

Cooler type
Open air2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Quad-Fan Force: four Axial-tech fans, a vertical airflow channel, a patented vapor chamber and a phase-change thermal pad. HWCooling: three fans blow down onto the heatsink and the fourth is in the backplate area.15Reviewhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/2Read 14 October 2026Page 2: three fans blow down onto the heatsink. The fourth is in the metal backplate area.
Fans
42Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026The page calls it ROG's first quad-fan graphics card. HWCooling and Profesional Review also count four.15Reviewhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/2Read 14 October 2026Page 2: four fans, three in the shroud and one in the backplate.
Radiator size
Not available
Fan stop at low load
Not available
Dual BIOS
Yes2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Dual BIOS: Performance mode and Quiet mode.

Dimensions and weight

Length
357.6mm1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Dimensions 357.6 x 149.3 x 76 mm (14.1 x 5.9 x 3 inch). The page does not say whether the bracket or the power plug is included.
Height
149.3mm1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Middle value of 357.6 x 149.3 x 76 mm.
Thickness
76mm1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Last value of 357.6 x 149.3 x 76 mm.
Slot width
3.8slots1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Slot: 3.8 Slot.
Low profile
No18Spec databaseboxxe.com/shop/computers-and-peripherals/computer-components/system-components/graphics-cards/asus-rog-astral-rtx5080-o16g-gaming-nvidia-geforce-rtx-5080-16-gb-gddr7Read 14 October 2026Form factor: Full-Height/Full-Length (FH/FL).
NVIDIA SFF-Ready
Not available
Weight
2,860g(6.3 lb)17Measurementpcgameshardware.de/Geforce-RTX-5080-Grafikkarte-281030/Specials/kaufen-Benchmark-Test-Temperaturen-Lautheit-1465092Read 14 October 2026PCGH weighed the card at 2930 g and measured 350 x 135 x 77 mm. ASUS data says 2.86 kg, which is stored.18Spec databaseboxxe.com/shop/computers-and-peripherals/computer-components/system-components/graphics-cards/asus-rog-astral-rtx5080-o16g-gaming-nvidia-geforce-rtx-5080-16-gb-gddr7Read 14 October 2026Weight 2.86 kg, from an ASUS data feed. The ASUS data sheet of the sister ROG Astral RTX 5080 White (published 2025-06-18) lists the same 2.86 kg.
Package weight
4,300g(9.5 lb)18Spec databaseboxxe.com/shop/computers-and-peripherals/computer-components/system-components/graphics-cards/asus-rog-astral-rtx5080-o16g-gaming-nvidia-geforce-rtx-5080-16-gb-gddr7Read 14 October 2026Package weight 4.3 kg, package 420 x 226 x 126 mm.

Lighting and software

RGB lighting
Yes2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Indirect Aura ARGB lighting with personalized colour or functional effects.15Reviewhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/2Read 14 October 2026Page 2: a long ARGB LED strip on the outer side with various effects.
Lighting sync
ASUS Aura Sync1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026AURA SYNC, ARGB.2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026Aura Sync with other Aura components.
Software
ASUS GPU Tweak III1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Software row: ASUS GPU Tweak III and MuseTree, downloaded from the support site.2Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gamingRead 14 October 2026GPU Tweak III and MuseTree.

Measured performance

GPU clock while gaming (measured)
2,893MHz16Measurementhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/10Read 14 October 2026Page 10 (F1 24, Performance BIOS): clock holds steady at around 2893 MHz. 3840 x 2160, Ultra, Singapore wet, five laps, run continuously for ten minutes. Page 8 (Cyberpunk 2077, RT Medium) gives the same 2893 MHz. Ryzen 7 9800X3D, Fractal Design Meshify 2 with system fans at about 780 rpm. The Quiet BIOS clock is 2823 MHz on page 11.
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

Fan noise per load
ProfileLoadDistance (cm)Noise (dB(A))
Performance BIOSGaming3552.6
Quiet BIOSGaming3543.5
Source16Measurementhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/10Read 14 October 2026Page 10: 52.6 dBA in F1 24 with the Performance BIOS at 2260 rpm. Page 8: 51.1 dBA in Cyberpunk 2077 at 2110 rpm. Page 11: 43.5 dBA in F1 24 with the Quiet BIOS at 1540 rpm. The Cyberpunk Quiet value on page 9 is 41.2 dBA. The stored values are the loudest of each BIOS. Distance 35 cm from the PCI Express slot, Reed R8080 meter, foam-lined bench, from HWCooling's test method on https://www.hwcooling.net/en/one-of-the-fastest-gigabyte-rtx-4090-gaming-oc-24g-review/5/. The review does not state which BIOS is the factory default.
Fan noise while gaming
52.6dB(A)
GPU temperature while gaming
61°C17Measurementpcgameshardware.de/Geforce-RTX-5080-Grafikkarte-281030/Specials/kaufen-Benchmark-Test-Temperaturen-Lautheit-1465092Read 14 October 2026Performance BIOS (P-BIOS) at 1500 rpm: GPU 61 C. Metro Exodus Enhanced Edition, church cultist scene, ray tracing, full load, HWInfo, open test bench. PCGH names a settling phase before the reading and gives no run length or room temperature. The Silent BIOS reads 68 C.
Hot spot temperature while gaming
Not available
Memory temperature while gaming
64°C17Measurementpcgameshardware.de/Geforce-RTX-5080-Grafikkarte-281030/Specials/kaufen-Benchmark-Test-Temperaturen-Lautheit-1465092Read 14 October 2026Performance BIOS: VRAM 64 C in the same test. The Silent BIOS reads 74 C.

Measured power

Card power at idle (measured)
Not available
GPU power while gaming (measured)
381W16Measurementhwcooling.net/en/asus-rog-astral-geforce-rtx-5080-oc-ed-brutalism-in-pc/10Read 14 October 2026Page 10: average card power of 381 W in F1 24, Performance BIOS. Page 8 gives 379 W in Cyberpunk 2077 according to the monitoring. A software reading, since HWCooling's power method page was not read and no hardware capture exists for this card.

In the box

In the box
1 x Speedsetup Manual, 1 x ROG Graphics Card Holder, 1 x ROG Velcro Hook & Loop, 1 x ROG Magnet, 1 x ROG Graphics Card Keycap, 1 x ROG PCB Ruler, 1 x Thank You Card, 1 x Adapter Cable (1 to 3)1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 2026Accessories list on the spec page, verbatim.
Power adapter cable included
Yes1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 20261 x Adapter Cable (1 to 3). Profesional Review says it is a 12VHPWR to 3 x PCIe 8-pin adapter.
Support bracket included
Yes1Maker product pagerog.asus.com/us/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5080-o16g-gaming/specRead 14 October 20261 x ROG Graphics Card Holder.

Warranty

Manufacturer warranty (source market)
3years4Maker product pageeshop.asus.com/ca-en/90yv0lv0-mvaa00-rog-astral-rtx5080-o16g-gaming.htmlRead 14 October 2026ASUS eShop Canada: 3 year manufacturer warranty. The market is Canada.
