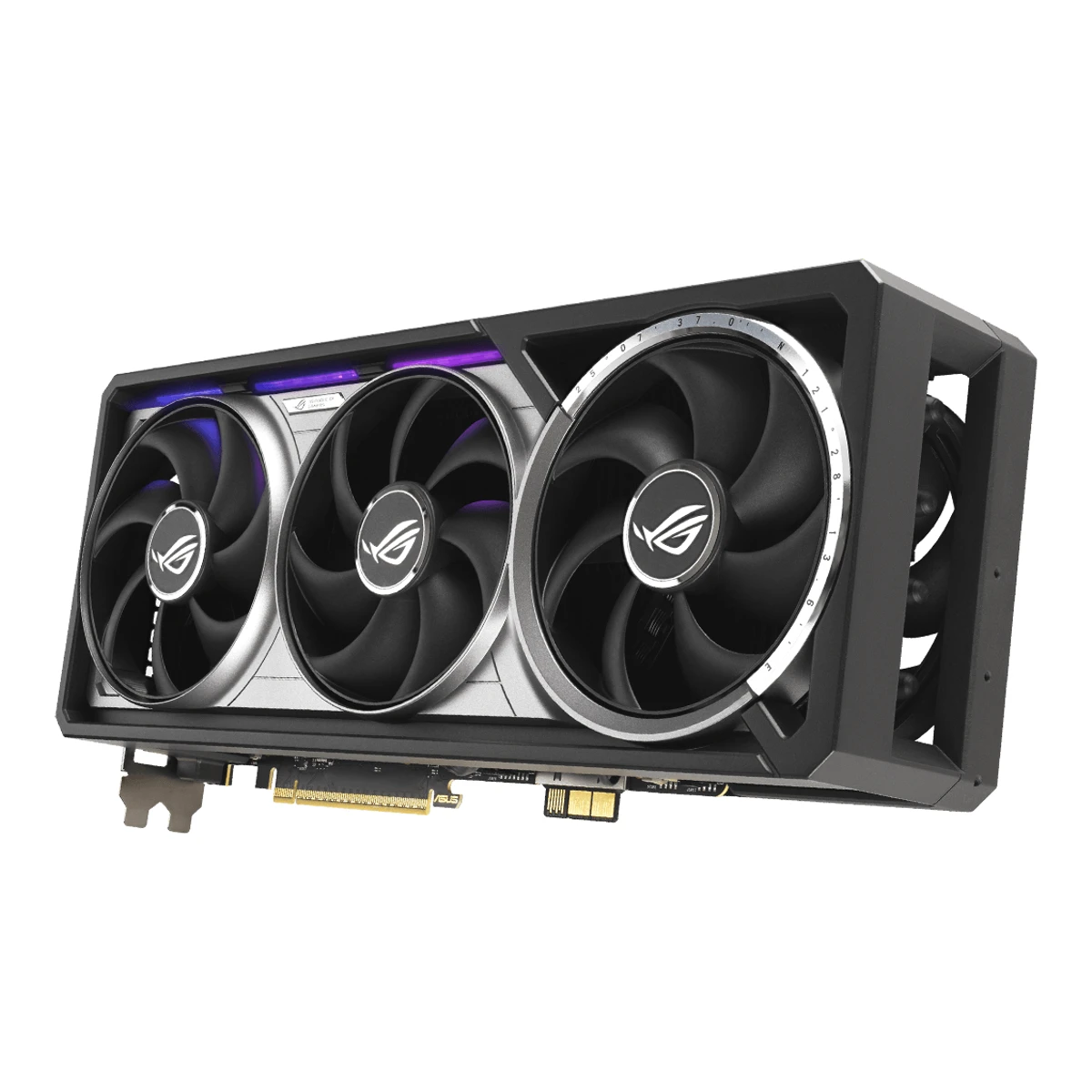

ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition

ASUSGraphics card

ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition

Released August 2025.12Press articleguru3d.com/story/asus-rog-astral-geforce-rtx-5090-btf-edition-costs-more-than-standard-modelRead 15 October 2026The same story gives ASUS's European price of 2,950 EUR on 2025-08-11. Guru3D's hands-on review of a shipping sample followed on 2025-08-15. No exact retail start was found, so August 2025 is the best supported month. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 5090
VRAM
32GB
Length
357.6mm
Board power
600W

79 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
ROG Astral1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Product name: ROG Astral GeForce RTX 5090 32GB GDDR7 BTF OC Edition.
Model numbers
ROG-ASTRAL-RTX5090-O32G-BTF-GAMING, 90YV0NF0-MVAA00, 90YV0NF0-M0AA00, 90YV0NF0-M0NA004Maker product pageeshop.asus.com/us/90yv0nf0-mvaa00-rog-astral-rtx5090-o32g-btf-gaming.htmlRead 15 October 2026ASUS eShop USA: product name ROG-ASTRAL-RTX5090-O32G-BTF-GAMING, part number 90YV0NF0-MVAA00. The Canadian eShop lists 90YV0NF0-M0AA00 for the same product name.5Retailer pageawd-it.co.uk/asus-geforce-rtx-5090-rog-astral-btf-32gb-gddr7-oc-edition-graphics-card-90yv0nf0-m0na00.htmlRead 15 October 2026AWD-IT UK: model number 90YV0NF0-M0NA00. The Canadian ASUS eShop lists 90YV0NF0-M0AA00.
GTIN / EAN
47116361763785Retailer pageawd-it.co.uk/asus-geforce-rtx-5090-rog-astral-btf-32gb-gddr7-oc-edition-graphics-card-90yv0nf0-m0na00.htmlRead 15 October 2026EAN 4711636176378 for 90YV0NF0-M0NA00. The code may not apply to the US and Canadian part numbers.
Announced
May 202512Press articleguru3d.com/story/asus-rog-astral-geforce-rtx-5090-btf-edition-costs-more-than-standard-modelRead 15 October 2026Story dated 2025-08-11: ASUS first announced the card in May 2025 (Computex). The month is stored.
Status
Available1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Product page is live with a Where to buy link on 2026-10-15. Retail stock is scarce: Newegg, Amazon, B&H and AWD-IT showed it out of stock in search results or on the page.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
GPU
NVIDIA GeForce RTX 50902Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026
GPU brand
NVIDIA2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026
Reference launch price (US)
$1,99910Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026Dated 2025-01-06: the GeForce RTX 5090 will be available on Jan. 30 at $1,999. NVIDIA's price for the chip, not ASUS's. No tax is included in the figure.

GPU

GPU architecture
Blackwell6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Architecture: Blackwell.
GPU die
GB2027Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A, GPU codename GB202.
Process
TSMC 4N7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
92.2billion7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 92.2 billion.
Die size
750mm²7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 750 mm2.
Compute units
1707Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 170 SMs on the GeForce RTX 5090. The full GB202 has 192.
Shader cores
21,7602Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA CUDA Cores 21760.
Ray tracing cores
1707Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 170 RT cores, 4th Gen.
AI cores
6807Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 680 Tensor cores, 5th Gen.
ROPs
1767Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 176 ROPs.
L2 cache
96MB7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 98304 KB, which is 96 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
104.8TFLOPS7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: peak FP32 TFLOPS (non-Tensor) 104.8, based on the 2407 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No1,676
FP4Yes3,352
FP8No838
FP8Yes1,676
FP16No419
FP16Yes838
INT8No838
INT8Yes1,676
Source7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A, dense and effective with sparsity. FP4 uses FP32 accumulate (1676 and 3352, the 3352 AI TOPS also on NVIDIA's product page and on ASUS's spec page). FP8 and FP16 use FP16 accumulate. FP8 and FP16 with FP32 accumulate are half as high. INT8 matches FP8.

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,580MHz2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Engine Clock: Default mode 2580 MHz (Boost clock). The ASUS eShop headline lists 2437 MHz and 2467 MHz, which does not match this Tech Specs page or the eShop's own Tech Specs table. PCGH reads 2670 MHz in the Performance BIOS.
Boost clock in OC mode
2,610MHz2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Engine Clock: OC mode 2610 MHz.
Reference boost clock
2,407MHz7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: GPU Boost Clock 2407 MHz.

Memory

VRAM
32GB2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026
VRAM type
GDDR72Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Standard Memory Config: 32 GB GDDR7.
Memory bus width
512bits2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026
Memory speed
28Gbps2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Memory Speed: 28 Gbps.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: memory clock (data rate) 28 Gbps.
Memory bandwidth
1,792GB/s7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 1792 GB/sec.

Connectivity

PCIe generation
52Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20266Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026
PCIe lanes
169Owner's manualnvidia.com/content/geforce-gtx/geforce-rtx-5090-user-guide-r2.pdfRead 15 October 2026Quick Start Guide of the RTX 5090 Founders Edition: install the card in the primary PCI Express x16 slot. This is the GB202 link. ASUS lists PCI Express 5.0 only and gives no lane count for its card.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b2Not available
DisplayPort2.1b UHBR20380
Source2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Native HDMI 2.1b x2 and native DisplayPort 2.1b x3. The UHBR20 class and the 80 Gbps link rate come from the NVIDIA RTX 5090 page footnote 2.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Footnote 2: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps. Footnote 3: HDMI 2.1b.
Display outputs in total
5
HDMI ports
2
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
42Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Maximum Display Support: 4. ASUS notes it applies to simultaneous display use.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Multi Monitor: up to 4.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026ASUS states a digital maximum of 7680 x 4320. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Footnote 1: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC.
HDCP version
2.32Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026HDCP Support Yes (2.3).6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026HDCP 2.3.

Video engine

Video encoders
36Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Encoder (NVENC): 3x ninth generation.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 3 x NVENC (9th Gen).8Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 column: 9th Gen NVENC, 1 chip, 3 NVENC engines.
Video decoders
26Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA Decoder (NVDEC): 2x sixth generation.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: 2 x NVDEC (6th Gen).8Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 column: 6th Gen NVDEC, 1 chip, 2 NVDEC engines.
Hardware video encode
H.264, H.265 (HEVC), AV18Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 column: H.264, HEVC and AV1 encode are supported.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV18Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 column: VP9, H.264, HEVC and AV1 decode are supported. The table lists no VVC for this card.

Graphics features

DirectX
12 Ultimate6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Microsoft DirectX 12 Ultimate: Yes.
Vulkan
1.46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Vulkan 1.4, OpenGL 4.6: Yes.
OpenGL
4.62Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026
Upscaling technologies
DLSS 46Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA DLSS: DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026The DLSS cell lists Frame Generation and Multi Frame Generation.

Power

Board power
600W14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 1 and the page 2 spec table: board power (TGP) 600 W in both BIOS modes. The power limit is set to 600 W (100 percent) and cannot be raised. ASUS states no board power for this card. The reviewer names no tool for the reading.16Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760/2Read 15 October 2026Page 2 spec table: Boardpower (TGP) 600 W / 600 W for the P and S BIOS. The same table lists a boost clock of 2,670 MHz (P-BIOS) and 2,625 MHz (S-BIOS), which is higher than the 2,580 MHz and 2,610 MHz that ASUS states, so the stored clocks stay with ASUS.
Reference board power
575W6Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Total Graphics Power 575 W for the RTX 5090 Founders Edition or reference design.7Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: TGP 575 W.
PSU wattage (card maker)
1,000W2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Recommended PSU 1000 W. ASUS says the figure assumes a fully overclocked GPU and CPU.
Power connector
16-pin (revision not stated)2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Power Connectors: 1 x 16-pin, graphics card high-power (GC-HPWR) gold finger. This is ASUS's BTF connector. The card ships with a detachable adapter and a 1-to-4 cable. ASUS names no 12V-2x6 revision here, so the 16-pin option is used. The feature text calls the cable 12VHPWR.

Cooling

Cooler type
Open air1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Quad-fan design with four axial-tech fans, a patented vapor chamber, more fin density and a phase-change GPU thermal pad. PCGH says the fourth fan sits in the backplate and pulls air through a flow-through section.14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 1: four 104 mm fans, three on the heatsink and one in the backplate pulling air through a flow-through section.
Fans
41Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Four axial-tech fans (Quad-Fan Force). FanConnect II adds two PWM headers for chassis fans, which are not counted.14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 1: four 104 mm fans. Three sit on the heatsink and the fourth is in the backplate.
Radiator size
Not available
Fan stop at low load
Yes14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 2: idle noise 0 sone in both BIOS modes. The coil-whine test runs with the fans stopped.15Reviewpcguide.com/gpu/review/rog-astral-rtx-5090-btf-ocRead 15 October 2026Thermals test: the fans were stopped at idle (under 10 W). After a load they stop again once the temperature falls below 60 C.
Dual BIOS
Yes1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Dual BIOS: Performance mode and Quiet mode with the same power target.14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 1: dual BIOS with a Performance and a Silent mode. The power limit stays the same.

Dimensions and weight

Length
357.6mm2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Dimensions 357.6 x 149.3 x 76 mm. The page does not say whether the bracket or the power plug is included. PCGH measured 351 x 135.5 x 76 mm.
Height
149.3mm2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Middle value of 357.6 x 149.3 x 76 mm.
Thickness
76mm2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Last value of 357.6 x 149.3 x 76 mm.
Slot width
3.8slots2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Slot: 3.8 Slot.
Low profile
Not available
NVIDIA SFF-Ready
No11Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026NVIDIA's SFF-Ready Enthusiast GeForce list covers the RTX 5090 class (ASUS ProArt GeForce RTX 5090 and the Founders Edition are listed). The ROG Astral BTF is not on the list, so the value is false. The list was last updated on 2025-01-06.
Weight
3,068g(6.8 lb)14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 2 spec table: weight 3,068 g. PCGH calls it the heaviest air-cooled card it has tested. ASUS publishes no weight. The figure is for PCGH's sample.
Package weight
Not available

Lighting and software

RGB lighting
Yes1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Indirect Aura ARGB lighting with personalised effects.
Lighting sync
ASUS Aura Sync1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026Aura Sync, ARGB. The spec page row reads AURA SYNC ARGB.2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026AURA SYNC, ARGB.
Software
ASUS GPU Tweak III1Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gamingRead 15 October 2026GPU Tweak III is described on the page.2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Software row: ASUS GPU Tweak III and MuseTree, downloaded from the support site.

Measured performance

GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
14,839points15Reviewpcguide.com/gpu/review/rog-astral-rtx-5090-btf-ocRead 15 October 2026Review last updated 2025-08-19. Text: graphical score 14,839 in Steel Nomad. Test bench Ryzen 7 9800X3D on an ASUS Prime X870-P WiFi, 64 GB DDR5-6600 CL32. BIOS mode and driver are not stated.
3DMark Port Royal
39,123points15Reviewpcguide.com/gpu/review/rog-astral-rtx-5090-btf-ocRead 15 October 2026Text: graphical score 39,123 in Port Royal. Same bench, BIOS mode and driver not stated.
3DMark Speed Way
Not available
Game frame rates
GameWidth (px)Height (px)PresetUpscalingRay tracingAverage FPS1 % low FPS
Counter-Strike 219201080Very highNot availableNot available600Not available
Counter-Strike 225601440Very highNot availableNot available485Not available
Counter-Strike 238402160Very highNot availableNot available298Not available
Cyberpunk 207719201080UltraOffNo233158
Cyberpunk 207725601440UltraOffNo217151
Cyberpunk 207738402160UltraOffNo11485
Cyberpunk 207719201080UltraOffYes152118
Cyberpunk 207725601440UltraOffYes10888
Cyberpunk 207738402160UltraOffYes5952
Doom Eternal19201080Ultra NightmareNot availableNo650Not available
Doom Eternal25601440Ultra NightmareNot availableNo594Not available
Doom Eternal38402160Ultra NightmareNot availableNo391Not available
Doom Eternal19201080Ultra NightmareNot availableYes464Not available
Doom Eternal25601440Ultra NightmareNot availableYes404Not available
Doom Eternal38402160Ultra NightmareNot availableYes278Not available
Source15Reviewpcguide.com/gpu/review/rog-astral-rtx-5090-btf-ocRead 15 October 2026Counter-Strike 2 on very high. Cyberpunk 2077 on ultra without upscaling, then with ray tracing enabled (preset otherwise unchanged). Doom Eternal on Ultra Nightmare, then with ray tracing enabled. 1080p, 1440p and 4K, average fps with 1 percent lows where given. Same bench. Driver, BIOS mode, game versions and benchmark scenes are not stated, so only rows with a stated preset are kept. Frame generation rows are not stored.

Measured noise and temperature

Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
64°C14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 2: GPU 64 C in the Performance BIOS (73 C in the Silent BIOS). PCGH method (page 1): Metro Exodus Enhanced Edition, Volga church scene, passive test system, 22 C room, at least 20 minutes to settle, HWiNFO. The test CPU and driver are not given.
Hot spot temperature while gaming
Not available
Memory temperature while gaming
72°C14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Tests/Asus-ROG-Astral-RTX-5090-BTF-Preis-Leistung-Temperatur-Lautstaerke-1481760Read 15 October 2026Page 2: VRAM 72 C in the Performance BIOS (82 C in the Silent BIOS). Same method. PCGH gave no hot spot value.

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
1 x Speedsetup Manual, 1 x ROG Graphics Card Holder, 1 x ROG Velcro Hook & Loop, 1 x ROG Magnet, 1 x ROG Graphics Card Keycap, 1 x ROG PCB Ruler, 1 x Thank You Card, 1 x Adapter Cable (1 to 4)2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 2026Accessories list on the spec page, verbatim.
Power adapter cable included
Yes2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20261 x Adapter Cable (1 to 4). The 1-to-4 cable joins four PCIe 8-pin cables to the card.
Support bracket included
Yes2Maker product pagerog.asus.com/graphics-cards/graphics-cards/rog-astral/rog-astral-rtx5090-o32g-btf-gaming/specRead 15 October 20261 x ROG Graphics Card Holder.

Warranty

Manufacturer warranty (source market)
3years4Maker product pageeshop.asus.com/us/90yv0nf0-mvaa00-rog-astral-rtx5090-o32g-btf-gaming.htmlRead 15 October 2026ASUS eShop USA: 3 year manufacturer warranty. The market is the United States. The Canadian eShop and AWD-IT also list 3 years.
