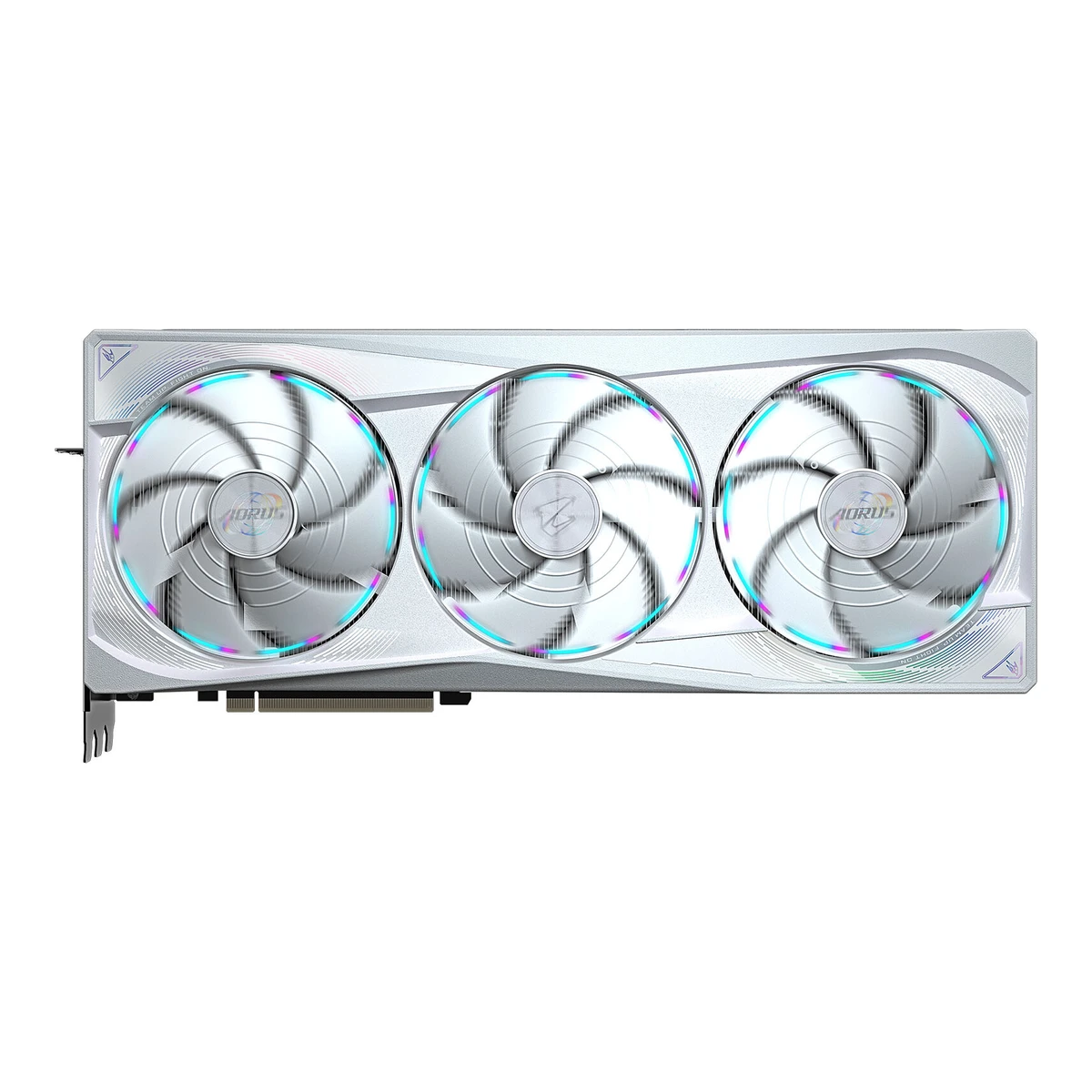

GIGABYTE AORUS GeForce RTX 5090 MASTER ICE 32G

GIGABYTEGraphics card

AORUS GeForce RTX 5090 MASTER ICE 32G

Released January 2025.7Press articletomshardware.com/pc-components/gpus/gigabyte-releases-27-new-nvidia-rtx-50-series-gpus-at-ces-2025-3-aorus-radeon-rx-9000-gpus-also-announcedRead 15 October 2026Month is approximate. The card was announced on 2025-01-07 and the RTX 5090 went on sale on 2025-01-30 (NVIDIA). No source read here states this SKU's first retail date. Last checked 15 October 2026.

GPU
NVIDIA GeForce RTX 5090
VRAM
32GB
Length
360mm
Board power
600W

74 of 100 fields known.

Compare with another graphics cardDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Series
AORUS Master2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Brand GIGABYTE, product family AORUS, product name AORUS GeForce RTX 5090 MASTER ICE 32G. The MASTER tier of the AORUS family is stored as the line.
Model numbers
GV-N5090AORUSM ICE-32GD1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Spec table row Model: GV-N5090AORUSM ICE-32GD. Vietnamese retailer copy of the Gigabyte spec tab.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Product code GV-N5090AORUSM ICE-32GD. This is a catalog datasheet (publication date 06-FEB-2026, Spanish) that a Spanish retailer hosts. It carries Gigabyte's data and Gigabyte's product name.
GTIN / EAN
4719331355906, 8895230485972Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Barcodes on page 3: 4719331355906 (EAN) and 889523048597 (UPC, also printed as 0889523048597).
Announced
7 January 20257Press articletomshardware.com/pc-components/gpus/gigabyte-releases-27-new-nvidia-rtx-50-series-gpus-at-ces-2025-3-aorus-radeon-rx-9000-gpus-also-announcedRead 15 October 2026Published 2025-01-07 (CES 2025). Its table lists Aorus GeForce RTX 5090 Master Ice 32G: 28Gbps, 32 GB GDDR7, 512-bit, 16-pin x 1, PCIe 5.0, price TBD.
Status
Available4Retailer pageldlc.com/en/product/PB00662770.htmlRead 15 October 2026LDLC (France) lists the card as in stock with an Add to basket button on 2026-10-15. Its Power consumption: 600 W row is a retail feed value and is not stored. Its 2 year warranty is the seller's term.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
White2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Product color: Blanco (White).3Retailer pageparadigit.ie/gigabyte-aorus-geforce-rtx-5090-master-ice-32g/21757552/productRead 15 October 2026Colour of product: White.
GPU
NVIDIA GeForce RTX 50909Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Specs table for the GeForce RTX 5090. The copy read here still had price and date placeholders.
GPU brand
NVIDIA9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026
Reference launch price (US)
$1,99912Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026The RTX 5090 is priced at $1,999 and is available starting January 30 (2025).

GPU

GPU architecture
Blackwell9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Architecture: Blackwell.
GPU die
GB20210Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A: Blackwell GB202 GPU. The RTX 5090 uses GB202.
Process
TSMC 4N10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: TSMC 4nm 4N, NVIDIA custom process.
Transistors
92.2billion10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 92.2 billion for the full GB202 chip.
Die size
750mm²10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 750 mm2.
Compute units
17010Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 170 SMs.
Shader cores
21,7609Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026CUDA cores: 21,760.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 21760 CUDA cores.
Ray tracing cores
17010Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 170 RT cores, 4th generation.
AI cores
68010Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 680 Tensor cores, 5th generation.
ROPs
17610Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 176 ROPs.
L2 cache
96MB10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: L2 cache 98304 KB, which is 96 MB.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
104.8TFLOPS10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: Peak FP32 TFLOPS (non-Tensor) 104.8, based on the reference boost clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No1,676
FP4Yes3,352
FP8No838
FP8Yes1,676
FP16No419
FP16Yes838
INT8No838
INT8Yes1,676
Source10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: FP4 1676/3352 (FP32 accumulate), FP8 838/1676 (FP16 accumulate), FP16 419/838 (FP16 accumulate), INT8 838/1676. The second figure uses sparsity. Dense and sparse rows are stored.

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,655MHz1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Core clock: 2655 MHz (Reference card: 2407MHz). The row does not name a BIOS mode. Gigabyte's dual BIOS has Performance and Silent. A Memory Express copy of the Gigabyte page says Performance is the factory default, but that page was not readable here. No source states the Silent clock or a separate OC mode clock, so the OC mode field stays empty.8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026Out of the box the card boosts to 2,655MHz, against 2,407MHz on the Founders Edition. The review also logs an average of 2,820MHz in a one-hour F1 24 loop with the optional reverse fan fitted. That is not stored, because the fan is not the default setup and the review states no resolution.
Boost clock in OC mode
Not available
Reference boost clock
2,407MHz1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Core clock row: Reference card 2407MHz.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Boost clock 2.41 GHz. The exact 2407 MHz is in the whitepaper and in Gigabyte's reference row.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: GPU boost clock 2407 MHz.

Memory

VRAM
32GB1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 202632 GB GDDR7.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 202632 GB GDDR7.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 32 GB GDDR7.
VRAM type
GDDR71Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 202610Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: GDDR7.
Memory bus width
512bits1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Memory bus: 512 bit.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Bus width 512-bit.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 512-bit.
Memory speed
28Gbps1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Memory speed: 28 Gbps.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: memory clock (data rate) 28 Gbps.
Memory bandwidth
1,792GB/s10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 1792 GB/sec.

Connectivity

PCIe generation
51Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Bus standard: PCI-E 5.0.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026PCIe Gen 5.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: PCI Express Gen 5.
PCIe lanes
162Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Interface type: PCI Express x16 5.0.3Retailer pageparadigit.ie/gigabyte-aorus-geforce-rtx-5090-master-ice-32g/21757552/productRead 15 October 2026Interface type: PCI Express x16 5.0.
Display outputs
TypeVersionCountMax bandwidth (Gbps)
HDMI2.1b1Not available
DisplayPort2.1b UHBR20380
Source1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Display outputs: DisplayPort 2.1b *3 / HDMI 2.1b *1. Gigabyte's product title and the Gigabyte datasheet write DisplayPort 2.1a. The Gigabyte spec tab copy and NVIDIA write 2.1b, so 2.1b is stored, as on the catalog's other Gigabyte RTX 50 cards. The UHBR20 class and the 80 Gbps link rate come from NVIDIA's RTX 5090 page.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026HDMI 1x version 2.1b and DisplayPort 3x. The sheet writes DisplayPort 2.1a, and the product title says 3 x DP 2.1a. Other Gigabyte copies and NVIDIA write 2.1b.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Footnote: DisplayPort 2.1b with UHBR20, which is 80 Gbps. HDMI 2.1b. Reference layout: 3x DisplayPort and 1x HDMI.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max displays
41Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Maximum displays: 4.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Multi-monitor: up to 4 displays.
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Max resolution: 4K at 480 Hz or 8K at 165 Hz with DSC. Gigabyte states 7680 x 4320 and no refresh rate, so the rate at that resolution comes from NVIDIA. DSC is needed for this mode.
HDCP version
2.39Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026HDCP 2.3.

Video engine

Video encoders
39Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVENC: 3x ninth generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 3 x NVENC (9th gen).11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20263 NVENC units.
Video decoders
29Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVDEC: 2x sixth generation.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 2 x NVDEC (6th gen).11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20262 NVDEC units.
Hardware video encode
H.264, H.265 (HEVC), AV19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026AV1 encode: yes. H.264 and HEVC encode are in the video encode and decode support matrix.11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 (GB202): 3 NVENC units with H.264, HEVC and AV1 encode.
Hardware video decode
H.264, H.265 (HEVC), VP9, AV19Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026AV1 decode: yes. The other codecs are in the video encode and decode support matrix.11Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026GeForce RTX 5090 (GB202): 2 NVDEC units with H.264, HEVC, VP9 and AV1 decode. The page also lists MPEG-1, MPEG-2, MPEG-4, VC-1 and VP8, which have no option in the field.

Graphics features

DirectX
12 Ultimate9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026APIs: DirectX 12 Ultimate.
Vulkan
1.49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026APIs: Vulkan 1.4.
OpenGL
4.69Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026APIs: OpenGL 4.6.
Upscaling technologies
DLSS 412Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026DLSS 4 is supported on GeForce RTX 50 Series GPUs.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation12Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 15 October 2026DLSS 4 debuts Multi Frame Generation, which generates up to three frames per rendered frame. DLSS Frame Generation carries over from the RTX 40 series and is listed as in the catalog's other RTX 50 cards.

Power

Board power
600W14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026PCGH text: the card ships with a 600 W power limit in both the Performance and Silent BIOS. The table row Max. Prozent Powerlimit reads 100 percent for both. PCGH read the limit with HWiNFO and MSI Afterburner (method on page 1: which power limit the maker set). Gigabyte states no board power in the sources read. The same article gives 575 W for the Founders Edition and the Zotac Solid.
Reference board power
575W9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Total Graphics Power 575 W.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: TGP 575 W.
PSU wattage (card maker)
1,000W1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Required power supply: 1000W.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Minimum system power supply: 1000 W.
Power connector
16-pin (revision not stated)1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Power connector: 16 pin*1. The row does not name 12V-2x6 or 12VHPWR, so the 16-pin option is stored.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Supplementary power connectors: 1x 16-pin. The sheet does not name the revision.

Cooling

Cooler type
Open air2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Cooling type: Active, WINDFORCE 3X with three fans.8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026Triple-fan WindForce cooler on enlarged heatsinks and a vapor chamber.
Fans
32Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Number of fans: 3. Cooling technology: GIGABYTE WINDFORCE 3X.3Retailer pageparadigit.ie/gigabyte-aorus-geforce-rtx-5090-master-ice-32g/21757552/productRead 15 October 2026Number of fans: 3.8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026Triple-fan array.
Radiator size
Not available
Fan stop at low load
Yes14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026Table row Lautstaerke Luefter Idle: 0 (semi-passiv) for the Performance and the Silent BIOS. The fans stop at idle.
Dual BIOS
Yes2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Feature bullet: Dual BIOS (Performance / Silent).8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026The dual-BIOS switch toggles between OC mode and Silent mode. Gigabyte's datasheet calls the modes Performance and Silent.14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026The card has a Performance and a Silent BIOS, both tested.

Dimensions and weight

Length
360mm1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Dimensions: L=360 W=150 H=75 mm. Gigabyte's L x W x H is length, height, thickness. Whether the bracket is included is not stated.
Height
150mm1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Second value of L=360 W=150 H=75 mm.
Thickness
75mm1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Third value of L=360 W=150 H=75 mm.
Slot width
3.7slots2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Number of slots: 3.7. Paradigit and LDLC print the same figure. The sheet does not give the thickness measurement for this figure.3Retailer pageparadigit.ie/gigabyte-aorus-geforce-rtx-5090-master-ice-32g/21757552/productRead 15 October 2026Number of slots: 3.7.
Low profile
No2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Form factor: Full-Height/Full-Length (FH/FL), so not low profile.3Retailer pageparadigit.ie/gigabyte-aorus-geforce-rtx-5090-master-ice-32g/21757552/productRead 15 October 2026Form factor: Full-Height/Full-Length (FH/FL).
NVIDIA SFF-Ready
No13Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 15 October 2026The SFF-Ready Enthusiast list names three RTX 5090 cards (Founders Edition and two ASUS ProArt). The AORUS Master ICE is not on it, and the list limits are 304 mm length, 151 mm height and 2.5 slots. The card is 360 mm long and 3.7 slots.
Weight
Not available
Package weight
Not available

Lighting and software

RGB lighting
Yes1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Description: RGB Halo lighting, customizable and synchronized in GIGABYTE Control Center.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Feature bullet: RGB Halo.8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026RGB logo on the backplate, RGB Aorus emblem on the side and an RGB strip along the card.
Lighting sync
Not available
Software
GIGABYTE Control Center1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Description: lighting is customized and synchronized through GIGABYTE Control Center.

Measured performance

GPU clock while gaming (measured)
2,620MHz14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026Table row Taktrate GPU: 2620 MHz in the Performance BIOS (2560 MHz in the Silent BIOS). Metro Exodus Enhanced Edition, church scene in the Volga section, at the power limit. Open test system with a passive CPU cooler and a semi-passive PSU, room about 21 C. The optional back fan was not fitted. CPU and driver are not given. Noobfeed logged an average of 2820 MHz in a one-hour F1 24 loop with the optional fan fitted, a different load.
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
72.5°C14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026Table row Temperatur GPU: 72.5 C in the Performance BIOS (80 C in the Silent BIOS), same Metro Exodus run at the power limit with the card in its normal setup. Read with HWiNFO and MSI Afterburner. This article gives no run length. PCGH's later method page (Asus ROG Astral RTX 5090 test, 28.09.2025) states at least 20 minutes of settling for the same scene. No hot spot value is given.
Hot spot temperature while gaming
Not available
Memory temperature while gaming
74°C14Reviewpcgameshardware.de/Geforce-RTX-5090-Grafikkarte-281029/Specials/Test-Release-kaufen-Takt-Temperaturen-Lautheit-1464748/2Read 15 October 2026Table row Temperatur VRAM (junction): 74 C in the Performance BIOS (80 C in the Silent BIOS), same run.

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Quick Guide, Warranty Registration, Adapter, AORUS Stickers, Metal Sticker, VGA Holder5Retailer pagenetcodex.phRead 15 October 2026Accessories: Quick Guide, Warranty Registration, Adapter, AORUS Stickers, Metal Sticker, VGA Holder. The retailer copies Gigabyte's spec tab. The adapter type is not named. The store also lists the DisplayPort as 2.1a, a conflict kept out of the stored value.
Power adapter cable included
Yes2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Packaging content: Cables included, Power. The sheet does not name the cable type. Netcodex lists Adapter in the box.5Retailer pagenetcodex.phRead 15 October 2026Accessories list names an Adapter.
Support bracket included
Yes2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Feature bullet: reinforced structure and versatile VGA holder. The VGA holder is the support bracket.5Retailer pagenetcodex.phRead 15 October 2026Accessories list names a VGA Holder.8Reviewnoobfeed.com/hardware/gigabyte-aorus-geforce-rtx-5090-master-ice-reviewRead 15 October 2026A reinforced metal support bracket is in the box.

Warranty

Manufacturer warranty (source market)
3years1Retailer pagehoanghapc.vn/vga-gigabyte-aorus-geforce-rtx-5090-master-ice-32gRead 15 October 2026Warranty: 36 months. The market is Vietnam. The Gigabyte datasheet lists 4 years with online registration, so only the 3 year base term is stored.2Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090aorusm_ice-32gd.pdfRead 15 October 2026Warranty period 4 years. The feature bullet says Online registration required, so the base term is shorter. Not stored from this sheet.
