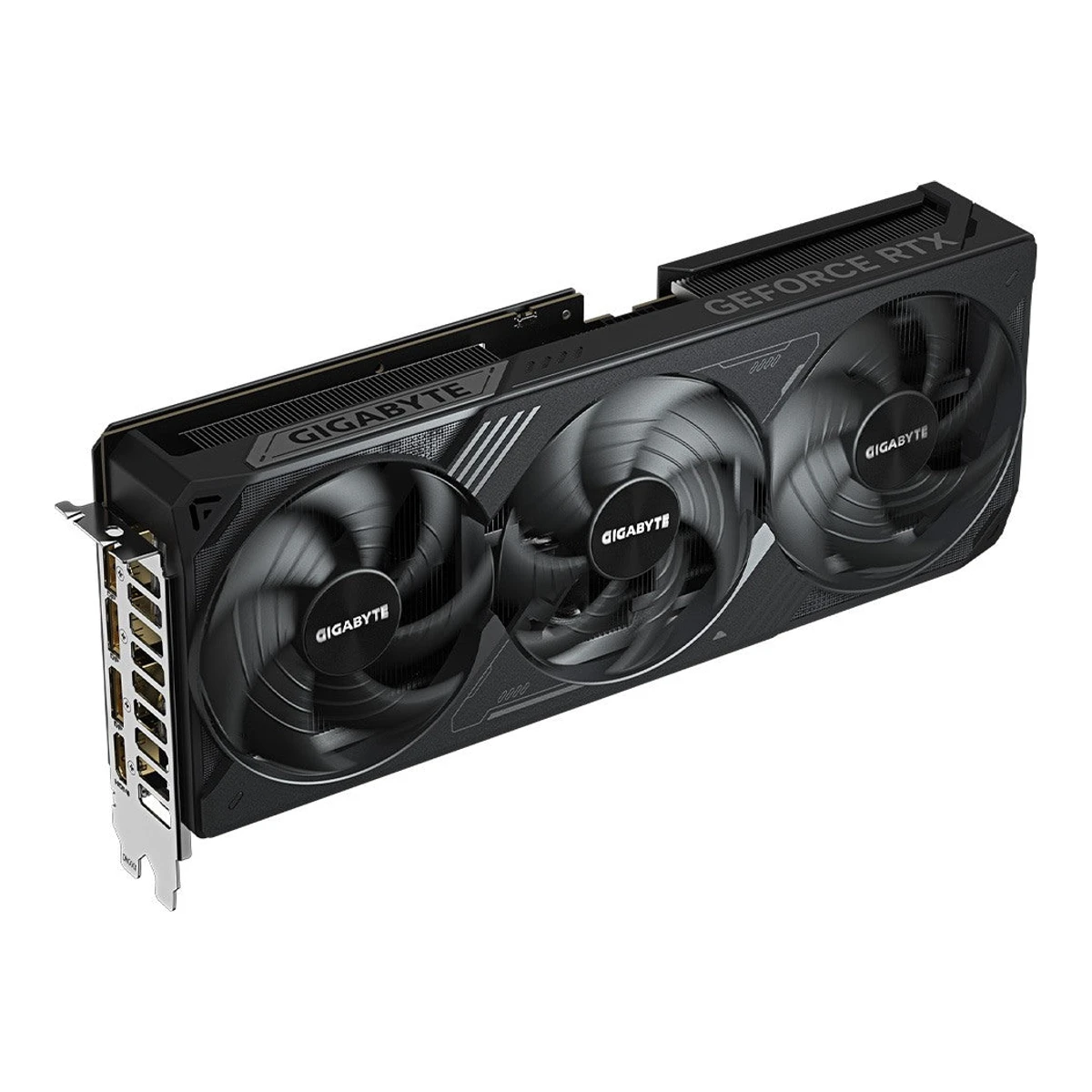

GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF 16G
GPU
NVIDIA GeForce RTX 5070 Ti
VRAM
16GB
Length
304mm
Board power
300W

67 of 100 fields known.

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Announced
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
GPU
NVIDIA GeForce RTX 5070 Ti2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Graphics Processing: GeForce RTX 5070 Ti.
Reference launch price (US)
$74913Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026Dated 2025-01-06: the GeForce RTX 5070 Ti is available starting in February at $749. No tax is included in the figure.

GPU

Process
TSMC 4N10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: TSMC 4nm 4N, NVIDIA Custom Process.
Transistors
45.6billion10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 45.6 billion.
Compute units
7010Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 70 SMs on the GeForce RTX 5070 Ti. The full GB203 has 84.
Shader cores
8,9609Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA CUDA Cores 8960.10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 8960 CUDA Cores.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
43.9TFLOPS10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Peak FP32 TFLOPS (non-Tensor) 43.9, based on the 2452 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No703
FP4Yes1,406
FP8No351.5
FP8Yes703
FP16No175.8
FP16Yes351.5
INT8No351.5
INT8Yes703

Clocks

Base clock
Not available
Game clock
Not available
Boost clock
2,497MHz3Retailer pagevishalperipherals.com/products/gigabyte-rtx-5070-ti-sff-windforce-oc-16gb-nvidia-graphic-cardRead 14 October 2026Core Clock 2497 MHz (Reference: 2452 MHz), copied from the Gigabyte spec tab. Alternate.de lists the same GPU boost clock of 2497 MHz.4Retailer pagealternate.de/GIGABYTE/GeForce-RTX-5070-Ti-WINDFORCE-OC-SFF-16G-Grafikkarte/html/product/100115021Read 14 October 2026GPU Boost-Takt 2497 MHz. The 2300 MHz Taktfrequenz row is NVIDIA's base clock for the chip and is not stored.
Boost clock in OC mode
Not available

Memory

Memory bandwidth
896GB/s10Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 896 GB/sec.

Connectivity

PCIe lanes
164Retailer pagealternate.de/GIGABYTE/GeForce-RTX-5070-Ti-WINDFORCE-OC-SFF-16G-Grafikkarte/html/product/100115021Read 14 October 2026Slot: PCIe x16 Version 5.0. The retailer lists the slot, not the electrical link, and the chip supports x16.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Digital Max Resolution 7680 x 4320. The 165 Hz is NVIDIA's figure for 8K with DisplayPort 2.1b and DSC.9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Footnote 1: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC. Up to 4K at 480 Hz.

Video engine

Graphics features

Upscaling technologies
DLSS 49Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA DLSS row: DLSS 4, Super Resolution, DLAA, Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation9Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA DLSS row: Frame Generation and Multi Frame Generation.

Power

Board power
Not available
Power connector
16-pin (revision not stated)2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Power Connectors: 16 pin*1. Gigabyte does not name the revision on the copied tab. The adapter in the box is called 12V-2x6.

Cooling

Radiator size
Not available
Fan stop at low load
Yes5Retailer pagealtex.com/collections/vendors/products/gigabyte-nvidia-geforce-rtx-5070-ti-windforce-oc-sff-16gb-graphics-card-gv-n507twf3oc-16gdRead 14 October 20263D Active Fan: semi-passive cooling, fans remain off under low load. No temperature threshold is stated.

Dimensions and weight

Length
304mm2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Card size L=304 W=126 H=50 mm. Gigabyte writes W as the card height and H as the thickness. The page does not say whether the bracket is included. The NVIDIA SFF-Ready list gives the same 126 x 304 x 50 mm.3Retailer pagevishalperipherals.com/products/gigabyte-rtx-5070-ti-sff-windforce-oc-16gb-nvidia-graphic-cardRead 14 October 2026Dimension L=304 W=126 H=50 mm.12Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026Listed at 126 x 304 x 50 mm (H x L x W).
Height
126mm2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Second value of L=304 W=126 H=50 mm.12Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026Listed at 126 x 304 x 50 mm (H x L x W).
Thickness
50mm2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Third value of L=304 W=126 H=50 mm.12Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026Listed at 126 x 304 x 50 mm (H x L x W).
Slot width
Not available
Low profile
No6Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/67028fad/67a11ed2a39b16f30c5d8bff/product-pdfRead 14 October 2026Form factor Full-Height/Full-Length (FH/FL).
NVIDIA SFF-Ready
Yes3Retailer pagevishalperipherals.com/products/gigabyte-rtx-5070-ti-sff-windforce-oc-16gb-nvidia-graphic-cardRead 14 October 2026Feature text: NVIDIA SFF-ready.12Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-readyRead 14 October 2026GIGABYTE GeForce RTX 5070 Ti WINDFORCE OC SFF is on the list. The WINDFORCE SFF card without OC has its own row.
Weight
Not available
Package weight
Not available

Lighting and software

We could not find any of these 3 fields. Show them
RGB lighting
Not available
Lighting sync
Not available
Software
Not available

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

Warranty

Manufacturer warranty (source market)
3years2Retailer pagejbhifi.com.au/products/gigabyte-geforce-rtx-5070-ti-windforce-oc-sff-16g-graphics-card-gv-n507twf3oc-16gdRead 14 October 2026Manufacturer's warranty 36 months in the Australian listing data. The value is for Australia. A listing in India says 3 Years.3Retailer pagevishalperipherals.com/products/gigabyte-rtx-5070-ti-sff-windforce-oc-16gb-nvidia-graphic-cardRead 14 October 2026Warranty 3 Years in this Indian listing. The market is India.
