PC parts / Graphics cards
GIGABYTEGraphics card

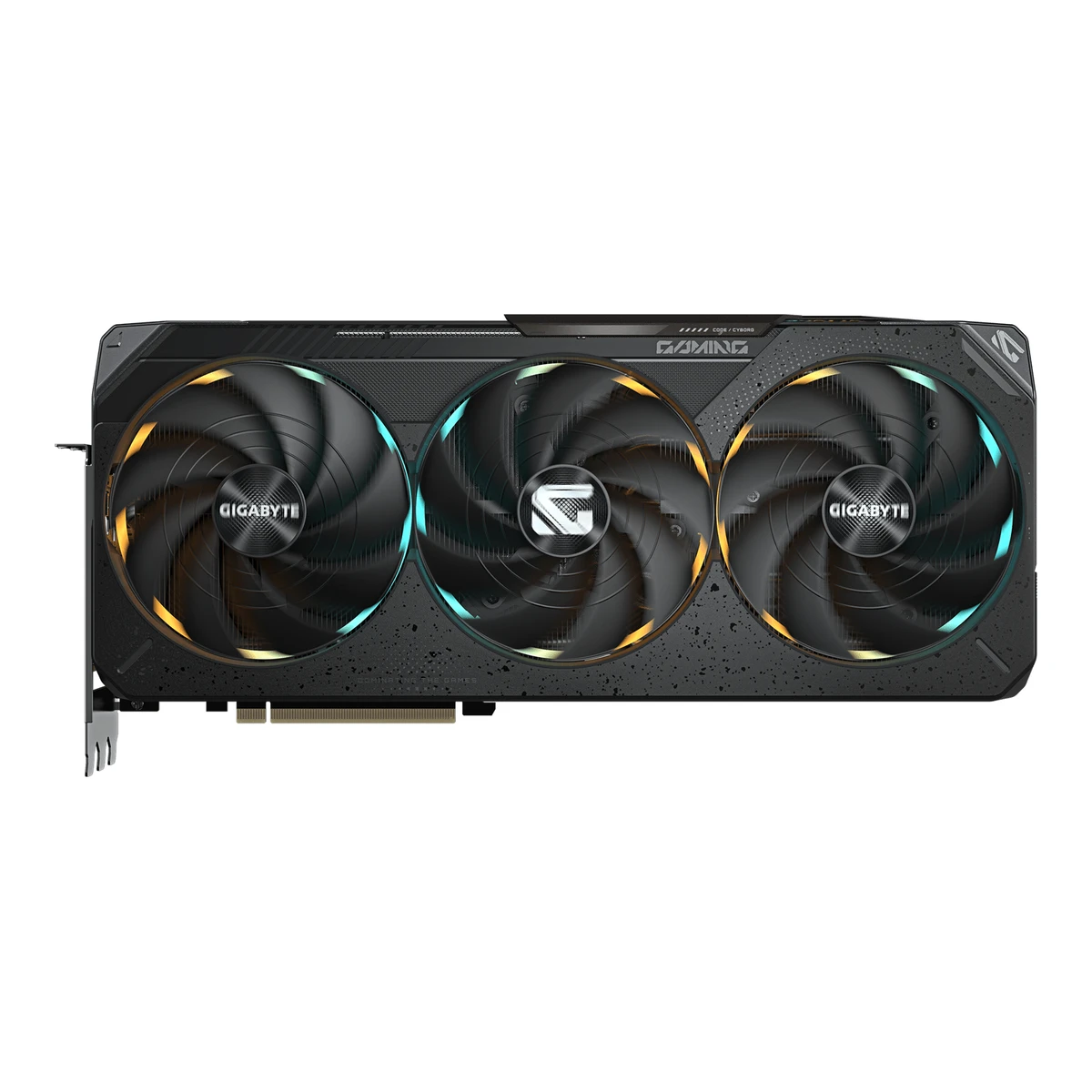

GeForce RTX 5090 Gaming OC 32G
Released January 2025.4Spec databaseik.imagekit.io/pimberly/65707b38e31f5a94719d7ba0/e2cd3e62/679bdd15cbf66297927da303/product-pdfRead 15 October 2026Gigabyte-branded data sheet for GV-N5090GAMING OC-32GD with publication date 30-JAN-2025, the day the RTX 5090 went on sale. Global sheet, no region named. Only the date is used. The sheet writes colour White and 2 slots, which do not fit the card. Last checked 15 October 2026.
- GPU
- NVIDIA GeForce RTX 5090
- VRAM
- 32GB
- Length
- 342mm
- Board power
- 575W
71 of 100 fields known.
At a glance
Memory bandwidth
Higher than 90% of other graphics cards.
Ports
- HDMI 2.1b
- 3 DisplayPort 2.1b UHBR20
General
- Model numbers
- GV-N5090GAMING OC-32GD2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Shopify feed SKU GV-N5090GAMING OC-32GD.
- GTIN / EAN
- 4719331355791, 8895230484432Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Shopify feed barcode 4719331355791, which is the EAN. The UPC 889523048443 is from the Gigabyte data sheet.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Barcodes 4719331355791 and 0889523048443.
- Announced
- Not available
- Status
- Available2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Product page with a price and a feed update dated 2026-10-15.9Retailer pageamazon.com/dp/B0DT7GBNWQRead 15 October 2026Live listing on 2026-10-15 for GV-N5090GAMING OC-32GD, with 67 ratings and best sellers rank #182 in Computer Graphics Cards.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- GPU
- NVIDIA GeForce RTX 509011Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026GeForce RTX 5090 spec table.
GPU
- GPU architecture
- Blackwell12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Appendix A, Table 3: NVIDIA Blackwell.
- Transistors
- 92.2billion12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 92.2 billion for the whole GB202 die.
- Shader cores
- 21,76011Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVIDIA CUDA Cores 21760.
- Ray tracing cores
- 17012Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: 170 RT cores (4th generation).
- Infinity Cache (L3)
- Not available
- FP32 compute (claimed)
- 104.8TFLOPS12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Peak FP32 TFLOPS (non-Tensor) 104.8, based on the 2407 MHz GPU Boost Clock.
- AI performance (claimed)
Precision With sparsity Throughput (TOPS) FP4 No 1,676 FP4 Yes 3,352 FP8 No 838 FP8 Yes 1,676 FP16 No 419 FP16 Yes 838 INT8 No 838 INT8 Yes 1,676
Clocks
- Base clock
- Not available
- Game clock
- Not available
- Boost clock in OC mode
- Not available
- Reference boost clock
- 2,407MHz2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Same row: Reference 2407 MHz. It matches NVIDIA's boost clock.12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: GPU Boost Clock 2407 MHz.
Memory
- VRAM
- 32GB2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 202611Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Standard Memory Config 32 GB GDDR7.
- VRAM type
- GDDR72Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 202611Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026
- Memory bus width
- 512bits2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 202611Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Memory Interface Width 512-bit.
- Memory speed
- 28Gbps2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Memory Clock 28 Gbps.12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: memory clock (data rate) 28 Gbps.
Connectivity
- PCIe generation
- 52Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Card Bus PCI-E 5.0.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026PCI Express Gen 5.
- Display outputs
Type Version Count Max bandwidth (Gbps) HDMI 2.1b 1 Not available DisplayPort 2.1b UHBR20 3 80 Source2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Output: DisplayPort 2.1b *3, HDMI 2.1b *1. NVIDIA names DisplayPort 2.1b with UHBR20 for the RTX 5090, so 2.1b UHBR20 is stored. The 80 Gbps link rate is from NVIDIA. Some retailer feeds copy a Gigabyte data sheet that writes DisplayPort 2.1a.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: 3x DisplayPort 2.1b and 1x HDMI 2.1b.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Standard Display Connectors: 3x DisplayPort and 1x HDMI. Footnote: DisplayPort 2.1b with UHBR20, up to 4K 480 Hz or 8K 165 Hz with DSC. UHBR20 is 80 Gbps.- Display outputs in total
- 4
- HDMI ports
- 1
- DisplayPort ports
- 3
- Highest HDMI version
- 2.1b
- Highest DisplayPort version
- 2.1b UHBR20
- Fastest DisplayPort link
- 80Gbps
- Max displays
- 42Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Multi-view 4.11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Multi Monitor: up to 4.
- Max output resolution
- Resolution7680 × 4320 pxRefresh rate165 Hz11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Maximum Digital Resolution: 4K at 480 Hz or 8K at 165 Hz with DSC. The 7680 x 4320 size is also on Gigabyte's table. The 165 Hz is NVIDIA's.
Video engine
- Video encoders
- 311Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVENC: 3x Ninth Generation.13Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20263 NVENC units.
- Video decoders
- 211Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026NVDEC: 2x Sixth Generation.13Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 20262 NVDEC units.
- Hardware video encode
- H.264, H.265 (HEVC), AV113Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026NVENC table, GeForce RTX 5090, 9th Gen: H.264, H.265 and AV1 encode are YES.
- Hardware video decode
- H.264, H.265 (HEVC), VP9, AV113Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrixRead 15 October 2026NVDEC table, GeForce RTX 5090, 6th Gen: VP9, H.264, H.265 and AV1 decode are YES.
Graphics features
- DirectX
- 12 Ultimate11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Microsoft DirectX 12 Ultimate.
- Upscaling technologies
- DLSS 411Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026The DLSS row lists DLSS 4 with Super Resolution, DLAA and Ray Reconstruction.
- Frame generation
- DLSS Frame Generation, DLSS Multi Frame Generation11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.
Power
- Board power
- Not available
- Reference board power
- 575W11Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090Read 15 October 2026Total Graphics Power 575 W. Required System Power 1000 W.12Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 15 October 2026Table 3: TGP 575 W.
- PSU wattage (card maker)
- 1,000W2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Recommended PSU 1000W.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Minimum system power supply 1000 W.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: GIGABYTE recommends a 1000W power supply.
- Power connector
- 16-pin (revision not stated)2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Power Connectors: 16 Pin*1. The table does not name the revision, so pcie_16pin is stored. The adapter in the box is named 12V-2x6 to 4x PCIe 8pin.
Cooling
- Cooler type
- Open air2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Key features: WINDFORCE cooling with Hawk Fan.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Cooling type Active, cooling technology GIGABYTE WINDFORCE 3X.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: WINDFORCE cooling with Hawk Fans, a vapor chamber heatsink and Screen Cooling that lets air blow through the back.
- Fans
- 33Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Number of fans: 3.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: three Hawk Fans, two outer fans and one centre fan.
- Radiator size
- Not available
- Fan stop at low load
- Yes5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: 3D Active Fan shuts the fans down to 0 RPM at low loads or idle. The review gives no switch-on threshold. Profesional Review also says the fans stay off while the GPU is idle.10Reviewprofesionalreview.com/2025/02/03/gigabyte-rtx-5090-gaming-oc-32g-reviewRead 15 October 2026Text: the 3D Active Fan system keeps the fans off while the GPU is idle.
- Dual BIOS
- Yes2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Key features: Dual BIOS (Performance/Silent).5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: dual BIOS with Performance and Silent mode that changes the fan profile. It ships in Performance Mode.
Dimensions and weight
- Length
- 342mm2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Card Size L=342 W=152 H=70 mm. The table does not say whether the bracket is included. BuildCores and maxmybuild write 340 mm, which is likely rounded. Gigabyte's data sheet repeats 342 mm.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Length 342 mm.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: 342 mm x 152 mm x 70 mm.9Retailer pageamazon.com/dp/B0DT7GBNWQRead 15 October 2026Item Dimensions L x W 13.46 x 5.98 inches, which is 342 x 152 mm and matches the Gigabyte table.
- Height
- 152mm2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026W=152 mm of the Card Size row.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Height 152 mm.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Same line: 152 mm.
- Thickness
- 70mm2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026H=70 mm of the Card Size row.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Depth 70 mm.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Same line: 70 mm.
- Slot width
- Not available
- Weight
- Not available
- Package weight
- Not available
Lighting and software
- RGB lighting
- Yes2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Key features: RGB Halo for customizable lighting.3Spec databaseshop.aodatacloud.es/medias/datasheet_gv-n5090gaming_oc-32gd.pdfRead 15 October 2026Lighting yes, colour Multi.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: GIGABYTE RGB Halo, a three-ring light inside the shroud, with pattern and colour control in the software.
- Lighting sync
- Not available
Measured performance
- 3DMark Time Spy graphics
- Not available
- 3DMark Steel Nomad
- Not available
- 3DMark Port Royal
- Not available
- 3DMark Speed Way
- Not available
- Game frame rates
Game Width (px) Height (px) Preset Upscaling Ray tracing Average FPS Alan Wake 2 3840 2160 High ray tracing DLSS Quality Yes 86 Crimson Desert 3840 2160 Cinematic Off No 98 Crimson Desert 3840 2160 Cinematic DLSS Quality No 120 Cyberpunk 2077 3840 2160 Ultra, Ultra ray tracing DLSS Quality Yes 94 Cyberpunk 2077 3840 2160 Overdrive path tracing DLSS Quality Yes 67 Doom: The Dark Ages 3840 2160 Ultra Nightmare Off Yes 100 Dying Light: The Beast 3840 2160 Very High Off No 96 Dying Light: The Beast 3840 2160 Very High DLSS Quality No 138 Dying Light: The Beast 3840 2160 Ultra DLSS Quality Yes 79 Kingdom Come: Deliverance II 3840 2160 Always-on custom ray tracing Off Yes 108 Kingdom Come: Deliverance II 3840 2160 Always-on custom ray tracing DLSS Quality Yes 138 Resident Evil Requiem 3840 2160 Max Off No 167 Resident Evil Requiem 3840 2160 High DLSS Quality Yes 132 Resident Evil Requiem 3840 2160 Max, path tracing DLSS Quality Yes 80 S.T.A.L.K.E.R. 2: Heart of Chornobyl 3840 2160 Epic Off Not available 79 S.T.A.L.K.E.R. 2: Heart of Chornobyl 3840 2160 Epic DLSS Quality Not available 118 Source7Measurementthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-review/3Read 15 October 2026Page 3: average fps values stated in the text, 4K, manual run-through, Ryzen 7 9850X3D, driver 610.88. Ray tracing and path tracing runs used DLSS Quality. The review gives no 1% low numbers. Alan Wake 2 (87 fps at highest settings, no RT state given) and values written as 'near' or 'over' are not stored.8Measurementthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-review/4Read 15 October 2026Page 4: average fps values stated in the text, same bench and method as page 3. The Doom row has ray tracing always on. Kingdom Come: Deliverance II has always-on custom ray tracing. The Resident Evil Requiem path tracing figure of 80 fps mixes indoor and outdoor scenes, with about 64 fps outdoors. The review does not say whether ray tracing is on in S.T.A.L.K.E.R. 2, so that key is left out. The review gives no 1% low numbers.
Measured noise and temperature
We could not find any of these 5 fields. Show them
- Fan noise per load
- Not available
- Fan noise while gaming
- Not available
- GPU temperature while gaming
- Not available
- Hot spot temperature while gaming
- Not available
- Memory temperature while gaming
- Not available
Measured power
We could not find any of these 2 fields. Show them
- Card power at idle (measured)
- Not available
- GPU power while gaming (measured)
- Not available
In the box
- In the box
- Quick guide, Warranty registration, 12V-2x6 to 4x PCIe 8pin adapter, Versatile VGA holder, VGA holder manual2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Accessories row, quick guide, warranty registration, 12V-2x6 to 4x PCIe 8pin adapter, versatile VGA holder, VGA holder manual.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: quick guide, warranty registration card, 12V-2x6 to 4x PCIe 8-pin adapter, a VGA holder and a manual.
- Power adapter cable included
- Yes2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Accessories: 12V-2x6 to 4x PCIe 8pin adapter.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: 1x 12V-2x6 to 4x PCIe 8-pin adapter in the box.
- Support bracket included
- Yes2Retailer pageeu.computerorbit.com/products/gigabyte-rtx-5090-gaming-oc-32gb-graphics-card.jsonRead 15 October 2026Accessories: versatile VGA holder and its manual.5Reviewthefpsreview.com/2026/08/17/gigabyte-geforce-rtx-5090-gaming-oc-32g-video-card-reviewRead 15 October 2026Text: a VGA holder is in the box.
Links
- Product page
- www.gigabyte.com/Graphics-Card/GV-N5090GAMING-OC-32GD1Maker product pagegigabyte.com/Graphics-Card/GV-N5090GAMING-OC-32GD/spRead 15 October 2026gigabyte.com blocks agents, so the page was not opened. The product page URL and title were confirmed in web search results.
- Spec sheet
- www.gigabyte.com/Graphics-Card/GV-N5090GAMING-OC-32GD/sp1Maker product pagegigabyte.com/Graphics-Card/GV-N5090GAMING-OC-32GD/spRead 15 October 2026The spec tab of the card page. Its content was read through the copy of the Gigabyte spec table on computerorbit.com.
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
Compare with
Pick a graphics card to see both side by side. Differences are marked yellow.
Sources
We read 15 sources for this graphics card. The numbers match the markers in the sheet.
- Maker product pagegigabyte.com/Graphics-Card/GV-N5090GAMING-OC-32GD/sp
- Retailer pageamazon.com/dp/B0DT7GBNWQ
- Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5090
- Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrix
- Certification listnvidia.com/en-us/geforce/news/small-form-factor-sff-ready
See a wrong value? Tell us and name the field.
