PC parts / Graphics cards

MSIGraphics card

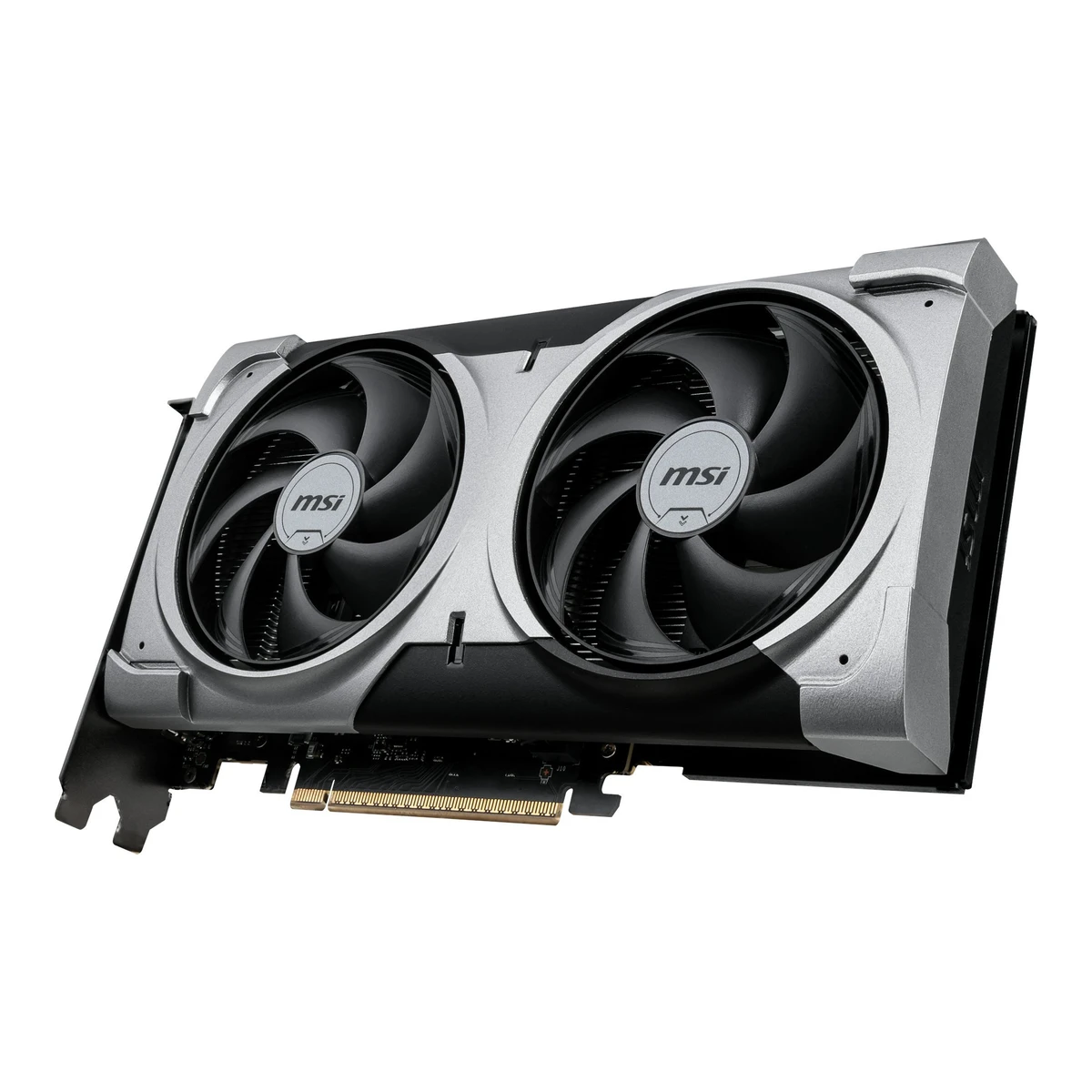

GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS

Released April 2025.3 Last checked 16 October 2026.

GPU: NVIDIA GeForce RTX 5060 Ti
VRAM: 16GB
Length: 227mm
Board power: 180W

66 of 100 fields known.

Compare with another graphics card Download JSON Download CSV Get it from the API

At a glance

Thickness
41mm2 4 5
Lower than 76% of other graphics cards. Lower is better.

Ports

HDMI 2.1b
3 DisplayPort 2.1b UHBR20

All specs

SourceCalculatedHide missing

General

Series: Ventus2
Model numbers: G506T-16V2CP, V535-005R2 5
GTIN / EAN: 47113773344715
Announced: Not available
Status: Available4 5
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: Not available
Colours: Not available
GPU: NVIDIA GeForce RTX 5060 Ti2
GPU brand: NVIDIA8
Reference launch price (US): $42910

GPU

GPU architecture: Blackwell8
GPU die: GB20611
Process: TSMC 4N11 12
Transistors: 21.9billion11
Die size: 181mm²11
Compute units: 3611
Shader cores: 4,6082 8
Ray tracing cores: 3611
AI cores: 14411
ROPs: 4811
L2 cache: 32MB12
Infinity Cache (L3): Not available
FP32 compute (claimed): 23.7TFLOPS11
AI performance (claimed): Not available

Clocks

Base clock: Not available
Game clock: Not available
Boost clock: 2,602MHz2 3 4 5
Boost clock in OC mode: 2,617MHz2 6
Reference boost clock: 2,572MHz11

Memory

VRAM: 16GB2 8
VRAM type: GDDR72 11
Memory bus width: 128bits2 8
Memory speed: 28Gbps2 11
Memory bandwidth: 448GB/s11

Connectivity

PCIe generation: 52 8
PCIe lanes: 82
Display outputs: Type Version Count Max bandwidth (Gbps)
HDMI 2.1b 1 Not available
DisplayPort 2.1b UHBR20 3 80
Source2 4 8
Display outputs in total: 4
HDMI ports: 1
DisplayPort ports: 3
Highest HDMI version: 2.1b
Highest DisplayPort version: 2.1b UHBR20
Fastest DisplayPort link: 80Gbps
Max displays: 42 4 8
Max output resolution: Resolution7680 × 4320 pxRefresh rate165 Hz2 8
HDCP version: 2.38

Type	Version	Count	Max bandwidth (Gbps)
HDMI	2.1b	1	Not available
DisplayPort	2.1b UHBR20	3	80

Video engine

Video encoders: 18 9
Video decoders: 18 9
Hardware video encode: H.264, H.265 (HEVC), AV19
Hardware video decode: H.264, H.265 (HEVC), VP9, AV19

Graphics features

DirectX: 12 Ultimate2 8
Vulkan: 1.48
OpenGL: 4.62 8
Upscaling technologies: DLSS 48
Frame generation: DLSS Frame Generation, DLSS Multi Frame Generation8

Power

Board power: 180W2 3
Reference board power: 180W8 11
PSU wattage (card maker): 600W2 4 5 8
Power connector: 1 x 8-pin PCIe2 3

Cooling

Cooler type: Open air2 4
Fans: 22 4
Radiator size: Not available
Fan stop at low load: Yes2
Dual BIOS: Not available

Dimensions and weight

Length: 227mm2 4 5
Height: 126mm2 5
Thickness: 41mm2 4 5
Slot width: Not available
Low profile: No4
NVIDIA SFF-Ready: Yes4
Weight: 600g(1.3 lb)2 4
Package weight: 862g(1.9 lb)2

Lighting and software

RGB lighting: Not available
Lighting sync: Not available
Software: MSI Center2

Measured performance

We could not find any of these 6 fields. Show them

GPU clock while gaming (measured): Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
3DMark Port Royal: Not available
3DMark Speed Way: Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them

Fan noise per load: Not available
Fan noise while gaming: Not available
GPU temperature while gaming: Not available
Hot spot temperature while gaming: Not available
Memory temperature while gaming: Not available

Measured power

We could not find any of these 2 fields. Show them

Card power at idle (measured): Not available
GPU power while gaming (measured): Not available

In the box

We could not find any of these 3 fields. Show them

In the box: Not available
Power adapter cable included: Not available
Support bracket included: Not available

Warranty

Manufacturer warranty (source market): 3years5 6

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 12 sources for this graphics card. The numbers match the markers in the sheet.

Maker product pagemsi.com/Graphics-Card/GeForce-RTX-5060-Ti-16G-VENTUS-2X-OC-PLUS
Read 16 October 2026Backs 1 field
Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/global/GeForce-RTX-5060-Ti-16G-VENTUS-2X-OC-PLUS.pdf
Read 16 October 2026Backs 30 fields
Maker spec sheet (PDF)storage-asset.msi.com/datasheet/vga/us/GeForce-RTX-5060-Ti-16G-VENTUS-2X-OC-PLUS.pdf
Read 16 October 2026Backs 4 fields
Retailer pageparadigit.ie/msi-geforce-rtx-5060-ti-16g-ventus-2x-oc-plus/80069066/product
Read 16 October 2026Backs 13 fields
Retailer pagearvutitark.ee/en/pc-components/graphics-cards-vga/vga-msi-rtx5060ti-16gb-ventus-2x-oc-plus-1451645
Read 16 October 2026Backs 9 fields
Retailer pagestartech.com.bd/msi-geforce-rtx-5060-ti-16g-ventus-2x-oc-plus-graphics-card
Read 16 October 2026Backs 2 fields
Spec databasegeektopia.es/es/product/msi/geforce-rtx-5060-ti-16g-ventus-2x-oc-plus
Read 16 October 2026Backs 1 field
Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5060-family
Read 16 October 2026Backs 19 fields
Maker product pagedeveloper.nvidia.com/video-encode-decode-support-matrix
Read 16 October 2026Backs 4 fields
Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-arrives-for-every-gamer-starting-at-299
Read 16 October 2026Backs 2 fields
Reviewclub386.com/nvidia-geforce-rtx-5060-ti-16gb-review-course-correction
Read 16 October 2026Backs 15 fields
Reviewthepcenthusiast.com/zotac-geforce-rtx-5060-ti-16gb-twin-edge-oc-review
Read 16 October 2026Backs 2 fields

See a wrong value? Tell us and name the field.
