PC parts / Graphics cards

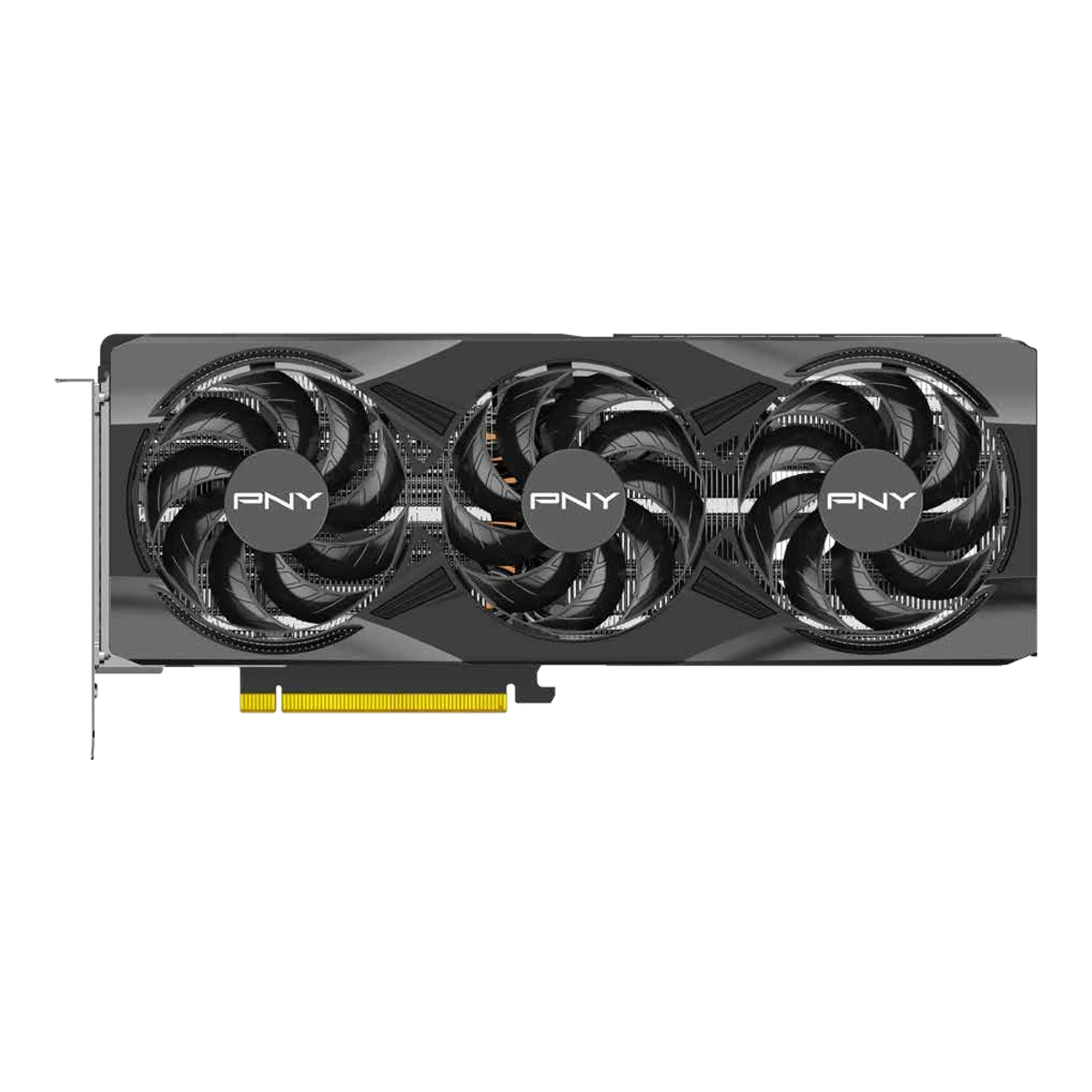

PNY GeForce RTX 5070 Ti 16GB Overclocked Triple Fan
GPU
NVIDIA GeForce RTX 5070 Ti
VRAM
16GB
Length
299.5mm
Board power
300W

66 of 100 fields known.

At a glance

Ports

  • HDMI 2.1b
  • 3 DisplayPort 2.1b UHBR20

All specs

SourceCalculated

General

Announced
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
GPU
NVIDIA GeForce RTX 5070 Ti1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Title: PNY GeForce RTX 5070 Ti 16GB.
Reference launch price (US)
$7498Press releasenvidianews.nvidia.com/news/nvidia-blackwell-geforce-rtx-50-series-opens-new-world-of-ai-computer-graphicsRead 14 October 2026The GeForce RTX 5070 Ti will be available starting in February at $749. No tax is included.

GPU

Process
TSMC 4N5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: TSMC 4nm 4N, NVIDIA Custom Process.
Compute units
705Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 70 SMs on the GeForce RTX 5070 Ti. The full GB203 has 84.
Infinity Cache (L3)
Not available
FP32 compute (claimed)
43.9TFLOPS5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: peak FP32 TFLOPS (non-Tensor) 43.9, based on the 2452 MHz GPU Boost Clock.
AI performance (claimed)
PrecisionWith sparsityThroughput (TOPS)
FP4No703
FP4Yes1,406
FP8No351.5
FP8Yes703
FP16No175.8
FP16Yes351.5
INT8No351.5
INT8Yes703

Clocks

Base clock
2,295MHz1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Clock Speed 2295 MHz. PNY gives no separate label, so it is the card base clock.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Base clock 2295 MHz.
Game clock
Not available
Boost clock
2,572MHz1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Boost Speed 2572 MHz. The PNY non-overclocked Triple Fan (VCG5070T16TFXPB1) is 2452 MHz.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Boost 2572 MHz.9Retailer pageparadigit.ie/pny-geforce-rtx-5070-ti-overclocked/21769477/productRead 14 October 2026Boost clock 2572 MHz, base clock 2295 MHz.
Boost clock in OC mode
Not available
Reference boost clock
2,452MHz5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: GPU Boost Clock 2452 MHz.

Memory

Memory speed
28Gbps1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Memory Speed 28 Gbps.
Memory bandwidth
896GB/s1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Memory Bandwidth 896 GB/s.

Connectivity

PCIe lanes
161Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Bus Type PCI-Express 5.0 x16.
Display outputs in total
4
HDMI ports
1
DisplayPort ports
3
Highest HDMI version
2.1b
Highest DisplayPort version
2.1b UHBR20
Fastest DisplayPort link
80Gbps
Max output resolution
Resolution7680 × 4320 pxRefresh rate165 Hz1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Resolution: 4K 480Hz or 8K 165Hz with DSC.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026Footnote: up to 8K 12-bit HDR at 165 Hz with DP 2.1b and DSC. PNY states 4K 480Hz or 8K 165Hz with DSC.

Video engine

Video encoders
24Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 20262x ninth-generation NVENC.5Maker spec sheet (PDF)images.nvidia.com/aem-dam/Solutions/geforce/blackwell/nvidia-rtx-blackwell-gpu-architecture.pdfRead 14 October 2026Table 5: 2 x NVENC (9th Gen).

Graphics features

Upscaling technologies
DLSS 41Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Key features: NVIDIA DLSS 4.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026The DLSS row lists DLSS 4, Super Resolution, DLAA and Ray Reconstruction.
Frame generation
DLSS Frame Generation, DLSS Multi Frame Generation4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026The DLSS row lists Frame Generation and Multi Frame Generation.

Power

Board power
300W1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026TDP 300 W. PNY labels it TDP. It equals NVIDIA's Total Graphics Power for this GPU.2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026TDP 300 W.
PSU wattage (card maker)
750W1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026System requirements: 750 W or greater system power supply. The minimum is based on a PC with a Ryzen 9 5900X.4Maker product pagenvidia.com/en-us/geforce/graphics-cards/50-series/rtx-5070-familyRead 14 October 2026NVIDIA states 750 W required system power for the chip, the same as PNY.
Power connector
16-pin (revision not stated)1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Power Input 1x16 (1x16 to 3x8 adapter included). PNY does not name the 16-pin revision.

Cooling

Cooler type
Open air1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Triple fan cooling with a metal backplate that vents for passive cooling.
Radiator size
Not available
Fan stop at low load
Not available
Dual BIOS
Not available

Dimensions and weight

Length
299.5mm1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Card Dimensions 299.5 x 120.0 x 59.6 mm. The brochure does not say whether the bracket or the power plug is included.9Retailer pageparadigit.ie/pny-geforce-rtx-5070-ti-overclocked/21769477/productRead 14 October 2026Listing for VCG5070T16TFXPB1-O: 299.5 mm long, 120 mm high, 59.6 mm deep, 2.98 slots.
Height
120mm1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Middle value of 299.5 x 120.0 x 59.6 mm.9Retailer pageparadigit.ie/pny-geforce-rtx-5070-ti-overclocked/21769477/productRead 14 October 2026120 mm high.
Thickness
59.6mm1Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/Product%20Brochures/GeForce%20Graphics/English/RTX-5070-Ti-16GB-Triple-Fan-OC-Brochure.pdfRead 14 October 2026Last value of 299.5 x 120.0 x 59.6 mm, which is 2.98 slots.9Retailer pageparadigit.ie/pny-geforce-rtx-5070-ti-overclocked/21769477/productRead 14 October 202659.6 mm deep.
Low profile
No2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Size column: Full Height.
NVIDIA SFF-Ready
Not available
Weight
1,700g(3.7 lb)10Retailer pagemediamarkt.es/es/product/_tarjeta-grafica-pny-vcg5070t16tfxpb1-o-gddr7-pci-express-x16-50-negro-155985652.htmlRead 14 October 2026MediaMarkt Spain listing for VCG5070T16TFXPB1-O: Peso 1.70 kg. Read through a web search result because the page fetch returned 403. The same retailer lists 1.72 kg for the ARGB part number VCG5070T16TFXXPB1-O.
Package weight
Not available

Lighting and software

We could not find any of these 3 fields. Show them
RGB lighting
Not available
Lighting sync
Not available
Software
Not available

Measured performance

We could not find any of these 6 fields. Show them
GPU clock while gaming (measured)
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
3DMark Port Royal
Not available
3DMark Speed Way
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 5 fields. Show them
Fan noise per load
Not available
Fan noise while gaming
Not available
GPU temperature while gaming
Not available
Hot spot temperature while gaming
Not available
Memory temperature while gaming
Not available

Measured power

We could not find any of these 2 fields. Show them
Card power at idle (measured)
Not available
GPU power while gaming (measured)
Not available

In the box

In the box
Not available
Support bracket included
Not available

Warranty

Manufacturer warranty (source market)
3years2Maker spec sheet (PDF)pny.com/File%20Library/Company/Support/linecards/geforce/consumer-geforce-linecard.pdfRead 14 October 2026Warranty column: 3 Year. The linecard names no market. It is PNY's US document.

Compare with

Pick a graphics card to see both side by side. Differences are marked yellow.

More graphics card comparisons

Sources

We read 10 sources for this graphics card. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 28 fields
  2. Read 14 October 2026Backs 10 fields
  3. Read 14 October 2026Backs 1 field
  4. Read 14 October 2026Backs 17 fields
  5. Read 14 October 2026Backs 16 fields
  6. Read 14 October 2026Backs 2 fields
  7. Read 14 October 2026Backs 1 field
  8. Read 14 October 2026Backs 2 fields
  9. Read 14 October 2026Backs 7 fields
  10. Read 14 October 2026Backs 1 field
