arkivoAPI

Gaming / Handheld consoles

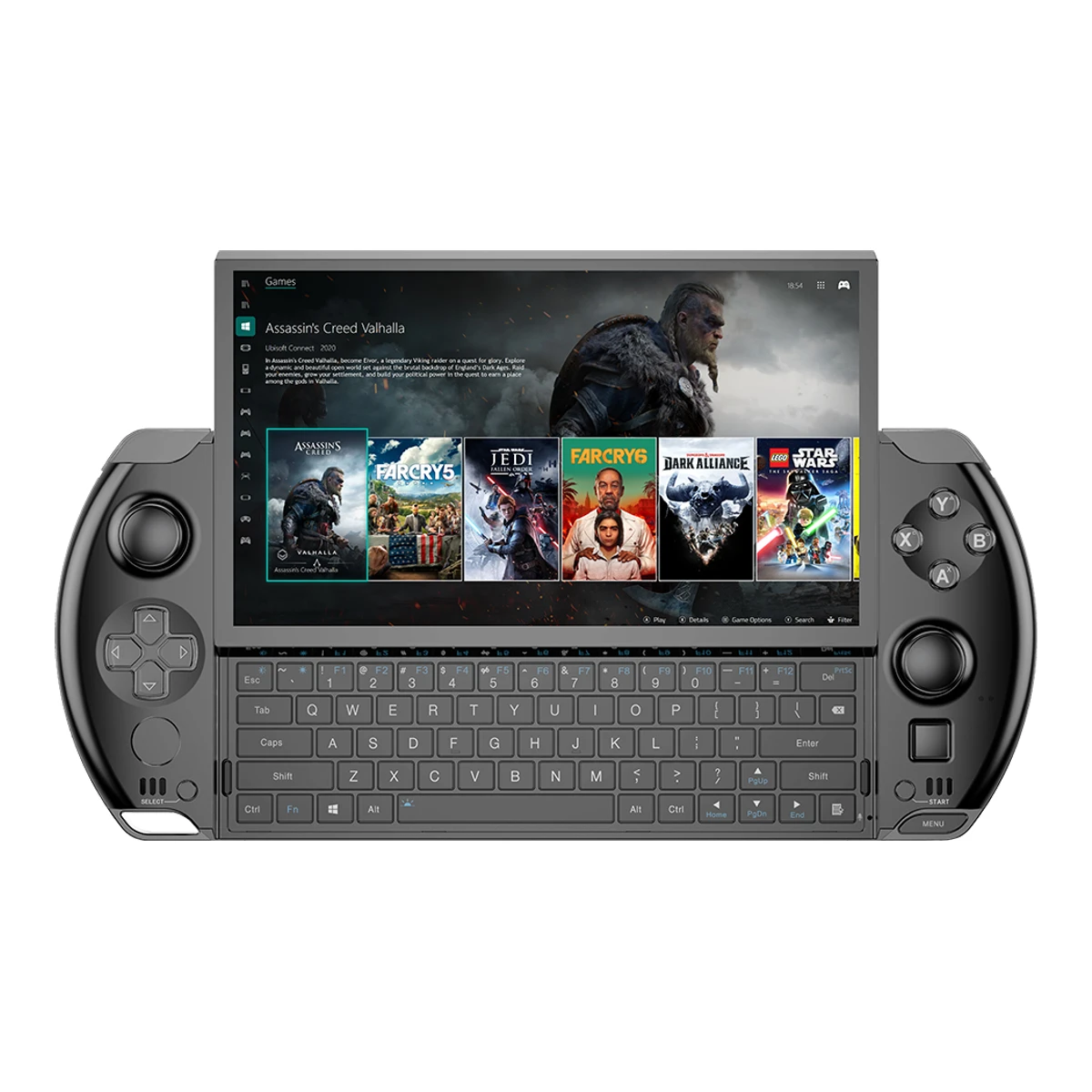

GPD Win 4 (2022)
Chip
AMD Ryzen 7 6800U
Screen size
6in
Refresh rate
60Hz
Weight
598g

88 of 165 fields known.

At a glance

Ports

  • USB-C USB4
  • USB-C USB 3.2 Gen 2
  • USB-A USB 3.2 Gen 2
  • 3.5 mm audio
  • microSD card UHS-I

All specs

SourceCalculated

General

Model numbers
Not available
GTIN / EAN
Not available
Status
Not available
Predecessor
Not available
Successor
GPD WIN 59Reviewnotebookcheck.net/GPD-Win-5-First-AMD-Strix-Halo-gaming-handheld-revealed-in-official-announcement.1066720.0.htmlRead 23 October 2026Notebookcheck says GPD confirmed the Win 5 as the successor to the Win 4 and that it replaces the Win 4.
Launch price (EU)
Not available
Markets
Not available

Platform and software

Latest OS
Not available
Backward compatibility
Not available
Upscaling and frame generation
Not available

Processor and graphics

Core configuration
Physical core countCoreBase clock (GHz)Max clock (GHz)
8Zen 3+2.74.7
CPU cores
8
Max CPU clock
4.7GHz
GPU compute units
121Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Execution Unit: 12CUs, 768 shaders. AMD compute units.
GPU max clock
2,200MHz1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Graphics Max Dynamic Frequency: 2.2GHz.
GPU compute (claimed)
Not available
Lowest TDP
28W
Highest TDP
35W
Highest TDP on battery
Not available

Memory and storage

RAM speed
6,400MT/s2Maker product pageweb.archive.org/web/20221211081810/https://gpd.hk/gpdwin4Read 11 October 2026LPDDR5-6400 MT/s. Memory transfer rate as published.
Memory bandwidth
Not available
Storage type
NVMe SSD1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026
Storage slots
Form factorInterfacePCIe generationPCIe lanesCountOccupied
M.2 2280PCIe NVMe441Yes
M.2 slots
1
Max card size
2TB1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Maximum Capacity: 2TB, stored as 2000 GB.

Display

Pixel density
367.2ppi
Panel type
IPS1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Screen Type: Corning Gorilla Glass 5, H-IPS technology. Stored as IPS.
Screen surface
Not available
Built-in display refresh modes
Width (px)Height (px)Max (Hz)
1920108060
Max refresh rate
60Hz
Adaptive sync
Not available
VRR lower limit
Not available
Brightness (SDR, claimed)
Not available
Peak brightness (HDR, claimed)
Not available
DCI-P3 coverage (claimed)
Not available
HDR formats
Not available
Second display
Not available

Controls

Stick sensor
Not available
Touch-sensitive sticks
Not available
Replaceable stick modules
Not available
Trigger sensor
Not available
Trigger stops
Not available
Extra rear and grip buttons
21Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Dorsal Key: 2, can be mapped or programmed.
Trackpads
Not available
Detached controller connection
Not available
Controller mouse sensor
Not available

Motion and feedback

Rumble
Rumble1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Handle vibration: two large vibration motors, controllable by software.

Measured

Brightness (measured)
Not available
HDR peak brightness (measured)
Not available
Contrast ratio (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
Not available
PWM frequency (measured)
Not available
3DMark Time Spy graphics (measured)
Not available
3DMark Steel Nomad Light (measured)
Not available
3DMark Wild Life Extreme (measured)
Not available
Cinebench 2024 single-core (measured)
Not available
Cinebench 2024 multi-core (measured)
Not available
AnTuTu (measured)
Not available
Game frame rates (measured)
Not available
SSD sequential read (measured)
Not available
Memory card read (measured)
Not available
Battery runtime per test (measured)
TestTDP (W)Hours (h)
Idle288.25
Max load281.32
Shortest gaming test runtime (measured)
Not available
Longest gaming test runtime (measured)
Not available
Video runtime (measured)
Not available
Full charge time (measured)
Not available
Power draw gaming (measured)
Not available
Fan noise per mode (measured)
Not available
Max fan noise (measured)
Not available
Fan noise while gaming (measured)
Not available
Back surface under load (measured)
Not available
Grips under load (measured)
Not available
Chip temperature while gaming (measured)
Not available
Stick tests (measured)
Not available
Speaker loudness (measured)
Not available
Weight (measured)
Not available

Audio

Speakers
21Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Speaker: 2 pcs. Built-in dual speakers.
Audio features
Not available
Microphones
Not available

Ports and dock

Ports
TypeVersionCountMax speed (Gbps)Thunderbolt or USB4DP Alt Mode
USB-CUSB4140USB4Yes
USB-CUSB 3.2 Gen 2110Not availableYes
USB-AUSB 3.2 Gen 2110Not availableNot available
3.5 mm audioNot available1Not availableNot availableNot available
microSD cardUHS-I1Not availableNot availableNot available
USB-C ports
2
USB4 or Thunderbolt
Yes
USB-C charging
Not available
Video out
Yes1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026GPU table: HDMI 2.1 (TMDS) and DP 1.2 both 3840x2160 @60Hz. The overview says the full-featured Type-C ports connect to an external display.
Max external display
Resolution3840 × 2160 pxRefresh rate60 Hz1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026GPU table: DP 1.2 3840x2160 @60Hz. The HDMI row, available through the dock, states the same.

Wireless

NFC
Not available
Cellular
Not available
Network
Not available

Battery and charging

Battery energy
45.62Wh1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Battery: Li-polymer, 45.62Wh. Not user replaceable per DroiX.
Battery capacity
Not available
Battery life (claimed, min)
3h
Battery life (claimed, max)
10h
Wired charging
Not available
Charge 0 to 100 % (claimed)
Not available
Charge limit
Not available
Bypass charging
Not available
Included charger
65W1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 202665W Power Adapter (20V 3.25A, 15V 3A).

Cooling

Custom fan curve
Not available

Build

Built-in kickstand
Not available
Dust and water rating
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width220Height92mm(8.7 × 3.6 in)1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Published as 220mm x 92mm x 28mm under Length. The 28 mm is not qualified (chassis or maximum depth), so depth is left out.
Weight
598g(1.3 lb)1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Net Weight: 598g. The overview comparison also says 598g. The DroiX and GPD store text says around 570g, which is a rounded retailer figure. The maker figure is used.
Weight without controllers
Not available

Certifications

We could not find any of these 3 fields. Show them
Game compatibility programme
Not available
FCC ID
Not available
Other certifications
Not available

In the box

Warranty

Manufacturer warranty (source market)
1year1Maker product pageweb.archive.org/web/20230102192404/https://gpd.hk/gpdwin4techspecsRead 11 October 2026Warranty Time: Device 1 year, Charger 1 year (Global Warranty). Retailers such as DroiX add their own longer terms.

Compare with

Pick a handheld console to see both side by side. Differences are marked yellow.

More handheld console comparisons

Variants

Each variant lists only what differs from the specs above.

Launch price (US)RAMStorage
$80016 GB512 GB
$90016 GB1 TB
$1,00032 GB1 TB
$1,20032 GB2 TB

Sources

We read 9 sources for this handheld console. The numbers match the markers in the sheet.

  1. Read 11 October 2026Backs 56 fields
  2. Read 11 October 2026Backs 18 fields
  3. Read 11 October 2026Backs 4 fields
  4. Read 11 October 2026Backs 2 fields
  5. Read 11 October 2026Backs 1 field
  6. Read 11 October 2026Backs 2 fields
  7. Read 11 October 2026Backs 1 field
  8. Read 11 October 2026Backs 1 field
  9. Read 23 October 2026Backs 1 field

See a wrong value? Tell us and name the field.

SuccessorGPD WIN 5
