Gaming / Handheld consoles

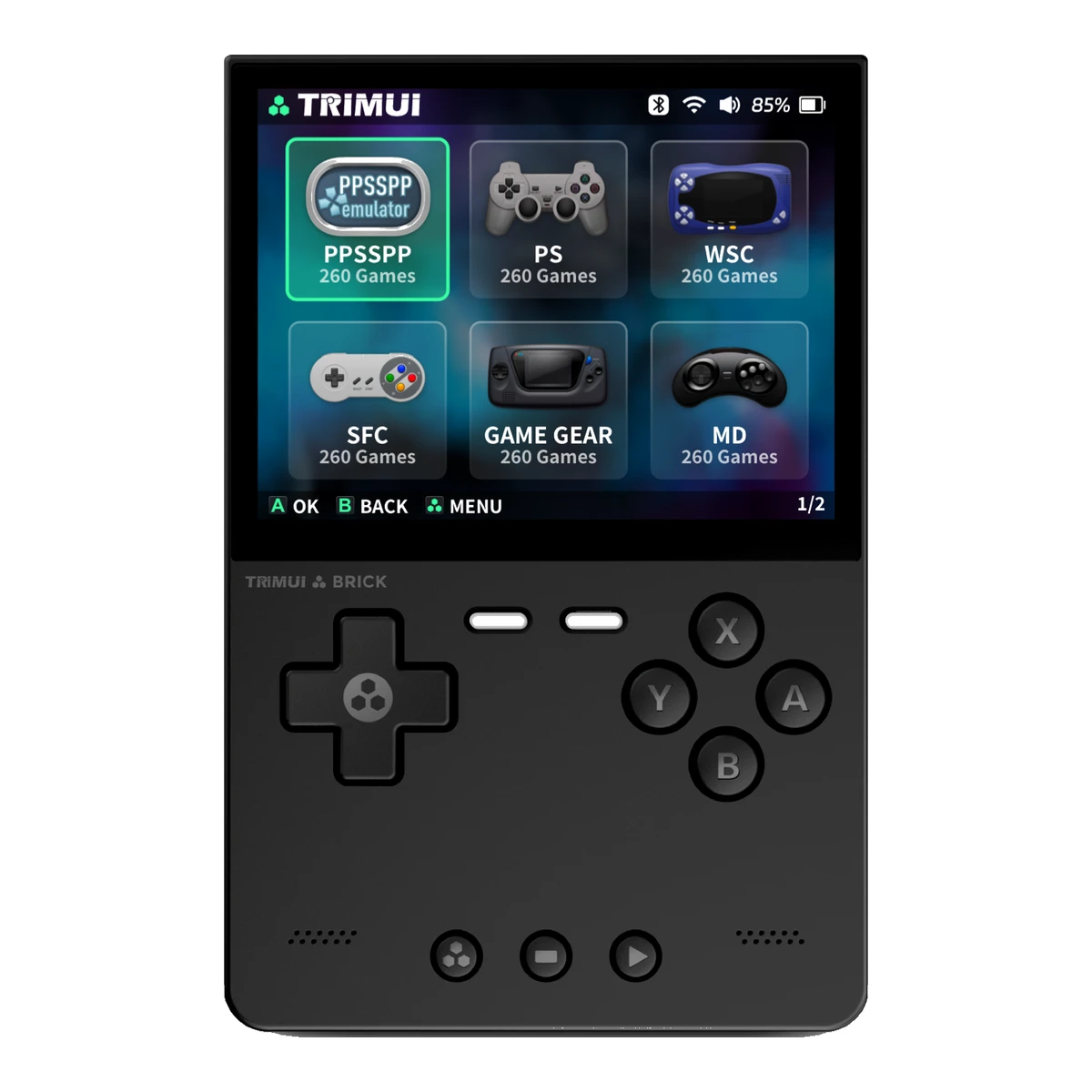

TrimUIHandheld console

Brick

Released October 2024.6 Last checked 11 October 2026.

Chip: Allwinner A133P
Screen size: 3.2in
Refresh rate: 60Hz
Weight: 159g

60 of 165 fields known.

Compare with another handheld console Download JSON Download CSV Get it from the API

At a glance

Ports

2 USB-C
3.5 mm audio
microSD card

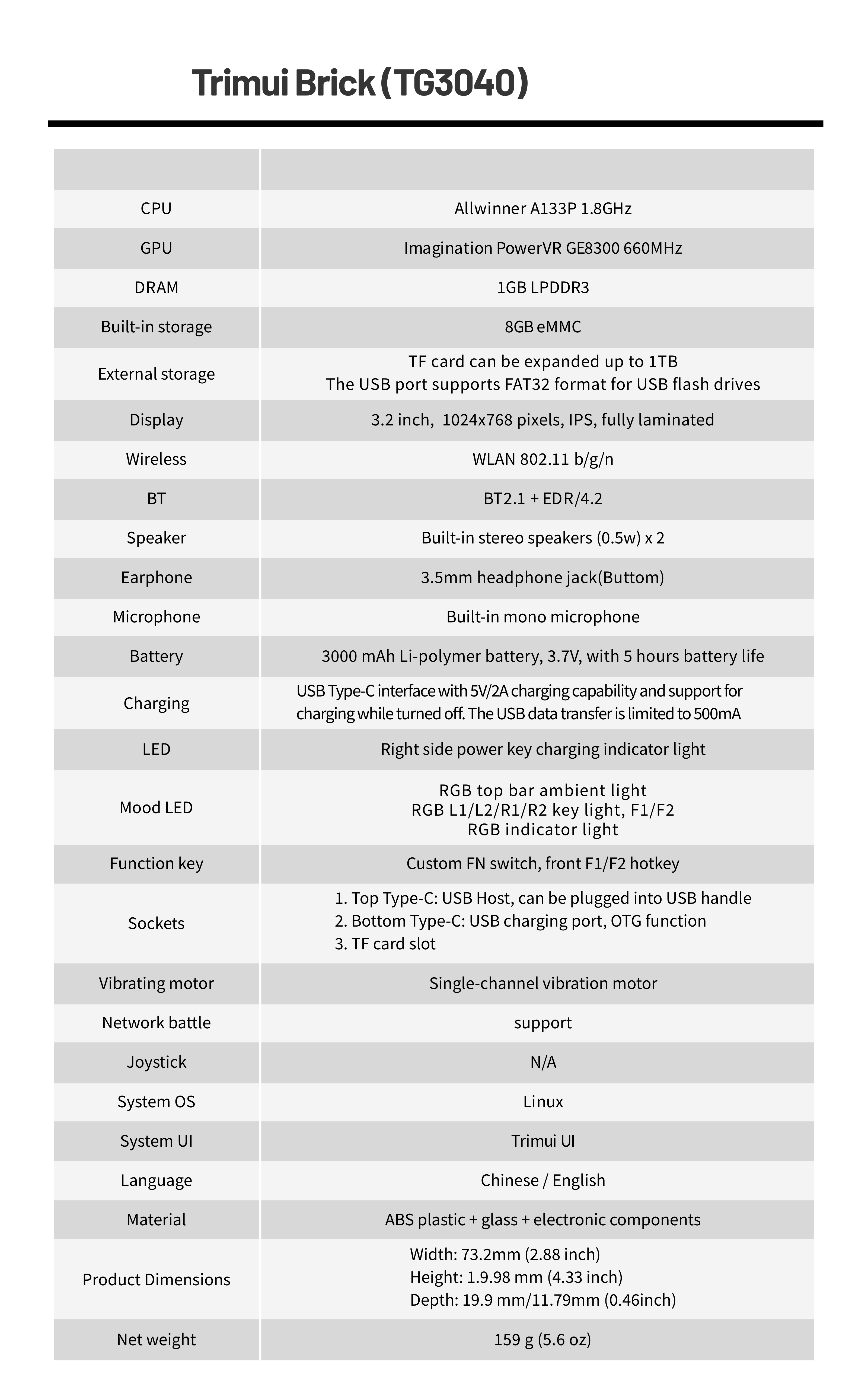

All specs

SourceCalculatedHide missing

General

Series: Not available
Model numbers: TG30402
GTIN / EAN: Not available
Announced: September 20245
Status: Not available
Predecessor: Not available
Successor: Not available
Launch price (US): $79.995 6
Launch price (EU): Not available
Markets: Not available
Colours: White, Black, Red, Purple1
Device class: Retro handheld1
Form factor: Vertical1 8

Platform and software

OS family: Other Linux2
OS at launch: Linux with Trimui UI2
Latest OS: Not available
Built-in game stores: Not available
Physical games: None2
Backward compatibility: Not available
Upscaling and frame generation: Not available

Processor and graphics

Chip: Allwinner A133P2
Chip brand: Other2
Core configuration: Physical core count Core Max clock (GHz)
4 Cortex-A53 1.8
Source3
CPU cores: 4
Max CPU clock: 1.8GHz
Process: Not available
GPU: Imagination PowerVR GE83002
GPU architecture: Not available
GPU compute units: Not available
GPU max clock: 660MHz2 3
GPU compute (claimed): Not available
Power modes: Not available
Lowest TDP: Not available
Highest TDP: Not available
Highest TDP on battery: Not available
Custom TDP: Not available

Physical core count	Core	Max clock (GHz)
4	Cortex-A53	1.8

Memory and storage

RAM: 1GB2
RAM type: LPDDR32
RAM speed: Not available
Memory bandwidth: Not available
Storage: 8GB2
Storage type: eMMC2
Installed drive PCIe generation: Not available
Storage slots: Not available
M.2 slots: Not available
Memory card: microSD2
Card speed class: Not available
Max card size: 1TB2

Display

Screen size: 3.2in(8.1 cm)2
Native resolution: 1024 × 768px2
Pixel density: 400ppi
Aspect ratio: 4:32
Panel type: IPS2
Native panel orientation: Landscape2
Screen surface: Not available
Touchscreen: Not available
Built-in display refresh modes: Width (px) Height (px) Max (Hz)
1024 768 60
Source9
Max refresh rate: 60Hz
Adaptive sync: Not available
VRR lower limit: Not available
Brightness (SDR, claimed): Not available
Peak brightness (HDR, claimed): Not available
DCI-P3 coverage (claimed): Not available
HDR formats: Not available
Second display: Not available

Width (px)	Height (px)	Max (Hz)
1024	768	60

Controls

Stick sensor: Not available
Stick layout: Not available
Touch-sensitive sticks: Not available
Replaceable stick modules: Not available
Trigger sensor: Digital7
Trigger stops: Not available
D-pad: Cross1 7 8
Face button labels: Nintendo1
Extra rear and grip buttons: 08
Trackpads: Not available
System-level remapping: Not available
System buttons: Power, Volume up, Volume down, FN switch, F1, F2, Start, Select, Menu, Reset2 7 8
Detached controller connection: Not available
Controller mouse sensor: Not available
Fingerprint: Not available

Motion and feedback

Gyroscope: Not available
Rumble: Rumble2
RGB lighting: Yes1

Measured

Brightness (measured): Not available
HDR peak brightness (measured): Not available
Contrast ratio (measured): Not available
DCI-P3 coverage (measured): Not available
Colour accuracy (measured Delta E): Not available
PWM frequency (measured): Not available
3DMark Time Spy graphics (measured): Not available
3DMark Steel Nomad Light (measured): Not available
3DMark Wild Life Extreme (measured): Not available
Cinebench 2024 single-core (measured): Not available
Cinebench 2024 multi-core (measured): Not available
AnTuTu (measured): Not available
Game frame rates (measured): Not available
SSD sequential read (measured): Not available
Memory card read (measured): Not available
Battery runtime per test (measured): Test Game Hours (h)
Gaming SNES game, 100% brightness, Wi-Fi on, volume 10% 3.33
Source9
Shortest gaming test runtime (measured): 3.33h
Longest gaming test runtime (measured): 3.33h
Video runtime (measured): Not available
Full charge time (measured): Not available
Power draw gaming (measured): Not available
Fan noise per mode (measured): Not available
Max fan noise (measured): Not available
Fan noise while gaming (measured): Not available
Back surface under load (measured): Not available
Grips under load (measured): Not available
Chip temperature while gaming (measured): Not available
Stick tests (measured): Not available
Speaker loudness (measured): Not available
Weight (measured): Not available

Test	Game	Hours (h)
Gaming	SNES game, 100% brightness, Wi-Fi on, volume 10%	3.33

Audio

Speakers: 22 7
Speaker direction: Front-facing7
Audio features: Not available
Microphones: 12
3.5 mm jack: Yes2

Ports and dock

Ports: Type Count Side Max charging input (W)
USB-C 1 Top Not available
USB-C 1 Bottom 10
3.5 mm audio 1 Bottom Not available
microSD card 1 Bottom Not available
Source2 8
USB-C ports: 2
USB4 or Thunderbolt: Not available
USB-C charging: 10W
Video out: Not available
Max external display: Not available
External GPU: Not available
Dock: Not available
Max output through dock: Not available
Dock ports: Not available

Type	Count	Side	Max charging input (W)
USB-C	1	Top	Not available
USB-C	1	Bottom	10
3.5 mm audio	1	Bottom	Not available
microSD card	1	Bottom	Not available

Wireless

Wi-Fi: Not available
Wi-Fi bands: Not available
Bluetooth: 4.22 7
NFC: Not available
Cellular: Not available
Network: Not available

Battery and charging

Battery energy: Not available
Battery capacity: 3,000mAh2
Claimed battery life: Hours (h)
5
Source2
Battery life (claimed, min): Not available
Battery life (claimed, max): 5h
Wired charging: 10W2
Charging standards: Not available
Charge 0 to 100 % (claimed): Not available
Charge limit: Not available
Bypass charging: Not available
Charger in box: No4
Included charger: Not available

Hours (h)
5

Cooling

We could not find any of these 3 fields. Show them

Fans: Not available
Vapor chamber: Not available
Custom fan curve: Not available

Build

Built-in kickstand: Not available
Dust and water rating: Not available
User-replaceable parts: Shoulder button keycaps1 8

Dimensions and weight

Front and side, drawn to scale.

Dimensions: Width73.2Height109.9Depth19.9mm(2.9 × 4.3 × 0.8 in)2 10
Weight: 159g(5.6 oz)2 10
Weight without controllers: Not available
