arkivoAPI

Gaming / Headsets and headphones

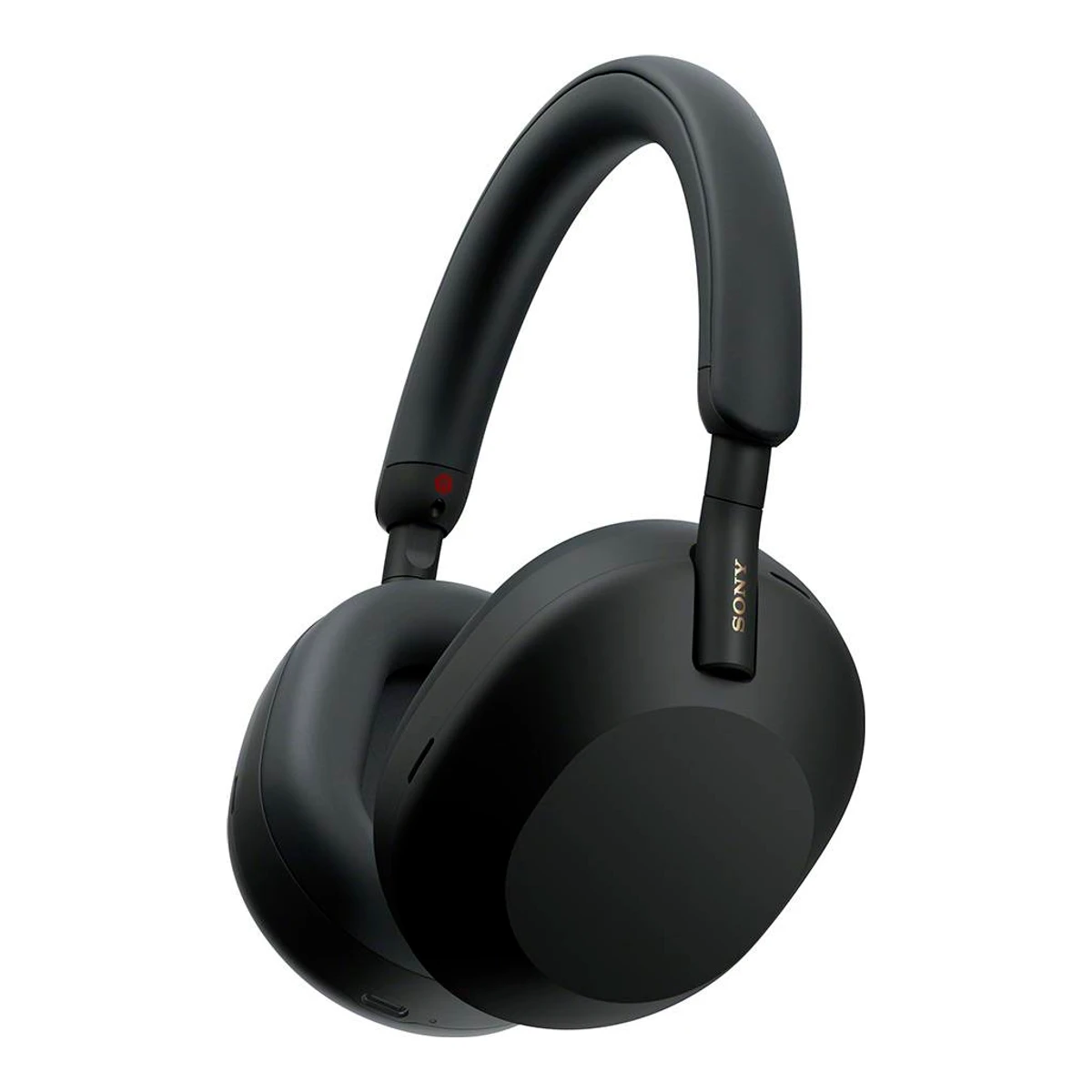

Sony WH-1000XM5
Form factor
Over-ear
Audio connections
Analog, Bluetooth
Active noise cancelling
Yes
Battery life (claimed, max)
40h

88 of 161 fields known.

All specs

SourceCalculated

General

Model numbers
YY29541Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Guide cover explicitly identifies the regulatory model.
GTIN / EAN
Not available
Status
Not available
Successor
Sony WH-1000XM617Reviewwhathifi.com/headphones/sony-wh-1000xm6Read 23 October 2026What Hi-Fi calls the WH-1000XM5 the previous flagship before the WH-1000XM6.
Launch price (EU)
Not available
Markets
Not available

Design

Swivelling ear cups
Yes4Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Noiseless design explicitly names seamless swivel.
RGB lighting
Not available
Lighting zones
Not available

Drivers and sound

Drivers per side
Not available
Diaphragm material
Not available
Frequency response (wired or passive)
Min4 HzMax40 kHz2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 143: 4 Hz to 40 kHz JEITA, cable connection with power on. Passive acoustic range is not separately proved.
Wireless audio transmission band
Min20 HzMax40 kHz1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Specifications: A2DP transmission range at LDAC 96 kHz and 990 kbps. 44.1 kHz transmission is 20 Hz to 20 kHz. This is not acoustic driver response.
Impedance (passive when specified)
16Ω2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 143: cable connection with headset off, 16 ohms at 1 kHz. Powered impedance is 48 ohms.
Sensitivity (passive when specified)
100dB2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 143: headset off, 100 dB/mW. Powered sensitivity is 102 dB/mW.
Sensitivity reference
Per 1 mW2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 143 explicitly publishes dB/mW.
THD (claimed)
Not available
Max input power
Not available
Max digital audio sample rate
Not available
Max digital audio bit depth
Not available
DAC
Not available
Personalised sound
Not available
Onboard EQ
Yes7Reviewsoundguys.com/sony-wh-1000xm5-review-71783Read 5 October 2026App section explicitly says custom EQ saves directly to headset. Bluetooth active connection, not claimed for passive cable.
EQ presets
Not available
Volume limit
Not available

Spatial audio

Spatial audio support
360 Reality Audio2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 107: app-supported 360 Reality Audio ear analysis and playback on supported services. Not a bundled paid licence.
Spatial audio licence included
Not available

Noise cancelling

ANC type
Hybrid4Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Manual pages 11-12 identify both internal and external ANC microphones.
ANC microphones
84Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Multi Noise Sensor technology: four per cup, eight controlled ANC microphones total.
Adaptive ANC
Yes4Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Auto NC Optimizer adapts cancellation to fit and environment.
ANC levels
Not available
ANC attenuation (claimed)
Not available
Conversation detection
Yes4Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Speak-to-Chat: starts ambient mode and pauses music when the wearer speaks.

Measured

Frequency response notes
Bass and treble are emphasized relative to the source target. The midrange from 300 Hz to 1050 Hz is lower.7Reviewsoundguys.com/sony-wh-1000xm5-review-71783Read 5 October 2026Objective measurement section uses B&K 5128 artificial head and source target. No numerical bass/treble error is inferred from the plot.
Bass amount
Not available
Treble amount
Not available
Deviation from target
Not available
Consistency between fittings
Not available
Harmonic distortion
Not available
Sound leakage
Not available
Measured noise isolation
Not available
Noise isolation (measured, best)
Not available
Passive isolation (measured)
Not available
Mic quality notes
Speech samples reject background noise in office, street and wind conditions.7Reviewsoundguys.com/sony-wh-1000xm5-review-71783Read 5 October 2026Automated recorded-speech samples in ideal, office, street and wind conditions. No numeric SNR inferred.
Mic low-frequency extension
Not available
Mic high-frequency extension
Not available
Mic speech-to-noise ratio
Not available
Measured latency
Not available
Bluetooth latency (measured, worst)
Not available
2.4 GHz latency (measured, worst)
Not available
Battery life (measured, max)
53.1h
Clamping force
Not available
Weight (measured)
Not available

Microphone

Microphone
Built-in1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Parts and controls, pages 11-12, identifies integrated voice/call microphone.
Microphone element
Not available
Microphone pickup pattern
Omnidirectional2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Pages 88 and 91 call chapters explicitly state omnidirectional microphones.
Voice microphones
44Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Advanced call quality: four beamforming microphones for voice, distinct from eight ANC mics.
Total microphones
Not available
Mic frequency response
Not available
Mic sensitivity
Not available
Mic signal-to-noise
Not available
Mic sample rate
Not available
Mic noise reduction
AI4Maker product pagesony.co.uk/electronics/headband-headphones/wh-1000xm5Read 5 October 2026Advanced call quality: AI-trained speech noise reduction algorithm.
Flip to mute
Not available
Mute button
Not available
Mute indicator
Not available
Adjustable sidetone
Not available
Foam microphone windscreen
Not available

Connectivity

Cable connector on headset
3.5 mm2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 64 headphone cable input jack and connection diagram. Standard stereo mini plug is confirmed by maker specifications.
Longest included cable
1.2m2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 9 package list: approximately 1.2 m headphone cable and 0.2 m USB cable.
Headset USB plug or port
USB-C1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Parts and controls, pages 11-12, USB Type-C charging port.
Passive wired listening
Yes2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 64 explicitly allows music when the headset is off. Built-in mic is unavailable through the supplied cable, which uses the phone mic.
Wireless receiver
Not available
Wireless receiver connector
Not available
Wireless range (claimed)
10m1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Specifications: approximate 10 m line-of-sight. Obstacles and host conditions affect range.
Bluetooth codecs
SBC, AAC, LDAC1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Specifications chapter: exact supported A2DP codecs, not Bluetooth version capabilities.
LE Audio
Not available
Auracast
Not available
Bluetooth multipoint
Yes1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Connecting the headset to 2 devices simultaneously chapter. Streams switch, rather than mix.
Multipoint devices
21Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Connecting the headset to 2 devices simultaneously chapter, two Bluetooth source devices.
Mixes 2.4 GHz and Bluetooth audio
Not available
Base station
Not available

Latency

We could not find any of these 2 fields. Show them
Low latency mode
Not available
Claimed latency
Not available

Compatibility

Compatible platforms
Android, iOS, Windows, macOS1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Individual Bluetooth setup chapters explicitly name Android, iPhone, Windows and Mac. No console path inferred.
Connection per platform
PlatformConnectionMicrophone works
AndroidBluetoothYes
iOSBluetoothYes
WindowsBluetoothYes
macOSBluetoothYes
Official licence
Not available

Battery and charging

Battery capacity
Not available
Batteries included
Not available
Claimed battery life
ConnectionANCHours (h)
BluetoothYes30
BluetoothNo40
AnalogYes28
AnalogNo38
Battery life (claimed, max)
40h
Battery life with ANC (claimed)
30h
Battery life without ANC (claimed)
40h
Quick charge time
3min2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 20: 3 minutes using USB PD charger with 9 V/2.3 A or more output.
Charging dock or stand
Not available

Controls

Game and chat mix
Not available

Comfort and build

Headband material
Not available
Frame material
Not available
Ear cup material
Not available
Ear pad attachment
Clip9Maker product pagesony.com/electronics/support/wireless-headphones-bluetooth-headphones/wh-1000xm5/articles/00282460Read 8 October 2026Six claws hold each pad plate. Install by aligning two pegs and clicking all six claws into the hooks.
Ear pad opening
Not available
Ear tips included
Not available
Dust and water rating
Not available

Software

Dimensions and weight

Headset weight
250g(8.8 oz)1Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Specifications: approximate published mass. Detachable cable inclusion is not stated in this guide.
Headset dimensions
Not available

Certifications

Communication certifications
Not available
FCC ID
Not available
Other certifications
Not available

In the box

In the box
Wireless Noise Canceling Stereo Headset, USB Type-C cable (USB-A to USB-C), Headphone cable, Carrying case2Owner's manualhelpguide.sony.net/mdr/wh1000xm5/v1/en/print.pdfRead 5 October 2026Page 9: WH-1000XM5 case bundle only. WH-1000XM5SA carrying-pouch bundle is excluded.
Cables included
TypeLength (m)Count
USB-A to USB-C charging cable0.21
Headphone cable1.21

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a headset to see both side by side. Differences are marked yellow.

More headset comparisons

Sources

We read 17 sources for this headset. The numbers match the markers in the sheet.

  1. Read 5 October 2026Backs 23 fields
  2. Read 5 October 2026Backs 19 fields
  3. Read 5 October 2026Backs 6 fields
  4. Read 5 October 2026Backs 17 fields
  5. Read 5 October 2026Backs 2 fields
  6. Read 5 October 2026Backs 1 field
  7. Read 5 October 2026Backs 6 fields
  8. Read 5 October 2026Backs 1 field
  9. Read 8 October 2026Backs 3 fields
  10. Read 8 October 2026Backs 3 fields
  11. Read 8 October 2026Backs 1 field
  12. Read 8 October 2026Backs 1 field
  13. Read 8 October 2026Backs 1 field
  14. Read 8 October 2026Backs 1 field
  15. Read 23 October 2026Backs 1 field
  16. Read 23 October 2026Backs 1 field
  17. Read 23 October 2026Backs 1 field

See a wrong value? Tell us and name the field.

PredecessorSony WH-1000XM4
