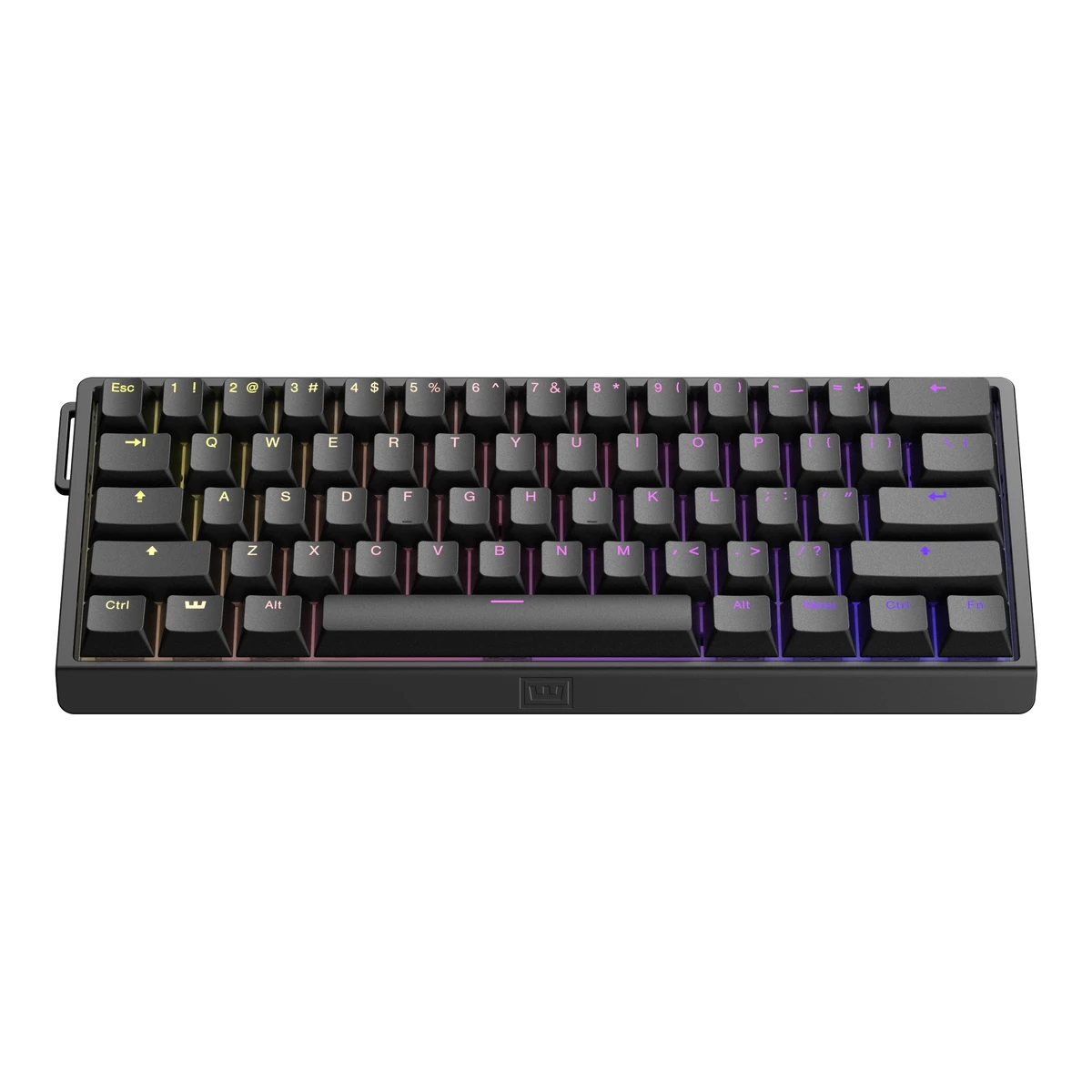

Wooting 60HE v2

WootingGaming keyboard

60HE v2

Released December 2025.11Maker product pagewooting.io/post/wooting-60he-v2-your-questions-answeredRead 8 October 2026Best approximate model availability month for aluminum prebuilt: November 25, 2025 maker FAQ says first shipping December after campaign. October 30 launch timeline corroborates. RTINGS begins purchased aluminum split-unit testing January 7, 2026, so consumer availability followed. Exact regular US SKU first receipt not proven. February 2026 is second aluminum batch and April is plastic, not model initial release. Last checked 23 October 2026.

Form factor
60 %
Switch sensing technology
Magnetic (Hall effect)
Connections
USB (wired)
Max polling rate
8,000Hz

88 of 164 fields known.

Compare with another keyboardDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
60HE1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Model numbers
WK3C-US1-TIK-ABK12Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Article number explicitly WK3C-US1-TIK-ABK1, ANSI Non Split Spacebar Black Aluminum complete keyboard.
GTIN / EAN
87210985211552Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Exact Product JSON-LD ties 8721098521155 to WK3C-US1-TIK-ABK1. Retailer incorrectly calls its 13-digit GTIN gtin8. Value is retained as a 13-digit barcode, without changing digits.
Announced
Not available
Status
Available2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Exact current US regular-spacebar Black Aluminum SKU. Product description and Specifications. Temporary retailer out-of-stock is not discontinuation.
Predecessor
Wooting 60HE+13Reviewpcgamer.com/hardware/gaming-keyboards/wooting-60he-v2-reviewRead 8 October 2026PC Gamer's 60HE v2 review calls the 60HE+ the predecessor of the 60HE v2.14Maker product pagewooting.io/post/the-difference-between-the-60he-and-the-60he-v2Read 8 October 2026Maker comparison introduction explicitly states v2 builds on 60HE+. Exact previous marketed Plus version, rather than a borrowed switch/configuration.
Successor
Not available
Launch price (US)
$239.999Maker product pagewooting.io/post/wooting-60he-v2-update-launch-dates-pricing-and-new-switchesRead 8 October 2026October 30, 2025 Pricing and Options explicitly pre-assembled aluminum $239.99. ABS $179.99 and module $139.99 excluded. This is maker launch pricing, not current retailer 234.99 or review rounded 240. Euro 239.99 published but VAT scope not established, so EUR field omitted.
Launch price (EU)
Not available
Markets
US2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Exact current US regular-spacebar Black Aluminum SKU.
Colours
Just Black1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Aluminium Case section uses Just Black. Only the selected black reference is represented. Bright Silver, ABS and split-spacebar variants are not added.
Segment
Gaming1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Sold as
Complete1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Exact 60HE v2 page. Feature headings, Wootility section, Tech Specs and pre-built Aluminium inventory. Black aluminum complete ANSI regular-spacebar reference, not the module or ABS case.

Layout

Form factor
60 %1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Layout standard
ANSI2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description and Specifications of the exact SKU.
Regional layouts
US English2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Exact US1 ANSI configuration and matching maker ANSI regular diagram with US English legends. ISO and split packages excluded.
Keys in regional layout
613Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete maker ANSI regular physical diagram counted by rows: 14 + 14 + 13 + 12 + 8 = 61. Split diagram has additional keys and is not counted.
Key legends for
Not available
Numpad
No3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete ANSI regular diagram has no physical numpad. Ordinary digit row is not counted as a numpad.
Function row
No3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete ANSI regular diagram has no separate physical F1-F12 row.
Dedicated arrow keys
No3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Keyboard modes says arrows provided through shortcuts. Regular diagram has no dedicated arrow cluster.
Navigation keys
Not available
Key stagger
Row-staggered3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete ANSI regular physical diagram has horizontally offset typing rows.
Bottom row
Not available
Low profile
No12Reviewrtings.com/keyboard/reviews/wooting/60he-v2-magneticRead 8 October 2026Public Office/Programming text explicitly relatively high-profile design. Reference shares manufacturer-documented aluminum case and OEM caps with tested aluminum PBT unit, without borrowing its measured dimensions.

Switches

Switch sensing technology
Magnetic (Hall effect)1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Switch feel
Linear4Maker product pagewooting.io/product/wooting-lekker-tikken-medium-switchRead 8 October 2026Exact Lekker Tikken Medium component supplied in all v2 prebuilts. Technical Specifications: Linear.
Switch maker
Wooting1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Switch models
Lekker Tikken Medium1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Switch stem
MX cross6Maker product pagewooting.io/product/wooting-double-shot-pbt-backlit-keycap-set-no-splitRead 8 October 2026Same maker keycap set. Design Features MX cross-stem compatibility including Lekker.
Actuation force
Not available
Bottom-out force
54gf4Maker product pagewooting.io/product/wooting-lekker-tikken-medium-switchRead 8 October 2026End gf is 54. Start 42 gf is not force at the adjustable actuation point and is omitted from actuation_force_g.
Tactile bump force
Not available
Actuation point
Not available
Total travel
4mm1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Rated keystrokes
Not available
Factory-lubed switches
Yes4Maker product pagewooting.io/product/wooting-lekker-tikken-medium-switchRead 8 October 2026Exact Lekker Tikken Medium component supplied in all v2 prebuilts. Technical Specifications: medium factory lube.
Adjustable actuation
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Actuation range
Min0.1Max4mm1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026All Wooting features section explicitly offers 0.1 mm through 4 mm actuation points. These are software settings.
Actuation step
0.1mm13Reviewpcgamer.com/hardware/gaming-keyboards/wooting-60he-v2-reviewRead 8 October 2026Wootility settings paragraph explicitly any key can be adjusted in 0.1 mm increments. This is common v2 configuration capability, not a measured split-layout switch result. Reviewer personally tested aluminum split-spacebar DIY build, and its numeric measurements are not imported into regular prebuilt.
Per-key actuation
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Rapid trigger
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Minimum rapid trigger movement
0.1mm8Maker product pagewooting.io/rapid-triggerRead 8 October 2026Maker Rapid Trigger page says movement sensitivity as low as 0.1 mm and explicitly includes 60HE v2. This is a selectable setting, not measured input accuracy.
Multi-action keys
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
SOCD handling
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Analog input
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Controller Input section explicitly variable gamepad movement from WASD. Hall sensing alone is not used as proof.
Hot-swap sockets
Magnetic2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Exact description explicitly hot-swappable Hall-effect switches. Manual separately shows tool removal from sockets.
Compatible switches
KS-20 magnetic switches, including compatible Gateron and Geon models17Reviewwired.com/review/review-wooting-60he-v2Read 8 October 2026Peak Repairability explicitly adopts KS-20 and supports Gateron and Geon. This is board family compatibility. Tested aluminum split layout uses same magnetic sensing system. Not every model from those brands is claimed compatible and Wootility switch calibration/settings remain necessary.
Stabilizers
PCB screw-in1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Tech Specs explicitly screw-in stabilizer. Maker comparison independently confirms v2 screw-in rather than original Plus plate-mounted.
Factory-lubed stabilizers
Not available

Keycaps

Keycap material
PBT1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Legend method
Doubleshot2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description explicitly double-shot PBT keycaps for this exact SKU.
Keycap profile
OEM6Maker product pagewooting.io/product/wooting-double-shot-pbt-backlit-keycap-set-no-splitRead 8 October 2026Maker double-shot backlit PBT keycaps matching exact retailer fitted PBT double-shot set. Design Features OEM profile. Separate cap kit key count is not keyboard key count.
Keycap thickness
1.5mm6Maker product pagewooting.io/product/wooting-double-shot-pbt-backlit-keycap-set-no-splitRead 8 October 2026Same maker keycap set. Design Features 1.5 mm walls.
Shine-through legends
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026

Performance

Polling rate per connection
ConnectionPolling rate (Hz)
USB (wired)8,000
Source1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026True 8 kHz USB polling with Tachyon mode enabled in Wootility. Supplied USB cable used. No wireless receiver.
Max polling rate
8,000Hz
Polling rate (wired)
8,000Hz
Polling rate (2.4 GHz)
Not available
Polling rate (Bluetooth)
Not available
Scan rate
8,000Hz1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Unmatched Performance explicitly states every key is scanned at the same 8 kHz rate as USB polling, in sync. Tachyon mode required.
Input latency (claimed)
0.125ms1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Unmatched Performance explicitly states stable input speed around 0.125 ms with Tachyon mode enabled. This is a maker claim, not calculated from polling and not measured latency.
Key rollover per connection
ConnectionRollover
USB (wired)NKRO
Source2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description and Specifications of the exact SKU.
Anti-ghosting
Yes2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description and Specifications of the exact SKU.
Adjustable debounce
Not available
Minimum debounce
Not available

Measured

We could not find any of these 7 fields. Show them
Latency per connection (measured)
Not available
Actuation point (measured)
Not available
Total travel (measured)
Not available
Operating force (measured)
Not available
Typing noise (measured)
Not available
Battery life (measured)
Not available
Weight (measured)
Not available

Connectivity

Connections
USB (wired)2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Specifications explicitly Wireless No and USB-C connection. Description also states wired host connection with detachable cable.
Wireless technology
Not available
Bluetooth
Not available
Bluetooth device slots
Not available
Devices it can switch between
Not available
Device switching
Not available
Receiver connector
Not available
Receiver storage in keyboard
Not available
Receiver shared with other devices
Not available
Wireless range
Not available
Detachable cable
Yes2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description and Specifications of the exact SKU.
Port on keyboard
USB-C2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Product description and Specifications of the exact SKU.
Cable plug
USB-C1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Cable
Braided1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Cable length
2m1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
USB passthrough
No18Spec databasegamergear.net/product.phpRead 8 October 2026Exact v2 specification explicitly lists USB Passthrough No. Corroborated by maker complete keyboard/cable documentation with one USB-C keyboard connection, without adding a hub accessory.
Works with
Windows, macOS, Linux15Maker product pagehelp.wooting.io/article/100-how-to-change-your-keyboard-gamepad-modeRead 8 October 2026Current maker guide for Wooting analog keyboards describes XInput and classic HID gamepad. macOS supports classic HID only, while Linux handling of R/T axes differs. Paired with exact v2 Controller Input support. This is hardware/gamepad host scope, separate from software download platforms.
Consoles
PlayStation, Xbox16Maker product pagehelp.wooting.io/article/106-how-to-use-your-wooting-keyboard-with-playstation-xbox-or-pc-bios-nkro-offRead 8 October 2026Current August 14, 2026 maker guide states Wooting console use requires disabling NKRO if the console cannot recognize native NKRO. Only PlayStation and Xbox are named. Game support varies and analog controller output is not claimed for consoles.

Battery

We could not find any of these 16 fields. Show them
Battery type
Not available
Number of batteries
Not available
Battery capacity
Not available
User-replaceable battery
Not available
Battery life per mode (claimed)
Not available
Longest battery life (claimed)
Not available
Battery life, lighting off
Not available
Battery life, lighting on
Not available
Battery life, backlight on (claimed)
Not available
Battery life, backlight off (claimed)
Not available
Charging port
Not available
Full charge time
Not available
Quick charge
Not available
Use while charging
Not available
Solar charging
Not available
Battery indicator
Not available

Build

Case material
Sandblasted and anodized solid aluminum1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Black aluminum case of the complete ANSI regular-spacebar keyboard, not the module or ABS case.
Plate material
FR41Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Mount style
Other1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Friction-fit silicone pad holds PCBA without screws. Stored as other because current schema has no friction_fit option. Screw-in tray mounting is an alternate modification, not the stock mount.
Flex cuts in PCB
Not available
Sound dampening
Plate foam, Silicone bottom, Other1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Fitted HD Poron between plate and PCB, PET film under switches, silicone friction-fit pad and stock silicone bottom block. Other identifies PET film and friction-fit pad. Spare EPDM foam is an alternative, not simultaneously installed case foam.
Typing angles
6°5Maker product pagewooting.io/product/wooting-60he-v2-aluminum-caseRead 8 October 2026Exact v2 aluminum case supplied in reference prebuilt. Technical Specifications with fitted OEM keycaps, not empty-case inner dimensions.
Spill resistant
Not available
IP rating
Not available

Lighting

Backlight
RGB per key12Reviewrtings.com/keyboard/reviews/wooting/60he-v2-magneticRead 8 October 2026Public exact v2 review describes fully addressable backlighting. This is a shared model capability, not a split-spacebar numeric measurement. Maker confirms RGB configuration and individual-key features.
LED position
Not available
Lighting zones
Not available
Brightness levels
Not available
Side or underglow lighting
Not available
Lighting sensors
Not available
Lighting sync
Not available

Controls

Media keys
Fn layer3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026ANSI regular Media Keys diagram maps previous, play/pause, next to Fn+J/K/L. These are ordinary typing keys on a function layer.
Separate media buttons
03Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete ANSI regular diagram consists of ordinary typing/modifier keys. Media diagram explicitly uses Fn layer. No separate media buttons.
Volume control
Keys3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026ANSI regular Media Keys diagram maps mute and volume down/up to Fn+M/comma/period.
Knobs
03Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Complete maker regular-spacebar keyboard diagram and supplied inventory contain no rotary control. Optional future Lekker knob accessories are not fitted.
Programmable knob
Not available
Knob press
Not available
Separate macro keys
Not available
Built-in screen
Not available
Touchpad
Not available
Fingerprint reader
Not available
OS mode switch
Not available
Windows key lock
Yes3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Disable Windows-key tab and ANSI regular key-lock diagram show Fn plus Windows-position key.

Software

Software
Wootility1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Software runs on
Windows, macOS, Linux, Web7Maker product pagewooting.io/wootilityRead 8 October 2026Current Wootility v5 page supports Windows 10/11, macOS and Linux apps, plus Chrome-based web browsers. Configuration support is not used to infer every hardware OS.
Open firmware
Not available
Onboard memory
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026
Onboard profiles
41Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Wootility section: up to four profiles saved on keyboard and usable without Wootility running.
Macros
Not available
Macros stored onboard
Not available
Key remapping
Yes1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Remap section explicitly any key and function layers can be remapped in Wootility.
Layers
33Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Keyboard modes and shortcuts explicitly two additional function layers Fn1 and Fn2, plus base, total three.
User firmware updates
Yes3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026Update your device section explicitly updates keyboard firmware in Wootility Settings, Updates, My Devices.

Ergonomics

Wrist rest
None2Retailer pageus.maxgaming.com/us/gaming-keyboard/wooting-60he-v2-keyboard-ansi-non-split-spacebar-black-aluminumRead 8 October 2026Specifications explicitly Wrist rest No. Separately sold Wooting wrist rests are not included.
Wrist rest material
Not available
Tenting
Not available
Tenting angles
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width305Depth115Height38.5Front height28.6mm(12 × 4.5 × 1.5 × 1.1 in)5Maker product pagewooting.io/product/wooting-60he-v2-aluminum-caseRead 8 October 2026Outer dimensions 305 x 115 mm. Keyboard height Front 28.6/Back 38.5 mm with OEM keycaps. Retailer 28.6 overall-height label rejected. Empty case Front 18.4/Back 29 excluded.
Dimensions with wrist rest
Not available
Keyboard weight
945g(2.1 lb)1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Tech Specs: aluminum version 945 g. ABS 606 g and standalone 542 g case are different configurations and not substituted.
Weight including wrist rest
Not available
Box dimensions
Not available
Box weight
Not available

Certifications

We could not find any of these 2 fields. Show them
Platform certifications
Not available
Other certifications
Not available

In the box

In the box
60HE v2 ANSI keyboard with fitted switches and keycaps, Keycap and switch puller, Module puller, 3 spare Lekker Tikken switches, Wooting strap, Stainless steel strap mount, Decorative no-strap piece, 2 m USB-C to USB-C 2.0 cable, USB-C female to USB-A male adapter, Silicone dampening layer, Spare EPDM foam dampening layer, 3 spare M2 x 3 mm strap screws, 4 spare M2 x 4 mm PCBA screws, 2 spare silicone plugs, Postcard3Owner's manualwooting.io/quickstart/keyboard/wooting-60he-v2/prebuilt-aluminiumRead 8 October 2026ANSI inventory and Bottom case dampening section. Silicone layer pre-installed and alternative EPDM layer supplied. Keycaps pre-installed only on ANSI, not ISO.
Cables included
TypeCount
USB-C to USB-C 2.0 nylon-braided cable, 2 m1
Source1Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026Pre-built Aluminium inventory explicitly supplies one 2 m USB-C to USB-C 2.0 nylon-braided cable. The USB-C female to USB-A male adapter remains in the box contents and is not counted as a cable or wireless receiver.
Spare switches
31Maker product pagewooting.io/wooting-60he-v2Read 8 October 2026

Warranty

Manufacturer warranty (source market)
4years10Maker product pagewooting.io/policies/warranty-policyRead 8 October 2026Warranty Period by Product explicitly lists 60HE v2 at Four Years, Two Years for LED components. Reference is a US new keyboard bought directly from maker. Current policy scope and authorized-reseller assistance differ, retailer one-year listing is not extended by inference.

Compare with

Pick a keyboard to see both side by side. Differences are marked yellow.

More keyboard comparisons

Sources

We read 18 sources for this keyboard. The numbers match the markers in the sheet.

  1. Maker product pagewooting.io/wooting-60he-v2
    Read 8 October 2026Backs 38 fields
  2. Read 8 October 2026Backs 14 fields
  3. Read 8 October 2026Backs 14 fields
  4. Read 8 October 2026Backs 3 fields
  5. Read 8 October 2026Backs 2 fields
  6. Read 8 October 2026Backs 3 fields
  7. Maker product pagewooting.io/wootility
    Read 8 October 2026Backs 1 field
  8. Maker product pagewooting.io/rapid-trigger
    Read 8 October 2026Backs 1 field
  9. Read 8 October 2026Backs 1 field
  10. Read 8 October 2026Backs 1 field
  11. Read 8 October 2026Backs 1 field
  12. Read 8 October 2026Backs 3 fields
  13. Read 8 October 2026Backs 2 fields
  14. Read 8 October 2026Backs 1 field
  15. Read 8 October 2026Backs 1 field
  16. Read 8 October 2026Backs 1 field
  17. Read 8 October 2026Backs 1 field
  18. Read 8 October 2026Backs 1 field

See a wrong value? Tell us and name the field.

PredecessorWooting 60HE+
