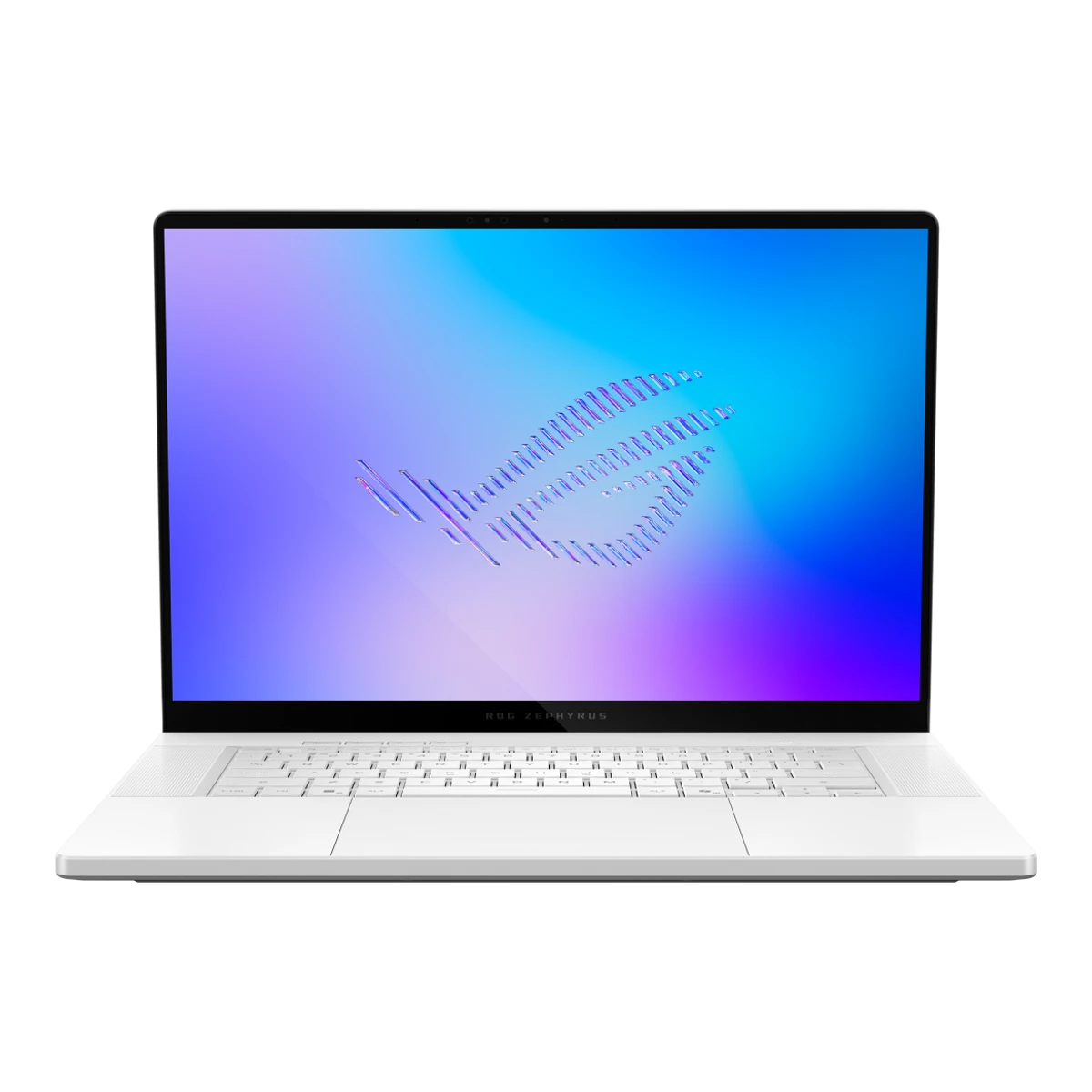

ASUS ROG Zephyrus G16 (2026) GU606AR
Screen size
16in
Processor
Intel Core Ultra 9 386H
GPU
NVIDIA GeForce RTX 5070 Ti Laptop GPU
Weight (published)
1.95kg

96 of 179 fields known.

At a glance

Ports

  • USB-C
  • USB-C 3.2 Gen 2
  • 2 USB-A 3.2 Gen 2
  • HDMI 2.1
  • SD card UHS-II
  • 3.5 mm audio
  • DC in ASUS Slim Power Jack

All specs

SourceCalculated

General

Successor
Not available
Launch price (EU)
Not available
Markets
US2Press releaseglobenewswire.com/news-release/2026/05/22/3300228/0/en/asus-rog-zephyrus-g14-and-g16-arrive-in-the-us-with-intel-core-ultra-series-3-and-rtx-50-series.htmlRead 7 October 2026

Chassis

Front and side, drawn to scale.

Dimensions
Width354Depth246Thickness (min)14.9Thickness (max)17.9mm(13.9 × 9.7 × 0.6 to 0.7 in)1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Current exact matrix 354 x 246 x 14.9-17.9 mm. May launch table has older maximum 16.4 mm, current specification takes precedence.
Weight (published)
1.95kg(4.3 lb)1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Current 1.95 kg agrees with 4.30 lb. May launch table incorrectly pairs 4.30 lb with 1.85 kg.
Max hinge angle
Not available
MIL-STD-810 testing (claimed)
Not available

Display

Pixel density
188.7ppi
Panel type
OLED2Press releaseglobenewswire.com/news-release/2026/05/22/3300228/0/en/asus-rog-zephyrus-g14-and-g16-arrive-in-the-us-with-intel-core-ultra-series-3-and-rtx-50-series.htmlRead 7 October 2026
Dimming zones
Not available
Panel part number
Not available
Stylus
Not available
Refresh rate modes
Width (px)Height (px)Maximum operating refresh (Hz)VRR
25601600240Yes
Max refresh rate
240Hz
Gray-to-gray response time (claimed)
Not available
Native panel colour depth
Not available
Brightness (SDR, claimed)
Not available
Peak brightness (SDR outdoors, claimed)
Not available
Sustained brightness (HDR, claimed)
Not available
sRGB coverage (claimed)
Not available
DCI-P3 coverage (claimed)
100%2Press releaseglobenewswire.com/news-release/2026/05/22/3300228/0/en/asus-rog-zephyrus-g14-and-g16-arrive-in-the-us-with-intel-core-ultra-series-3-and-rtx-50-series.htmlRead 7 October 2026
Adobe RGB coverage (claimed)
Not available
Factory calibrated
Yes3Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026Read 7 October 2026Pantone Color Validation paragraph explicitly says every display factory-calibrated.
Second display
Not available

Processor

Core configuration
Core typeCountBase clock (GHz)Max clock (GHz)
Performance42.14.9
Efficiency81.63.7
Low-power efficiency41.63.5
CPU cores
16
Cores labelled performance
4
Cores labelled efficiency
12
Threads
161Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Max boost clock
4.9GHz
L3 cache
18MB5Maker product pageintel.com/content/www/us/en/products/sku/245529/intel-core-ultra-9-processor-386h-18m-cache-up-to-4-90-ghz/specifications.htmlRead 5 October 202618 MB Intel Smart Cache.
Process
Not available
Sustained CPU power (configured)
Not available
Peak CPU power (configured)
Not available
Combined CPU and GPU power
Not available

Graphics

Discrete GPU
Yes1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Max GPU power (TGP)
140W1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Manual mode 140 W includes 115 W plus 25 W Dynamic Boost. Turbo mode 125 W includes 105 W plus 20 W.
Dynamic Boost
25W1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Manual maximum 25 W is part of 140 W, not additional to it.
GPU boost clock
1,497MHz1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Both Turbo and Manual state 1497 MHz: 1447 MHz configured boost plus 50 MHz factory OC.

Memory

Installed RAM
32GB1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
RAM speed
8,533MT/s1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Memory channels
21Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
RAM upgrade
Soldered1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Maximum supported RAM
32GB1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Exact 32 GB SKU explicitly Max Capacity 32 GB, no expansion. Other SKU 64 GB limits not inherited.

Storage

Installed storage
1TB1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Installed drive PCIe generation
Not available
Storage slots
Form factorInterfaceCountOccupied
M.2 2280PCIe NVMe1Yes
M.2 2280PCIe NVMe1No
Source2Press releaseglobenewswire.com/news-release/2026/05/22/3300228/0/en/asus-rog-zephyrus-g14-and-g16-arrive-in-the-us-with-intel-core-ultra-series-3-and-rtx-50-series.htmlRead 7 October 2026Two M.2 2280 connectors including installed 1 TB SSD plus second expansion slot, corroborated by current maker overview. Installed SSD is PCIe Gen4, which does not establish maximum generation for either slot. Generic FAQ one-slot wording conflicts with full matrix and expansion description.3Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026Read 7 October 2026Maker expansion description corroborates two physical connectors including the occupied drive. Generic FAQ states one slot, conflicting with the full matrix and expansion description. Maximum PCIe generation per physical connector remains unproved.4Owner's manualdlcdnets.asus.com/pub/ASUS/GamingNB/GU606AX/0409_E28049_GU606A_V2_A.pdfRead 5 October 2026Page 21 confirms M.2 2280 connector form. Maximum PCIe generation for each physical connector is not established.13Owner's manualdlcdnets.asus.com/pub/ASUS/GamingNB/GU606AW/0409_E26822_GU606A_Upgrade_Guide_B.pdfRead 7 October 2026E26822 GU606A Upgrade Guide revision B, linked by exact official GU606AR support September 14, 2026. Pages 16-17 state two screws and removal of M.2 SSD module(s), diagram explicitly marks both sockets. Page 22 inserts modules into connector(s). Exact XB96 matrix 2 x M.2 includes used and installed 1 TB resolves occupied/free rows. FAQ one user-replaceable SSD does not explicitly exclude second expansion socket. Do not infer PCIe maximum per connector from installed drive. Independent verification actual page 17 image depicts the three-fan option, so its cooling layout and factory depicted drive population are not applied to retained 5070 Ti two-fan tier. Exact XB96 primary expansion row independently says 2x M.2 includes used. Guide supports socket layout only.
M.2 slots
2
Free storage slots
1
Maximum slot PCIe generation
Not available

Ports

Ports
TypeVersionCountSideMaximum data rate (Gbps)Thunderbolt or USB4DP Alt ModeMaximum charging input (W)
USB-CNot available1Left40Thunderbolt 4Yes100
USB-C3.2 Gen 21Right10Not availableYes100
USB-A3.2 Gen 21Left10Not availableNot availableNot available
USB-A3.2 Gen 21Right10Not availableNot availableNot available
HDMIHDMI 2.11LeftNot availableNot availableNot availableNot available
SD cardUHS-II1RightNot availableNot availableNot availableNot available
3.5 mm audioNot available1LeftNot availableNot availableNot availableNot available
DC inASUS Slim Power Jack1LeftNot availableNot availableNot availableNot available
USB-C ports
2
Thunderbolt
Yes
Highest HDMI version
HDMI 2.1
Card reader
Yes
Ethernet speed
Not available
Maximum USB-C charging input
100W

Wireless

Bluetooth
6.01Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026Claimed 6.0, supported version may vary with OS and driver.
Cellular
Not available

Keyboard and touchpad

Keyboard layouts
Not available
Key switches
Not available
Keyboard backlight
RGB zones1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Pointing stick
Not available
Touchpad size
Not available

Camera and audio

Built-in speaker drivers
62Press releaseglobenewswire.com/news-release/2026/05/22/3300228/0/en/asus-rog-zephyrus-g14-and-g16-arrive-in-the-us-with-intel-core-ultra-series-3-and-rtx-50-series.htmlRead 7 October 2026Six physical drivers: 2 tweeters plus 4 woofers.
Total speaker power
Not available
Microphones
Not available

Battery and power

Battery energy
90Wh1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 2026
Claimed battery life
Not available
Laptop charging connector
Proprietary1Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026/specRead 7 October 20264Owner's manualdlcdnets.asus.com/pub/ASUS/GamingNB/GU606AX/0409_E28049_GU606A_V2_A.pdfRead 5 October 2026
Charge 0 to 50 % (claimed)
30min3Maker product pagerog.asus.com/us/laptops/rog-zephyrus/rog-zephyrus-g16-2026Read 7 October 2026Maker 90 Wh battery fast-charge claim, 0-50% in 30 minutes. Power state and adapter test condition not stated.

Cooling

Power modes
NameGPU power (W)
SilentNot available
PerformanceNot available
Turbo125
Manual140

Security

TPM
Not available
Remote management
Not available
Security lock slot
Not available

Software

Security updates until
Not available

Measured display

We could not find any of these 12 fields. Show them
Brightness (measured, centre)
Not available
Brightness (measured, average)
Not available
Contrast ratio (measured)
Not available
HDR peak brightness (measured)
Not available
sRGB coverage (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
Not available
PWM flicker found
Not available
PWM frequency (measured)
Not available
PWM at or below brightness
Not available
Response black to white (measured)
Not available
Response grey to grey (measured)
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them
Fan noise per mode
Not available
Max fan noise
Not available
Fan noise while gaming
Not available
Top surface under load
Not available
Bottom surface under load
Not available
Palm rest under load
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured battery and power

We could not find any of these 10 fields. Show them
Battery runtime per test
Not available
Wi-Fi browsing runtime
Not available
Video runtime
Not available
Full charge time (measured)
Not available
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available
Weight (measured)
Not available

Certifications

Intel Evo
Not available
ENERGY STAR
Not available
EPEAT
Not available

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Power adapter included
Not available

Warranty

Warranty service
Not available
