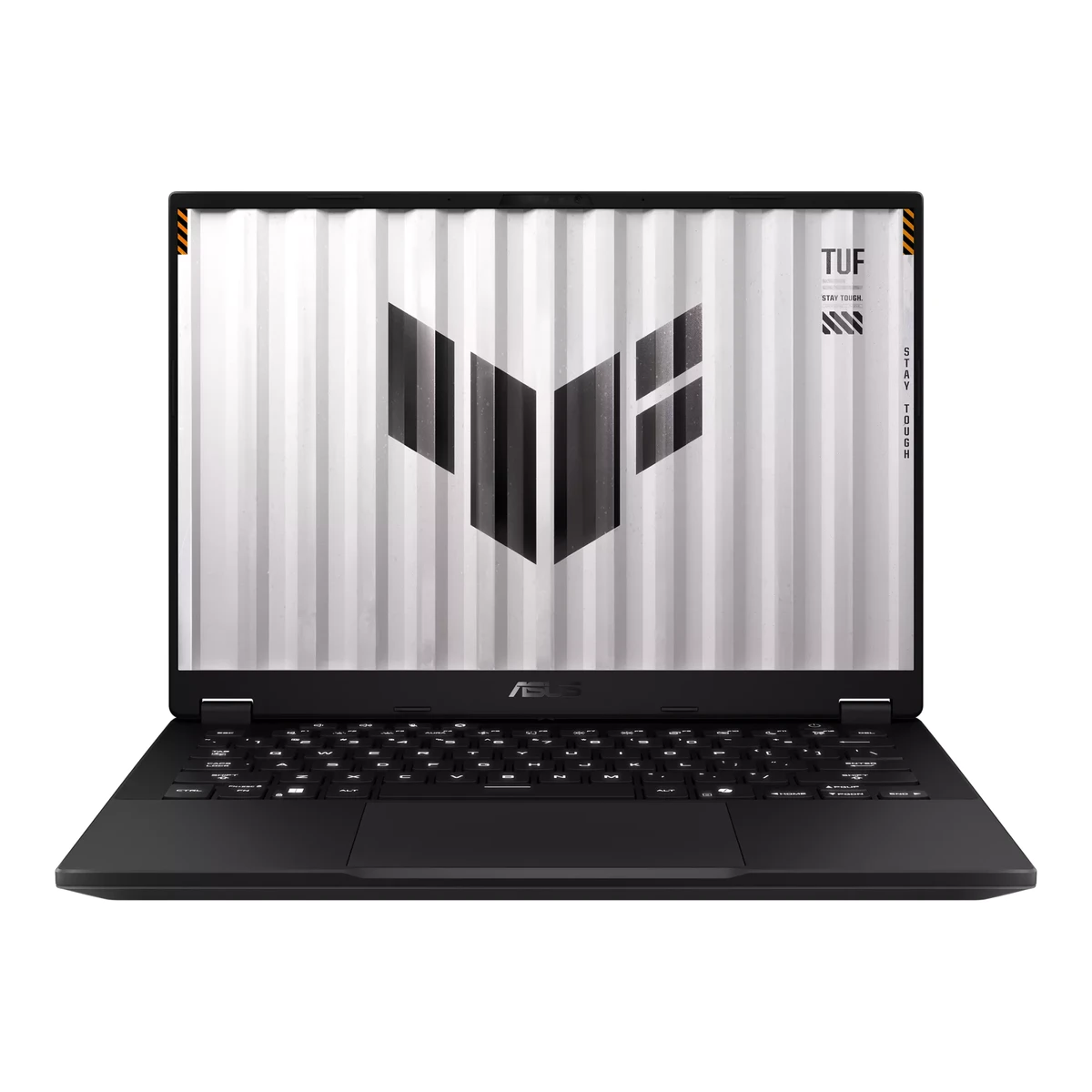

TUF Gaming A14 (2026) FA401EA

Released March 2026.6 Last checked 16 October 2026.

Screen size: 14in
Processor: AMD Ryzen AI Max+ 392
GPU: AMD Radeon 8060S
Weight (published): 1.48kg

87 of 179 fields known.

Compare with another laptop Download JSON Download CSV Get it from the API

At a glance

Ports

USB-C
USB-C 3.2 Gen 2
2 USB-A 3.2 Gen 2
HDMI 2.1
microSD card UHS-II
3.5 mm audio
DC in

All specs

SourceCalculatedHide missing

General

Series: TUF Gaming A141
Model numbers: FA401EA-DS96, 90NR0PM1-M000M05 7
GTIN / EAN: Not available
Announced: 7 January 20268
Status: Available11
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: US5
Colours: Jaeger Gray9 10
Segment: Gaming2
Form factor: Clamshell3

Chassis

Front and side, drawn to scale.

Dimensions: Width311Depth227Thickness (min)16.9Thickness (max)19.9mm(12.2 × 8.9 × 0.7 to 0.8 in)1
Weight (published): 1.48kg(3.3 lb)1
Lid material: Aluminium2
Bottom material: Aluminium2
Max hinge angle: 180°2
MIL-STD-810 testing (claimed): Yes2

Display

Screen size: 14in(35.6 cm)1
Native resolution: 2560 × 1600px1
Pixel density: 215.6ppi
Panel type: IPS-level1
Backlight: Not available
Dimming zones: Not available
Panel part number: Not available
Screen surface: Not available
Touchscreen: No7
Stylus: Not available
Refresh rate modes: Width (px) Height (px) Maximum operating refresh (Hz) VRR
2560 1600 165 Yes
Source1
Max refresh rate: 165Hz
Adaptive sync: FreeSync2
Gray-to-gray response time (claimed): Not available
Native panel colour depth: Not available
Brightness (SDR, claimed): Not available
Peak brightness (SDR outdoors, claimed): Not available
Sustained brightness (HDR, claimed): Not available
Peak brightness (HDR, claimed): Not available
sRGB coverage (claimed): 100%1
DCI-P3 coverage (claimed): Not available
Adobe RGB coverage (claimed): Not available
HDR certification: Not available
Factory calibrated: Not available
Second display: Not available

Width (px)	Height (px)	Maximum operating refresh (Hz)	VRR
2560	1600	165	Yes

Processor

Processor: AMD Ryzen AI Max+ 3921
Processor brand: AMD4
Core configuration: Core type Count Base clock (GHz) Max clock (GHz)
Zen 5 12 3.2 5
Source4
CPU cores: 12
Cores labelled performance: 0
Cores labelled efficiency: 0
Threads: 241
Max boost clock: 5GHz
L3 cache: 64MB4
Process: 4nm4
Sustained CPU power (configured): Not available
Peak CPU power (configured): Not available
Combined CPU and GPU power: Not available
NPU performance: 50TOPS1 4

Core type	Count	Base clock (GHz)	Max clock (GHz)
Zen 5	12	3.2	5

Graphics

Discrete GPU: No2
GPU: Not available
GPU brand: Not available
VRAM: Not available
Max GPU power (TGP): Not available
Dynamic Boost: Not available
GPU boost clock: Not available
GPU switching: Not available
Integrated GPU: AMD Radeon 8060S4

Memory

Installed RAM: 32GB5 7
RAM type: LPDDR5X2 5
RAM speed: Not available
Memory channels: 42
RAM upgrade: Soldered5
Memory slots: Not available
RAM slots: Not available
Free RAM slots: Not available
Maximum supported RAM: 32GB1

Storage

Installed storage: 1TB1
Storage type: NVMe SSD1
Installed drive PCIe generation: 41
Storage slots: Form factor Interface Count Occupied
M.2 2280 PCIe NVMe 1 Yes
M.2 2280 PCIe NVMe 1 No
Source1 2
M.2 slots: 2
Free storage slots: 1
Maximum slot PCIe generation: Not available

Form factor	Interface	Count	Occupied
M.2 2280	PCIe NVMe	1	Yes
M.2 2280	PCIe NVMe	1	No

Ports

Ports: Type Version Count Side Maximum data rate (Gbps) Thunderbolt or USB4 DP Alt Mode Maximum charging input (W)
USB-C Not available 1 Left 40 USB4 Yes 100
USB-C 3.2 Gen 2 1 Right 10 Not available Yes Not available
USB-A 3.2 Gen 2 1 Left 10 Not available Not available Not available
USB-A 3.2 Gen 2 1 Right 10 Not available Not available Not available
HDMI HDMI 2.1 1 Left Not available Not available Not available Not available
microSD card UHS-II 1 Right Not available Not available Not available Not available
3.5 mm audio Not available 1 Left Not available Not available Not available Not available
DC in Not available 1 Left Not available Not available Not available Not available
Source1 2 3
USB-C ports: 2
Thunderbolt: No
Highest HDMI version: HDMI 2.1
Card reader: Yes
Ethernet speed: Not available
Maximum USB-C charging input: 100W

Type	Version	Count	Side	Maximum data rate (Gbps)	Thunderbolt or USB4	DP Alt Mode	Maximum charging input (W)
USB-C	Not available	1	Left	40	USB4	Yes	100
USB-C	3.2 Gen 2	1	Right	10	Not available	Yes	Not available
USB-A	3.2 Gen 2	1	Left	10	Not available	Not available	Not available
USB-A	3.2 Gen 2	1	Right	10	Not available	Not available	Not available
HDMI	HDMI 2.1	1	Left	Not available	Not available	Not available	Not available
microSD card	UHS-II	1	Right	Not available	Not available	Not available	Not available
3.5 mm audio	Not available	1	Left	Not available	Not available	Not available	Not available
DC in	Not available	1	Left	Not available	Not available	Not available	Not available

Wireless

Wi-Fi: Wi-Fi 6E1
Wi-Fi bands: 2.4 GHz, 5 GHz, 6 GHz1
Wi-Fi module: Not available
Bluetooth: Not available
Cellular: Not available

Keyboard and touchpad

Keyboard layouts: Not available
Key switches: Not available
Keyboard backlight: Single colour1
Numpad: No3
Key travel: 1.7mm2
Pointing stick: Not available
Touchpad size: Not available
Touchpad mechanism: Not available

Camera and audio

Webcam: 1080p FHD IR1
IR face login: Yes1
Webcam privacy: Not available
Built-in speaker drivers: 21
Total speaker power: Not available
Audio features: Dolby Atmos, AI noise-canceling technology1
Microphones: 212

Battery and power

Battery energy: 73Wh1
Claimed battery life: Not available
Adapter rated output: 200W1
Laptop charging connector: Proprietary3
Charge 0 to 50 % (claimed): 30min2

Cooling

Fans: 22
Vapor chamber: Not available
Liquid metal: Not available
Power modes: Name
Manual
Silent
Source2

Name
Manual
Silent

Security

We could not find any of these 4 fields. Show them

Fingerprint: Not available
TPM: Not available
Remote management: Not available
Security lock slot: Not available

Software

Operating system: Windows 11 Home1
OS family: Windows1
Security updates until: Not available

Measured display

Brightness (measured, centre): Not available
Brightness (measured, average): 389.2nits14 15
Contrast ratio (measured): Not available
HDR peak brightness (measured): Not available
sRGB coverage (measured): Not available
DCI-P3 coverage (measured): Not available
Colour accuracy (measured Delta E): Not available
PWM flicker found: Not available
PWM frequency (measured): Not available
PWM at or below brightness: Not available
Response black to white (measured): Not available
Response grey to grey (measured): Not available

Measured performance

Cinebench 2024 single-core: Not available
Cinebench 2024 multi-core: Not available
Geekbench 6 single-core: Not available
Geekbench 6 multi-core: 17,334points14 15
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
SSD sequential read (measured): Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them

Fan noise per mode: Not available
Max fan noise: Not available
Fan noise while gaming: Not available
Top surface under load: Not available
Bottom surface under load: Not available
Palm rest under load: Not available
CPU temperature in stress test: Not available
CPU clock in stress test: Not available
GPU temperature while gaming: Not available

Measured battery and power

Battery runtime per test: Test Brightness (nits) Power mode Hours (h)
Wi-Fi browsing 150 Tom’s Guide custom battery power plan 9.12
Gaming 150 Tom’s Guide custom battery power plan 1.13
Video playback 250 Not available 9.5
Source13 14 15
Wi-Fi browsing runtime: 9.12h
Video runtime: 9.5h
Full charge time (measured): Not available
Power draw idle: Not available
Power draw gaming: Not available
Power draw max: Not available
Sustained CPU power (measured): Not available
GPU power while gaming (measured): Not available
Weight (measured): Not available
