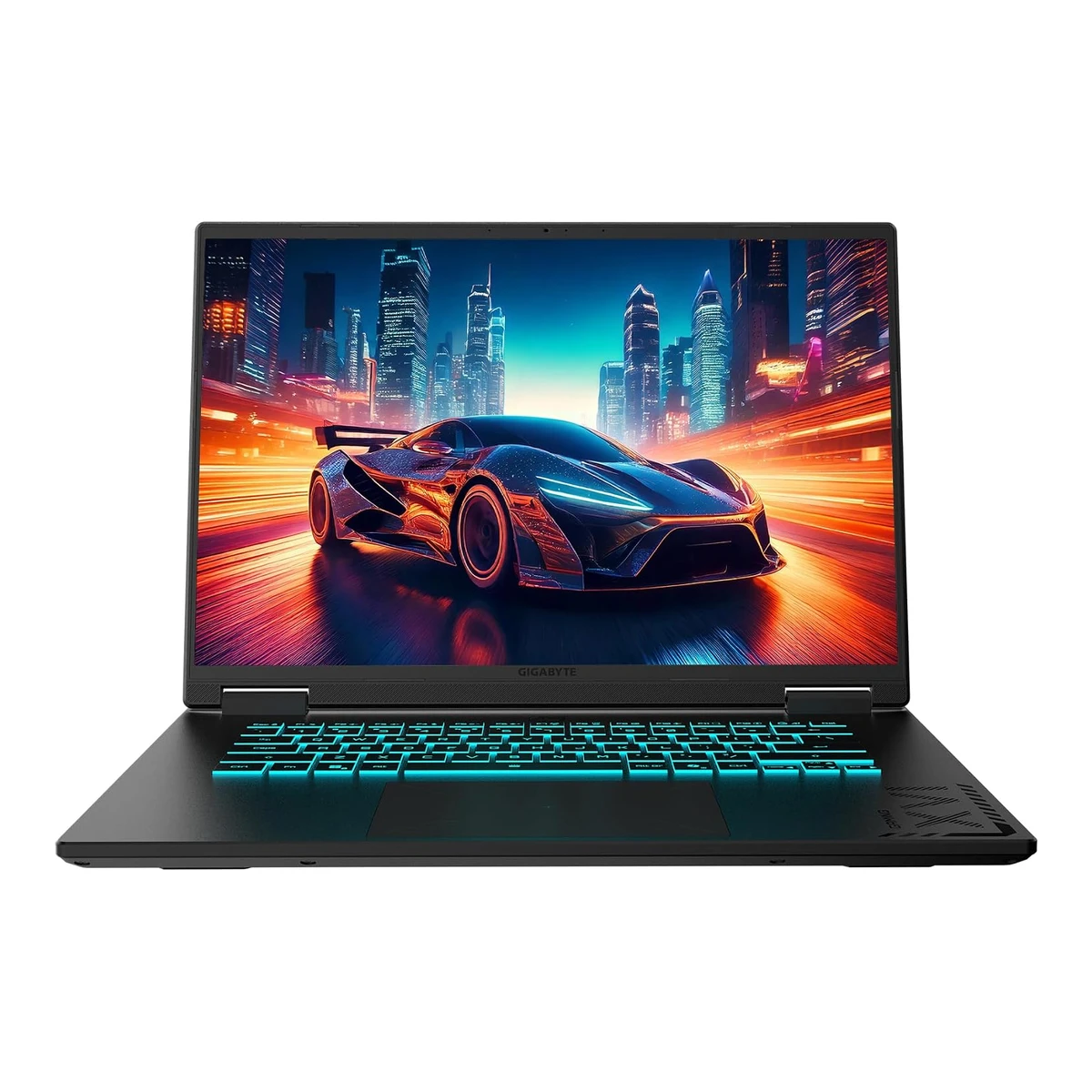

GAMING A16 GA6H

Released August 2025.6 Last checked 15 October 2026.

Screen size: 16in
Processor: Intel Core i7-13620H
GPU: NVIDIA GeForce RTX 5060 Laptop GPU
Weight (published): 2.2kg

81 of 179 fields known.

Compare with another laptop Download JSON Download CSV Get it from the API

At a glance

Ports

DC in
Ethernet (RJ45)
HDMI 2.1
2 USB-A USB 3.2 Gen 1
USB-C USB 3.2 Gen 1
USB-A USB 2.0
3.5 mm audio

All specs

SourceCalculatedHide missing

General

Series: GAMING A161 6
Model numbers: CVHI3US864SH1 4 6
GTIN / EAN: Not available
Announced: Not available
Status: Not available
Predecessor: Not available
Successor: Not available
Launch price (US): Not available
Launch price (EU): Not available
Markets: US1
Colours: Black Steel1 6
Segment: Gaming1
Form factor: Clamshell4

Chassis

Front and side, drawn to scale.

Dimensions: Width358.3Depth262.5Thickness (min)19.45Thickness (max)22.99mm(14.1 × 10.3 × 0.8 to 0.9 in)1 2 6
Weight (published): 2.2kg(4.9 lb)1 2 6
Lid material: Plastic2
Bottom material: Plastic2
Max hinge angle: 180°6
MIL-STD-810 testing (claimed): Not available

Display

Screen size: 16in(40.6 cm)1
Native resolution: 1920 × 1200px1
Pixel density: 141.5ppi
Panel type: IPS1
Backlight: Not available
Dimming zones: Not available
Panel part number: Not available
Screen surface: Matte2
Touchscreen: Not available
Stylus: Not available
Refresh rate modes: Width (px) Height (px) Maximum operating refresh (Hz)
1920 1200 165
Source1
Max refresh rate: 165Hz
Adaptive sync: Not available
Gray-to-gray response time (claimed): Not available
Native panel colour depth: Not available
Brightness (SDR, claimed): Not available
Peak brightness (SDR outdoors, claimed): Not available
Sustained brightness (HDR, claimed): Not available
Peak brightness (HDR, claimed): Not available
sRGB coverage (claimed): Not available
DCI-P3 coverage (claimed): Not available
Adobe RGB coverage (claimed): Not available
HDR certification: Not available
Factory calibrated: Not available
Second display: Not available

Width (px)	Height (px)	Maximum operating refresh (Hz)
1920	1200	165

Processor

Processor: Intel Core i7-13620H1
Processor brand: Intel3
Core configuration: Core type Count Max clock (GHz)
Performance 6 4.9
Efficiency 4 3.6
Source3
CPU cores: 10
Cores labelled performance: 6
Cores labelled efficiency: 4
Threads: 162 3
Max boost clock: 4.9GHz
L3 cache: 24MB3
Process: 10nm3
Sustained CPU power (configured): Not available
Peak CPU power (configured): Not available
Combined CPU and GPU power: Not available
NPU performance: Not available

Core type	Count	Max clock (GHz)
Performance	6	4.9
Efficiency	4	3.6

Graphics

Discrete GPU: Yes1
GPU: NVIDIA GeForce RTX 5060 Laptop GPU1
GPU brand: NVIDIA1
VRAM: 8GB2
Max GPU power (TGP): 85W1 7
Dynamic Boost: Not available
GPU boost clock: 1,560MHz2
GPU switching: MUX switch2
Integrated GPU: Intel UHD Graphics3

Memory

Installed RAM: 32GB1 4
RAM type: DDR54
RAM speed: 5,200MT/s1 4 6
Memory channels: 21 4
RAM upgrade: Slots4
Memory slots: Slot Count Occupied Module size (GB)
SO-DIMM 2 Yes 16
Source4 5
RAM slots: 2
Free RAM slots: 0
Maximum supported RAM: 64GB2 4 6

Slot	Count	Occupied	Module size (GB)
SO-DIMM	2	Yes	16

Storage

Installed storage: 1TB1
Storage type: NVMe SSD4 6
Installed drive PCIe generation: 41
Storage slots: Form factor Interface PCIe generation Count Occupied
M.2 2280 PCIe NVMe 4 1 Yes
M.2 2280 PCIe NVMe 4 1 No
Source2 7 8
M.2 slots: 2
Free storage slots: 1
Maximum slot PCIe generation: 4

Form factor	Interface	PCIe generation	Count	Occupied
M.2 2280	PCIe NVMe	4	1	Yes
M.2 2280	PCIe NVMe	4	1	No

Ports

Ports: Type Version Count Side Maximum data rate (Gbps) DP Alt Mode
DC in Not available 1 Left Not available Not available
Ethernet (RJ45) Not available 1 Left 1 Not available
HDMI HDMI 2.1 1 Left Not available Not available
USB-A USB 3.2 Gen 1 1 Left 5 Not available
USB-C USB 3.2 Gen 1 1 Left 5 Yes
USB-A USB 3.2 Gen 1 1 Right 5 Not available
USB-A USB 2.0 1 Right 0.48 Not available
3.5 mm audio Not available 1 Right Not available Not available
Source2 6 7
USB-C ports: 1
Thunderbolt: Not available
Highest HDMI version: HDMI 2.1
Card reader: No
Ethernet speed: 1Gbps
Maximum USB-C charging input: Not available

Type	Version	Count	Side	Maximum data rate (Gbps)	DP Alt Mode
DC in	Not available	1	Left	Not available	Not available
Ethernet (RJ45)	Not available	1	Left	1	Not available
HDMI	HDMI 2.1	1	Left	Not available	Not available
USB-A	USB 3.2 Gen 1	1	Left	5	Not available
USB-C	USB 3.2 Gen 1	1	Left	5	Yes
USB-A	USB 3.2 Gen 1	1	Right	5	Not available
USB-A	USB 2.0	1	Right	0.48	Not available
3.5 mm audio	Not available	1	Right	Not available	Not available

Wireless

Wi-Fi: Wi-Fi 6E1 2 6
Wi-Fi bands: 2.4 GHz, 5 GHz, 6 GHz2
Wi-Fi module: Not available
Bluetooth: 5.21 2 6
Cellular: Not available

Keyboard and touchpad

Keyboard layouts: Not available
Key switches: Not available
Keyboard backlight: RGB zones1 2
Numpad: Yes2
Key travel: 1.7mm2
Pointing stick: Not available
Touchpad size: Not available
Touchpad mechanism: Not available

Camera and audio

Webcam: 2 MP, Full HD2
IR face login: Yes2
Webcam privacy: Not available
Built-in speaker drivers: 22
Total speaker power: 4W2 4 6
Audio features: Dolby Atmos4
Microphones: 22

Battery and power

Battery energy: 76Wh1 2
Claimed battery life: Not available
Adapter rated output: 150W2
Laptop charging connector: Barrel2
Charge 0 to 50 % (claimed): Not available

Cooling

Fans: 22
Vapor chamber: Not available
Liquid metal: Not available
Power modes: Not available

Security

We could not find any of these 4 fields. Show them

Fingerprint: Not available
TPM: Not available
Remote management: Not available
Security lock slot: Not available

Software

Operating system: Windows 11 Home4
OS family: Windows4
Security updates until: Not available

Measured display

We could not find any of these 12 fields. Show them

Brightness (measured, centre): Not available
Brightness (measured, average): Not available
Contrast ratio (measured): Not available
HDR peak brightness (measured): Not available
sRGB coverage (measured): Not available
DCI-P3 coverage (measured): Not available
Colour accuracy (measured Delta E): Not available
PWM flicker found: Not available
PWM frequency (measured): Not available
PWM at or below brightness: Not available
Response black to white (measured): Not available
Response grey to grey (measured): Not available

Measured performance

Cinebench 2024 single-core: 111points2
Cinebench 2024 multi-core: 844points2
Geekbench 6 single-core: Not available
Geekbench 6 multi-core: Not available
3DMark Time Spy graphics: Not available
3DMark Steel Nomad: Not available
SSD sequential read (measured): Not available
Game frame rates: Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them

Fan noise per mode: Not available
Max fan noise: Not available
Fan noise while gaming: Not available
Top surface under load: Not available
Bottom surface under load: Not available
Palm rest under load: Not available
CPU temperature in stress test: Not available
CPU clock in stress test: Not available
GPU temperature while gaming: Not available

Measured battery and power

Battery runtime per test: Test Hours (h)
Gaming 3.05
Productivity 10.73
Source1 2
Wi-Fi browsing runtime: Not available
Video runtime: Not available
Full charge time (measured): Not available
Power draw idle: Not available
Power draw gaming: Not available
Power draw max: Not available
Sustained CPU power (measured): Not available
GPU power while gaming (measured): Not available
Weight (measured): Not available
