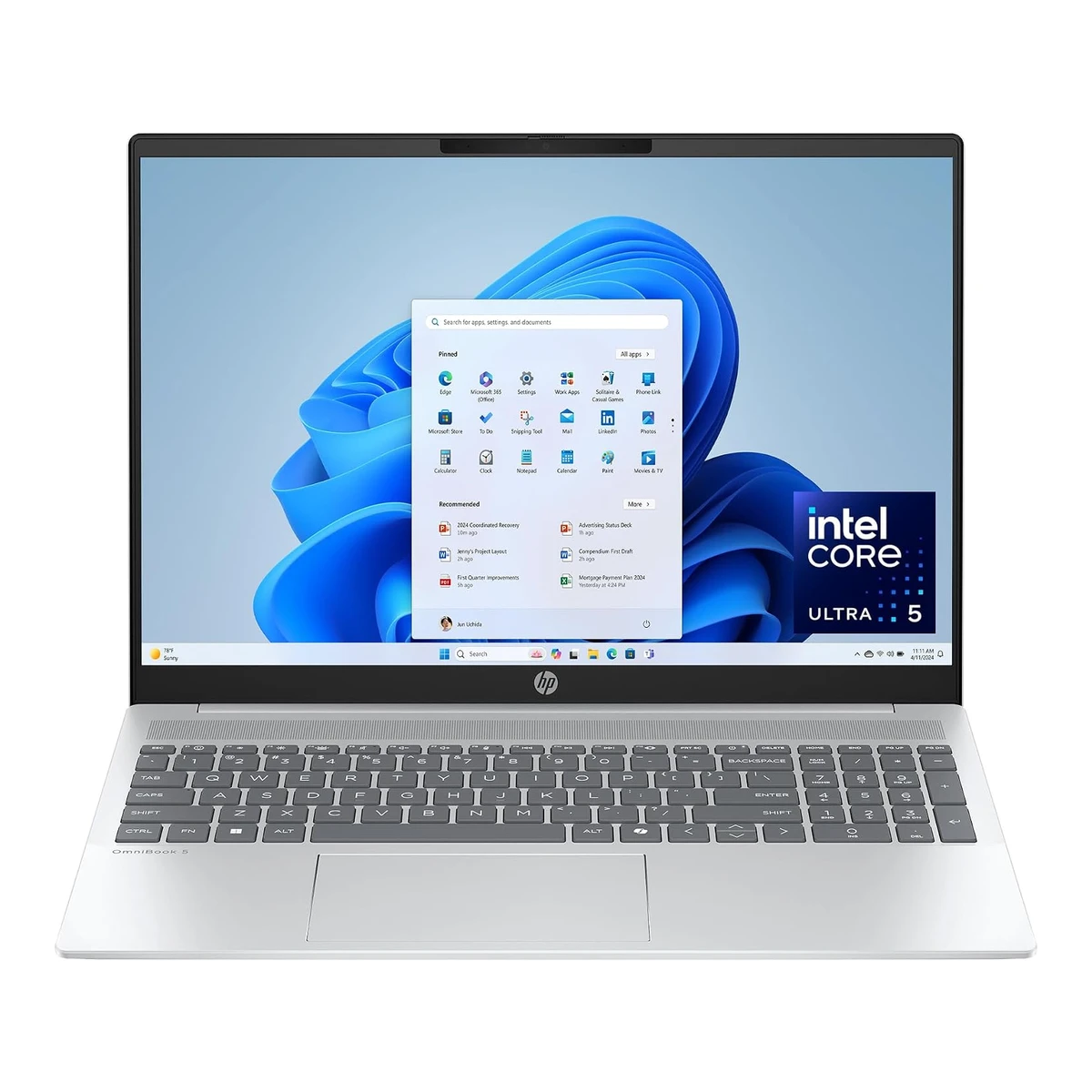

HP OmniBook 5 16-af1700nr

HPMainstream laptop

OmniBook 5 16-af1700nr

Released May 2025.1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Model Year 2025. The archived Amazon page is first captured 2025-09-26. A Best Buy listing page for the same SKU was cached about 419 days before 2026-10, which is about August 2025, and its later snapshot shows a March pickup date and a US price. HP's 16-af1xxx service guide second edition is dated February 2025 and Intel launched the Core Ultra 5 225U in Q1 2025. The month 2025-05 is the middle of the February to August 2025 window and is approximate. The first US sale date was not found. Last checked 16 October 2026.

Screen size
16in
Processor
Intel Core Ultra 5 225U
GPU
Intel Graphics
Weight (published)
Not available

64 of 179 fields known.

Compare with another laptopDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • 2 USB-C USB 3.2 Gen 2 / DisplayPort 1.4a / USB PD
  • HDMI 2.1
  • USB-A USB 3.2 Gen 2
  • USB-A USB 3.2 Gen 1
  • 3.5 mm audio

All specs

SourceCalculated

General

Series
OmniBook 51Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Model Series: OmniBook 5.
Model numbers
16-af1700nr, B7FY2UA#ABA1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Title and Model Name: 16-af1700nr. Model Number and Mfr Part Number: B7FY2UA#ABA. Model Year 2025.
GTIN / EAN
1989902919561Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026UPC 198990291956 in the item details.
Announced
Not available
Status
Not available
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
US1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Amazon.com US listing. The nr suffix is HP's US retail suffix and is not used on its own as proof. The page showed no buy box for the delivery location used for the read, so current Amazon stock was not seen.
Colours
Glacier silver1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Glacier silver in the title and the details. The HP service guide has a Glacier silver top cover.
Segment
Mainstream1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Specific Uses For Product: Home, Premium computing. HP sells the OmniBook 5 as an everyday home laptop line, so it is stored as mainstream.
Form factor
Clamshell1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Form Factor: Clamshell.

Chassis

Front and side, drawn to scale.

Dimensions
Width357.7Depth254.9Thickness (min)17.9Thickness (max)18.6mm(14.1 × 10 × 0.7 in)2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Table 10-1: width 357.7 mm, depth 254.9 mm, height front to back 17.9 to 18.6 mm. The weight row of that table reads 1799 kg, which is a typo for about 1.8 kg, and it covers every configuration of the family. HP's other 16-af1 pages state 1.77 kg for non-touch models. Because the touch model's own weight is not published, no weight is stored.
Weight (published)
Not available
Lid material
Not available
Bottom material
Not available
Max hinge angle
Not available
MIL-STD-810 testing (claimed)
Not available

Display

Screen size
16in(40.6 cm)1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202616 inch, 2K Touchscreen Display, 1920 x 1200.
Native resolution
1920 × 1200px1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026
Pixel density
141.5ppi
Panel type
IPS1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 20262K IPS TOUCHSCREEN, 1920 x 1200 resolution and 178-degree wide-viewing angles. Display Type: IPS. The attribute Display Refresh Rate in Hertz 120 on this page is not stored. It is a generic retailer field and no HP document read here gives 120 Hz for this IPS panel.
Backlight
Not available
Dimming zones
Not available
Panel part number
Not available
Screen surface
Matte2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Display panel parts: 40.6 cm (16.0 in), WUXGA (1920 x 1200), antiglare, touchscreen display panel, typical brightness 300 nits. Surface treatment: antiglare (LED panel).
Touchscreen
Yes1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026The title says Touchscreen Display. Input devices: Touch Pad, Touchscreen.
Stylus
Not available
Refresh rate modes
Not available
Max refresh rate
Not available
Adaptive sync
Not available
Gray-to-gray response time (claimed)
Not available
Native panel colour depth
Not available
Brightness (SDR, claimed)
300nits2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026The touchscreen WUXGA antiglare panel part (P33621-001) lists typical brightness 300 nits. The panel part is the family touch option and the guide does not name the SKU.
Peak brightness (SDR outdoors, claimed)
Not available
Sustained brightness (HDR, claimed)
Not available
Peak brightness (HDR, claimed)
Not available
sRGB coverage (claimed)
Not available
DCI-P3 coverage (claimed)
Not available
Adobe RGB coverage (claimed)
Not available
HDR certification
Not available
Factory calibrated
Not available
Second display
Not available

Processor

Processor
Intel Core Ultra 5 225U1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Intel Core Ultra 5 225U (up to 4.8 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 12 cores, 14 threads).
Processor brand
Intel1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026
Core configuration
Core typeCountBase clock (GHz)Max clock (GHz)
Performance21.54.8
Efficiency81.33.8
Low-power efficiency20.72.4
Source3Maker product pageintel.com/content/www/us/en/products/sku/241861/intel-core-ultra-5-processor-225u-12m-cache-up-to-4-80-ghz/specifications.htmlRead 15 October 2026Intel specifications for the Core Ultra 5 225U: 12 cores, 2 performance-cores (base 1.5 GHz, max turbo 4.8 GHz), 8 efficient-cores (base 1.3 GHz, max turbo 3.8 GHz), 2 low power efficient-cores (base 0.7 GHz, max turbo 2.4 GHz). Core names are not given on the page. These are chip maker values, not the laptop's configured power limits.
CPU cores
12
Cores labelled performance
2
Cores labelled efficiency
10
Threads
141Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202614 threads in the HP processor string.3Maker product pageintel.com/content/www/us/en/products/sku/241861/intel-core-ultra-5-processor-225u-12m-cache-up-to-4-80-ghz/specifications.htmlRead 15 October 2026Total threads: 14.
Max boost clock
4.8GHz
L3 cache
12MB1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202612 MB L3 cache in the HP processor string. Intel names the same figure Intel Smart Cache.3Maker product pageintel.com/content/www/us/en/products/sku/241861/intel-core-ultra-5-processor-225u-12m-cache-up-to-4-80-ghz/specifications.htmlRead 15 October 202612 MB Intel Smart Cache, which matches HP's 12 MB L3 figure.
Process
3nm3Maker product pageintel.com/content/www/us/en/products/sku/241861/intel-core-ultra-5-processor-225u-12m-cache-up-to-4-80-ghz/specifications.htmlRead 15 October 2026Lithography: Intel 3, stored as 3 as for the other Intel chips in the catalog.
Sustained CPU power (configured)
Not available
Peak CPU power (configured)
Not available
Combined CPU and GPU power
Not available
NPU performance
12TOPS1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202612 TOPS from the Intel AI Boost NPU. This is the NPU alone.3Maker product pageintel.com/content/www/us/en/products/sku/241861/intel-core-ultra-5-processor-225u-12m-cache-up-to-4-80-ghz/specifications.htmlRead 15 October 2026NPU 12 TOPS (Int8), Intel AI Boost. Overall platform peak of 24 TOPS is not stored.

Graphics

Discrete GPU
No1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Graphics Description: Integrated. Graphics Coprocessor: Intel Graphics.
GPU
Not available
GPU brand
Not available
VRAM
Not available
Max GPU power (TGP)
Not available
Dynamic Boost
Not available
GPU boost clock
Not available
GPU switching
Not available
Integrated GPU
Intel Graphics1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Intel Graphics, the literal maker name. No Arc name is given by HP or Intel for this chip.

Memory

Installed RAM
16GB1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202616 GB LPDDR5x-7467 MT/s (onboard).
RAM type
LPDDR5X1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026
RAM speed
7,467MT/s1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 20267467 MT/s, explicit in the HP string.
Memory channels
Not available
RAM upgrade
Soldered1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Onboard memory. The service guide lists integrated system memory only.
Memory slots
Not available
RAM slots
Not available
Free RAM slots
Not available
Maximum supported RAM
Not available

Storage

Installed storage
512GB1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026512 GB PCIe Gen4 NVMe M.2 SSD.
Storage type
NVMe SSD1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026
Installed drive PCIe generation
41Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026512 GB PCIe Gen4 NVMe M.2 SSD. This is the installed drive generation.
Storage slots
Form factorInterfacePCIe generationPCIe lanesCountOccupied
M.2 2280PCIe NVMe441Yes
Source2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Product description lists one M.2 2280 PCIe-4x4 NVMe SSD, and the parts catalog has one SSD item. The WLAN card is a separate M.2 2230 socket and is not counted. The 512 GB option is listed as M.2 2280, PCIe.
M.2 slots
1
Free storage slots
0
Maximum slot PCIe generation
4

Ports

Ports
TypeVersionCountSideMaximum data rate (Gbps)DP Alt Mode
USB-CUSB 3.2 Gen 2 / DisplayPort 1.4a / USB PD2Right10Yes
HDMIHDMI 2.11RightNot availableNot available
USB-AUSB 3.2 Gen 21Right10Not available
USB-AUSB 3.2 Gen 11Left5Not available
3.5 mm audioNot available1LeftNot availableNot available
Source1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 20262 USB Type-C 10Gbps signaling rate (USB Power Delivery, DisplayPort 1.4a, HP Sleep and Charge), 1 USB Type-A 10Gbps, 1 USB Type-A 5Gbps, 1 HDMI-out 2.1, 1 headphone/microphone combo. Sides come from the HP service guide. The USB Power Delivery version and the charging input wattage of the USB-C ports are not stated, so they are left out.2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Right side: two USB Type-C 10 Gbps ports with Power Delivery, DisplayPort output and HP Sleep and Charge, the AC adapter and battery light, an HDMI port and a USB 10 Gbps Type-A port. Left side: a USB 5 Gbps port and the audio combo jack. Product description: USB 3.2 Gen 1 Type-A (left), USB 3.2 Gen 2 Type-A (right), USB 3.2 Gen 2 Type-C (2, right), DisplayPort 1.4a out. HDMI 2.1 is from the HP exact SKU string on the Amazon page.
USB-C ports
2
Thunderbolt
Not available
Highest HDMI version
HDMI 2.1
Card reader
No
Ethernet speed
Not available
Maximum USB-C charging input
Not available

Wireless

Wi-Fi
Wi-Fi 61Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Realtek Wi-Fi 6 (2x2) and Bluetooth 5.4 wireless card. The Wi-Fi band list is not stated, so it is left out.
Wi-Fi bands
Not available
Wi-Fi module
Realtek 8852BE-VT2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026WLAN options: Intel AX211 M.2 2230 Wi-Fi 6E + Bluetooth 5.3, and Realtek 8852BE-VT M.2 2230 Wi-Fi 6 + Bluetooth 5.4. The Amazon SKU string says Realtek Wi-Fi 6 and Bluetooth 5.4, which selects the Realtek option.
Bluetooth
5.41Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Bluetooth 5.4.
Cellular
Not available

Keyboard and touchpad

Keyboard layouts
Not available
Key switches
Not available
Keyboard backlight
Backlit, type not stated1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Keyboard Description: Full-size, backlit, soft grey keyboard with numeric keypad. The backlight colour is not stated.
Numpad
Yes1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Keyboard with numeric keypad.2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Keyboard area: integrated numeric keypad, with a num lock key.
Key travel
Not available
Pointing stick
Not available
Touchpad size
Not available
Touchpad mechanism
Not available

Camera and audio

Webcam
1080p FHD1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026HP True Vision 1080p FHD camera with temporal noise reduction and integrated dual array digital microphones.
IR face login
No1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026The camera string for this SKU says FHD camera, with no infrared. The HP service guide lists a separate FHD camera with an infrared LED for other models. Fingerprint and IR login are not listed for this SKU.2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Camera options: a FHD camera, and a FHD camera with an infrared LED. The Amazon SKU string names the camera without infrared.
Webcam privacy
Physical shutter1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026ENSURE YOUR PRIVACY: a visible, physical camera shutter that turns off the camera when not in use, and a microphone mute button with an LED.2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Security: privacy camera shutter door. The display section says to slide the camera privacy cover to block the lens.
Built-in speaker drivers
21Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Dual speakers.
Total speaker power
Not available
Audio features
DTS:X Ultra, HP Audio Boost1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Speaker Description: DTS:X Ultra. Dual speakers. HP Audio Boost.
Microphones
21Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Integrated dual array digital microphones. The service guide lists two internal microphones.2Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Display components: internal microphones (2).

Battery and power

Battery energy
59Wh1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Lithium-Battery Energy Content: 59 watt-hours, 3 cells, lithium polymer. The attribute Battery Life 11 hours is not stored because it names no test and the page gives no HP claim.
Claimed battery life
Not available
Adapter rated output
65W1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 202665 W USB Type-C power adapter.
Laptop charging connector
USB-C1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026USB Type-C adapter. The laptop end of the main cable is stored as USB-C.
Charge 0 to 50 % (claimed)
Not available

Cooling

Fans
12Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026The parts catalog lists a left fan for models with UMA graphics. A discrete-graphics model has a second fan. This SKU has integrated graphics, so one fan is stored.
Vapor chamber
Not available
Liquid metal
Not available
Power modes
Not available

Security

Fingerprint
Not available
TPM
2.02Owner's manualkaas.hpcloud.hp.com/pdf-public/pdf_10220266_en-US-1.pdfRead 15 October 2026Security: Trusted Platform Module (TPM) 2.0 firmware.
Remote management
Not available
Security lock slot
Not available

Software

Operating system
Windows 11 Home1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Windows 11 Home.
OS family
Windows1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Windows.
Security updates until
Not available

Measured display

We could not find any of these 12 fields. Show them
Brightness (measured, centre)
Not available
Brightness (measured, average)
Not available
Contrast ratio (measured)
Not available
HDR peak brightness (measured)
Not available
sRGB coverage (measured)
Not available
DCI-P3 coverage (measured)
Not available
Colour accuracy (measured Delta E)
Not available
PWM flicker found
Not available
PWM frequency (measured)
Not available
PWM at or below brightness
Not available
Response black to white (measured)
Not available
Response grey to grey (measured)
Not available

Measured performance

We could not find any of these 8 fields. Show them
Cinebench 2024 single-core
Not available
Cinebench 2024 multi-core
Not available
Geekbench 6 single-core
Not available
Geekbench 6 multi-core
Not available
3DMark Time Spy graphics
Not available
3DMark Steel Nomad
Not available
SSD sequential read (measured)
Not available
Game frame rates
Not available

Measured noise and temperature

We could not find any of these 9 fields. Show them
Fan noise per mode
Not available
Max fan noise
Not available
Fan noise while gaming
Not available
Top surface under load
Not available
Bottom surface under load
Not available
Palm rest under load
Not available
CPU temperature in stress test
Not available
CPU clock in stress test
Not available
GPU temperature while gaming
Not available

Measured battery and power

We could not find any of these 10 fields. Show them
Battery runtime per test
Not available
Wi-Fi browsing runtime
Not available
Video runtime
Not available
Full charge time (measured)
Not available
Power draw idle
Not available
Power draw gaming
Not available
Power draw max
Not available
Sustained CPU power (measured)
Not available
GPU power while gaming (measured)
Not available
Weight (measured)
Not available

Certifications

We could not find any of these 6 fields. Show them
Intel Evo
Not available
Copilot+ PC
Not available
Colour certifications
Not available
ENERGY STAR
Not available
EPEAT
Not available
Other certifications
Not available

In the box

In the box
Not available
Power adapter included
Yes1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Built-In Media lists the laptop and a charger. Power Device: 65 W USB Type-C power adapter.

Warranty

Manufacturer warranty (source market)
1year1Retailer pageamazon.com/dp/B0F194FQQDRead 15 October 2026Warranty Description: 1 Year, for this Amazon.com US listing. Warranty Type: Limited.
Warranty service
Not available

Compare with

Pick a laptop to see both side by side. Differences are marked yellow.

More laptop comparisons

Sources

We read 3 sources for this laptop. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 44 fields
  2. Read 15 October 2026Backs 13 fields
  3. Read 15 October 2026Backs 5 fields

See a wrong value? Tell us and name the field.
