Gaming / Mice

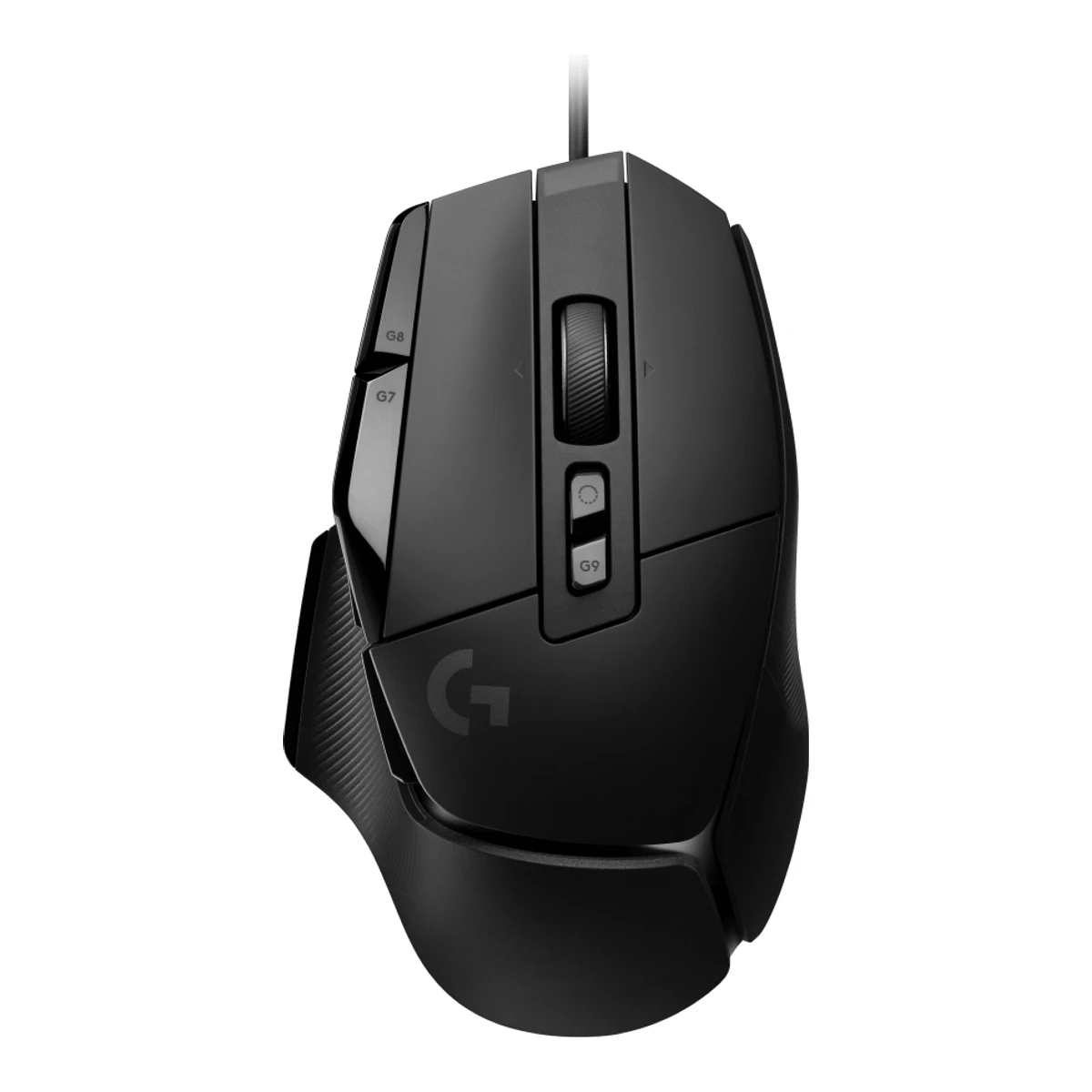

LogitechGaming mouse
G502 X
Released August 2022.4Reviewcomputerbase.de/artikel/maeuse/logitech-g502-x-g502-x-lightspeed-g502-x-plus-test.81665Read 5 October 2026Dated August 30, 2022 German hands-on review explicitly says new G 502 models are immediately available. Month precision retained. US launch-day reports instead describe preorders and September arrival. August 30 is not asserted as an exact global retail day. Last checked 16 October 2026.
- Mouse weight (claimed)
- 89g
- Marketed sensor name
- HERO 25K
- Maximum configurable DPI
- 25,600DPI
- Max polling rate
- 1,000Hz
81 of 154 fields known.
General
- Series
- G502 X1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Model numbers
- 910-006144, 910-0061361Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Exact US shop payload maps each listed colour to its sold part number. Other regions and sibling products are excluded.
- Predecessor
- Logitech G502 HERO9Reviewrtings.com/mouse/reviews/logitech/g502-xRead 7 October 2026Free exact-model intro identifies G502 X as upgraded from previous generation Logitech G502 HERO, and comparison explicitly calls it the updated version of HERO. Product reference exists in this mouse catalogue. Older wireless G502 LIGHTSPEED is not the wired predecessor.
- Successor
- Not available
- Launch price (EU)
- Not available
- Colours
- White, Black1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
Shape
- Body shape
- Asymmetric, right-handed2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026Exact top view shows an asymmetric shell with a thumb rest.
- Maker size class
- Not available
- Recommended grips
- Not available
- Recommended hand size
- Not available
- Hump position
- Not available
- Ring or pinky finger rest
- Not available
- Maximum added weight
- Not available
- Vertical angle
- Not available
- Trackball diameter
- Not available
- Trackball position
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Mouse body dimensions
- Length131.4Maximum width79.2Maximum height41.1mm(5.2 × 3.1 × 1.6 in)1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Explicit maker metric Length, Width and Height. Body dimensions exclude the cable and receiver. Rounded inch values are not converted.
- Grip width
- Not available
- Mouse weight (claimed)
- 89g(3.1 oz)1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Published 89 g body claim for the wired G502 X, excluding cable. It is distinct from both wireless siblings.
- Box dimensions
- Width49.02Height152.91Depth102.11mm(1.9 × 6 × 4 in)8Maker spec sheet (PDF)doi-product-assets.s3.amazonaws.com/pub/Manufacturer-Brochure/1074443749.pdfRead 7 October 2026Package Specifications, Single retail unit: source Length 4.02, Width 1.93, Height 6.02 inches. Literal source Width maps to width 49.02 mm, Height to height 152.91 mm, source Length to depth 102.11 mm, using 25.4 mm/in and rounding to 0.01 mm. This is retail package, not mouse body or four-unit master carton. Axis naming preserved, not silently reordered by magnitude.
Sensor
- Marketed sensor name
- HERO 25K1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Published sensor brand
- Logitech1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Physical sensor part number
- Not available
- Maximum configurable DPI
- 25,600DPI1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Current exact wired G502 X specification remains HERO 25K, with 25,600 DPI maximum. Wireless-sibling HERO 44K claims are excluded.
- Minimum configurable DPI
- 100DPI1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- DPI adjustment step
- Not available
- Maximum DPI stages
- Not available
- Default DPI presets
- 800, 1,200, 1,600, 2,400, 3,200DPI2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026Both factory profiles on page 5 use 800, 1200, 1600, 2400 and 3200 DPI. Default active stage is 1600 DPI.
- Separate X and Y DPI
- Not available
- Tracking speed (claimed)
- 400IPS1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Exact wired G502 X current specification: greater than 400 IPS, tested on Logitech G240 Gaming Mouse Pad. Stored 400 is a stated threshold, not exact ceiling.
- Tracking acceleration (claimed)
- 40G1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Exact wired G502 X current specification: greater than 40 G, tested on Logitech G240 Gaming Mouse Pad. Stored 40 is a threshold, not mouse mass.
- Lift-off distance settings
- Not available
- Separate lift and landing distance
- Not available
- Surface calibration
- Not available
- Motion Sync
- Not available
- Angle snapping
- Not available
- Ripple control
- Not available
- Tracks on glass
- Not available
- Sensor position
- Not available
Performance
- Documented polling rates by connection
Data connection Polling rate (Hz) USB (wired) 500 USB (wired) 1,000 - Max polling rate
- 1,000Hz
- Polling rate (wired)
- 1,000Hz
- Polling rate (2.4 GHz)
- Not available
- Polling rate (Bluetooth)
- Not available
- Claimed click latency
- Not available
- Adjustable debounce
- Not available
- Minimum debounce
- Not available
Measured
We could not find any of these 7 fields. Show them
- Latency per connection (measured)
- Not available
- DPI deviation (measured)
- Not available
- Lift-off distance (measured)
- Not available
- Main click force (measured)
- Not available
- Weight (measured)
- Not available
- Battery life (measured)
- Not available
- Hand size fit
- Not available
Switches
- Published main-switch brand
- Logitech3Press releasenews.logitech.com/press-releases/news-details/2022/An-Icon-Reinvented-Logitech-Introduces-the-G502-X-Gaming-Mouse-in-Wired-Wireless-and-PLUS-Versions/default.aspxRead 5 October 2026
- Main switch model
- LIGHTFORCE3Press releasenews.logitech.com/press-releases/news-details/2022/An-Icon-Reinvented-Logitech-Introduces-the-G502-X-Gaming-Mouse-in-Wired-Wireless-and-PLUS-Versions/default.aspxRead 5 October 2026
- Main switch rated life
- Not available
- Hot-swap main switches
- Not available
- Adjustable click actuation
- Not available
- Separate main buttons
- Yes2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Side switch model
- Not available
- Middle click switch
- Not available
- Scroll encoder type
- Not available
- Scroll encoder
- Not available
Buttons and scroll wheel
- Side buttons
- 32Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Side buttons on
- Left2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- DPI button
- Yes2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- DPI button position
- Top2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Dedicated DPI-shift button
- Yes2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Dedicated gesture button
- No2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Scroll wheel
- Notched, Free spin, Tilt2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Scroll mode switch
- Button2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
Build
- Shell material
- Plastic, polymer unspecified10Reviewtomsguide.com/reviews/logitech-g502-xRead 7 October 2026Exact wired G502 X design describes either black or white plastic chassis. Generic plastic preserved, no ABS/PC chemistry inferred. Textured thumb-rest surface is not treated as whole-shell coating.
- Surface finish
- Not available
- Installed feet material
- Virgin PTFE1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 20265Reviewcomputerbase.de/artikel/maeuse/logitech-g502-x-g502-x-lightspeed-g502-x-plus-test.81665Read 5 October 2026
- Installed skate pieces
- 45Reviewcomputerbase.de/artikel/maeuse/logitech-g502-x-g502-x-lightspeed-g502-x-plus-test.81665Read 5 October 2026Exact trio review states four separate pure-white PTFE glide elements. Actual wired White review separately identifies three large pads and a fourth surrounding the sensor. The earlier specific sensor-ring wording was not directly stated by ComputerBase and is now tied to that separate exact wired observation.12Reviewactualidadhardware.com/raton-logitech-g502-x-reviewRead 7 October 2026Exact wired White sample prose names three large PTFE pads plus one additional pad surrounding the sensor. Four installed pieces. Independently counted in current maker corded gallery-5 underside image: three perimeter pads and one open U around the sensor. Rectangular model/serial-label area is not a skate.
- Feet shape
- Mixed1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Current exact corded White maker gallery-5 underside, independently viewed: three differently shaped perimeter pads and an open U/horseshoe around the sensor. Mixed geometry, not a closed ring.12Reviewactualidadhardware.com/raton-logitech-g502-x-reviewRead 7 October 2026Actual Logitech-supplied wired White sample: three large PTFE pads and another skate surrounding the sensor. Current maker underside gallery agrees. Mixed geometry means three pads plus an open U/horseshoe-shaped sensor-surrounding skate. No closed circular ring is claimed. No invisible skate pieces are counted.
- Feet thickness
- Not available
Cable
Connectivity
- Connections
- USB (wired)2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
- Wireless technology
- Not available
- Bluetooth
- Not available
- Saved Bluetooth pairing slots
- Not available
- Switchable host devices
- Not available
- Device switching
- Not available
- Receiver storage in mouse
- Not available
- Receiver extender included
- Not available
- Receiver pairing shared
- Not available
- Wireless range
- Not available
- Basic mouse OS support
- Windows, macOS1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Exact maker specification supports Windows 10 or later and macOS 10.14 or later for input.
- Consoles
- Not available
Battery
- Battery type
- Not available
- Disposable battery count
- Not available
- Battery capacity
- Not available
- User-replaceable battery
- Not available
- Battery life by mode (claimed)
- Not available
- Battery life (up to)
- Not available
- Battery life (normal use)
- Not available
- Longest battery life
- Not available
- Battery life at 1000 Hz
- Not available
- Battery life on Bluetooth
- Not available
- Full charge time
- Not available
- Quick charge
- Not available
- Use while charging
- Not available
- Charging system compatibility
- Not available
- Charging dock included
- Not available
- Battery indicator
- Not available
Lighting
- Lighting sync
- Not available
Software
- Software
- Logitech G HUB1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Configuration software platforms
- Windows, macOS7Maker product pagelogitechg.com/en-us/software/ghubRead 5 October 2026Current official G HUB download page offers Windows and macOS. Other basic-input OS compatibility does not establish configuration app availability.
- Onboard memory
- Yes1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Onboard profiles
- 51Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 20262Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026
In the box
- In the box
- G502 X Gaming Mouse, DPI-Shift button cover, User documentation6Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 5 October 2026Exact wired G502 X maker packageContents row: G502 X Gaming Mouse, DPI-Shift button cover, User documentation. The previous note incorrectly described G305 and is corrected. No AA cell, receiver or extension cable is present for this wired model.
- Cables included
Type Cable count Fixed USB-A cable 1 Source1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026One permanently attached USB-A mouse cable, shown by exact current maker product gallery and original wired setup guide. Fixed cable counts as included according to schema. No separate charging cable or receiver cable added.13Retailer pagemultitronic.fi/en/products/3584349Read 7 October 2026Exact wired G502 X Device interface row explicitly states USB Type-A. Maker current gallery proves permanently attached cable and USB-only mouse. One fixed cable, not an extra wireless charging cable.- Extra skates included
- No1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026Maker exact packageContents table contains mouse, DPI-Shift cover and user documentation. No separate skate set. Actual wired White unboxing independently lists only cover, sticker and warranty documentation as accessories. Installed skates are not spares.12Reviewactualidadhardware.com/raton-logitech-g502-x-reviewRead 7 October 2026Actual wired White unboxing explicitly says accessories only include DPI cover, logo sticker and warranty leaflet. No separately supplied skate set. Primary US maker complete box list independently agrees.
- Grip tape
- No1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026No separate grip tape in maker exact packageContents table. Actual wired White unboxing confirms only cover, logo sticker and warranty documentation. A logo sticker is not a functional grip-tape set.12Reviewactualidadhardware.com/raton-logitech-g502-x-reviewRead 7 October 2026Same exact wired unboxing only cover, logo sticker and warranty leaflet. No functional grip tape. Primary US maker complete box list independently agrees.
Links
- Product page
- www.logitechg.com/en-us/shop/p/g502-x-wired-lightforce1Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforceRead 7 October 2026
- Spec sheet
- doi-product-assets.s3.amazonaws.com/pub/Manufacturer-Brochure/1074443749.pdf8Maker spec sheet (PDF)doi-product-assets.s3.amazonaws.com/pub/Manufacturer-Brochure/1074443749.pdfRead 7 October 2026Newly located maker-authored G502-X Spec Sheet V1 080422, copyright Logitech 2022, public distributor-hosted two-page PDF. Exact Corded Gaming Mouse, US Black 910-006136 and White 910-006144. Replaces the product-page-only sheet reference.
- Manual
- www.logitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdf2Owner's manuallogitech.com/assets/66240/2/g502-x-corded-gaming-mice-artanis.pdfRead 5 October 2026Original maker wired G502 X Setup Guide. Complete English pages 3-6 downloaded and read.
- EPREL registration number
- Not available
Warranty
Compare with
Pick a mouse to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN / EAN | Launch price (US) | Markets | Colours | Upper shell | Mouse weight (claimed) | Documented polling rates by connection | In the box | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 910-006144 | 097855166913 | $79 | US | White | Solid | 89 g | Show 2 rows
| G502 X Gaming Mouse, DPI-Shift button cover, User documentation | ||||||
| 910-006136 | 097855166876 | $79 | US | Black | Solid | 89 g | Show 2 rows
| G502 X Gaming Mouse, DPI-Shift button cover, User documentation |
Sources
We read 16 sources for this mouse. The numbers match the markers in the sheet.
- Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforce
- Maker product pagelogitechg.com/en-us/shop/p/g502-x-wired-lightforce
- Maker product pagelogitechg.com/en-us/software/ghub
- Maker spec sheet (PDF)doi-product-assets.s3.amazonaws.com/pub/Manufacturer-Brochure/1074443749.pdf
- Retailer pagemultitronic.fi/en/products/3584349
See a wrong value? Tell us and name the field.
