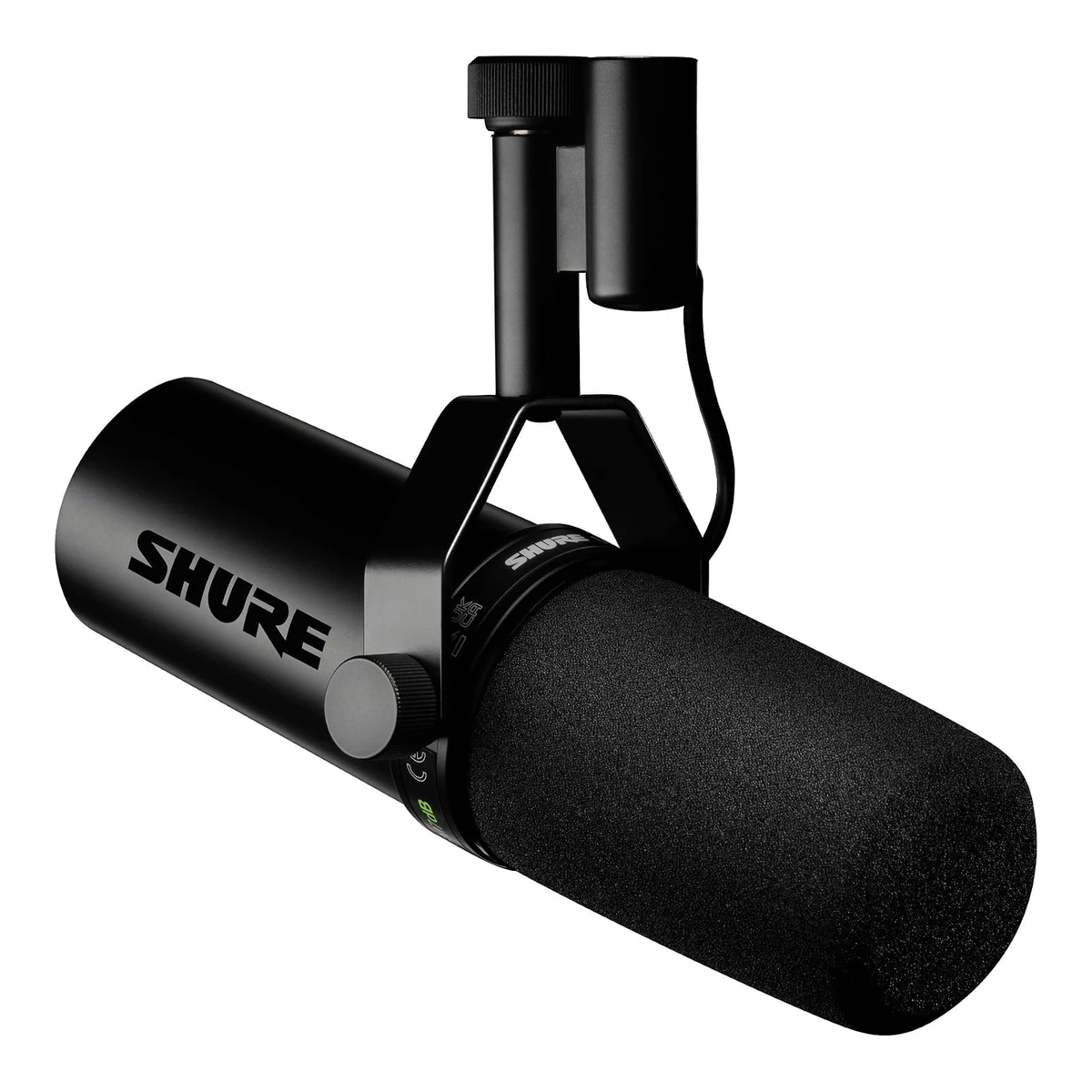

Shure SM7dB

ShureMicrophone

SM7dB

Released September 2023.3Press releaseshure.com/en-US/newsroom/built-in-preamp-built-on-legacy-introducing-the-shure-sm7dbRead 15 October 2026Press release dated 2023-09-27, Chicago: the microphone is available today at Shure.com and at select retailers. Last checked 15 October 2026.

Type
Dynamic
Polar patterns
Cardioid
Outputs
XLR
Frequency response
50 Hz / 20 kHz

31 of 61 fields known.

Compare with another microphoneDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
SM1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data: product series SM.
Model numbers
SM7dB1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026SKU SM7dB. The page data also lists boom arm and headphone bundles as separate bundle products, which are not stored.4Retailer pageamazon.com/dp/B0CCSVYWMHRead 15 October 2026Item details: model number SM7DB, manufacturer part number SM7DB.
GTIN / EAN
0424067568601Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026UPC in the page data for the SM7dB variant: 042406756860. Amazon prints the same UPC as GTIN 00042406756860.4Retailer pageamazon.com/dp/B0CCSVYWMHRead 15 October 2026Item details: UPC 042406756860 and GTIN 00042406756860.
Announced
27 September 20233Press releaseshure.com/en-US/newsroom/built-in-preamp-built-on-legacy-introducing-the-shure-sm7dbRead 15 October 2026Press release dateline 2023-09-27.
Status
Available1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data life cycle status: available. The page has an Add to Cart button at 549 USD.
Predecessor
Not available
Successor
Not available
Launch price (US)
$4993Press releaseshure.com/en-US/newsroom/built-in-preamp-built-on-legacy-introducing-the-shure-sm7dbRead 15 October 2026Starting at USD 499. US price, tax not included. Shure's store now lists 549 USD, which is not the launch price. No EUR launch price was found, so launch_price_eur is left out. The EU store shows 629 EUR as a current recommended price.
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data color: black. The press release calls it a black-on-black finish.
Microphone type
Dynamic1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data transducer type: dynamic.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: type dynamic (moving coil).

Capsule and pickup

Capsule size
Not available
Capsules
11Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026The page says the SM7dB has a proven dynamic cartridge, in the singular, and the page data lists one fixed cartridge. The user guide lists no capsule count. One is the reading of a single fixed moving-coil cartridge.
Polar patterns
Cardioid1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Classic cardioid polar pattern, uniform with frequency and symmetrical about axis.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: polar pattern cardioid.
Address type
End address1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data form factor: end address, small diaphragm. The user guide says to speak directly into the microphone from 2.54 to 15 cm.

Sound specs

Frequency response
Min50 HzMax20 kHz1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data and text: 50 to 20,000 Hz. No tolerance is printed.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: 50 to 20,000 Hz.
Sensitivity (analog)
-59dBV/Pa1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data: flat response bypass mode -59.00 dBV/Pa (1.12 mV/Pa). Preamp +18 gives -41.00 and preamp +28 gives -31.00. The bypass value is stored, as the field help asks.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: flat response bypass mode -59 dBV/Pa (1.12 mV), preamp +18 -41 dBV/Pa (8.91 mV), preamp +28 -31 dBV/Pa (28.2 mV), with 1 Pa = 94 dB SPL.
Sensitivity (digital)
Not available
Max SPL
Not available
Max SPL distortion limit
Not available
Self-noise
Not available
Digital noise floor
Not available
Signal-to-noise ratio
Not available
Dynamic range
Not available
Output impedance
150Ω1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page tech specs: bypass mode 150 ohm, preamp mode 27 ohm. The bypass value is stored.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: preamp engaged 27 ohm, bypass mode 150 ohm, recommended load above 1 k ohm. The bypass value is stored.

Connectivity

Outputs
XLR1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data connector: 3 pin XLR. No USB output.
Inputs for other sources
Not available
USB and XLR at once
Not available
USB port
Not available
Cable host plug
Not available
Cable length
Not available
Phantom power
Optional1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026The page says an interface or mixer with +48 V phantom power is needed to operate the preamp, and the bypass switch reverts to the original SM7B performance. The user guide says the preamp needs +48 V and that the microphone works in bypass mode without it, so the value is optional.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Important: the SM7dB requires +48 V phantom power to operate with the preamplifier engaged. It will operate in bypass mode without phantom power.

Digital audio

We could not find any of these 3 fields. Show them
Max bit depth
Not available
Max sample rate
Not available
32-bit float recording
Not available

Monitoring

Headphone output
No1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data lists headphone output: false.
Zero-latency monitoring
Not available

Controls and processing

Onboard controls
Gain1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Back panel switches: preamp gain of +18 dB or +28 dB and a preamp bypass switch. Stored as gain. The bass roll-off and presence switches are processing.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Adjust Back Panel Switches: the preamp switch sets +18 dB or +28 dB and the bypass switch bypasses the preamp.
Onboard processing
High-pass filter, Presence boost1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Bass roll-off and mid-range emphasis (presence boost) EQ controls. Page data lists a switchable low cut. The bass roll-off is stored as a high-pass filter. These are analog switches on the microphone. The preamp is not a processing option.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Adjust Back Panel Switches: the bass rolloff switch reduces the bass and the presence boost switch brightens the mid-range.

Mounting and accessories

Mount threads
5/8 inch, 3/8 inch2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Install or Remove the Stand Adapter: to mount the microphone on a 3/8 in stand, insert the included brass stand adapter. Furnished accessories list a 5/8 in to 3/8 in thread adapter, so the yoke thread is 5/8 in.
Shock mount
Internal1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Internal air suspension shock isolation.
Pop filter
Internal, Foam windscreen1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Highly effective pop filter eliminates the need for add-on protection. The close-talk windscreen ships in the box.
Desk stand included
No1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026The In the Box list has the microphone, a windscreen and a thread adapter. It has no desk stand. The yoke is part of the microphone.

Design and build

Housing material
Black enamel aluminum and steel case with black foam windscreen2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications, housing: black enamel aluminum and steel case with black foam windscreen.
RGB lighting
Not available
Lighting zones
Not available

Software

We could not find any of these 2 fields. Show them
Software
Not available
User firmware updates
Not available

Compatibility

We could not find any of these 2 fields. Show them
Works with
Not available
Consoles
Not available

Dimensions and weight

Front and side, drawn to scale.

Microphone dimensions
Width97.4Height149.2Depth206.1mm(3.8 × 5.9 × 8.1 in)2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Overall Dimensions drawing, page 11: 97.4 mm (3.8 in) wide in the front view, 206.1 mm (8.1 in) long and 149.2 mm (5.9 in) high in the side view. The height includes the yoke and its mount post. The microphone points along the length, so the depth is 206.1 mm. The front view also shows a 62.5 mm (2.5 in) body diameter.
Microphone weight
837g(1.8 lb)1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page data combined specs: weight 837 g. The user guide prints 0.837 kg.2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Specifications: weight 0.837 kg (1.875 lbs).
Weight with stand
Not available

Certifications

Other certifications
CE, UKCA2Owner's manualpubs.shure.com/guide/SM7dB/en-USRead 15 October 2026Certifications: CE notice and UKCA notice. The WEEE and REACH notices are not certifications of the product.

In the box

In the box
SM7dB, Close-Talk Windscreen, 3/8" Thread Adapter1Maker product pageshure.com/en-US/products/microphones/sm7dbRead 15 October 2026Page In the Box: 1 SM7dB, 1 Close-Talk Windscreen and 1 3/8" Thread Adapter. The EU page and the Amazon bundle listing show the same three items. The user guide's Furnished Accessories table lists a black foam windscreen RK345B, a large black foam windscreen A7WS and a 5/8 in to 3/8 in thread adapter. The page list is stored.

Warranty

Manufacturer warranty (source market)
2years4Retailer pageamazon.com/dp/B0CCSVYWMHRead 15 October 2026Warranty description: 2 Year Limited. Shure's legal page says its limited warranty runs one or two years depending on the product and does not name the SM7dB, so the Amazon term is stored.

Compare with

Pick a microphone to see both side by side. Differences are marked yellow.

More microphone comparisons

Sources

We read 4 sources for this microphone. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 23 fields
  2. Read 15 October 2026Backs 14 fields
  3. Read 15 October 2026Backs 3 fields
  4. Read 15 October 2026Backs 3 fields
