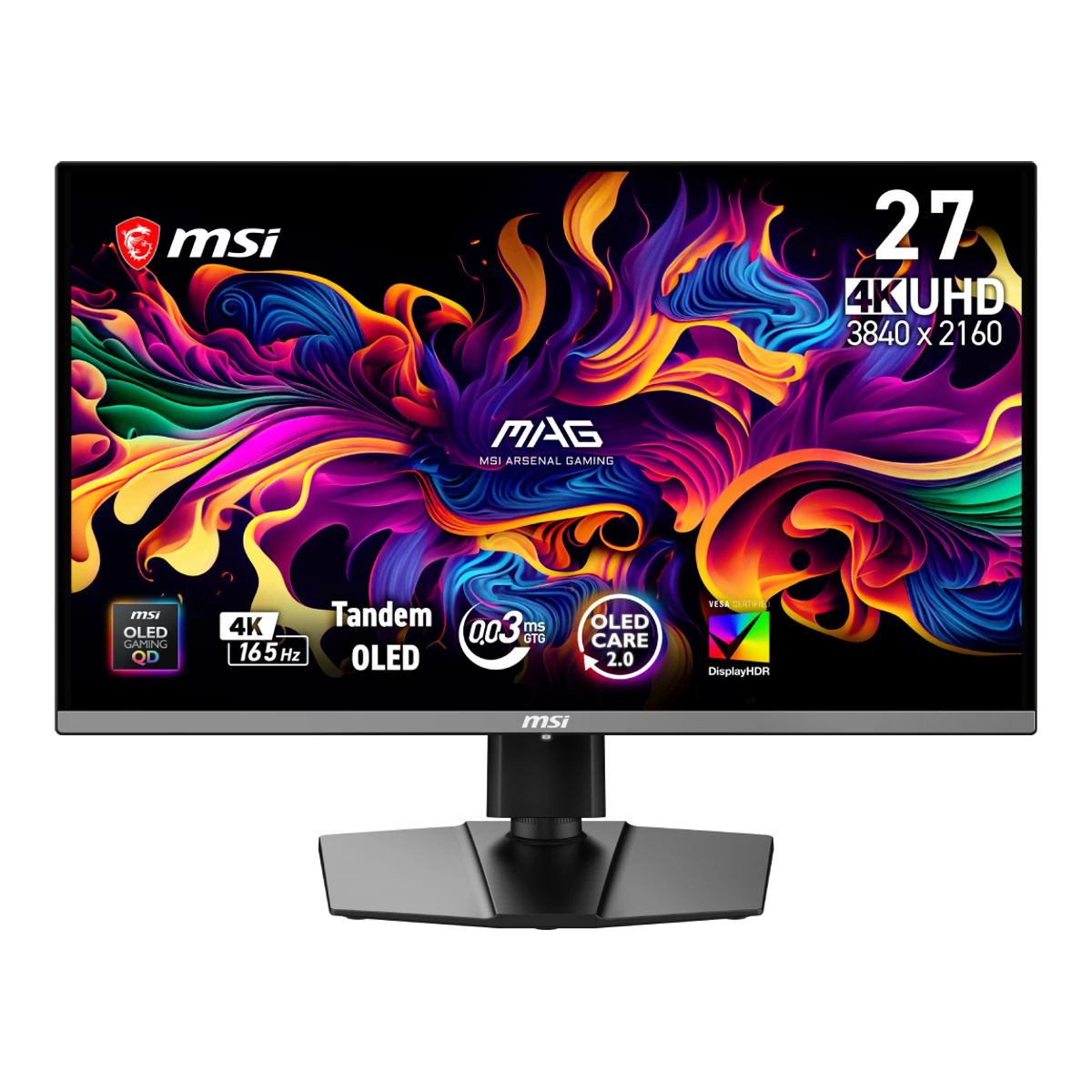

MAG 272UP QD-OLED E16

General

Series

MAG2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Cover: MAG Series OLED Monitor.

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

MAG 272UP QD-OLED E16, 3CD7, 9S6-3CD79A-082, 9S6-3CD79A-092, 9S6-3CD79A-083, MAG 272UPDE QD-OLED E163Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Korean spec sheet dated 2026-10-13 gives Part No 9S6-3CD79A-092. The Italian sheet gives 9S6-3CD79A-082. The German MAG 272UPDE sheet gives 9S6-3CD79A-083 for the same specifications. 3CD7 is the MSI board code on the manual cover. MSI uses 3CD7 for other 27-inch QD-OLED models too.

GTIN / EAN

4711377410762, 47113774107793Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026EAN 4711377410762 on the Korean and Italian sheets. EAN 4711377410779 on the German MAG 272UPDE sheet.

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

Not available

Status

Not available

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

$599.999Press articlepcvenus.com/msi-mag-272up-qd-oled-e16-4k-165hz-oled-monitorRead 14 October 2026Article of 2026-05-18: US pricing set at $599.99, listed through Amazon US. US price without sales tax. MSRP is not named separately. Newegg later lists the same $599.99.

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

Not available

ColoursiThe maker's own colour names

Not available

SegmentiFrom the maker's own product category. Office also covers home and everyday monitors.

Gaming13Maker product pagees-store.msi.com/products/mag-272up-qd-oled-e16-monitores-gamingRead 14 October 2026MSI Spain store lists the monitor as a gaming monitor (Monitores Gaming). The French MSI datasheet header says gaming screens too. Page also repeats 165 Hz, DP 1.4a, 15 W Type-C, ClearMR 9000, SLMB and 3 years with burn-in cover.

Display

Screen sizeiDiagonal in inches exactly as the maker advertises it. A class size and the viewable diagonal can differ.

26.5in(67.3 cm)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Viewable screen diagonaliDiagonal of the visible image area. This can be smaller than the advertised class size.

Not available

Native resolution

3840 × 2160px1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Aspect ratio

16:91Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Pixel density

166.3ppi=CalculatedFrom Screen size and Native resolution

Pixel pitchiDistance between adjacent pixels. Source notes identify horizontal or vertical pitch if they differ. A horizontal figure about a third of the vertical one is the pitch of one subpixel, not of a pixel, so the pixel figure is stored.

0.153mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Active display areaiMaker published active-display width and height, excluding the external frame. Source notes distinguish image area from any published shift-reserve area. Dimensions are not inferred from native resolution or rounded pixel pitch.

Width589.97Height332.93mm(23.2 × 13.1 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Curved

No1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Curvature radiusiRadius of screen curvature. A published 1800R is 1800 mm.

Not available

Screen surface

Glossy8Reviewpcmonitors.info/msi/msi-mag-272up-qd-oled-e16-165hz-4k-uhd-modelRead 14 October 2026States a glossy anti-reflective surface without the DarkArmor film, with 3H hardness. Newegg calls it a glare screen with anti-reflection.

Anti-reflection coating

Anti-Reflection1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Touchscreen

Not available

Panel

Panel type

QD-OLED1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Panel type (as published)iPanel or technology name as published. This is separate from the normalised panel type.

QD-OLED1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

BacklightiLayout of the backlight. OLED is none (self-emissive). WLED or LED alone names no layout, so it is left out unless a source states edge-lit or direct-lit.

None (self-emissive)2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Cover and specifications identify an OLED monitor. OLED is self-emissive.

Local dimming

Not available

Dimming zones

Not available

Panel maker

Samsung Display8Reviewpcmonitors.info/msi/msi-mag-272up-qd-oled-e16-165hz-4k-uhd-modelRead 14 October 2026Overview dated 2026-04-20 names a Samsung Display QD-OLED panel. PCVenus also names Samsung.

Panel part number

Not available

Panel generationiGeneration or panel architecture name stated by the source. Brand product generation and panel generation can differ.

4th gen3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Selling points: The latest 4th-Gen QD-OLED Panel.

Subpixel layoutiArrangement of the red, green, blue and any white emitters within a pixel. Individual emitter shapes do not establish their arrangement. Marketing names such as Primary RGB Tandem do not prove an RGB stripe layout.

Not available

Colour depthiSupported total colour depth per channel. A stated 8-bit plus FRC implementation is 10 supported bits with FRC, not native 10-bit. A 6-bit plus FRC panel, also called Hi-FRC, is 8 bits with FRC.

10bits1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Colour depth methodiNative panel bits or temporal frame rate control. Supported 10-bit input alone does not prove native 10-bit panel depth.

Not available

Displayable colours

1.07 billion1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Display Colors 1.07B, 10 bits.

sRGB coverageiPercentage of the sRGB reference gamut covered. Gamut volume is a different measure and is not stored here. Source notes identify the colour-space standard.

100%3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026sRGB CIE1976 area/overlap 138%/100%. Overlap is stored. The 138% area figure is not coverage.

DCI-P3 coverageiPercentage of DCI-P3 covered. Do not substitute gamut volume. Source notes identify the CIE reference and any minimum or typical qualifier.

99%3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026DCI-P3 CIE1976 area/overlap 110%/99%. Overlap stored. CIE1931 overlap is also 99%.

Adobe RGB coverageiPercentage of Adobe RGB covered. Do not substitute gamut volume.

98%3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Adobe RGB CIE1976 area/overlap 119%/98%. Overlap stored. CIE1931 overlap is 95%.

Rec. 2020 coverageiPercentage of Rec. 2020 covered. Do not substitute gamut volume.

80%3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Rec.2020 CIE1976 area/overlap 80%/80%. Overlap stored. CIE1931 is 78%.

NTSC coverageiPercentage of the NTSC reference gamut covered. Source notes identify the reference. Do not substitute gamut volume.

95%3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026NTSC CIE1976 area/overlap 121%/95%. Overlap stored. CIE1931 overlap is 92%.

Factory calibrated

Yes3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Delta E<=2 is claimed as a factory colour standard. The box includes a color report. No hardware LUT calibration is claimed.

Claimed Delta EiMaker claim for colour error. Source notes retain a less-than qualifier, the colour space and whether the figure is an average or maximum.

23Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Selling points: Delta E<=2. The sheet does not say whether it is an average or a maximum. Stored as 2.

Paper calibration report in boxiA physical calibration report included in the package. An electronic report in the menu or software does not count as a paper report.

Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Accessories list 1x Color Report. Newegg lists a color report in the box too. The manual package list does not name it.

Hardware calibration supportiCalibration writes to the monitor internal hardware LUT. Ordinary colour controls or a computer ICC profile do not establish this feature.

Not available

Static contrast ratioiPanel native static contrast, without dynamic contrast processing or local dimming. 1000 means 1000:1. Do not store a dynamic contrast claim here.

1,500,000:11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 20261500000:1 (Typ.). DCR is N/A, so this is native static contrast.

Brightness (typical, SDR)iMaker typical SDR white luminance. Source notes state any window size, average picture level and operating mode.

250nits1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Brightness (maker minimum)iMaker minimum guaranteed brightness specification under its stated conditions. This is not the lowest user-selectable brightness unless the source explicitly says so.

Not available

Peak brightness (HDR)iMaker peak HDR white luminance. The source notes state window size or average picture level, mode and time limit where published.

1,000nits1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026HDR: 1000. The datasheet gives no test window, so no window is stored.

HDR peak test windowiPercentage of screen area used for the peak HDR claim. If the maker publishes average picture level instead, source notes identify that distinction.

Not available

Full-screen brightnessiMaker white luminance at 100% screen area or 100% average picture level. Source notes state SDR or HDR and mode.

Not available

HDR formats

Not available

HDR certificationiVESA DisplayHDR certification. None needs a source, such as the maker saying the monitor has no DisplayHDR certification or the model being absent from the VESA list. When no source was checked, it is left out.

DisplayHDR True Black 4001Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Viewing angle (horizontal)

178°1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Viewing angle (vertical)

178°1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Refresh rate and motion

Refresh rate per resolution and portiHighest accepted rate for each proven resolution, input and operating condition. Preset or supported timing lists alone do not prove a maximum. Keep separate bit-depth, chroma and DSC conditions. Dual-mode or crop-mode requirements belong in source notes. Unknown input stays unknown.

Refresh rate per resolution and port. The top rate is in bold.

Resolution	HDMI 2.1	DisplayPort 1.4a	USB-C
3840 × 2160Native	165HzDSC	165HzDSC	165HzDSC

Source2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p7: both HDMI connectors support 3840x2160@165Hz as specified in HDMI 2.1, DisplayPort supports 3840x2160@165Hz as specified in DisplayPort 1.4a (HBR3). Preset tables p25-26: with DSC on, UHD 165 Hz is ticked for HDMI, DP and USB-C. With DSC off, HDMI keeps 165 Hz at 8 bits, DP and USB-C drop to 120 Hz at 8 bits. USB-C video limit also stated as 165 Hz in the datasheet note. No chroma subsampling is stated.

Show as source table

Width (px)	Height (px)	Input	Input version	Maximum accepted rate (Hz)	Bit depth (bits)	DSC
3840	2160	HDMI	2.1	165	Not available	Yes
3840	2160	HDMI	2.1	165	8	No
3840	2160	DisplayPort	1.4a	165	Not available	Yes
3840	2160	DisplayPort	1.4a	120	8	No
3840	2160	USB-C	Not available	165	Not available	Yes
3840	2160	USB-C	Not available	120	8	No

Max refresh rateiHighest proven accepted rate across the stored modes, including lower-resolution dual modes.

165Hz=CalculatedFrom Refresh rate per resolution and port

Max refresh rate at native resolutioniHighest proven accepted rate at the native pixel resolution, across all inputs and stored operating conditions.

165Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over DisplayPortiHighest proven accepted rate over DisplayPort at native resolution. A higher lower-resolution dual mode is separate.

165Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over HDMIiHighest proven accepted rate over HDMI at native resolution. Console refresh limits can be lower than PC limits.

165Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate over USB-CiHighest proven accepted rate over USB-C or Thunderbolt at native resolution. USB data bandwidth settings can lower the video maximum.

165Hz=CalculatedFrom Refresh rate per resolution and port and Native resolution

Max refresh rate at 10-bitiHighest stored native-resolution mode explicitly proven at 10-bit colour. Rows without bit-depth evidence do not count.

Not available

Native refresh rateiHighest refresh rate the maker rates without overclock. A lower optimum or recommended mode in a manual is not this value.

165Hz1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Refresh Rate 165Hz, activated range 48~165Hz.

Overclocked refresh rate

Not available

Dual modeiA dedicated display mode that changes resolution to raise the maximum refresh rate. Ordinary image scaling or a preset timing does not count.

No2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Specifications p23: Refresh Rate (Maximum) 165Hz. The preset tables show no mode above 165 Hz, so there is no faster lower-resolution mode.

Minimum fixed refresh rateiLowest fixed input rate accepted by the monitor. A VRR lower limit or general vertical scan range is not this value.

Not available

Adaptive sync technologiesiExact published adaptive-sync protocol or named certification. Generic Adaptive-Sync support does not prove VESA AdaptiveSync Display certification. Source notes distinguish protocols from certifications.

Adaptive-Sync, HDMI VRR, G-SYNC Compatible, FreeSync Premium Pro2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Adaptive-Sync is an OSD setting and HDMI VRR is listed in the preset tables and follows the Adaptive-Sync setting. Certification names come from the datasheet.

VRR range per portiVariable-refresh-rate operating range for each input and the operating mode named in source notes. A fixed timing or general vertical scan range alone is not a VRR range.

Input	Min (Hz)	Max (Hz)
HDMI	48	165
DisplayPort	48	165
USB-C	48	165

Source2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p25-26 AMD VSDB range: OLED Anti-Flicker PRO off gives 48-165 Hz. With DSC off, DP and USB-C give 48-120 Hz instead. The values stored are for DSC on. The datasheet activated range is 48~165Hz.

Low framerate compensation

Yes8Reviewpcmonitors.info/msi/msi-mag-272up-qd-oled-e16-165hz-4k-uhd-modelRead 14 October 2026Lists a 48-165 Hz VRR range plus LFC. This is the reviewer's spec summary, not a measurement.

Response time (maker GtG claim)iMaker grey-to-grey pixel transition claim. Source notes state fastest overdrive or other conditions where published.

0.03ms1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Response time (maker MPRT claim)iMaker moving-picture response-time claim, often with strobing enabled. This is not a grey-to-grey transition time.

Not available

Overdrive settings

Not available

Motion blur reductioniA dedicated blur-reduction feature using backlight strobing or black frame insertion. OLED monitors have no backlight.

Yes2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p13: SLMB is an On/Off feature.

Blur-reduction technologyiPublished name of the backlight strobing or black frame insertion feature.

SLMB2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p13: feature named SLMB.

Blur reduction works with VRRiWhether the dedicated strobing or black frame insertion mode can operate at the same time as variable refresh rate.

No2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p13: SLMB works only at 165Hz and sets Adaptive-Sync to OFF when activated.

Flicker-free (claimed)

Yes8Reviewpcmonitors.info/msi/msi-mag-272up-qd-oled-e16-165hz-4k-uhd-modelRead 14 October 2026Lists the monitor as flicker-free. This is a spec statement, not a measurement.

Black frame insertion

Yes9Press articlepcvenus.com/msi-mag-272up-qd-oled-e16-4k-165hz-oled-monitorRead 14 October 2026Article of 2026-05-18 says Super Low Motion Blur is supported, works only at 165Hz and cannot run together with VRR. The manual p13 agrees on both limits.

Connectivity

Video inputsiPhysical connectors that accept a display signal. A USB-C data-only charging port is not a video input. Counts exclude USB hubs and audio jacks.

Type	Version	Count	Max bandwidth (Gbps)	DSC	HDCP
HDMI	2.1	2	48	Yes	2.3
DisplayPort	1.4a HBR3	1	Not available	Yes	2.3
USB-C	Not available	1	Not available	Yes	Not available

Source2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p7: two HDMI connectors, one DisplayPort 1.4a (HBR3), one USB Type-C DP Alt Mode port. DSC on and off timing tables p25-26 list all three inputs. HDMI 48 Gbps comes from the Inven Global report. DP raw bandwidth is not stated, so none is stored.4Maker spec sheet (PDF)storage-asset.msi.com/specSheet/it/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026I/O table: HDMI 2 version 2.1 HDCP 2.3. DisplayPort 1 version 1.4a (HBR3) HDCP 2.3. USB Type C (DisplayPort Alternate) 1. The Korean sheet gives the same values.

HDMI ports

2=CalculatedFrom Video inputs

DisplayPort ports

1=CalculatedFrom Video inputs

Highest HDMI version

2.1=CalculatedFrom Video inputs

Highest DisplayPort version

1.4a HBR3=CalculatedFrom Video inputs

HDMI features

ALLM, VRR, CEC2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p22: HDMI CEC. HDMI VRR is listed in the preset tables p25-26. ALLM comes from the Inven Global report.10Press articleinvenglobal.com/articles/22829/msi-launches-mag-322up-qd-oled-e16-and-mag-272up-qd-oled-e16-monitorsRead 14 October 2026Article of 2026-06-15 on the MSI Korea release lists HDMI 2.1 (48Gbps) with 4K 120Hz console output, VRR and ALLM.

USB-C video (DP Alt Mode)

Yes2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p7: USB Type-C port supports DisplayPort Alternate Mode.

USB-C power deliverediPower the monitor supplies to a connected device. Source notes distinguish guaranteed, maximum and shared dynamic limits. Power consumed by the monitor is separate.

15W2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p7: DP Alt Mode up to 5V/3A (15W). The OSD has a Type C PD Charge on/off setting. Some retailer pages and the legend picture in the datasheet say 98 W. The datasheet spec table, the manual, the Spanish MSI store page, Newegg and PCVenus say 15 W.

Thunderbolt

Not available

USB upstream portsiUSB connections from the monitor hub to host computers. Video input and downstream charging ports are separate.

Not available

USB downstream hub portsiUSB hub connections for peripherals. These exclude host-facing upstream ports. A port the maker names for service or firmware updates only is not counted.

Not available

KVM switch

No1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Note row: Support HDMI CEC, PIP/PBP. Non Support: KVM.

Daisy chain (MST)

Not available

Ethernet

Not available

3.5 mm headphone outputiAnalogue headphone or audio output. A shared four-pole headset jack counts.

Yes2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p6-7: Headphone Jack.

3.5 mm microphone inputiAnalogue microphone input, including the microphone contacts of a shared four-pole headset jack. This does not imply a separate microphone socket.

No3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026I/O table: Mic-in N/A, Mic-in upstream N/A.

Optical out

Not available

Picture in picture

Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Picture by picture

Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Audio and camera

Speakers

No3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026I/O table: Speaker N/A.

Number of speakers

Not available

Speaker power per channeliRated power per speaker or output channel. Do not store the total of all speakers here.

Not available

Webcam

No12Retailer pagenewegg.com/msi-mag-272up-qd-oled-e16-26-5-uhd-165hz-black/p/N82E16824475574Read 14 October 2026Spec tab: Built-in Webcam No. Listed on Newegg from 2026-07-21.

Microphone

Not available

Ergonomics and controls

Stand height adjustmentiVertical travel of the supplied stand. This is not the total height of the monitor.

110mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

TiltiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Forward5°Backward20°1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

SwiveliMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude.

Left30°Right30°1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

PivotiMaximum movement from the neutral position with the supplied stand. Each direction is stored as a positive magnitude. Pivot is rotation in the screen plane. A small slant adjustment for levelling, as Dell calls it, counts.

Counterclockwise90°Clockwise90°1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Removable stand

Yes2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p4: the stand groove can also be used for wall mount. VESA 100 x 100 mm plate, M4 x 10 mm screws on p24.

VESA mount

100 x 1001Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

VESA adapter needed

Not available

Security lock slot

Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

On-screen menu controlsiControls that operate the monitor menu or display settings. Desktop window-layout software alone does not count as menu control.

Joystick2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p10: Navi Key, a multi-directional control. The datasheet legend calls it a 5-way joystick. The G Key only starts the OSD application.

Desktop software

Not available

User firmware updates

Not available

Ambient light sensoriPresence of a physical ambient-light sensor. A regulatory statement that Automatic Brightness Control is unavailable does not prove the sensor is absent. Human presence or proximity sensing is separate.

Not available

Presence sensoriPresence of a person-detection or proximity sensor. Source notes distinguish room presence from near-screen detection. Absence of one kind does not prove absence of every presence sensor.

Not available

RGB lightingiDecorative illumination explicitly described as RGB or documented with selectable red, green and blue colours. A power LED or only one or two fixed colours is insufficient.

Not available

Gaming menu features

AI Crosshair, AI Vision, Optix Scope, Refresh Rate, Timer, Screen Size2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026AI Navigator and Gaming Features menus p12-15.

OLED care

OLED care

Pixel Shift, Panel Protect, Static Screen Detection, Multi Logo Detection, Multi Icon Detection, Taskbar Detection, Boundary Detection, V-Split Detection, Auto Dim Control2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026MSI OLED Care menu p19-20.

Burn-in covered by warrantyiWarranty explicitly covers permanent OLED image burn-in. A general panel warranty alone does not prove burn-in coverage.

Yes1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Burn-in warranty length

3years1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026

Dimensions and weight

Dimensions with standiOverall monitor dimensions with the supplied stand. Minimum and maximum heights require the stand position to be identified by the source.

Width611.1Depth241.9mm(24.1 × 9.5 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026611.1 x 241.9 x 532.8 mm (W x D x H). The datasheet does not say which stand position the height is for, so no height is stored.

Dimensions without standiOverall monitor body dimensions after the stand is removed, including the frame and rear housing.

Width611.1Height357.2Depth69.3mm(24.1 × 14.1 × 2.7 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026611.1 x 69.3 x 357.2 mm (W x D x H).

Stand footprintiWidth and depth of the stand base on the desk. A maker's stand width and depth count.

Width309Depth241.9mm(12.2 × 9.5 in)3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Stand Dimension (WxDxH) 309 x 241.9 x 432.1 mm. Width and depth are stored.

Weight with standiWeight with the supplied stand. Source notes state if cables are included. Packaging weight is separate.

6.8kg(15 lb)2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Specifications p24: Weight Net 6.8 kg. The Korean and Italian spec sheets also give 6.8 kg. The datasheet says 7.7 kg for NW. The manual is preferred.

Weight without standiMonitor body weight without stand. Source notes state whether cables are included.

4.1kg(9 lb)3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Weight Without Stand 4.1 kg. Italian sheet agrees. Net weight with stand is 6.8 kg on the same page.

Box dimensionsiShipping box width, height and depth in the maker published orientation. A flat-packed box can have a smaller height than the upright display.

Width828Height525Depth200mm(32.6 × 20.7 × 7.9 in)3Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Outer Carton Dimension (WxDxH) 82.8 x 20 x 52.5 cm, stored in mm.

Box weight

11kg(24.3 lb)2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Specifications p24: Gross 11 kg. The datasheet says 10.9 kg for GW. The manual is preferred.

Power

• EU energy class SDRF6EU energy label (EPREL)eprel.ec.europa.eu/api/products/electronicdisplays/2588419Read 14 October 2026energyClassSDR F.
  ABCDEFG
• EU energy class HDRG6EU energy label (EPREL)eprel.ec.europa.eu/api/products/electronicdisplays/2588419Read 14 October 2026energyClassHDR G.
  ABCDEFG

Power supplyiUSB-C powered monitors can draw power from a compatible host or an optional USB-C power source. This does not establish a bundled adapter. Record a supplied adapter and its rating separately.

Internal1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Power Type: Internal Power Board.

Adapter ratingiRated output power of the external power adapter. Do not substitute the monitor maximum consumption.

Not available

Input voltage

100-240 V AC, 50/60 Hz1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Power Input 100~240V, 50/60Hz. The manual adds 1.5A.

Power use (typical)iMaker typical operating power under a stated test condition. An unlabeled Power On upper bound does not establish a typical value. EU label test power has separate fields. An ENERGY STAR on-mode (Pon) figure is not a typical value.

Not available

Power use (max)iMaker maximum operating power. Source notes state whether USB charging and connected-device load are included.

Not available

Power use SDR (EU label)iSDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

25.4W6EU energy label (EPREL)eprel.ec.europa.eu/api/products/electronicdisplays/2588419Read 14 October 2026powerOnModeSDR 25.4 W.

Power use HDR (EU label)iHDR on-mode power demand in the EU product information sheet, in watts. It can differ from rounded energy-label kWh per 1000 hours.

26W6EU energy label (EPREL)eprel.ec.europa.eu/api/products/electronicdisplays/2588419Read 14 October 2026powerOnModeHDR 26 W.

Standby poweriPower in standby or DPMS. Source notes retain any less-than qualifier.

0.5W2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Specifications p23: Standby < 0.5W. EPREL states 0.5 W.

Off-mode poweriPower when switched off but still connected to mains. Source notes retain any less-than qualifier.

0.3W2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Specifications p23: Power Off < 0.3W. EPREL states 0.3 W.

Energy per 1000 h SDR

25kWh7EU energy label (EPREL)eprel.ec.europa.eu/labels/electronicdisplays/Label_2588419.svgRead 14 October 2026Published label text: 25 kWh/1000h for SDR. The registry value is 25.4 W. Label rounding kept.

Energy per 1000 h HDR

26kWh7EU energy label (EPREL)eprel.ec.europa.eu/labels/electronicdisplays/Label_2588419.svgRead 14 October 2026Published label text: 26 kWh/1000h for HDR.

Certifications

VESA ClearMR

9,0003Maker spec sheet (PDF)storage-asset.msi.com/specSheet/kr/monitor/MAG%20272UP%20QD-OLED%20E16.pdfRead 14 October 2026Selling points: VESA ClearMR 9000 certified. This is not a blur-reduction mode.

VESA AdaptiveSync Display

Not available

TÜV certifications

Low Blue Light2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p15 Mode: the default Eco mode meets the TUV Rheinland Low Blue Light standard.

Low blue lightiHardware means a published panel-level hardware low-blue-light solution. Software means a selectable picture filter. Hardware does not require a selectable filter mode.

Not available

ENERGY STAR

Not available

TCO Certified

Not available

EPEAT

Not available

Colour certifications

Not available

Other certifications

Not available

In the box

In the box

Monitor, Quick Start Guide, Stand, Stand Base with Screw(s), Screw(s) for Wall Mount Bracket(s), Power Cord, DisplayPort Cable, Fiber Cloth, Color Report2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026Package contents p3. Fiber Cloth and Color Report come from the datasheet accessories list.

Cables includediCables supplied with the product. Count is included only when the source establishes it. Bundles can vary by market.

Type	Count
Power Cord	1
DisplayPort Cable	1

Source2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026p3 lists a power cord and a DisplayPort cable. The Korean spec sheet gives a count of 1 for each and N/A for HDMI and USB cables.5Maker spec sheet (PDF)storage-asset.msi.com/specSheet/de/monitor/MAG%20272UPDE%20QD-OLED%20E16.pdfRead 14 October 2026German MAG 272UPDE sheet has the same table as the Korean and Italian sheets: DisplayPort Cable 1, Power Cord 1, Quick Guide 1.

Warranty

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

3years1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 20263 years (including panel burn-in). Global sheet, no market named.

Dead pixel policy

Not available

Links

Product page

www.msi.com/Monitor/MAG-272UP-QD-OLED-E1614Maker product pagemsi.com/Monitor/MAG-272UP-QD-OLED-E16Read 14 October 2026MSI global product page for the exact model. It appears in search results with the model title. It returns HTTP 403 to automated fetches, so it is stored as a link only and no value comes from it.

Spec sheet

storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdf1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/monitor/global/MAG-272UP-QD-OLED-E16.pdfRead 14 October 2026Official 2-page global datasheet for this exact model, generated 2026-10-14. Both pages read.

Manual

download.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdf2Owner's manualdownload.msi.com/archive/mnu_exe/monitor/MAG_272UP_QD-OLED_E16v1.0_English.pdfRead 14 October 2026MSI user guide V1.0, March 2026, 35 pages, English. Cover names MAG 272UP QD-OLED E16 (3CD7).

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

25884196EU energy label (EPREL)eprel.ec.europa.eu/api/products/electronicdisplays/2588419Read 14 October 2026Registry model identifier MAG 272UP QD-OLED E16, registration 2588419, version 2. Read through the public API.
