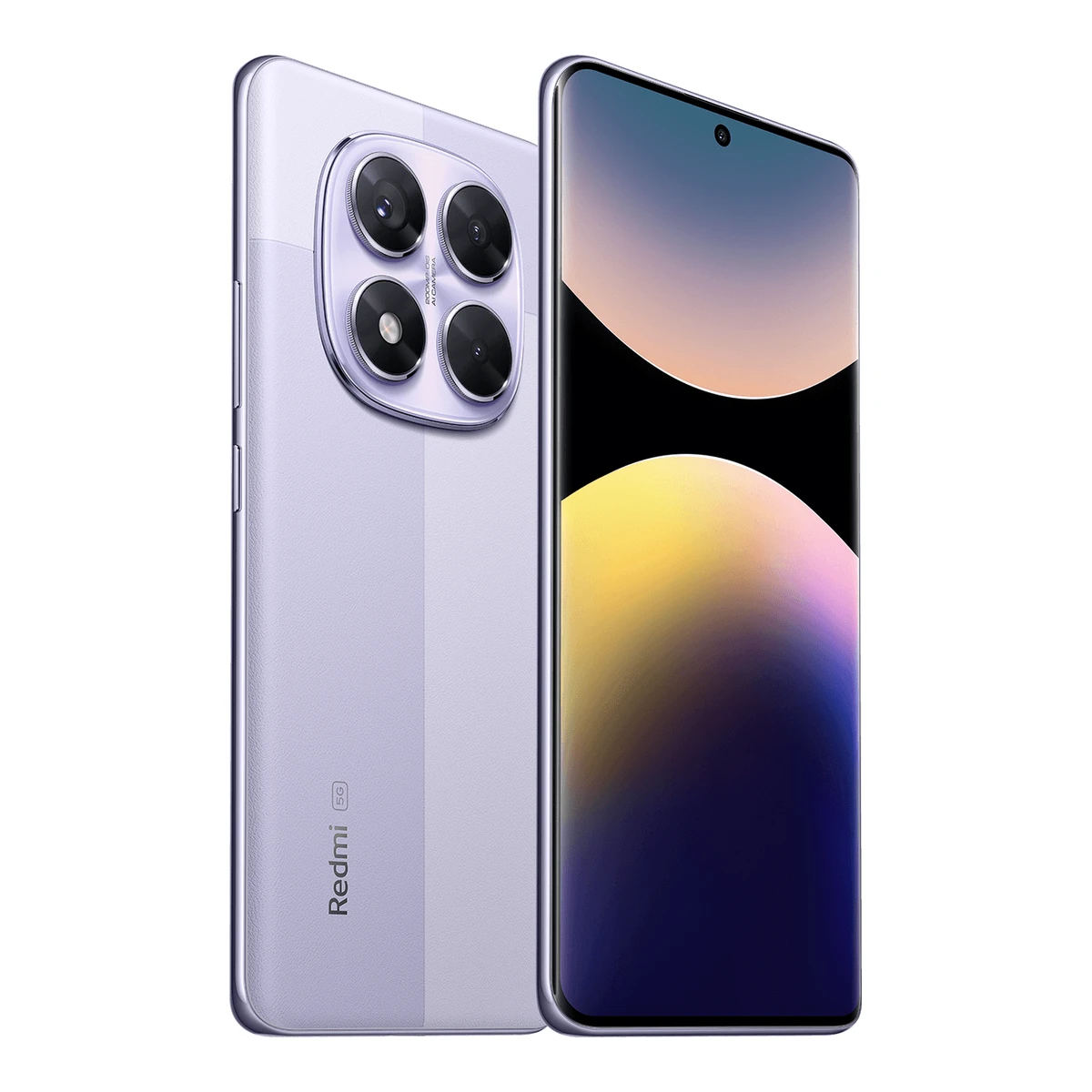

Note 14 Pro 5G

Released September 2024.7 Last checked 23 October 2026.

100 of 162 fields known.

All specs

SourceCalculatedHide missing

Front and side, drawn to scale.

OS at launch: Android 144
Software: Xiaomi HyperOS1
Latest stable OS (verified): Not available
Chipset: MediaTek Dimensity 7300-Ultra1
Process: 4nm1
CPU cores: 81
CPU configuration: Count Core Max clock (GHz)
4 Cortex-A78 2.5
4 Cortex-A55 Not available
Source9
Max CPU clock: 2.5GHz
GPU: Mali-G615 MC21
NPU performance: Not available

Count	Core	Max clock (GHz)
4	Cortex-A78	2.5
4	Cortex-A55	Not available

Physical rear cameras: Role Resolution (MP) Aperture (f/) Sensor optical format Pixel size (µm) Autofocus OIS Field of view Sensor
Main 200 1.65 1/1.4 inch 0.56 Not available Yes 84.5° Samsung ISOCELL HP3
Ultrawide 8 2.2 1/4 inch Not available Fixed Not available 120° Sony IMX355
Macro 2 2.4 1/5 inch Not available Fixed Not available 80.5° OmniVision OV02B
Source1 4
Number of rear cameras: 3
Main camera: 200MP
Longest physical-lens optical zoom: Not available
Maximum photo digital zoom: 30×4
Flash: Single rear flash4
Camera features: 200MP mode, Night mode, AI camera, Panorama, Filters, Portrait mode, Pro mode, Document mode, Timed burst, Time-lapse, Motion photos4
Maximum rear video rate per resolution: Width (px) Height (px) Highest capture rate (fps)
3840 2160 30
1920 1080 120
1280 720 240
Source1
Max video resolution: 3840 × 2160px
Recorded video HDR formats: Not available
Log recording: Not available
Video recording codecs: Not available
Video stabilisation: OIS, EIS4
Maximum slow-motion capture rate: 240fps4

Role	Resolution (MP)	Aperture (f/)	Sensor optical format	Pixel size (µm)	Autofocus	OIS	Field of view	Sensor
Main	200	1.65	1/1.4 inch	0.56	Not available	Yes	84.5°	Samsung ISOCELL HP3
Ultrawide	8	2.2	1/4 inch	Not available	Fixed	Not available	120°	Sony IMX355
Macro	2	2.4	1/5 inch	Not available	Fixed	Not available	80.5°	OmniVision OV02B

Front cameras: Role Resolution (MP) Aperture (f/) Autofocus
Main 20 2.2 Fixed
Source1 4
Maximum front video rate per resolution: Width (px) Height (px) Highest capture rate (fps)
1920 1080 60
1280 720 30
Source1
Front autofocus: No

Role	Resolution (MP)	Aperture (f/)	Autofocus
Main	20	2.2	Fixed

Width (px)	Height (px)	Highest capture rate (fps)
1920	1080	60
1280	720	30

Network: GSM, LTE, 5G6
2G bands: GSM 850, GSM 900, GSM 1800, GSM 19001
3G bands: B1, B2, B4, B5, B6, B8, B191
4G bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B26, B28, B32, B66, B38, B40, B41, B42, B481
5G bands: n1, n2, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n781
5G modes: SA, NSA4
5G mmWave: Not available
Maximum modem download rate: Not available
Satellite: Not available
Wi-Fi calling: Not available

Wi-Fi: Wi-Fi 61
Wi-Fi bands: 2.4 GHz, 5 GHz1
Bluetooth: 5.41
Bluetooth audio codecs: AAC, LDAC, LHDC 1.0, LHDC 2.0, LHDC 3.0, LHDC 4.0, LHDC 5.04
NFC: Yes1
Ultra-wideband: Not available
Positioning: BeiDou (B1I), GPS (L1), Galileo (E1), GLONASS (G1), QZSS (L1)1
Dual-frequency GNSS: Not available
Connector: USB-C4
USB data standard: USB 2.04
Video out over USB: No4
IR blaster: Yes1
FM radio: No4

Fingerprint: Optical, under-display4
Face unlock: 2D4
Sensors: Proximity sensor, Ambient light sensor, Accelerometer, Electronic compass, Gyroscope1
Extra buttons: Not available
Haptic motor: X-axis linear motor1

Rated battery capacity: 5,010mAh4
Battery capacity (typical): 5,110mAh1
Rated battery energy: Not available
Battery type: Li-ion10
Claimed battery life: Use case Hours (h)
Video streaming 15
Source3
Maximum wired charging power (claimed): 45W4
Wired charging standards: Xiaomi proprietary fast charging, USB Power Delivery10
Charge 0 to 50% (claimed): Not available
Charge 0 to 100% (claimed): Not available
Wireless charging: No4
Wireless charging power: Not available
Wireless standards: Not available
Built-in alignment magnets: Not available
Reverse wireless output power: Not available
Reverse wired: Not available
Charger in box: No1
Included adapter rated power: Not available
