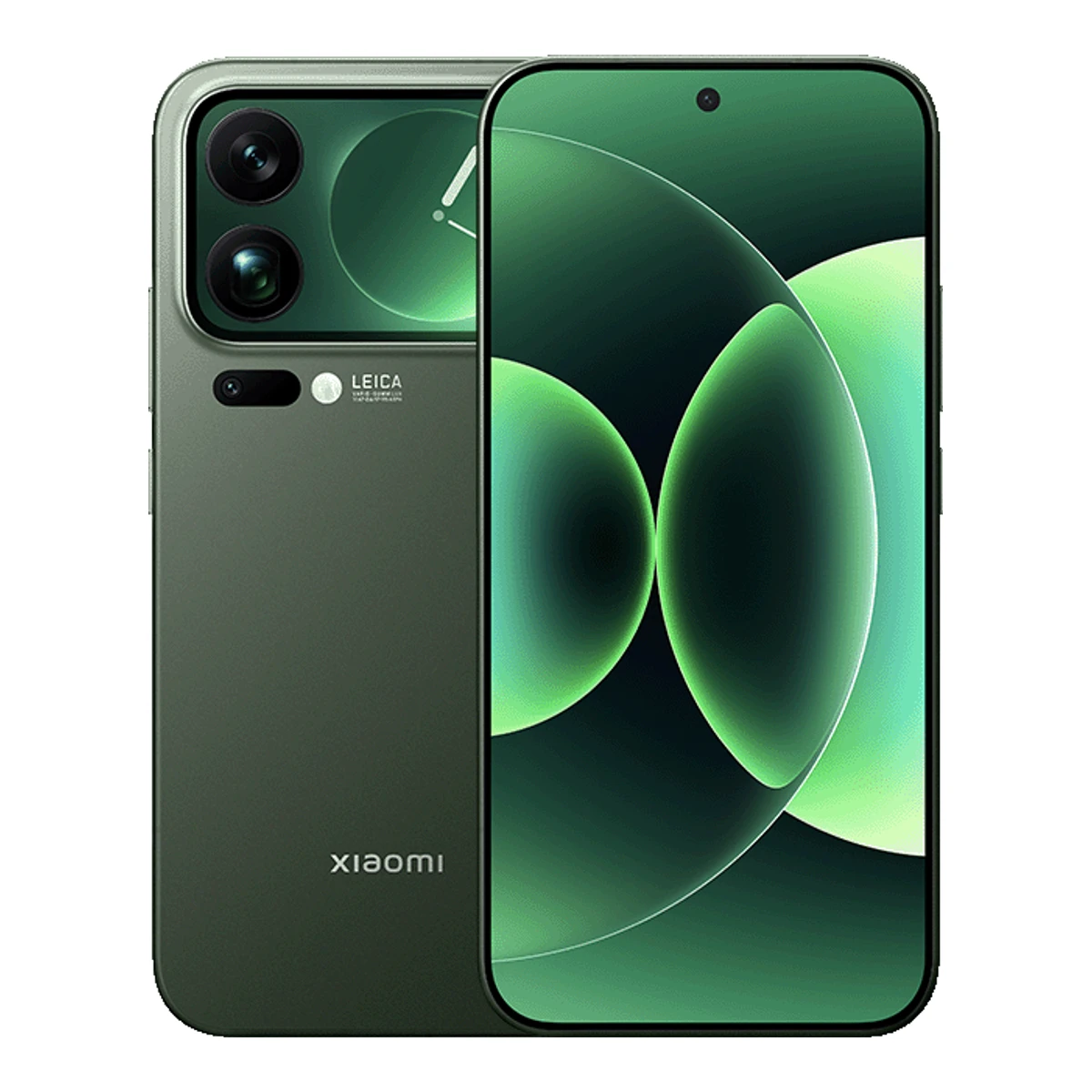

Xiaomi 17 Pro Max

XiaomiPhone

17 Pro Max

Released September 2025.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Domestic launch and market date both 2025-09-25 (China). Last checked 23 October 2026.

Screen size
6.9in
Chipset
Qualcomm Snapdragon 8 Elite Gen 5
Main camera
50MP
Rated battery capacity
Not available

116 of 162 fields known.

Compare with another phoneDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
Xiaomi 17 Series2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Xiaomi's launch press release, republished by Primetel: the Xiaomi 17 series has three models, 17, 17 Pro and 17 Pro Max.
Model numbers
2509FPN0BC4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Models: 2509FPN0BC.
GTIN / EAN
Not available
Announced
25 September 20254Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Announced 2025, September 25.
Status
Available4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Status: Available. Released 2025, September 25.
Predecessor
Not available
Successor
Xiaomi 18 Pro Max10Reviewnotebookcheck.net/New-leak-hints-at-Xiaomi-18-Pro-Max-s-upgraded-display.1248106.0.htmlRead 23 October 2026Notebookcheck calls the Xiaomi 18 Pro Max the successor to the Xiaomi 17 Pro Max.
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
CN3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Sold in mainland China. Xiaomi's global store has no page for this model.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026The review is of the Chinese version and says the international model has not been announced.
Colours
Black, White, Purple, Green2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Four colours: Black, White, Purple and Green.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Black, white, Cold Smoke Purple and Forest Green in Chinese.
Form factor
Bar6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Standard glass sandwich slab with a secondary display in the camera bump. It does not fold.
OS support period (claimed)
Not available
Security support period (claimed)
Not available
Security updates until
Not available

Body

Front and side, drawn to scale.

Height
162.9mm3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026
Width
77.6mm3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026
Thickness
8mm2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026The Pro series has a sleek 8mm-thick body. GSMArena and ZOL print 8 mm.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 20266Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026The phone measures 8mm without the camera/screen bulge.
Thickness with camera bump
Not available
Folded dimensions
Not available
Weight
219g(7.7 oz)3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026219 g. Size 162.9 x 77.6 x 8 mm.
Frame
Aluminium4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Build row: glass front (Dragon Crystal Glass 3), aluminum frame.6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Glass sandwich with a metal frame in the middle. The type of aluminum is not stated.
Front
Xiaomi Dragon Crystal Glass 3.01Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: Xiaomi Dragon Crystal Glass 3.0. The global press release calls it Xiaomi Shield Glass 3.0.2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Xiaomi Shield Glass 3.0 in the global wording.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Xiaomi Dragon Crystal Glass 3.0 as the screen cover.6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Front display protected by Xiaomi's in-house Dragon Glass 3.
Back
Fiberglass composite6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Design page: after some digging the reviewer found the back panel is fiberglass, like the Xiaomi 15 Ultra. The same page calls the back frosted. Stored as fiberglass composite. The maker states no back material.
Dust and water rating
IP681Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: IP68 dust and water resistance.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026IP68 dust and water resistance.
Water resistance depth
6m4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026IP68 dust tight and water resistant (immersible up to 6m for 30 min). The review says Xiaomi promises this, which is more than the IP68 certificate requires.
Water resistance time
30min4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Immersible up to 6 m for 30 min.
MIL-STD-810
Not available
SIM capacity
Nano-SIMs2Active eSIM capacity0eSIM onlyNo3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Dual card (Nano SIM). GSMArena's review says there is no eSIM.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026Intro and review page 2: two physical SIM slots, no eSIM.6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Two physical SIM card slots. There is no eSIM support.
Stylus
Not available
Stylus name
Not available

Display

Screen size
6.9in(17.5 cm)1Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: 6.9 inch low-power super sunlight screen.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Main 6.9 inch, secondary 2.9 inch.
Resolution
1200 × 2608px3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Main 2608x1200 px.
Pixel density
416.1ppi
Aspect ratio
19.56:94Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026The spec page prints 19.5:9. The review prints 19.56:9, which fits 2608 x 1200. The review value is stored.
Display type
LTPO OLED4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Type row: LTPO AMOLED, 68B colors, 2160Hz PWM, 120Hz, Dolby Vision, HDR Vivid, HDR10+, 3500 nits (peak).
Display type (as published)
LTPO AMOLED3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Main: AMOLED (LTPO). Secondary: AMOLED.
Max refresh rate
120Hz3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Refresh rate 120 Hz.
Min refresh rate
1Hz7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026Review: when the display is idle, it reduces the refresh rate to 1Hz. Observed on the main display. Both screens are LTPO.
Touch sampling rate
300Hz3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Touch sampling rate 300 Hz. No game mode is named.
Instant touch sampling
Not available
Display brightness (typical, claimed)
Not available
Outdoor brightness (claimed)
Not available
Peak display brightness (claimed)
3,500nits3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 20263500 nits multi-scenario peak brightness, window size not stated.
Minimum brightness
1nit3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Minimum brightness 1 nit.
Colour depth per channel
12bits3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Main screen: P3 wide color gamut, 12 bit.7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026Review: both displays support 12-bit color depth.
DCI-P3 coverage
Not available
HDR playback formats
HDR10+, Dolby Vision, HDR Vivid4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Type row lists Dolby Vision, HDR Vivid and HDR10+. HDR10 is not listed.
PWM dimming frequency
2,160Hz4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20262160Hz PWM in the Type row. The review repeats 2160Hz PWM for both screens. The maker's own page text was not readable.
Always-on display
Yes7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026The review software page says the Always-on display turns off once you flip the phone on its back, so an always-on display exists.
Front camera cutout
Punch hole3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Center punch-hole screen, flat.
Cover screen size
2.9in(7.4 cm)3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Secondary screen 2.9 inch, 976x596 px, AMOLED, 120 Hz.
Cover screen resolution
596 × 976px3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026ZOL prints 976x596. GSMArena prints 596 x 976. The rear screen is taller than it is wide beside the camera island, so 596 wide and 976 high is stored.
Cover screen refresh rate
120Hz4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Secondary display 120Hz.7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026Both screens support 120Hz.
Cover screen type
LTPO AMOLED4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Secondary display on the back: LTPO AMOLED, 120Hz, 2.9 inches, 596 x 976 pixels.

Platform

OS at launch
Android 162Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026The release names the Snapdragon 8 Elite Gen 5 platform only. Android 16 is from GSMArena.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Android 16, HyperOS 3.
Software
Xiaomi HyperOS 31Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: Xiaomi HyperOS 3.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Xiaomi HyperOS 3.
Latest stable OS (verified)
Not available
Chipset
Qualcomm Snapdragon 8 Elite Gen 51Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: fifth-generation Snapdragon 8 Elite platform (Snapdragon 8 Elite Gen 5).2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Snapdragon 8 Elite Gen 5 Mobile Platform.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Snapdragon 8 Elite Gen5, 8 cores, up to 4.6 GHz.
Process
3nm4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Snapdragon 8 Elite Gen 5 (3 nm).
CPU cores
83Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Octa-core.
CPU configuration
CountCoreMax clock (GHz)
2Prime4.6
6Performance3.62
Source4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20262x4.6 GHz Oryon V3 Phoenix L and 6x3.62 GHz Oryon V3 Phoenix M. The names follow Qualcomm's Prime and Performance core names, as other Snapdragon 8 Elite Gen 5 entries do.8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 20262x Oryon V3 Phoenix L at 4.6 GHz and 6x Oryon V3 Phoenix M at 3.62 GHz.
Max CPU clock
4.6GHz
GPU
Adreno 8403Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Qualcomm Adreno.
NPU performance
Not available

Memory

RAM
12, 16GB4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Internal row: 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM.8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026Memory options 12GB/512GB (standard), 16GB/512GB and 16GB/1TB. The review unit is 16GB/512GB.
RAM type
LPDDR5X3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026LPDDR5X.
Storage (nominal)
512 GB, 1 TB4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Same row: 512GB and 1TB. 1 TB is stored as 1000 GB.
Storage type
UFS 4.13Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026UFS 4.1.8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026All configurations use UFS 4.1.
Memory card
None3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026No capacity expansion.
Max card size
Not available

Rear cameras

Physical rear cameras
RoleResolution (MP)Aperture (f/)Focal length (35 mm equivalent) (mm)Sensor optical formatPixel size (µm)AutofocusOISOptical zoomField of viewSensor
Main501.67231/1.28"1.22Not availableYesNot availableNot availableLight Fusion 950L
Periscope telephoto502.61151/2"0.8PDAFYes5×Not availableSamsung ISOCELL GN8
Ultrawide502.4171/2.88"0.61PDAFNoNot available102°OmniVision OV50M40
Source2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Main: Light Fusion 950L, large 1/1.28-inch sensor, f/1.67, 1G+6P lens, LOFIC, 16.5EV. Telephoto: 5x periscope, expanded 1/2-inch sensor, f/2.6. The maker's rounding is stored for the sensor sizes. GSMArena prints 1/1.95 inch for the telephoto. ZOL prints f/3.0 for the telephoto, which does not match the maker's f/2.6.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Rear: 50 MP main f/1.67 23 mm 1/1.28 inch, 5x telephoto GN8, 50 MP ultrawide f/2.4 17 mm 102 degrees. Autofocus: main QPD, ultrawide AF. GSMArena lists the main as dual pixel PDAF, so the main autofocus is left out.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Main 50 MP f/1.7 23mm 1/1.28 inch 1.22 um dual pixel PDAF OIS. Periscope telephoto 50 MP f/2.6 115mm 1/1.95 inch 0.8 um PDAF OIS 5x. Ultrawide 50 MP f/2.4 17mm 102 degrees 1/2.88 inch 0.61 um PDAF. The maker's f/1.67 main aperture is stored.9Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p5.phpRead 15 October 2026Main: Light Fusion 950L (possibly Smartsens SC590XS), f/1.7, 1/1.28 inch, 23mm, 1.22 um, OIS. Telephoto 5x: Samsung ISOCELL GN8, f/2.6, 1/1.95 inch, 0.8 um, PDAF, OIS. Ultrawide: OmniVision OV50M40, f/2.4, 1/2.88 inch, 17mm, 0.61 um, PDAF, 102 degree field of view. The main sensor maker is not confirmed, so only the Light Fusion 950L name is stored.
Number of rear cameras
3
Main camera
50MP
Longest physical-lens optical zoom
5×
Maximum photo digital zoom
Not available
Flash
Dual-LED dual-tone3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026LED flash.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Features: Dual-LED dual-tone flash.
Camera features
Laser AF, Color spectrum sensor, Leica lens, HDR, Panorama4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Features: Laser AF, color spectrum sensor, Leica lens, Dual-LED dual-tone flash, HDR, panorama. The color spectrum sensor is not a camera.
Maximum rear video rate per resolution
Width (px)Height (px)Highest capture rate (fps)
7680432030
38402160120
19201080960
12807201,920
Source3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 20268K 30 fps, 4K 30/60/120 fps, 1080P 30/60 fps, 720P 30 fps. Slow motion: 1080P 120/240/960 fps and 720P 120/240/480/960/1920 fps.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20268K@30fps (HDR), 4K@30/60/120fps, 1080p@30/60/120/240/960fps, 720p@1920fps, gyro-EIS.
Max video resolution
7680 × 4320px
Recorded video HDR formats
HDR10+, Dolby Vision4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20264K@30/60/120fps (HDR10+, 10-bit Dolby Vision HDR, 10-bit LOG).
Log recording
Yes4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 202610-bit LOG in the 4K video modes.
Video recording codecs
Not available
Video stabilisation
OIS, Gyro EIS4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Video line ends with gyro-EIS. The main and telephoto cameras have OIS.
Maximum slow-motion capture rate
1,920fps3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Slow motion 720P up to 1920 fps.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026720p at 1920 fps, the highest capture rate listed.

Front camera

Front cameras
RoleResolution (MP)Aperture (f/)Focal length (35 mm equivalent) (mm)Sensor optical formatPixel size (µm)AutofocusField of viewSensor
Main502.2211/2.88"0.61PDAF90°OmniVision OV50M40
Source3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Front: 50 MP f/2.2 with AF, 90 degree field of view.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Selfie: 50 MP f/2.2 21mm 1/2.88 inch 0.61 um PDAF.9Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p5.phpRead 15 October 2026Front: 50MP OmniVision OV50M40, f/2.2, 1/2.88 inch, 21mm, 0.61 um, PDAF. The review says the selfie camera has autofocus.
Maximum front video rate per resolution
Width (px)Height (px)Highest capture rate (fps)
3840216060
1920108060
128072030
Source3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Front: 4K 30/60 fps, 1080P 30/60 fps, 720P 30 fps.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20264K@30/60fps, 1080p@30/60fps. The 720p 30 fps mode is from ZOL.
Front autofocus
Yes

Audio

Stereo speakers
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Stereo dual speakers.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Loudspeaker: Yes, with stereo speakers (with Dolby Atmos).7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026Hybrid stereo: a bottom speaker plus a top speaker that doubles as the earpiece.
3.5 mm jack
No4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20263.5mm jack: No.
Audio features
Dolby Atmos, Hi-Res Audio, Hi-Res Audio Wireless, Snapdragon Sound3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Hi-Res and Hi-Res Audio Wireless certification, Dolby Atmos, spatial audio.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 202624-bit/192kHz Hi-Res and Hi-Res wireless audio, Snapdragon Sound, Dolby Atmos.
Microphones
43Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026High-dynamic 4-MIC array.

Network

Network
GSM, UMTS, HSPA, LTE, 5G4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026GSM / HSPA / LTE / 5G. The maker lists WCDMA, which is stored as UMTS.
2G bands
GSM 850, GSM 900, GSM 1800, GSM 19003Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026GSM B2/B3/B5/B8 (1900/1800/850/900). Bands are for the China model.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026GSM 850 / 900 / 1800 / 1900. Same as the ZOL list for the China model.
3G bands
B1, B2, B4, B5, B6, B8, B193Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026WCDMA B1/2/4/5/6/8/19.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100, which matches WCDMA B1/2/4/5/6/8/19 on the ZOL list.
4G bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B66, B71, B34, B38, B39, B40, B41, B42, B483Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026FDD-LTE B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66/71 and TDD-LTE B34/38/39/40/41/42/48.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Same 25 LTE bands as the ZOL list.
5G bands
n1, n2, n3, n5, n7, n8, n12, n13, n18, n20, n25, n26, n28, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79, n80, n81, n83, n84, n893Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 20265G n1/2/3/5/7/8/12/13/18/20/25/26/28/38/40/41/48/66/70/71/77/78/79/80/81/83/84/89. No mmWave band is listed.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Same 28 NR bands as the ZOL list, SA/NSA.
5G modes
SA, NSA4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 20265G bands row ends with SA/NSA.
5G mmWave
No3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026The 5G band list holds only sub-6 GHz bands, so mmWave is false. The page does not say it in words.
Maximum modem download rate
Not available
Satellite
Not available
Wi-Fi calling
Not available

Connectivity

Wi-Fi
Wi-Fi 73Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Wi-Fi 7, Wi-Fi 6E, Wi-Fi 5 and 802.11a/b/g/n.
Wi-Fi bands
2.4 GHz, 5 GHz3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026WLAN frequency: 2.4G Wi-Fi and 5G Wi-Fi. No 6 GHz band is listed.
Bluetooth
5.43Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Bluetooth 5.4.
Bluetooth audio codecs
SBC, AAC, aptX, aptX HD, aptX Adaptive, LDAC, LHDC 5.0, LC3, MIHC3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026SBC, AAC, AptX, AptX HD, AptX Adaptive, LDAC, LHDC 5.0, LC3, MIHC as printed.
NFC
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026NFC supported (multi-function).
Ultra-wideband
Yes1Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords list UWB.2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026UWB-enabled smart car key.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Ultra Wideband (UWB) support.
Positioning
BeiDou (B1I+B1C+B2a), GPS (L1+L5), Galileo (E1+E5a), GLONASS (G1), QZSS (L1+L5), NavIC (L5)3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026BeiDou (B1I+B1C+B2a), GPS (L1+L5), Galileo (E1+E5a), GLONASS (G1), QZSS (L1+L5), NavIC (L5).
Dual-frequency GNSS
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026The list shows L1+L5 and E1+E5a dual-frequency signals.
Connector
USB-C3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026USB Type-C.
USB data standard
USB 3.24Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026USB Type-C 3.2.
Video out over USB
Yes4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026USB row: USB Type-C 3.2, Display Port, OTG.
IR blaster
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Infrared function supported. Infrared remote control in the sensor list.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026Review page 2: the infrared blaster is at the back.6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026
FM radio
No4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Radio: No.

Features and sensors

Fingerprint
Ultrasonic, under-display3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Under-screen ultrasonic 3D wide-area fingerprint.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Fingerprint (under display, ultrasonic).6Reviewgsmarena.com/xiaomi_17_pro_max-review-2895p2.phpRead 15 October 2026Ultrasonic reader, latest-generation Goodix, works with the display off.
Face unlock
Yes, type not stated3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Face recognition supported. 2D or 3D is not stated.
Sensors
Proximity sensor, Under-display ambient light (color temperature) sensor, Rear ambient light (color temperature) sensor, Accelerometer, Gyroscope, Electronic compass, Infrared remote control, Flicker sensor, Laser focus sensor, Barometer, Hall sensor3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Sensor list as printed, translated.
Extra buttons
Not available
Haptic motor
X-axis linear motor3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026X-axis linear motor.

Battery and charging

Rated battery capacity
Not available
Battery capacity (typical)
7,500mAh1Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: 7500mAh Xiaomi Jinshajiang battery. The page does not say typical or rated. Stored as typical, as the catalog does for the Xiaomi 18 Pro Max.2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026The 17 Pro Max reaches 7500mAh. No typical or rated wording.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 20267500mAh large battery. No typical or rated wording.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026The review says 7,500 mAh, at least for the Chinese version.
Rated battery energy
Not available
Battery type
Silicon-carbon2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026High 16% silicon content, L-shaped stacked battery.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Si/C Li-Ion 7500 mAh.
Claimed battery life
Not available
Maximum wired charging power (claimed)
100W1Maker product pagemi.com/prod/xiaomi-17-pro-maxRead 15 October 2026Page keywords: 100W Xiaomi HyperCharge wired fast charge.2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026The Pro series supports 100W wired charging.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Wired charging 100 W.
Wired charging standards
Xiaomi HyperCharge, USB PD 3.0, QC 3+, PPS (100 W)2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 2026Also supports the 100W PPS universal fast charging protocol.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026100W wired, PD3.0, QC3+, 100W PPS.
Charge 0 to 50% (claimed)
Not available
Charge 0 to 100% (claimed)
Not available
Wireless charging
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Wireless charging 50 W.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 202650W wireless.
Wireless charging power
50W2Press articleprimetel.com.cy/xiaomi-unveils-xiaomi-17-series-and-suite-of-new-products-7908Read 15 October 202650W wireless charging.3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Wireless charging 50 W.
Wireless standards
Proprietary5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026Review intro: 100W wired and 50W wireless charging, both over Xiaomi's proprietary HyperCharge standard. No Qi claim is stored.
Built-in alignment magnets
Not available
Reverse wireless output power
22.5W3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Reverse wireless charging supported, 22.5 W.4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 202622.5W reverse wireless.
Reverse wired
Not available
Charger in box
Yes3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026The package list has a power adapter. GSMArena says it is the 100 W HyperCharge charger in the China box.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026The review is of the Chinese version. The box has the 100W HyperCharge charger, a USB-A to USB-C cable and a transparent silicone case. The review expects the charger to be left out in Europe, but no European model exists.
Included adapter rated power
100W5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026Xiaomi's 100W HyperCharge charger is in the China box.

Measured

Geekbench single-core
3,528points8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026Geekbench 6 single-core 3528 on the 16GB/512GB China unit. Minor version and power mode are not stated.
Geekbench multi-core
10,600points8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026Geekbench 6 multi-core 10600, same unit.
3DMark Wild Life Extreme
6,761points4Spec databasegsmarena.com/xiaomi_17_pro_max-14181.phpRead 15 October 2026Our Tests: 3DMark 6761 (Wild Life Extreme). The review chart labels it Wild Life Extreme (Highest). 16GB/512GB review unit.8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026Wild Life Extreme (Highest) 6761 in the chart, same unit.
AnTuTu
2,456,317points8Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p4.phpRead 15 October 2026AnTuTu v10 2456317. v11 gave 3543388 on the same unit. Version 10 is stored so older catalog entries stay comparable.
Display brightness (measured)
1,026nits7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026White test pattern, auto mode, 75% fill: 1026 nits. Manual mode 75% fill gave 602 nits. A 10% patch gave more than 3,500 nits. Review unit 16GB/512GB.
PWM dimming (measured)
Not available
Mixed-use battery life (measured)
20.83h7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026
Full charge time (measured)
39min7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026
Loudspeaker loudness (measured)
-26.1LUFS7Measurementgsmarena.com/xiaomi_17_pro_max-review-2895p3.phpRead 15 October 2026

EU label and regulatory

We could not find any of these 10 fields. Show them
EU energy class
Not available
Battery endurance per cycle (EU test)
Not available
Battery endurance in cycles (EU test)
Not available
Drop resistance class
Not available
Repairability class
Not available
SAR head (US)
Not available
SAR body (US)
Not available
SAR head (EU)
Not available
SAR body (EU)
Not available
Hearing aid compatibility
Not available

In the box

In the box
Phone, Power adapter, USB Type-C cable, Protective case, Screen protector (applied at the factory), Manual with warranty card, SIM eject tool3Spec databasedetail.zol.com.cn/2143/2142375/param.shtmlRead 15 October 2026Package list: phone, power adapter, USB Type-C cable, protective case, screen protector applied at the factory, manual with warranty card, SIM eject pin.5Reviewgsmarena.com/xiaomi_17_pro_max-review-2895.phpRead 15 October 2026The review unboxing names the charger, the cable and the case. The full list is from ZOL.

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a phone to see both side by side. Differences are marked yellow.

More phone comparisons

Variants

Each variant lists only what differs from the specs above.

RAMStorage (nominal)Mixed-use battery life (measured)Full charge time (measured)Loudspeaker loudness (measured)
16 GB512 GB20.83 h39 min-26.1 LUFS

Sources

We read 10 sources for this phone. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 10 fields
  2. Read 15 October 2026Backs 13 fields
  3. Read 15 October 2026Backs 62 fields
  4. Read 15 October 2026Backs 47 fields
  5. Read 15 October 2026Backs 8 fields
  6. Read 15 October 2026Backs 8 fields
  7. Read 15 October 2026Backs 7 fields
  8. Read 15 October 2026Backs 7 fields
  9. Read 15 October 2026Backs 2 fields
  10. Read 23 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
