PC parts / Power supplies

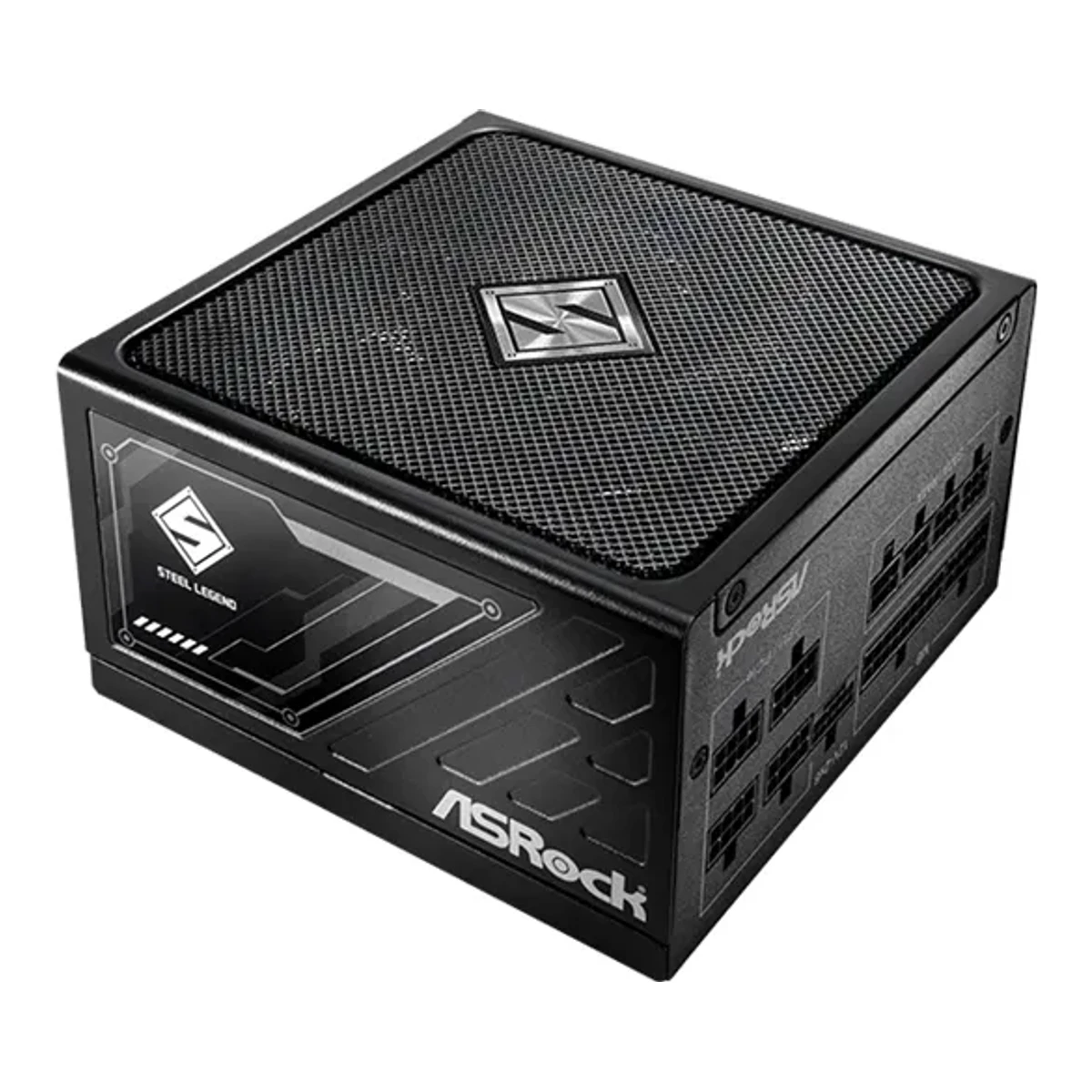

ASRockPower supply
Steel Legend SL-750G
- Power
- 750W
- Efficiency
- 80 PLUS Gold
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
50 of 66 fields known.
General
- GTIN / EAN
- Not available
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Form factor
- ATX3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026The 150 x 150 x 86 mm body is an ATX unit with the 150 x 86 mm back face.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: Type ATX12V.
- ATX version
- ATX 3.13Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row ATX 12V Version: ATX 3.1.4Retailer pagemultitronic.fi/en/products/4417379/asrock-steel-legend-sl-750g-750w---nataggregat--80-plus-goldRead 15 October 2026Box image badge ATX 3.1 COMPATIBLE. Spec table ATX version 3.1.
- Modular cables
- Fully modular3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Product details: Modular Fully.4Retailer pagemultitronic.fi/en/products/4417379/asrock-steel-legend-sl-750g-750w---nataggregat--80-plus-goldRead 15 October 2026Spec table Cabling type: Fully-Modular.
Power
- Rated continuous power
- 750W7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: Rated Power 750 W. The Power Specifications table gives a total maximum power of 750 W.
- Full power rated up to
- Not available
- 12V rail design
- Single rail7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Power Specifications table lists one +12V column, 62.5A.
- +12V max current
- 62.5A3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Continuous 12V output: 62.5 A. The Cybenetics Power Specifications table agrees.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Power Specifications table: +12V 62.5 A.
- +12V max power
- 750W7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Power Specifications table: +12V 750 W, total maximum power 750 W.
- +3.3V and +5V combined power
- 120W7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Power Specifications table: one merged cell of 120 W under +3.3V and +5V, so it is one shared limit. Each rail is 20 A.
- +5V standby current
- 3A7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Power Specifications table: +5VSB 3 A, 15 W.
- AC input voltage
- Lowest100Highest240V3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row AC Input: 100-240V, 50-60Hz, 10-5A.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: Rated Voltage 100-240 Vrms, manufacturer-provided.
- Alternative low power mode (ALPM)
- Yes7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked. ATX v3.1 PSU Power Excursion is also checked. The ATX 3.1 badge on the report reads Outside Validation Scope.
Certifications
- Cybenetics efficiency at 115V
- Cybenetics Platinum7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Report 24PS2669A, certification ID 252669, tested Dec 3, 2024 and issued Dec 6, 2024. ETA Platinum at 115V (badge image). ASRock's retailer copy says Cybenetics Platinum. A Brazilian retailer prints Cybenetics Gold, which the report does not show.
- Cybenetics efficiency at 230V
- Cybenetics Platinum7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026ETA Platinum at 230V (badge image).
Measured
- Average efficiency at 115V (measured)
- 90.084%7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Sample received Nov 22, 2024.
- Average efficiency at 230V (measured)
- 92.167%7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 69.147%7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Efficiency at 10 W for units up to 500 W or at 2% load for larger units. The unit is above 500 W, so the 2% load (15 W) applies. At 230V it is 67.067%.
- Average power factor at 115V (measured)
- 0.9867Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.963.
- Average noise at 115V (measured)
- 18.76dB(A)7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C, Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 18.38 dBA. The sample's fan ran at 593 rpm from 10% load, so the semi-passive mode was off.
- Noise at full load at 115V (measured)
- 42dB(A)7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Typical load tests at 115V, 100% load row: 42 dB(A) at 1785 rpm fan speed, intake 45.21 C and exhaust 51.28 C. The fan ran at 593 rpm at 10% load in this sample.
- Standby power with no load at 115V (measured)
- 0.0408W7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Standby power consumption at 115V with no load on +5VSB. At 230V it is 0.0982 W.
- Hold-up time (measured)
- 16.3ms7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 16.3 ms, AC loss to PWR_OK 13.7 ms, at maximum continuous load. Report 2669.
- 12V ripple at full load (measured)
- 39.29mV7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 37.95 mV.
- 12V load regulation (measured)
- 0.51%7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.53%.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 600 18AWG Not available CPU 8-pin (EPS, 4+4) 2 2 650 18AWG Not available PCIe 8-pin (6+2) 3 2 600 18AWG Not available 12V-2x6 1 1 650 16AWG 600 SATA power 9 3 450 18AWG Not available 4-pin Molex 3 1 450 18AWG Not available Source4Retailer pagemultitronic.fi/en/products/4417379/asrock-steel-legend-sl-750g-750w---nataggregat--80-plus-goldRead 15 October 2026The gallery image SL-1000G-10 is ASRock's Cables Included slide: 1x MB 24 pin 600 mm, 2x CPU 4+4 pin 650 mm, 1x PCIe 12V-2x6 650 mm, 2x PCIe 6+2 pin 600 mm, 3x SATA 450 mm then 120 mm then 120 mm, 1x PATA 450 mm then 120 mm then 120 mm. The slide counts cables. Cybenetics shows that one of the two PCIe cables carries two plugs, so the unit has 3 PCIe 8-pin plugs on 2 cables. Retailer copies of ASRock's spec table print 2 for PCIe 6+2 pin (cables) and 3 for the plug total. SATA is 9 plugs on 3 cables and Molex is 3 plugs on 1 cable.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Cables and Connectors table: ATX 600 mm 18AWG, EPS 4+4 700 mm 18AWG (2 cables), 6+2 PCIe 590 mm plus 140 mm on one cable with two plugs plus one single 590 mm cable (3 plugs, all 18AWG), 12+4 pin PCIe 640 mm (600W) 16-28AWG, SATA 450 mm then 120 mm then 120 mm on 3 cables (9 plugs), 4-pin Molex 440 mm then 110 mm then 110 mm on 1 cable (3 plugs). The stored lengths are the maker's lengths from ASRock's Cables Included slide, which shows 650 mm for the EPS cables and 650 mm for the 12V-2x6 cable. The 16-28AWG range of the 12V-2x6 cable includes the thin sideband wires, so the 16AWG power wire gauge is stored.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 3
- 16-pin GPU connectors
- 1
- SATA power connectors
- 9
- 4-pin Molex connectors
- 3
Fan
- Fan size
- 135mm3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Fan: 135mm Striped Axial FDB Fan.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: 135mm Fluid Dynamic Bearing Fan, model RL4ZS1352512HH.
- Fan bearing
- Fluid dynamic (FDB)3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Fan: 135mm Striped Axial FDB Fan. The description says 135mm Fluid Dynamic Bearing Fan.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: 135mm Fluid Dynamic Bearing Fan.
- Fan mode
- Semi-passive2Owner's manualdownload.asrock.com/Manual/QIG/Power%20Supply%20Series_multiQIG.pdfRead 15 October 2026Installation step 8: if the iCOOL mode is set to ON, the fan will not spin during low to medium loads.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: Semi-Passive Operation checked (selectable). The tested sample spun at 593 rpm already at 10% load, so its semi-passive mode was off during the test.
- Fan mode switch
- Yes2Owner's manualdownload.asrock.com/Manual/QIG/Power%20Supply%20Series_multiQIG.pdfRead 15 October 2026Installation step 8 describes the iCOOL mode as a setting that can be ON, so the fan can be made to spin at low load. The Inside Tech copy of ASRock's spec table lists iCOOL MODE as a switch.3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row iCOOL MODE: Yes (Switch). iCOOL Mode OFF: the fan runs continuously.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026DUT Information: Semi-Passive Operation (selectable).
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Protections: OCP, SCP, OVP, UVP, OTP, OPP. NLO and SIP come from the Cybenetics protection tests.7Measurementcybenetics.com/evaluations/psus/2669Read 15 October 2026Protection Features (Manufacturer) lists OPP, OCP (+12V), OTP, SCP, surge protection and inrush current protection. Fan failure protection is not ticked. The protection tests tick NLO and show SIP: surge MOV, inrush NTC and bypass relay.
- All-Japanese capacitors
- Yes3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Capacitors: All Japanese.4Retailer pagemultitronic.fi/en/products/4417379/asrock-steel-legend-sl-750g-750w---nataggregat--80-plus-goldRead 15 October 2026Box image: 100% Japanese Capacitors badge.
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth150mm(5.9 × 3.4 × 5.9 in)3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Dimensions (L x W x H): 150mm x 150mm x 86mm. Depth 150, width 150, height 86.
- Weight
- Not available
In the box
We could not find any of these 1 fields. Show them
- In the box
- Not available
Links
- Product page
- www.asrock.com/Power-Supply/SteelLegend/SL-750G/index.asp1Maker product pageasrock.com/Power-Supply/SteelLegend/SL-750G/index.aspRead 15 October 2026ASRock's product page answers agents with a bot check, so its text was not read. The link is the page that search results name for the SL-750G. The specs below come from a retailer copy of ASRock's spec table, ASRock's box and cable images hosted by a retailer, ASRock's installation guide, the Cybenetics report and the 80 PLUS list.
- Spec sheet
- Not available
- Manual
- download.asrock.com/Manual/QIG/Power%20Supply%20Series_multiQIG.pdf2Owner's manualdownload.asrock.com/Manual/QIG/Power%20Supply%20Series_multiQIG.pdfRead 15 October 2026ASRock's Quick Installation Guide for its power supply series. It is shared by all ASRock power supply series and names no model values.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 10years3Retailer pageinside-tech.co.uk/power-supplies-2/asrock-steel-legend-sl-750g-750w-atx-power-supply-unit-80-plus-gold-certified-120mm-silent-cooling-fan-high-efficiency-psuRead 15 October 2026Spec table row Warranty (Years): 10. Text: ASRock offers a 10-year warranty. The market is not named. Multitronic prints 3 years, which is not the maker's term.4Retailer pagemultitronic.fi/en/products/4417379/asrock-steel-legend-sl-750g-750w---nataggregat--80-plus-goldRead 15 October 2026Box image badge: 10 year warranty. The listing's own Warranty row says 3 years, which is not the maker's term.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Sources
We read 8 sources for this power supply. The numbers match the markers in the sheet.
- Maker product pageasrock.com/Power-Supply/SteelLegend/SL-750G/index.asp
- Measurementcybenetics.com/evaluations/psus/2669
See a wrong value? Tell us and name the field.
