PC parts / Power supplies
CORSAIRPower supply

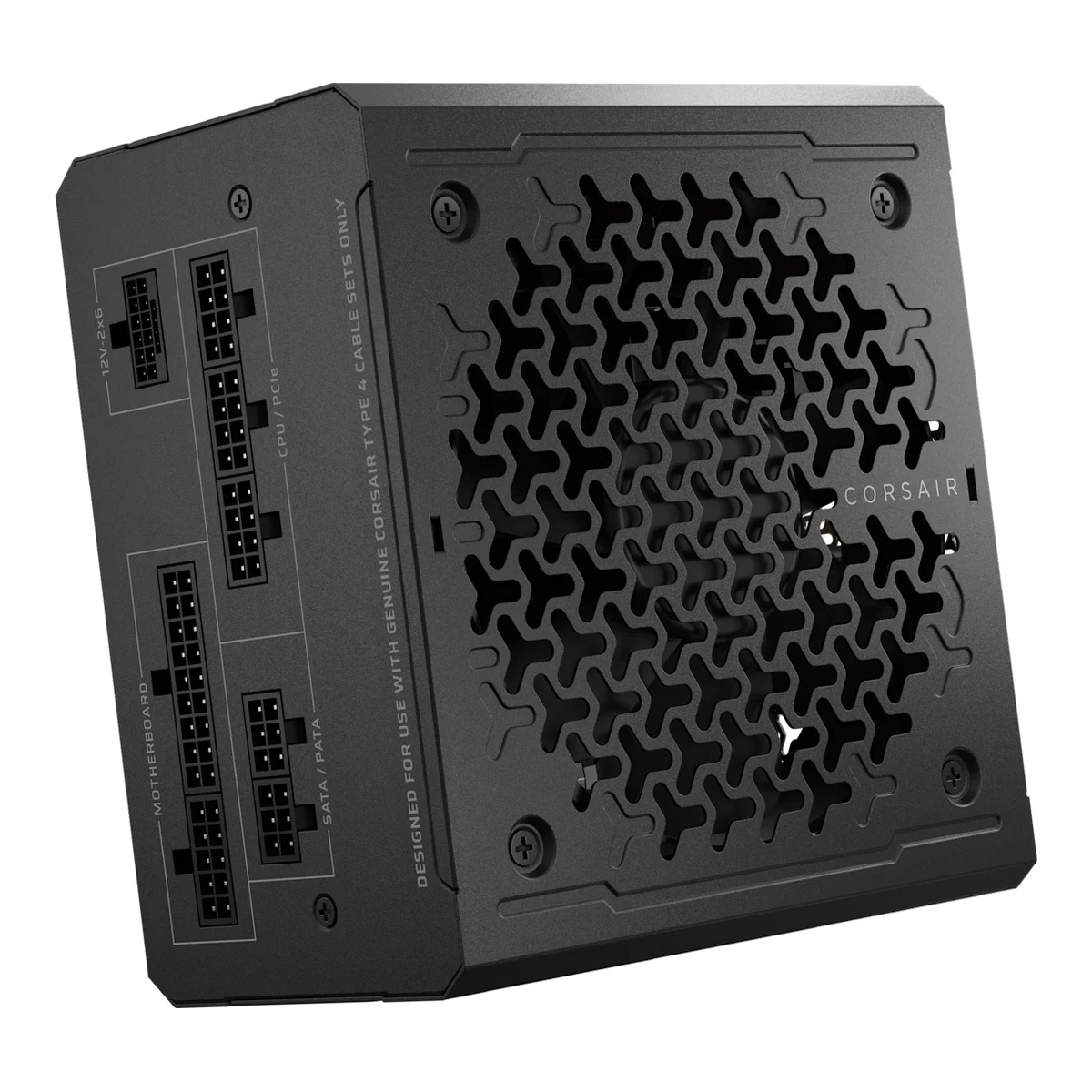

RM850e (2025)
Released January 2025.5Reviewhwbusters.com/psus/corsair-rm850e-atx-v3-1-psu-reviewRead 14 October 2026Review published January 17, 2025. KitGuru reviewed the unit on January 28, 2025. Cybenetics tested the unit on Nov 4, 2024. Last checked 16 October 2026.
- Power
- 850W
- Efficiency
- Cybenetics Gold
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
49 of 66 fields known.
General
- Model numbers
- CP-9020296-NA, CP-9020293-NA1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026
- GTIN / EAN
- Not available
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Markets
- Not available
- Colours
- Black, White1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 20262Maker product pagecorsair.com/us/en/p/psu/cp-9020293-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-white-cp-9020293-naRead 14 October 2026The white edition has SKU CP-9020293-NA and the same specs. It adds a dual-color 12V-2x6 connector.
- ATX version
- ATX 3.11Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026
- PCIe CEM version
- PCIe 5.11Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Page says PCIe 5.1 compatible.
Power
- Rated continuous power
- 850W1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026
- Full power rated up to
- Not available
- 12V rail design
- Single rail5Reviewhwbusters.com/psus/corsair-rm850e-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Number of 12V rails 1.6Retailer pagescan.co.uk/products/850w-corsair-rm850e-fully-modular-cybenetics-gold-pcie-51-single-rail-708a-120mm-fan-atx-31-psuRead 14 October 2026Specification list: single +12V rail, 70.8A (Rail 1), rails 2 to 6 not applicable.
- +12V max power
- 850W3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM850e table: +12V 70.8A, 850W.
- +3.3V and +5V combined power
- 150W1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Power table lists +3.3V 20A and +5V 20A with 150W. The quick start guide lists 110W for the same row, which looks like a value copied from the RM650e and RM750e. Cybenetics, Hardware Busters and the white edition page all say 150W.5Reviewhwbusters.com/psus/corsair-rm850e-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Power 5V + 3.3V 150W.
- +5V standby current
- 3A1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026
Certifications
- 80 PLUS rating
- Not available
- Cybenetics efficiency at 115V
- Cybenetics Gold1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026The page says Cybenetics Gold without a voltage. The Cybenetics report of the same model shows Gold at both 115V and 230V.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Report 24PS2630A, certification ID 252630, issued Nov 4, 2024. ETA Gold at 115V. The model name in the database is RM850e (ATX v3.1). The results apply to both the black and white variants.
- Cybenetics efficiency at 230V
- Cybenetics Gold1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026The page says Cybenetics Gold without a voltage. The Cybenetics report of the same model shows Gold at both 115V and 230V.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026ETA Gold at 230V.
- Cybenetics noise at 115V
- A1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Tech Specs tab: Cybenetics Noise A. The Cybenetics report shows A at both voltages.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026LAMBDA A at 115V.
- Cybenetics noise at 230V
- A1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Tech Specs tab: Cybenetics Noise A. The Cybenetics report shows A at both voltages.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026LAMBDA A at 230V.
Measured
- Average efficiency at 115V (measured)
- 88.568%4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Average over more than 1450 load combinations at 115V. Tested Nov 4, 2024 on sample serial A9D9F4420002EL. Ambient 28-32 C.
- Average efficiency at 230V (measured)
- 90.783%4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 66.87%4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9824Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Average over more than 1450 load combinations at 115V.
- Average noise at 115V (measured)
- 22.81dB(A)4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 22.84 dBA.
- Noise at full load at 115V (measured)
- 42.2dB(A)4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Typical load tests at 115V, 100% load row: 42.2 dB(A) at 1724 rpm fan speed, ambient about 30 C.
- Standby power with no load at 115V (measured)
- 0.049W4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Standby power consumption at 115V with no load on +5VSB.
- Hold-up time (measured)
- 18ms4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 18.0 ms, AC loss to PWR_OK 15.5 ms, at maximum continuous load. Report 2630.
- 12V ripple at full load (measured)
- 36.19mV4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 36.77 mV.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 610 18-20AWG Not available CPU 8-pin (EPS, 4+4) 2 2 750 18AWG Not available PCIe 8-pin (6+2) 3 2 650 16-18AWG Not available 12V-2x6 1 1 650 Not available 600 SATA power 6 2 450 18AWG Not available 4-pin Molex 2 1 450 18AWG Not available Source1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Cable listing table: lengths 610 mm (24-pin), 750 mm (EPS), 650 mm (12V-2x6, 12V-2x6 to dual 8-pin, PCIe 8-pin), SATA 450 mm to the first plug then 100 mm spacing. Tolerance 10 mm. PCIe 8-pin is 1 single cable plus 1 cable with two 8-pin plugs, so 3 plugs on 2 cables. The 12V-2x6 cable is described as 600W capable. The SATA row covers a 4-plug SATA cable and a 2 SATA and 2 PATA cable. The two 4-pin plugs sit on the SATA and PATA cable, so the molex row takes that cable's 450 mm to its first plug. The quick start guide text lists 2 single PCIe 8-pin cables for this model, which does not match this table, the Cybenetics report or the Scan listing. The PSU side has one 12V-2x6 socket and three CPU/PCIe sockets (product photo), so the dual 8-pin cable takes the 12V-2x6 socket and cannot be used together with the native 12V-2x6 cable.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Cables and Connectors table gives wire gauge per cable: ATX 18-20AWG, EPS 18AWG, 6+2 PCIe 16AWG, 2 x 6+2 PCIe 16-18AWG, 12+2 pin PCIe (600W) 16-24AWG, SATA and Molex 18AWG. The 16-24AWG range for the 12V-2x6 cable includes the thin sideband wires, so no gauge is stored for it.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 3
- 16-pin GPU connectors
- 1
- SATA power connectors
- 6
- 4-pin Molex connectors
- 2
Fan
- Fan mode switch
- Not available
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026Safety and Protection section lists OVP, UVP, OCP, OTP, SCP and OPP.4Measurementcybenetics.com/evaluations/psus/2630Read 14 October 2026Protection Features (Manufacturer) lists Surge Protection and Inrush Current Protection, which the quick start guide leaves out. The report also lists OPP, +12V OCP, OTP and SCP. The protection tests tick NLO.
- All-Japanese capacitors
- Not available
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026Tech Specs tab: 140x150x86. The quick start guide gives 140 mm (L) x 150 mm (W) x 86 mm (H). Depth is 140 mm and the back face is 150 x 86 mm.
In the box
- In the box
- Power Supply, AC Cable, DC Cables, Cable Ties, Mounting Screws, Safety Leaflet3Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026RM850e Specifications, Package Contents.
Links
- Product page
- www.corsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-na1Maker product pagecorsair.com/us/en/p/psu/cp-9020296-na/rme-series-rm850e-fully-modular-low-noise-atx-power-supply-cp-9020296-naRead 14 October 2026
- Spec sheet
- Not available
- Manual
- www.corsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-20253Owner's manualcorsair.com/explorer/diy-builder/power-supply-units/corsair-rme-series-2025Read 14 October 2026
- EPREL registration number
- Not available
Warranty
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | Colours |
|---|---|
| CP-9020296-NA | Black |
| CP-9020293-NA | White |
Sources
We read 6 sources for this power supply. The numbers match the markers in the sheet.
- Measurementcybenetics.com/evaluations/psus/2630
See a wrong value? Tell us and name the field.
