PC parts / Power supplies

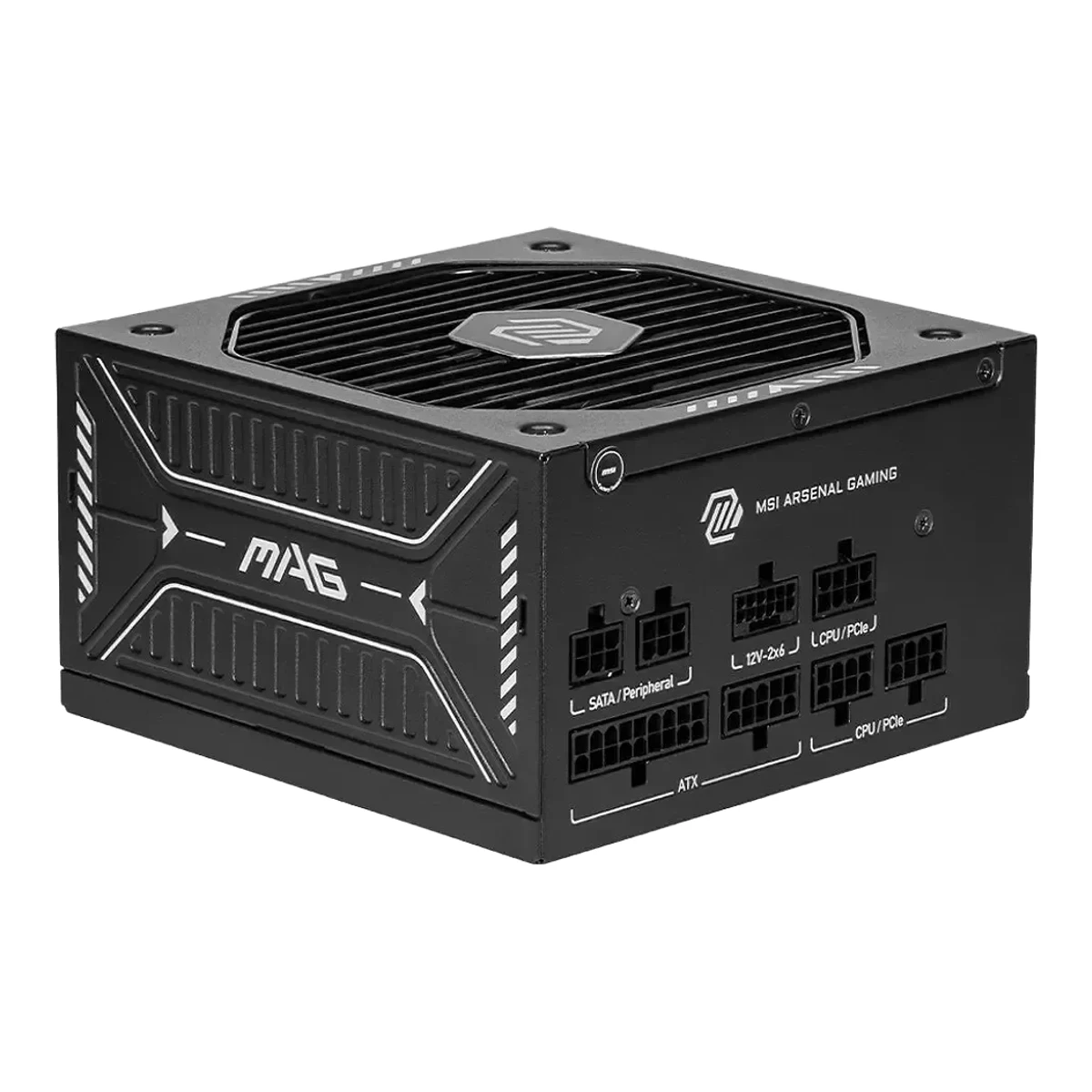

MSI MAG A750GLS PCIE5

MSIPower supply

MAG A750GLS PCIE5

Released May 2025.2Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Cybenetics tested the unit on May 9, 2025. KitGuru covered the launch on May 28, 2025. HWBusters reviewed it on June 24, 2025. Last checked 14 October 2026.

Power
750W
Efficiency
80 PLUS Gold
Modular cables
Fully modular
ATX version
ATX 3.1

48 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
MAG A-GLS2Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026KitGuru calls the lineup the MAG A-GLS PCIE5 series (A1000GLS, A850GLS, A750GLS, A650GLS).
Model numbers
MAG A750GLS PCIE51Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
GTIN / EAN
Not available
Announced
May 20252Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Series announced in late May 2025 with the A1000GLS, A850GLS, A750GLS and A650GLS. KitGuru article dated May 28, 2025. The month is stored because the exact announcement day was not read on an MSI page.
Status
Available5Retailer pagenetcodex.ph/product/msi-mag-a750gls-750w-80-gold-fully-modular-atx-3-1-pcie-5-1-power-supply-mag-a750gls-pcie5Read 14 October 2026Retailer page shows the model in stock in October 2026.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
ATX3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026DUT Information: Type ATX12V. The body is 150 x 86 mm at the back, the ATX size.
ATX version
ATX 3.12Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026KitGuru launch coverage of the MAG A-GLS PCIE5 series: all four models, including the 750W, comply with ATX 3.1 and handle up to 220% power excursion. The MSI datasheet only lists the power excursion. The Cybenetics report ticks ATX v3.1 PSU Power Excursion.
PCIe CEM version
PCIe 5.11Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Datasheet lists PCI-E 5.1 (16 pin), native 12V-2x6 connector.
Modular cables
Fully modular1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
Built by (OEM)
Huntkey3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026DUT Information: OEM/ODM Huntkey.

Power

Rated continuous power
750W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
Full power rated up to
Not available
12V rail design
Single rail4Reviewhwbusters.com/psus/msi-mag-a750gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: Number of 12V rails 1.
+12V max current
62.5A1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026DC output table: +12V 62.5A, 750W. The second +12V column of 0.3A and 3.6W is the -12V rail printed with the wrong label.
+12V max power
750W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
+3.3V and +5V combined power
100W1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026DC output table: +5V 18A and +3.3V 18A with a combined 100W.
+5V standby current
2.5A1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026DC output table: +5Vsb 2.5A, 12.5W.
AC input voltage
Lowest100Highest240V1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
Alternative low power mode (ALPM)
Yes3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
80 PLUS Gold1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Datasheet says 80 PLUS Gold (up to 90%). The Cybenetics report rates the same unit Platinum at both voltages.
Cybenetics efficiency at 115V
Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Report 25PS2810A, certification ID 252810, tested May 9, 2025, issued May 13, 2025. ETA Platinum at 115V.
Cybenetics efficiency at 230V
Cybenetics Platinum3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026ETA Platinum at 230V.
Cybenetics noise at 115V
A3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026LAMBDA A at 115V.
Cybenetics noise at 230V
A3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026LAMBDA A at 230V.

Measured

Average efficiency at 115V (measured)
89.664%3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C.
Average efficiency at 230V (measured)
91.831%3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
77.641%3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Efficiency at 2% load at 115V. The unit is above 500 W, so the 2% load applies.
Average power factor at 115V (measured)
0.9823Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Average over more than 1450 load combinations at 115V.
Average noise at 115V (measured)
24.46dB(A)3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Average over more than 1450 load combinations at 115V, ambient 28-32 C. The 230V average is 24.42 dBA.
Noise at full load at 115V (measured)
44.5dB(A)3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Typical load tests at 115V, 100% load row: 44.5 dB(A) at 1968 rpm fan speed, ambient about 30 C.
Standby power with no load at 115V (measured)
0.0767W3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Standby power consumption at 115V with no load on +5VSB.
Hold-up time (measured)
15.8ms3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 15.8 ms, AC loss to PWR_OK 13.1 ms, at maximum continuous load. Report 2810.
12V ripple at full load (measured)
34.04mV3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Non-accredited. 12V ripple at full load at 115V. At 230V it is 34.10 mV.
12V load regulation (measured)
0.47%3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Non-accredited. 12V load regulation at 115V. At 230V it is 0.51%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1160018-22AWGNot available
CPU 8-pin (EPS, 4+4)2165018AWGNot available
PCIe 8-pin (6+2)4360018AWGNot available
12V-2x61160016-24AWG450
SATA power5250018-20AWGNot available
4-pin Molex22Not available18-20AWGNot available
4-pin floppy11Not available18-20AWGNot available
Source1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Connector counts from the datasheet: ATX 1, EPS 2, PCI-E 6+2 pin 4, 16-pin 12V-2x6 1 (450W), SATA 5, Molex 2, FDD 1. The datasheet does not give cable counts, lengths or gauge. Those come from the Cybenetics cable table. The 12V-2x6 cable is called a dual-color 12V-2x6 cable. The molex and floppy lengths are left out because the first plug position is not stated.3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Cables and Connectors table: ATX 600 mm 18-22AWG, EPS 4+4 650 mm plus 105 mm on one cable with two plugs 18AWG, 6+2 PCIe 600 mm as two single cables and one cable with two plugs 18AWG, 12+4 pin PCIe 600 mm (450W) 16-24AWG, one SATA cable (500 mm then 150 mm spacing, 3 SATA and 1 Molex) and one SATA, Molex and FDD cable. The 16-24AWG range includes the thin sideband wires.
CPU (EPS) connectors
2
PCIe 8-pin connectors
4
16-pin GPU connectors
1
SATA power connectors
5
4-pin Molex connectors
2
Cable style
Embossed or debossed flat1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Datasheet: Embossed Jacket Cables.

Fan

Fan size
135mm1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
Fan bearing
Fluid dynamic (FDB)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026
Fan mode
Semi-passive3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Semi-Passive Operation checked. Fan HA13525H12F-Z, 135mm fluid dynamic bearing.
Fan mode switch
No4Reviewhwbusters.com/psus/msi-mag-a750gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Product photos page: there is no ECO switch, and the model has semi-passive operation.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Protection line: OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO.3Measurementcybenetics.com/evaluations/psus/2810Read 14 October 2026Protection Features (Manufacturer) lists OPP, OCP (+12V), OTP, SCP, surge and inrush current protection. Fan failure protection is not ticked.
All-Japanese capacitors
Not available
MTBF (claimed)
Not available

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth150mm(5.9 × 3.4 × 5.9 in)1Maker spec sheet (PDF)storage-asset.msi.com/datasheet/power-supply/us/MAG-A750GLS-PCIE5.pdfRead 14 October 2026Dimensions (DxWxH) 150 x 150 x 86 mm. Depth 150, width 150, height 86.
Weight
1.35kg(3 lb)4Reviewhwbusters.com/psus/msi-mag-a750gls-pcie5-atx-v3-1-psu-reviewRead 14 October 2026Technical specifications: 1.35 kg (2.98 lb). The review does not say whether cables are included. MSI does not publish a weight.

In the box

We could not find any of these 1 fields. Show them
In the box
Not available

Warranty

Manufacturer warranty (source market)
7years2Press articlekitguru.net/components/power-supplies/joao-silva/msi-introduces-new-mag-a-gls-atx-3-1-psusRead 14 October 2026Launch coverage: all MAG A-GLS models are backed by a 7-year warranty. No market is named. The 10-year listings seen in search results belong to the MAG A750GL without the S.5Retailer pagenetcodex.ph/product/msi-mag-a750gls-750w-80-gold-fully-modular-atx-3-1-pcie-5-1-power-supply-mag-a750gls-pcie5Read 14 October 2026Retailer listing for the MAG A750GLS PCIE5: 7 years. Philippines.
