PC parts / Power supplies

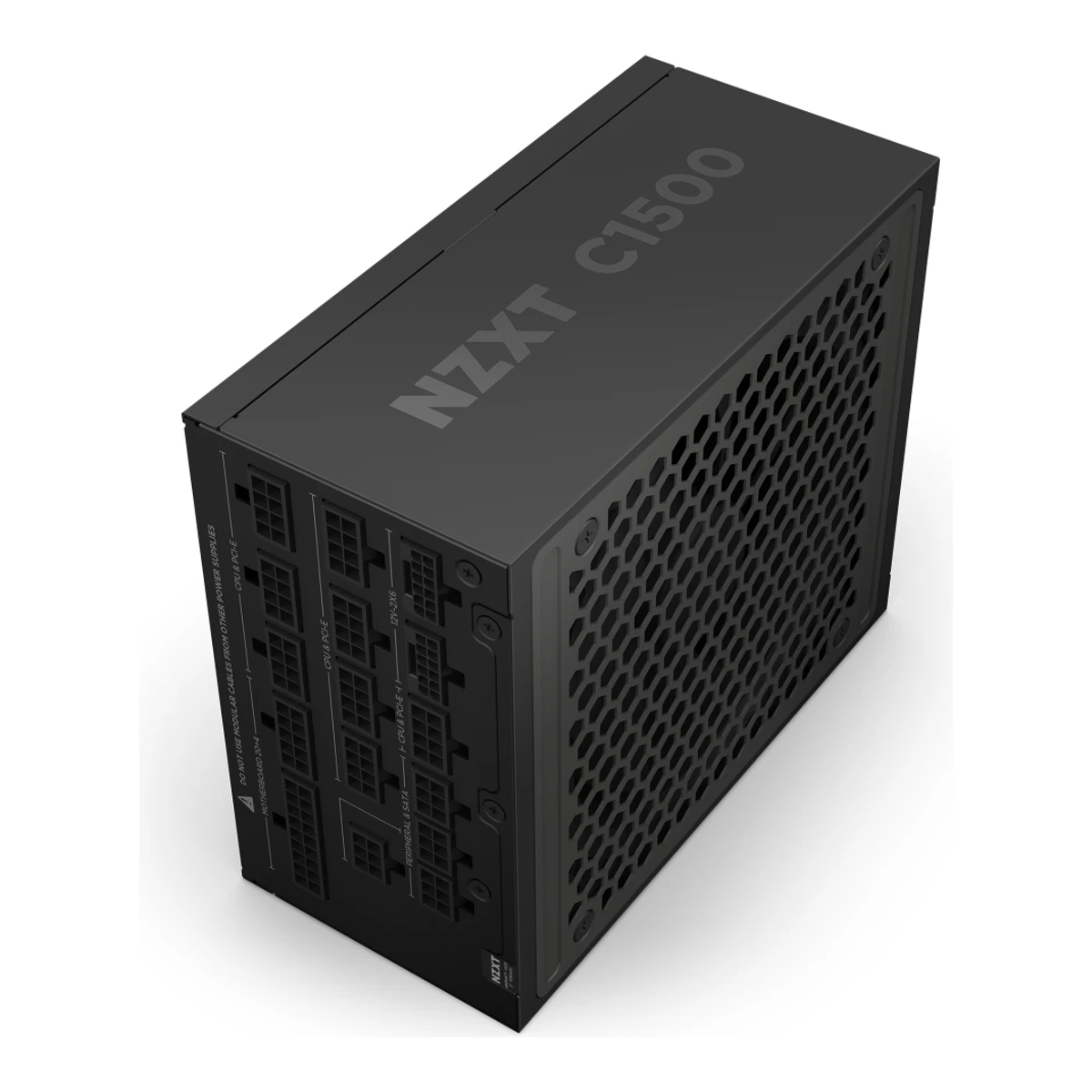

NZXTPower supply
C1500 Platinum ATX 3.1
Released June 2024.3Reviewhwbusters.com/psus/nzxt-c1500-atx-v3-1-psu-reviewRead 15 October 2026Review published June 25, 2024 for the ATX v3.1 unit. Cybenetics tested it on May 14, 2024. Last checked 15 October 2026.
- Power
- 1,500W
- Efficiency
- 80 PLUS Platinum
- Modular cables
- Fully modular
- ATX version
- ATX 3.1
54 of 66 fields known.
At a glance
Efficiency at 115V
Higher than 97% of other power supplies.
Efficiency at 230V
Higher than 97% of other power supplies.
PCIe 8-pin connectors
6
Higher than 96% of other power supplies.
16-pin GPU connectors
2
Higher than 96% of other power supplies.
Hold-up time
Higher than 89% of other power supplies.
SATA power connectors
12
Higher than 84% of other power supplies.
General
- Model numbers
- PA-5P1BB-US, PA-5P1BB-EU, PA-5P1BB-UK, PA-5P1BB-JP, PA-5P1BB-AU1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Model Number row lists PA-5P1BB with the suffixes US, EU, UK, CN, JP and AU. The CN model is left out. The page gives a second AC rating of 200-240 Vac, 9 A next to the 100-240 Vac rating and does not say which model it belongs to. The AC input is not a variant field, so the CN model is not stored.
- GTIN / EAN
- 810074843720, 810074843737, 810074843744, 810074843751, 8100748437681Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026UPC row lists one UPC per model. NZXT also lists an EAN per model, which is not stored. The UPC of the CN model is left out with the model.
- Status
- Available1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026The page sells the unit at $369.99 in black.
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- From $369.991Maker product pagenzxt.com/products/c1500-platinumRead 15 October 20264Press articlekitguru.net/components/joao-silva/computex-2024-nzxt-unveils-new-h7-flow-c-series-atx-3-1-psus-and-f-series-fansRead 15 October 2026
- Launch price (EU)
- Not available
- Markets
- Not available
- Form factor
- ATX1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs: Form Factor ATX, 150 x 86 x 180 mm.
- PCIe CEM version
- PCIe 5.11Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Overview: ATX 3.1 and PCIe 5.1 compliance, with two 16-pin 12V-2x6 PCIe 5.1 cables.
- Modular cables
- Fully modular1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs and FAQ: fully modular.
Power
- Rated continuous power
- 1,500W1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs: Wattage 1500 W. DC Output Rating total: 1500 W on 115-240 Vac and 1300 W on 100-115 Vac. The rated continuous power stored is the 1500 W figure.
- Full power rated up to
- Not available
- 12V rail design
- Single rail3Reviewhwbusters.com/psus/nzxt-c1500-atx-v3-1-psu-reviewRead 15 October 2026Technical specifications: Number of 12V rails 1, 12V combined 1500W.
- +12V max current
- 125A1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026DC Output Rating: +12 V 125 A (1500 W).
- +12V max power
- 1,500W1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026DC Output Rating: +12 V 125 A (1500 W).
- +3.3V and +5V combined power
- 120W1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026DC Output Rating: +3.3 V and +5 V 22 A (120 W).
- +5V standby current
- 3A1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026DC Output Rating: 5VSB 3 A (15 W).
Certifications
- 80 PLUS rating
- 80 PLUS Platinum1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs: 80 PLUS Rating Platinum, 92% at 10% load, 94% at 20%, 93.8% at 50% and 90.8% at 100% load at 115 V. The 80 PLUS list agrees.7Certification listclearesult.com/80plus/sites/80plus/files/manufacturer-certificate/NZXT_PS-2203_1500W_SOCE%207208_Report.pdfRead 15 October 202680 PLUS ID 7208, model PS-2203, 1500W, test date 2023-10-26: Platinum at 115V, 92.52% at 10% load, 94.45% at 20%, 93.89% at 50% and 90.87% at 100%, rated input 100-240V 15-9A. These match NZXT's figures. The certificate prints no serial number (N/A), so the match is by the efficiency figures and input rating. The test date is earlier than the ATX 3.1 launch.
- Cybenetics efficiency at 115V
- Cybenetics Titanium1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Overview: Cybenetics Titanium efficiency, with no input voltage. The Cybenetics report shows Titanium at both voltages.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Report 24PS2444A, certification ID 252444, issued May 16, 2024. The ETA badges are the same images that other reports use for Titanium at 115V and 230V. Hardware Busters prints Titanium (91-93%) at 115V.
- Cybenetics efficiency at 230V
- Cybenetics Titanium1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Overview: Cybenetics Titanium efficiency, with no input voltage. The Cybenetics report shows Titanium at both voltages.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026ETA Titanium at 230V. Hardware Busters prints Titanium (93-95%) at 230V.
- Cybenetics noise at 115V
- A-1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Overview: Cybenetics A- noise level, with no input voltage. The Cybenetics report shows A- at both voltages.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026LAMBDA A- at 115V, read from the badge image. Hardware Busters prints A- (25-30 dB(A)).
- Cybenetics noise at 230V
- A-1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Overview: Cybenetics A- noise level, with no input voltage. The Cybenetics report shows A- at both voltages.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026LAMBDA A- at 230V, read from the badge image.
Measured
- Average efficiency at 115V (measured)
- 91.489%2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Average over more than 1450 load combinations at 115V. Tested May 14, 2024 on sample serial 5223BZ02800059, received May 7, 2024. Ambient 28-32 C. Semi-passive mode was selectable and not noted as off.
- Average efficiency at 230V (measured)
- 93.068%2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Average over more than 1450 load combinations at 230V.
- Light-load efficiency at 115V (measured)
- 70.675%2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
- Average power factor at 115V (measured)
- 0.9922Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Average over more than 1450 load combinations at 115V. At 230V it is 0.958.
- Average noise at 115V (measured)
- 25.4dB(A)2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is also 25.40 dBA.
- Noise at full load at 115V (measured)
- 36.2dB(A)2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Typical load tests at 115V, 100% load row: 36.2 dB(A) at 1206 rpm fan speed, 45.85 C intake. At 230V it is 36.1 dB(A) at 1202 rpm.
- Standby power with no load at 115V (measured)
- 0.0176W2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Standby power consumption at 115V with no load on +5VSB. At 230V it is 0.0761 W.
- Hold-up time (measured)
- 24.6ms2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 24.6 ms, AC loss to PWR_OK 22.5 ms, PWR_OK inactive to DC loss 2.1 ms, at maximum continuous load. The report names no input voltage.
- 12V ripple at full load (measured)
- 22.3mV2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 21.91 mV.
Cables and connectors
- Cables
Connector Connectors Cables Length to first plug (mm) Wire gauge Rated power (W) ATX 24-pin (20+4) 1 1 600 16-20AWG Not available CPU 8-pin (EPS, 4+4) 2 2 700 16AWG Not available PCIe 8-pin (6+2) 6 6 650 16AWG Not available 12V-2x6 2 2 650 Not available 600 SATA power 12 3 500 18AWG Not available 4-pin Molex 4 1 500 18AWG Not available Source1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Cable Length & Connector Quantity: 24-pin ATX 600 mm (1), 4+4-pin CPU 700 mm (1), 8-pin CPU 700 mm (1), 6+2-pin PCIe 650 mm (6), 16-pin (12+4) 12V-2x6 PCIe 650 mm (2), SATA 500 + 150 mm (12), peripherals 500 + 150 mm (4). The Inside the Box list gives 3 SATA cables and 1 peripherals cable. The overview says each 12V-2x6 cable can deliver over 600 watts. Gauges and the 150 mm spacing come from the Cybenetics report. The 4+4-pin and 8-pin CPU cables are one row of two cables, both 700 mm.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Cables and Connectors table: ATX 16-20AWG, 4+4 pin EPS12V 16AWG, 8 pin EPS12V 16AWG, 6+2 pin PCIe 16AWG, 12+4 pin PCIe (600W) 16-24AWG, SATA 18AWG, Molex 18AWG, no in-cable capacitors. SATA spacing is 500 mm + 145 mm x3, Molex 500 mm + 150 mm x3. The 16-24AWG range for the 12V-2x6 cable includes the thin sideband wires, so no gauge is stored for it.- CPU (EPS) connectors
- 2
- PCIe 8-pin connectors
- 6
- 16-pin GPU connectors
- 2
- SATA power connectors
- 12
- 4-pin Molex connectors
- 4
- Cable style
- Sleeved3Reviewhwbusters.com/psus/nzxt-c1500-atx-v3-1-psu-reviewRead 15 October 2026Box and bundle cable photo shows every cable in black mesh sleeving, including the SATA and peripheral cables.6Reviewocinside.de/review/nzxt_c1500Read 15 October 2026Scope of delivery lists the 24-pin, CPU, SATA and peripheral cables with nylon sleeving and the PCIe cables with a nylon jacket.
Fan
- Fan size
- 140mm1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Fan Specs: Size 140 mm, 2,500 +/- 10% RPM.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Cooling: 140mm Magnetic Levitation Bearing Fan (MFE0251VX-1Q010-S99), Sunon.
- Fan bearing
- Magnetic levitation1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Fan Specs: Bearing Magnetic levitation bearing.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Cooling: Magnetic Levitation Bearing Fan.
- Fan mode
- Semi-passive1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026FAQ: zero fan mode keeps the fan off until system load reaches 60%. The Cybenetics typical load test shows the fan stopped up to 50% load and at 619 rpm at 60%.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Semi-Passive Operation checked and selectable.
Protection and parts
- Protections
- Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP), Fan failure (FFP)1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Protections: OVP, UVP, SCP, OTP, OPP and OCP. The Cybenetics protection tests also show NLO, surge and inrush protection and fan failure protection working.2Measurementcybenetics.com/evaluations/psus/2444Read 15 October 2026Protection Features section: OCP on all rails, OPP, OTP, SCP on all rails, NLO checked, fan failure protection, surge protection by MOV and inrush protection by NTC thermistor and bypass relay. The report lists no OVP or UVP test.
Monitoring and lighting
We could not find any of these 4 fields. Show them
- Software monitoring
- Not available
- Software
- Not available
- Built-in power display
- Not available
- RGB lighting
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions
- Width150Height86Depth180mm(5.9 × 3.4 × 7.1 in)1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs: width 150 mm, height 86 mm, depth 180 mm.
In the box
- In the box
- C1500 Platinum ATX 3.1, AC Power Cord, Installation Accessories1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Inside the Box: C1500 Platinum ATX 3.1, 24-pin ATX, 4+4-pin CPU, 8-pin CPU, 6x 6+2-pin PCIe, 2x 16-pin (12+4) 12V-2x6, 3x SATA, a peripherals cable, AC Power Cord, Installation Accessories. The AC cord differs per region. KitGuru says it is a C19 cord.
Links
- Product page
- nzxt.com/products/c1500-platinum1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026
- Spec sheet
- Not available
- Manual
- Not available
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 10years1Maker product pagenzxt.com/products/c1500-platinumRead 15 October 2026Tech Specs: Warranty 10 years. The page is the US store.
Compare with
Pick a power supply to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Launch price (US) | Markets | Colours |
|---|---|---|---|---|
| PA-5P1BB-US | 810074843720 | $369.99 | US | Black |
| PA-5P1BB-EU | 810074843737 | Not available | EU | Black |
| PA-5P1BB-UK | 810074843744 | Not available | GB | Black |
| PA-5P1BB-JP | 810074843751 | Not available | JP | Black |
| PA-5P1BB-AU | 810074843768 | Not available | AU | Black |
Sources
We read 7 sources for this power supply. The numbers match the markers in the sheet.
- Maker product pagenzxt.com/products/c1500-platinum
- Measurementcybenetics.com/evaluations/psus/2444
See a wrong value? Tell us and name the field.
