PC parts / Power supplies

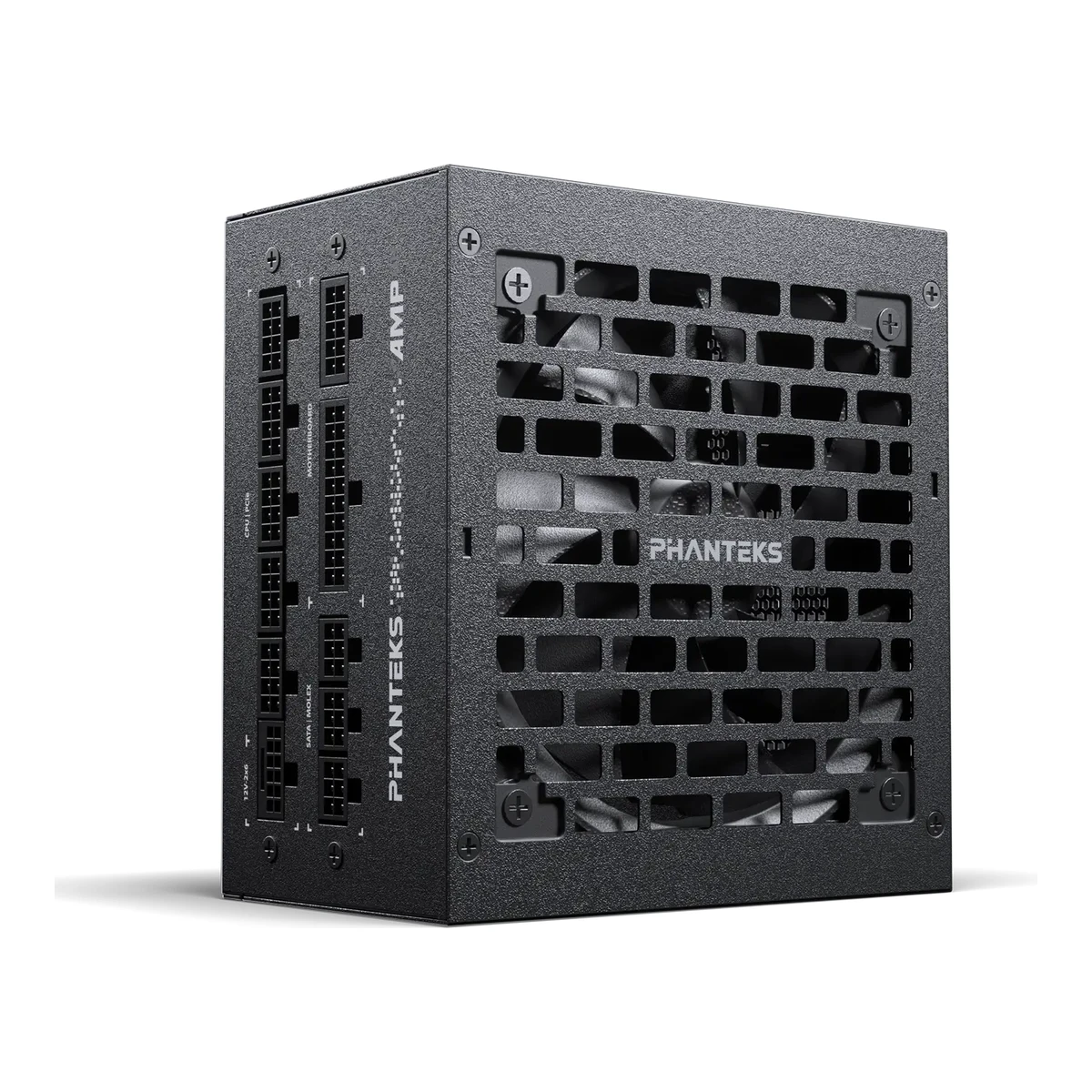

Phanteks AMP GH 850W

PhanteksPower supply

AMP GH 850W

Released July 2024.5Press releasephanteks.com/product-release-amp-gh-polar-stRead 16 October 2026Product release dated Wednesday July 17 2024 introduces the AMP GH. The page also prints Availability EU March 2024, which does not fit the July 2024 launch coverage and the Phanteks pre-order text copied by Hartware, so July 2024 is stored. Last checked 16 October 2026.

Power
850W
Efficiency
80 PLUS Gold
Modular cables
Fully modular
ATX version
ATX 3.1

38 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

  • SATA power connectors

    10

    Higher than 78% of other power supplies.

All specs

SourceCalculated

General

Series
AMP GH1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Page title: AMP GH, Fully Modular Power Supply, 850 W.
Model numbers
PH-P850GH_BK01, PH-P850GH_WT011Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Specifications: Model No. PH-P850GH_BK01 for the black unit. The white unit PH-P850GH_WT01 is on the white page. The manual and installation guide name the rating-label model PH-P850GH_01.2Maker product pagephanteks.com/product/amp-gh-white-850Read 16 October 2026Model No. PH-P850GH_WT01.
GTIN / EAN
886523510413, 886523510475, 886523510536, 886523510420, 886523510482, 8865235105431Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026UPC Code EU 886523510413, UK 886523510475, US 886523510536 for the black unit.2Maker product pagephanteks.com/product/amp-gh-white-850Read 16 October 2026UPC Code EU 886523510420, UK 886523510482, US 886523510543 for the white unit.8Retailer pagewatercoolinguk.co.uk/product/phanteks-amp-gh-850w-atx-3-1-pcie-5-1-80-plus-gold-modular-power-supplyRead 16 October 2026SKU POW-PHK-02519, EAN 886523510475, which is the UK UPC of the black unit.
Announced
Not available
Status
Available1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026The 850 W unit is on the current Phanteks product range, and UK retailers list it as in stock in October 2026.8Retailer pagewatercoolinguk.co.uk/product/phanteks-amp-gh-850w-atx-3-1-pcie-5-1-80-plus-gold-modular-power-supplyRead 16 October 2026Listed as in stock in October 2026 (37 in stock).
Predecessor
Not available
Successor
Not available
Launch price (US)
$119.996Press articlehartware.de/2024/07/17/phanteks-unveils-two-new-products-amp-gh-psus-and-polar-st-cpu-air-coolersRead 16 October 2026MSRP: AMP GH 850W GOLD Black $119.99 and White $129.99. The release does not say whether tax is included, and US prices are normally shown before tax.
Launch price (EU)
€119.96Press articlehartware.de/2024/07/17/phanteks-unveils-two-new-products-amp-gh-psus-and-polar-st-cpu-air-coolersRead 16 October 2026MSRP: AMP GH 850W GOLD Black EUR 119.90 and White EUR 129.90. The release names Europe and not a country.
Markets
Not available
Colours
Black, White1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Colors on the page: Black, White. The Color row of this page says Black.2Maker product pagephanteks.com/product/amp-gh-white-850Read 16 October 2026Color: White.
Form factor
ATX1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Specifications: Compact ATX size, 140 x 150 x 86 mm.
ATX version
ATX 3.11Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Platform: Intel ATX 3.1 | PCIe Gen5.1. Built to ATX 3.1 specifications.3Owner's manualphanteks.com/manuals/AMP_GH_Manual_v1.1.pdfRead 16 October 2026Cover page: ATX 3.1 platform.
PCIe CEM version
PCIe 5.11Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Platform: PCIe Gen5.1. Latest PCIe Gen 5.1 GPU cable technology with the 12V-2x6 connector.3Owner's manualphanteks.com/manuals/AMP_GH_Manual_v1.1.pdfRead 16 October 2026Cover page: PCIe Gen5.1 support.
Modular cables
Fully modular1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Back Plate: Fully Modular.3Owner's manualphanteks.com/manuals/AMP_GH_Manual_v1.1.pdfRead 16 October 2026Cover page: fully modular.
Built by (OEM)
Not available

Power

Rated continuous power
850W1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Power Output 850 Watt. DC Output 850W.
Full power rated up to
Not available
12V rail design
Single rail7Press articlekitguru.net/components/power-supplies/joao-silva/phanteks-unveils-compact-and-affordable-amp-gh-psusRead 16 October 2026Text: a single +12V rail design, active PFC and DC-to-DC switching. The maker output table lists one 12V column.
+12V max current
70A1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Output table: 12V maximum output 70A.
+12V max power
840W1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Output table: maximum capacity 840W under 12V. DC Output 850W for the whole unit.
+3.3V and +5V combined power
100W1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Output table: 5V 20A and 3.3V 20A share one 100W maximum capacity cell. The -12V 0.3A rail is 3.6W.
+5V standby current
2.5A1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Output table: 5VSB maximum output 2.5A, 12.5W.
AC input voltage
Lowest100Highest240V1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026AC Input 100-240V ~ 10A 50-60Hz.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026The box table prints AC input 100-240Vac 50-60Hz 10A. The spec table image in the review reads 200-240V, which is likely a misread of a low-resolution image, since the maker page and the box say 100-240V.
Alternative low power mode (ALPM)
Not available

Certifications

80 PLUS rating
80 PLUS Gold1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Specifications: 80 Plus Gold. This is the maker claim. The 80 PLUS list has an entry for the label model PH-P850GH_01 (ID 6800.2, Gold, tested 2022-04-11, input current 12-6 A), which the agent did not match to this unit, since the maker page prints 10 A. No entry for PH-P850GH_BK01 exists.
Cybenetics efficiency at 115V
Not available
Cybenetics efficiency at 230V
Not available
Cybenetics noise at 115V
Not available
Cybenetics noise at 230V
Not available

Measured

We could not find any of these 10 fields. Show them
Average efficiency at 115V (measured)
Not available
Average efficiency at 230V (measured)
Not available
Light-load efficiency at 115V (measured)
Not available
Average power factor at 115V (measured)
Not available
Average noise at 115V (measured)
Not available
Noise at full load at 115V (measured)
Not available
Standby power with no load at 115V (measured)
Not available
Hold-up time (measured)
Not available
12V ripple at full load (measured)
Not available
12V load regulation (measured)
Not available

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Rated power (W)
ATX 24-pin (20+4)11610Not available
CPU 8-pin (EPS, 4+4)22650Not available
PCIe 8-pin (6+2)33750Not available
12V-2x611720450
SATA power103450Not available
4-pin Molex21450Not available
Source1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026The page now prints Scope of Delivery, Cables, Textured: 1x 18+10-Pin Mainboard 600 mm, 2x 4+4-Pin CPU 700 mm, 3x 6+2-Pin PCI-E 750 mm, 1x 12V-2x6 720 mm, 1x 6-Pin 4-SATA 400 mm and 1x 6-Pin 2-SATA + 2-Molex 400 mm (120 mm spacing), with 6 CPU|PCIe and 4 SATA|Molex sockets. The retail box table of the 850W unit (photo in the XtremeHardware review), the installation guide and an earlier copy of this page in that review give 610, 650, 750, 720 and 450 mm and two 4-SATA cables plus one 2-SATA + 2-Molex cable, on 5 CPU|PCIe and 3 SATA|Molex sockets, which matches the Phanteks product render. The box and guide values are stored and the conflict with the current page text is noted for review. The 12V-2x6 cable is 450W on the page, the box and the review, while retailers print 600W.4Owner's manualphanteks.com/manuals/AMP_GH_Installation_Guide_v1.1.pdfRead 16 October 2026Cable table for the whole GH range: motherboard 24-pin 610 mm, CPU 4+4-pin 650 mm, PCIe 6+2-pin 750 mm, 12V-2x6 720 mm, SATA 4 plugs 450 mm with 150 mm spacing, SATA and Molex 2 and 2 plugs 450 mm. It says the amount of cables may vary by model, so the counts per cable type come from the retail box table of the 850W unit.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026The box photo of the 850W unit prints a cable table with cable number, connectors per cable and length: 24-pin 1 cable 610 mm, CPU 2 cables 650 mm, PCIe 6+2 3 cables 750 mm, 12V-2x6 1 cable 720 mm, SATA 2 cables with 4 plugs each (450 mm then 150 mm spacing), SATA and Molex 1 cable with 2 SATA and 2 Molex plugs (450 mm then 150 mm spacing). The text names the same cables and the maker spec table copy in the review shows 5 CPU|PCIe and 3 SATA|Molex sockets. The text puts the cable length between 610 mm and 750 mm. No wire gauge is given.
CPU (EPS) connectors
2
PCIe 8-pin connectors
3
16-pin GPU connectors
1
SATA power connectors
10
4-pin Molex connectors
2
Cable style
Sleeved9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026Text: every included cable has individually sleeved wires with a textured rubber coating that imitates a paracord sleeve. The bundle photo shows round, individually sleeved wires and no flat ribbon cables. The maker calls them individually textured cables. Stored as sleeved because none of flat, embossed or mixed fits.

Fan

Fan size
120mm1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Cooling Fan: 120 mm.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026120 mm fan inside the unit.
Fan bearing
Hydrodynamic (HDB)1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026The feature text says 120 mm Hydraulic Dynamic Bearing Fan and defines it as the hydraulic dynamic bearing (HDB). The Cooling Fan row says 120 mm Hydraulic bearing fan. HDB is stored as hydrodynamic.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026The fan is a Yate Loon D12SH-12 with the Hydraulic Dynamic Bearing system, 12V, 2200 RPM maximum.
Fan mode
Semi-passive1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Premium Hybrid Mode: operates completely fanless under 30% load.4Owner's manualphanteks.com/manuals/AMP_GH_Installation_Guide_v1.1.pdfRead 16 October 2026Step 06 Hybrid Fan Mode: unlocks the 0RPM fan speed when under 30% load.
Fan mode switch
Yes4Owner's manualphanteks.com/manuals/AMP_GH_Installation_Guide_v1.1.pdfRead 16 October 2026Step 06 Hybrid Fan Mode: it is turned on when the button is pressed in, and off when pressed again. The user can switch the semi-passive mode off.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026The rear panel has the AC inlet, the main power switch and a button that turns the hybrid mode on or off.

Protection and parts

Protections
Over-current (OCP), Over-voltage (OVP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO)1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Output Protection: OPP, OVP, UVP, SCP, OCP, OTP, No-Load Protection and Reset Protection. Reset protection has no option in the schema.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026Lists OPP, OVP, UVP, SCP, OCP, OTP, No-Load Protection and Reset Protection, copied from the maker.
All-Japanese capacitors
Not available
MTBF (claimed)
100,000h1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026MTBF > 100.000 hrs at 25 C (Excluding DC fan). Published with a greater-than sign.

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Width150Height86Depth140mm(5.9 × 3.4 × 5.5 in)1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Length x Width x Height 140 x 150 x 86 mm (5.5 x 5.9 x 3.4 in). Depth is 140 mm and the back face is 150 x 86 mm.
Weight
1.4kg(3.1 lb)1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Net Weight 1.40 kg (3.08 lbs). Gross Weight 3.20 kg is the packed weight and is not stored.

In the box

In the box
1x AMP GH power supply unit, 1x C13 Power cord 1500 mm, 1x User's manual, 1x PSU bag, 1x PSU tester, 1x Zip tie bag, 1x Screw pack, 1x Velcro pack, 1x Installation guide1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Scope of Delivery: power supply, C13 power cord 1500 mm, the cables, and an accessory box with PSU bag, PSU tester, zip tie bag, screw pack, velcro pack and installation guide. The AC cord differs per region.4Owner's manualphanteks.com/manuals/AMP_GH_Installation_Guide_v1.1.pdfRead 16 October 2026Accessories Included: user manual, installation guide, PSU bag, cable bag, ziptie bag, screw pack. The maker page lists the accessory box in more detail.9Reviewxtremehardware.com/recensioni/14837-phanteks-amp-gh-850-recensioneRead 16 October 2026Bundle list: power supply, cable set, velcro and plastic cable ties, 4 PSU screws, power cord and manuals. The copy of the maker spec table in the review lists an accessory box with a user's manual, installation guide, PSU bag, PSU tester, zip tie bag, screw pack and velcro pack.

Warranty

Manufacturer warranty (source market)
8years1Maker product pagephanteks.com/product/amp-gh-black-850Read 16 October 2026Specifications: Warranty 8 Years limited. The manual says terms may vary by region. A UK retailer prints 12 Months for its own listing.3Owner's manualphanteks.com/manuals/AMP_GH_Manual_v1.1.pdfRead 16 October 2026Cover page: 8 years warranty. Page 3: warranty terms may vary between geographic regions.7Press articlekitguru.net/components/power-supplies/joao-silva/phanteks-unveils-compact-and-affordable-amp-gh-psusRead 16 October 2026All models have a limited 8-year warranty.

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Launch price (EU)MarketsColours
PH-P850GH_BK01886523510413Not available€119.9EUBlack
PH-P850GH_BK01886523510475Not availableNot availableGBBlack
PH-P850GH_BK01886523510536$119.99Not availableUSBlack
PH-P850GH_WT01886523510420Not available€129.9EUWhite
PH-P850GH_WT01886523510482Not availableNot availableGBWhite
PH-P850GH_WT01886523510543$129.99Not availableUSWhite

Sources

We read 9 sources for this power supply. The numbers match the markers in the sheet.

  1. Read 16 October 2026Backs 28 fields
  2. Read 16 October 2026Backs 4 fields
  3. Read 16 October 2026Backs 5 fields
  4. Read 16 October 2026Backs 4 fields
  5. Read 16 October 2026Backs 1 field
  6. Read 16 October 2026Backs 4 fields
  7. Read 16 October 2026Backs 3 fields
  8. Read 16 October 2026Backs 3 fields
  9. Read 16 October 2026Backs 9 fields
