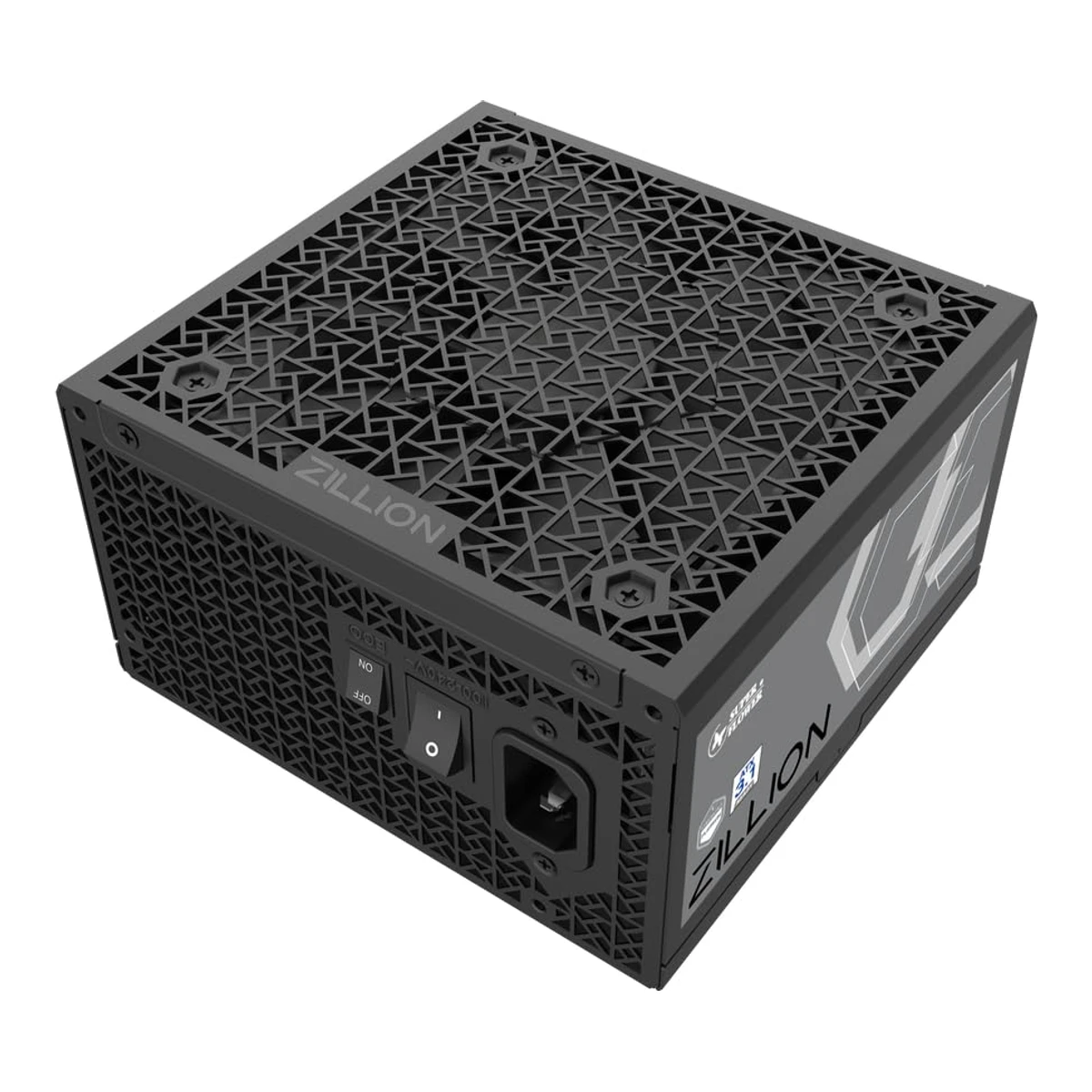

Super Flower Zillion FP 1000W

Super FlowerPower supply

Zillion FP 1000W

Released October 2025.3Press articlevgtimes.ru/news/136441-super-flower-predstavlyaet-platinovye-bloki-pitaniya-po-dostupnoy-cene.htmlRead 15 October 2026News report dated 2025-10-24 says Super Flower introduced the updated budget ZILLION Platinum series in 850 W and 1000 W with ATX 3.1, Cybenetics Platinum, Japanese capacitors, a 12V-2x6 connector and a 120 mm fan that stops at low load. The article does not use the code SF-1000Z12FP or the FP name. Cybenetics tested the 1000W in September 2025. US retail listings of the Zillion FP 1000W appear later, so the month is approximate. Last checked 16 October 2026.

Power
1,000W
Efficiency
Cybenetics Platinum
Modular cables
Fully modular
ATX version
ATX 3.1

43 of 66 fields known.

Compare with another power supplyDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
Zillion1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Title: Super Flower Zillion FP 1000W. The Zillion name is the product line and FP is the Platinum model suffix of the code Z12FP.
Model numbers
SF-1000Z12FP1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Item details: Model Name SF-1000Z12FP. The listing is for the Super Flower Store on Amazon US and has size options 850, 1000 and 1200 Watts under the Zillion FP name.
GTIN / EAN
Not available
Announced
Not available
Status
Available1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Amazon US listing for the 1000W with a best seller rank in Computer Power Supplies. Super Flower's own site lists no Zillion FP page, so no maker page was found.
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Black1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Title: Black Version.
Form factor
ATX1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Item details: Form Factor ATX, Output Wattage 1000 watts.
ATX version
ATX 3.11Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026About this item: Compliant with the ATX 3.1 standard. The product label also carries an ATX 3.1 Ready mark.2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Temperature and Compliance Info: ATX v3.1 PSU Power Excursion checked.
PCIe CEM version
PCIe 5.11Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026About this item: PCIe 5.1-ready. The title also says ATX 3.1 / PCIe 5.1 with a native 12V-2x6 cable.
Modular cables
Fully modular1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026About this item: Fully modular design.
Built by (OEM)
Zhong Yuan2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026DUT Information: OEM/ODM Zhong Yuan. Parts description: Manufacturer (OEM) Zhong Yuan. The report names the unit Zillion 1000W with no model code. See the match note on cybenetics_efficiency_115v.

Power

Rated continuous power
1,000W1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Item details: Output Wattage 1000 watts.
Full power rated up to
Not available
12V rail design
Single rail2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Power Specifications lists one +12V column at 83.3 A and the protection list has one Over Current (+12V) row, so the unit is single rail. The report does not use the word single.
+12V max current
83.3A2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Power Specifications: +12V 83.3 A. This is the rating printed in the Cybenetics report from the unit's label and not a maker document.
+12V max power
999.6W2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Power Specifications: +12V 999.6 W, total max power 1000 W.
+3.3V and +5V combined power
100W2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Power Specifications: +3.3V 20 A and +5V 20 A with one 100 W combined cell.
+5V standby current
3A2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Power Specifications: +5VSB 3 A, 15 W.
AC input voltage
Lowest100Highest240V2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026DUT Information: rated voltage 100-240 Vrms, rated current 6-12 Arms, 50-60 Hz. The rear panel label also reads 100-240V.
Alternative low power mode (ALPM)
Yes2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Temperature and Compliance Info: ALPM (Alternative Low Power Mode) compatible, checked.

Certifications

80 PLUS rating
Not available
Cybenetics efficiency at 115V
Cybenetics Platinum2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Report issued Sep 9, 2025, Lab ID SF10002951. The ETA level is Platinum at 115V in the Cybenetics performance database. The report names the unit Zillion 1000W and does not print the model code SF-1000Z12FP. It is matched to the Zillion FP 1000W by brand, wattage, Cybenetics Platinum level, 120mm FDB fan, semi-passive mode and 12V-2x6 cable, since the Zillion line has no other ATX 1000W model. It was tested in September 2025, before the FP name appeared at retailers.
Cybenetics efficiency at 230V
Cybenetics Platinum2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026The ETA level is Platinum at 230V in the Cybenetics performance database.
Cybenetics noise at 115V
A-2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026The LAMBDA level is A- at 115V in the Cybenetics performance database.
Cybenetics noise at 230V
A-2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026The LAMBDA level is A- at 230V in the Cybenetics performance database.

Measured

Average efficiency at 115V (measured)
90.231%2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Average over more than 1450 load combinations at 115V. Tested Sep 2, 2025, received Aug 21, 2025. The sample serial number is not printed. Ambient 28-32 C.
Average efficiency at 230V (measured)
91.951%2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Average over more than 1450 load combinations at 230V.
Light-load efficiency at 115V (measured)
66.75%2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Efficiency at 2% load (more than 500 W unit) at 115V.
Average power factor at 115V (measured)
0.982Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Average over more than 1450 load combinations at 115V.
Average noise at 115V (measured)
25.05dB(A)2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Average over more than 1450 load combinations at 115V. Ambient 28-32 C. Bruel and Kjaer 2270 G4 sound analyzer. The 230V average is 25.58 dBA.
Noise at full load at 115V (measured)
42.2dB(A)2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Typical load tests at 115V, 100% load row: 42.2 dB(A) at 1919 rpm fan speed, ambient about 30 C. At 230V it is 42.3 dB(A) at 1923 rpm.
Standby power with no load at 115V (measured)
0.0101W2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Standby power consumption at 115V with no load on +5VSB.
Hold-up time (measured)
23.3ms2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Hold-Up Time and PWR_OK Signal: hold-up time 23.30 ms, AC loss to PWR_OK 21.40 ms, PWR_OK inactive to DC loss 1.90 ms, at maximum continuous load. The report names no input voltage.
12V ripple at full load (measured)
46.95mV2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Non-accredited measurement. 12V ripple at full load at 115V. At 230V it is 42.63 mV.
12V load regulation (measured)
0.52%2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Non-accredited measurement. 12V load regulation at 115V. At 230V it is 0.53%.

Cables and connectors

Cables
ConnectorConnectorsCablesLength to first plug (mm)Wire gaugeRated power (W)
ATX 24-pin (20+4)1160018-20AWGNot available
CPU 8-pin (EPS, 4+4)2270018AWGNot available
PCIe 8-pin (6+2)3260016-18AWGNot available
12V-2x611600Not available600
SATA power6250018AWGNot available
4-pin Molex2150018AWGNot available
Source2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Cables and Connectors table: ATX 20+4 pin 600 mm 18-20AWG, 2 x 4+4 pin ATX12V 700 mm 18AWG, one 6+2 pin PCIe cable with 2 plugs (600 mm + 150 mm) at 16-18AWG and one 6+2 pin PCIe cable with 1 plug (600 mm) at 16AWG, 12+4 pin PCIe (600 W) 600 mm 16-26AWG, one SATA cable with 4 plugs (500 mm + 3 x 150 mm), one cable with 2 SATA plugs (500 mm + 150 mm) and 2 4-pin Molex plugs (+150 mm, +150 mm), all 18AWG. The PCIe gauge range covers both cables. The 16-26AWG range for the 12V-2x6 cable includes the thin sideband wires, so no gauge is stored for it. The report names the cable type as tinned copper. The cable table is for the sample tested. The rear panel photos show a 12V-2x6 socket, 5 CPU/PCI-E sockets and 4 SATA/PERIF sockets.
CPU (EPS) connectors
2
PCIe 8-pin connectors
3
16-pin GPU connectors
1
SATA power connectors
6
4-pin Molex connectors
2
Cable style
Embossed or debossed flat1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026About this item: Embossed ribbon cables to maximize flexibility. The title says Full Modular Embossed Cables.

Fan

Fan size
120mm2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Cooling: 120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z). The parts table names it Hong Hua HA1225M12F-Z, 12V, 0.45A.
Fan bearing
Fluid dynamic (FDB)1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Title: FDB Fan.2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Cooling: Fluid Dynamic Bearing fan.
Fan mode
Semi-passive2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Semi-Passive Operation checked and selectable. The typical load table shows the fan at 0 rpm from 10% to 30% load at 115V.
Fan mode switch
Yes1Retailer pageamazon.com/Zillion-Cybenetics-Platinum-Embossed-SF-1000Z12FP/dp/B0HB23BWS2Read 15 October 2026Listing photos of the rear panel show an ECO switch with ON and OFF positions next to the power switch. The Cybenetics report lists semi-passive operation as selectable.2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Semi-Passive Operation is listed as selectable.

Protection and parts

Protections
Over-current (OCP), Under-voltage (UVP), Over-power (OPP), Over-temperature (OTP), Short-circuit (SCP), No-load (NLO), Surge and inrush (SIP)2Measurementcybenetics.com/evaluations/psus/2951Read 15 October 2026Protection Features (Manufacturer) block: OPP, OCP (+12V), OTP, SCP, surge and inrush protection checked, fan failure protection not checked. The Protection Features tests show OCP on 12V, 5V, 3.3V and 5VSB, OPP, OTP, SCP, UVP (full load at 90V and no damage at 80V), NLO and SIP (surge MOV, inrush NTC and bypass relay) all working. The report has no OVP row, so OVP is not stored.
All-Japanese capacitors
Not available
MTBF (claimed)
Not available

Monitoring and lighting

We could not find any of these 4 fields. Show them
Software monitoring
Not available
Software
Not available
Built-in power display
Not available
RGB lighting
Not available

Dimensions and weight

We could not find any of these 2 fields. Show them
Dimensions
Not available
Weight
Not available

In the box

We could not find any of these 1 fields. Show them
In the box
Not available

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a power supply to see both side by side. Differences are marked yellow.

More power supply comparisons

Sources

We read 3 sources for this power supply. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 12 fields
  2. Read 15 October 2026Backs 29 fields
  3. Read 15 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
