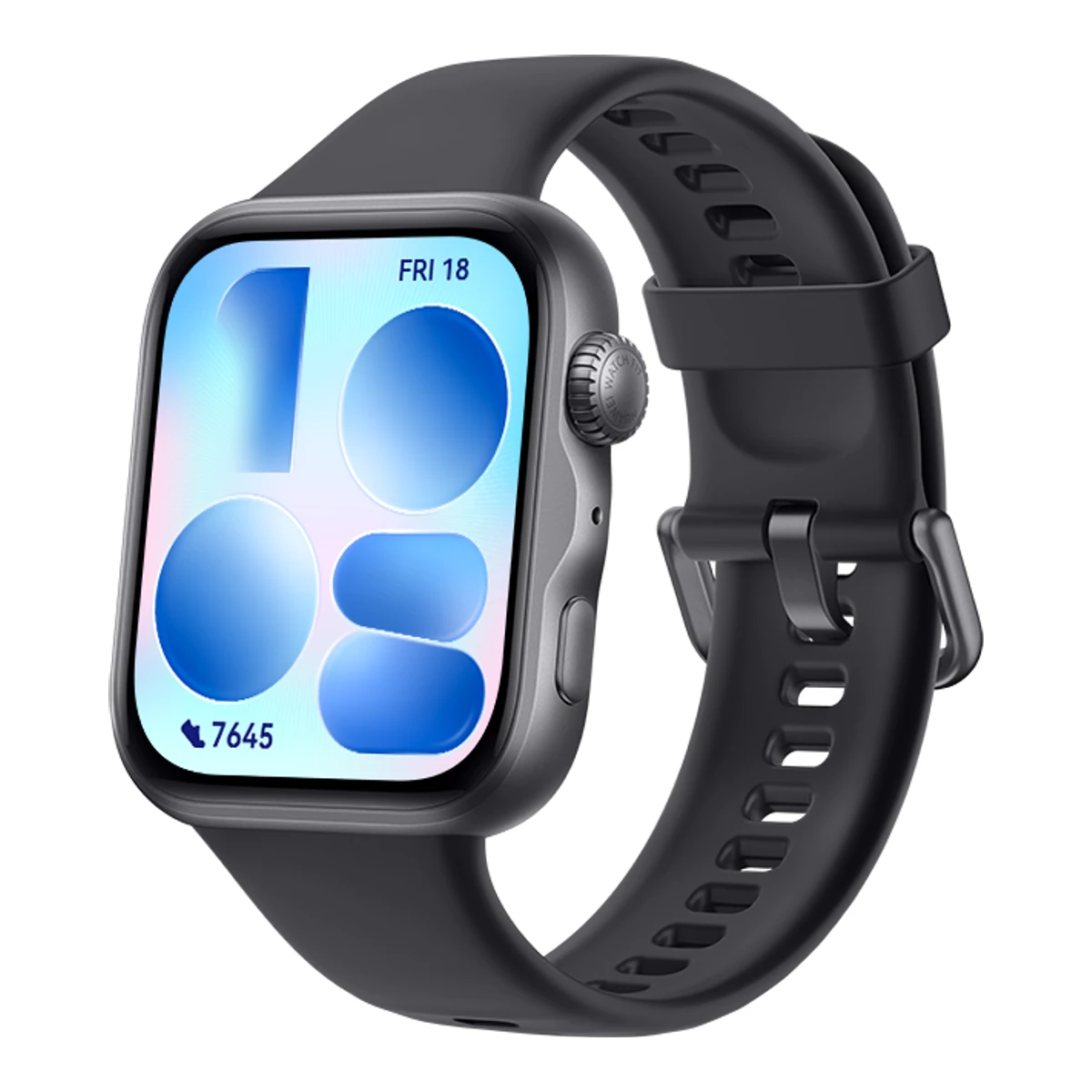

Watch Fit 5

Released May 2026.9 Last checked 23 October 2026.

Case size: Not available
Platform: HarmonyOS
Display type: OLED
Battery life: 168h

89 of 150 fields known.

Compare with another smartwatch Download JSON Download CSV Get it from the API

At a glance

Weight (case only)
27g1
Lower than 89% of other smartwatches. Lower is better.
Pixel density
347ppi1
Higher than 82% of other smartwatches.

All specs

SourceCalculatedHide missing

General

Series: HUAWEI WATCH FIT 5 Series3
Model numbers: NKI-B194
GTIN / EAN: 69421031896855
Announced: Not available
Status: Available5
Predecessor: Huawei Watch Fit 4 10
Successor: Not available
Launch price (US): Not available
Launch price (EU): €1996
Markets: GB5
Colours: Black5
Segment: Smartwatch1
OS updates promised: Not available
Security updates until: 22 April 20281 7

Case

Front and side, drawn to scale.

Case size: Not available
Case shape: Rectangular6
Case material: Aluminium1
Case material (as published): Aluminium alloy case1
Back: Not available
Case dimensions: Height42.9Width38.2Thickness9.5mm(1.7 × 1.5 × 0.4 in)1
Weight (case only): 27g(1 oz)1
Weight with strap: Not available

Durability

Water resistance: 5ATM1
Water resistance standard: ISO 22810:20101
Dust and water rating: IP6X1
Dive rating: Not available
Max dive depth: Not available
MIL-STD-810: Not available
MIL-STD-810 tests: Not available
Operating temperature: Min-20Max45°C1

Display

Display type: OLED1
Display type (as published): AMOLED1
Screen size: 1.82in(4.6 cm)1
Resolution: 408 × 480px1
Pixel density: 347ppi1
Display area: Not available
Touchscreen: Yes3
Max refresh rate: 60Hz6
Min refresh rate: Not available
Peak brightness: 2,500nits1
Minimum brightness: Not available
Always-on display: Yes1
Display cover: Other glass6
Display cover (as published): Aluminosilicate glass6

Platform

Platform: HarmonyOS6
OS at launch: HarmonyOS 6.16
Software: Not available
Latest OS: Not available
Works with: Android, iOS1
Phone requirement: Android 9.0 or later, or iOS 13.0 or later, with HUAWEI Health1
App store: Yes3
Voice assistants: AI Voice3
Chipset: Not available
Process: Not available
CPU cores: Not available
CPU configuration: Not available
Max CPU clock: Not available
GPU: Not available
Low-power coprocessor: Not available

Memory

RAM: Not available
Storage: 64GB2 5

Health sensors

Heart rate sensor: Optical heart rate sensor1 6
ECG capability: No3
Blood oxygen sensing: Yes2
Skin temperature sensing: Not available
Blood pressure feature: Not available
Body composition sensor: Not available
Skin conductance (EDA): Not available
Medical clearances: Not available

Motion and environment sensors

Accelerometer: Yes1
Accelerometer range: 32G5
Gyroscope: Yes1
Barometric altimeter: Yes1
Compass: Yes1
Ambient light sensor: Yes1
Depth gauge: No6
Depth gauge range: Not available
Water temperature sensor: Not available

Health and fitness

Health features: Continuous heart rate, Heart rate alerts, Irregular rhythm notifications, Blood oxygen app, Heart rate variability, Sleep tracking, Sleep stages, Stress tracking, Cycle tracking2 3
Fitness features: Automatic workout detection, VO2 max, Training load, Recovery advice, Running power, Route navigation2 3
Sport profiles: Not available
Dive modes: Not available
External sensors: Heart rate strap, Power meter, Speed and cadence3

Safety

Fall detection: Yes3
Car crash detection: Not available
Emergency SOS: Yes3
Emergency siren: Not available
Live location sharing: Not available
Dedicated LED flashlight: Not available

Positioning

Positioning: GPS (L1 + L5), GLONASS, BeiDou (B1I + B1C + B2a), GALILEO (E1 + E5a), QZSS (L1 + L5), NavIC1
Dual-band GNSS: Yes1
Offline maps: Yes3

Connectivity

Bluetooth: Yes1
Bluetooth version: 6.01
Wi-Fi: Yes4
Wi-Fi standard: Not available
Wi-Fi bands: 2.4 GHz4
Cellular: No6
Network: Not available
4G bands: Not available
5G bands: Not available
NFC: Yes1
Contactless payments: Yes2
Payment services: Curve Pay2
Ultra-wideband: Not available
Satellite: Not available
ANT+: Not available

Audio

Speaker: Yes1
Microphones: 13
Calls on the watch: Phone only3
Music on the watch: Yes3

Controls

Buttons: 13
Named operating buttons: Down button3
Crown: Rotating3
Rotating bezel: Not available
Gestures: Not available

Battery and charging

Battery capacity: 471mAh6
Claimed battery life: Mode With solar Hours (h)
Light use No 240
Smartwatch No 168
Always-on No 96
Source1
Smartwatch mode (claimed): 168h
AOD battery life (up to): 96h
GPS mode (claimed): Not available
Solar charging: Not available
Charging method: Magnetic puck3
Charging guidance: External supply requirement: 5–10 V DC/2 A. Nominal full charge takes 75 minutes using a 10 V/2 A Huawei adapter and the supplied second-generation Wireless SuperCharger. The mains adapter is separate. Keep the cradle within 0–45°C. Computer, dock and multi-port USB sources may charge slowly or fail.2 3 4 8
Max charging power (watch): Not available
Fast charging: Yes2
Quick charge claim: Not available
Charge 0 to 80% (claimed): Not available
Full charge time (claimed): 75min2 5

Mode	With solar	Hours (h)
Light use	No	240
Smartwatch	No	168
Always-on	No	96

Measured

We could not find any of these 4 fields. Show them

Peak brightness (measured): Not available
Battery life (measured): Not available
Battery tests (measured): Not available
Full charge time (measured): Not available

Strap

Lug width: Not available
Quick-release strap: Yes3
Strap system: Not available
Strap material: Fluoroelastomer1
Strap: Black Fluoroelastomer Strap1
Strap sizes: Size Wrist (min) (mm) Wrist (max) (mm)
Black 130 210
Source1

Size	Wrist (min) (mm)	Wrist (max) (mm)
Black	130	210

Regulatory

FCC ID: Not available
SAR limb (US): Not available
SAR limb (EU): 0.37W/kg4
Other certifications: EU RED 2014/53/EU conformity, RoHS 2011/65/EU conformity, ErP 2009/125/EC conformity, UK PSTI 2023 security compliance4

In the box

In the box: HUAWEI WATCH FIT 5 with Black Fluoroelastomer Strap, Charging cradle with charging cable, Quick Start Guide, Safety Information and Warranty Card1
Power adapter in box: No1 8
