TV and audio / Soundbars

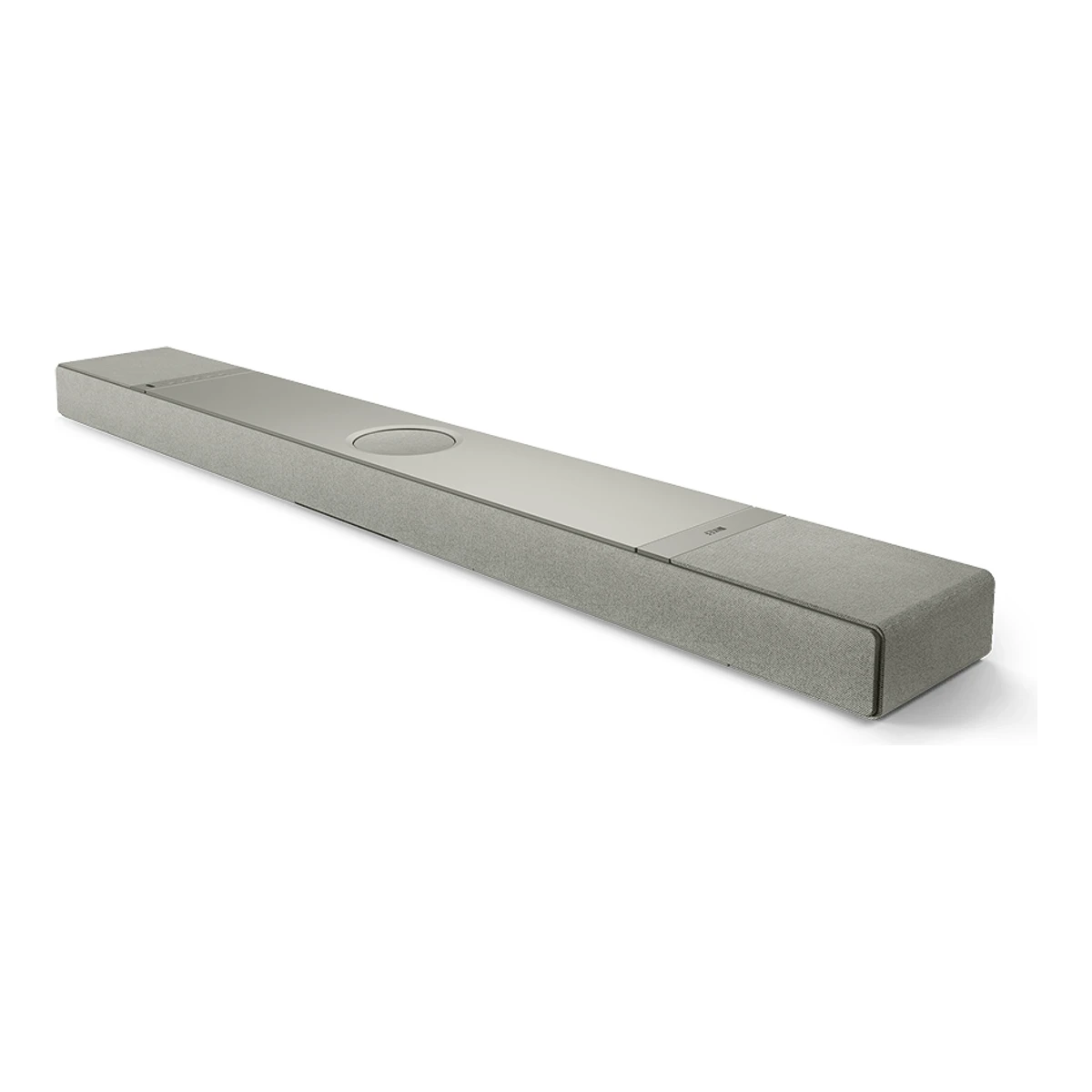

KEF XIO

KEFSoundbar

XIO

Released July 2025.8Reviewtechradar.com/televisions/soundbars/kef-xio-reviewRead 15 October 2026TechRadar: KEF launched the XIO in July 2025 in markets including the UK and US. What Hi-Fi? published its review on 8 July 2025 and lists the launch prices. Last checked 16 October 2026.

System channel configuration
5.1.2
Dolby Atmos
Yes
Separate subwoofer included
No
HDMI eARC
Yes

65 of 98 fields known.

Compare with another soundbarDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI 2.1 eARC
  • Optical
  • Ethernet
  • USB-C
  • Subwoofer
  • AC power

All specs

SourceCalculated

Audio system

System channel configuration
5.1.21Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Product title and spec table: 5.1.2, up to 5.1.2 output channels.
Physical drivers in the package
121Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026All drivers are in the bar. No subwoofer or rear speakers are supplied.
Physical drivers in the bar
121Maker product pageus.kef.com/products/xio-soundbarRead 15 October 20266 Uni-Q MX plus 2 full-range plus 4 P185 drivers. Each Uni-Q MX counts once, as KEF counts it. KEF also states 12 Class D amplifier channels, 8 for the HF/MF drivers and 4 for the P185 drivers.
Up-firing drivers in the package
21Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Page: two Uni-Q MX drivers support the two overhead channels. A third Uni-Q MX on the top face is used only when the bar is wall mounted. Three reviews describe this. The count is the two overhead drivers in the standard shelf position.5Maker spec sheet (PDF)images.salsify.com/image/upload/s--BaxUJ50x--/490b1abdf40cac67829ed9c59a357e1827c56377.pdfRead 15 October 2026Brochure: two Uni-Q MX drivers dedicated to the overhead channels complete the 5.1.2 layout.9Reviewwhathifi.com/tv-home-cinema/soundbars/kef-xioRead 15 October 2026Review: three Uni-Q MX drivers sit on the top. The centre one is used only when the bar is wall mounted.
Driver layout
ComponentDriver typeCountDiameter (mm)Orientation
SoundbarUni-Q MX coaxial driver650Three front-facing and three top-facing on a shelf. One top-facing driver is used only when the bar is wall mounted.
SoundbarFull-range driver250Not available
SoundbarP185 racetrack bass driver with VECO4Not availableTwo opposed pairs in a force-cancelling layout
Source1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: 6 x 50 mm Uni-Q MX drivers, 2 x 50 mm full-range drivers and 4 P185 racetrack bass drivers of 50 x 180 mm with VECO. The racetrack driver has no round diameter, so none is stored. Orientation comes from the reviews listed below.9Reviewwhathifi.com/tv-home-cinema/soundbars/kef-xioRead 15 October 2026Review: three Uni-Q MX face forward and three sit on top. The four P185 drivers form two pairs facing opposite directions. T3 says two drivers fire upward on a shelf. StereoNET says five of the six Uni-Q MX work at one time.
Separate subwoofer included
No4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026No subwoofer is in the box. The bar has an RCA output and a wireless output for an optional subwoofer.
Included subwoofer connection
Not available
Included subwoofer driver diameter
Not available
Rear speakers included
04Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026No rear speakers are in the box.
Included rear speaker connection
Not available
Detachable rear speakers
No4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026The bar is one piece. A wireless surround feature with KEF speakers is announced for a later firmware update.
Compatible optional subwoofers
Not available
Compatible optional rear speakers
Not available
Total RMS audio output power
Not available
Total peak audio output power
820W1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026EU spec table: 820 W instantaneous total power rating. No RMS figure is published. The US page does not show the amplifier row.
Published frequency response lower limit
34Hz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: 34 Hz to 20 kHz at plus or minus 3 dB, measured at 85 dB at 1 m.
Published frequency response upper limit
20kHz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Same row as the lower limit.

Audio formats

Dolby Atmos
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table lists Dolby Atmos.
DTS:X
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table lists DTS:X.
Supported audio formats
Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS:X, Sony 360 Reality Audio, MPEG-H, LPCM1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table lists Dolby Atmos, DTS:X, 360 Reality Audio, MPEG-H and LPCM. The FAQ also names Dolby TrueHD and Dolby Digital Plus over eARC when the TV supports them.
Audio formats by connection
ConnectionFormatMax input channels
HDMI eARC5.1 Surround (compressed)6
HDMI eARC5.1 Surround (uncompressed)6
HDMI eARCDolby AtmosNot available
HDMI eARCDTS:XNot available
HDMI eARCSony 360 Reality AudioNot available
HDMI eARCMPEG-HNot available
HDMI ARC5.1 Surround (compressed)6
HDMI ARCDolby AtmosNot available
HDMI ARCMPEG-HNot available
Optical5.1 Surround (compressed)6
Network5.1 Surround (compressed)6
NetworkDolby AtmosNot available
NetworkDTS:XNot available
NetworkSony 360 Reality AudioNot available
NetworkMPEG-HNot available
Source4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 11.1 Compatibility with XIO (printed page 90). Optical: compressed 5.1 only. HDMI eARC: compressed and uncompressed 5.1, Dolby Atmos, DTS:X, Sony 360 Reality Audio and MPEG-H. HDMI ARC: compressed 5.1, Dolby Atmos and MPEG-H. Wireless: compressed 5.1 and all four object formats. The wireless column is stored as the network connection. Compatibility depends on the source and the content. A 5.1 layout has 6 channels. The table gives no channel count for the object formats.
Music file formats
FLAC, WAV, AIFF, ALAC, AAC, WMA, MP3, M4A, LPCM, Ogg Vorbis1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: FLAC, WAV, AIFF, ALAC, AAC, WMA, MP3, M4A, LPCM and Ogg Vorbis. Playback runs over the network and depends on the source device.
Max wired audio sample rate
192kHz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: HDMI eARC up to 192 kHz and 24 bit. Optical is limited to 96 kHz and 24 bit.
Max music file sample rate
384kHz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: network up to 384 kHz and 24 bit, depending on the source resolution.
Max wired audio bit depth
24bits1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Same row as the eARC sample rate. All routes are 24 bit.
Max music file bit depth
24bits1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Network route, 24 bit.

Connectivity

Ports on the bar
ConnectorCountVersionRole
HDMI12.1 eARCHDMI eARC and ARC connection to the TV. There is no HDMI input.
Optical1Not availableTOSLINK digital audio input
Ethernet1Not availableRJ45 network port
USB-C1Not availableService port
Subwoofer1Not availableRCA subwoofer output
AC power1Not availableAC power input
Source1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Inputs: HDMI 2.1 eARC, TOSLINK optical, USB Type C for service and RJ45 Ethernet. Outputs: wireless subwoofer output and RCA subwoofer output. The wireless output is a radio link to the KW2 RX receiver and not a connector. The back panel photo in the manual also shows the AC input.4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Quick start guide back panel: reset button, Bluetooth pairing button, IPT switch, power switch, service port, subwoofer output, optical input, AC input, HDMI eARC input and network port.
HDMI ARC
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026
HDMI eARC
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: HDMI 2.1 eARC. The same port also carries ARC.
HDMI-CEC
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 6.1: turn on HDMI CEC in the TV settings.
HDMI video passthrough
No4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026The only HDMI connector is the eARC and ARC connection to the TV. FAQ 8: the HDMI port is for connecting to a TV and not for sources.
Video passthrough modes
Not available
HDR passthrough formats
Not available
VRR passthrough
Not available
ALLM passthrough
Not available
HDCP version
Not available
Bluetooth audio input
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026
Bluetooth version
5.31Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: Bluetooth 5.3. No codec list is published.
Bluetooth audio codecs
Not available
Wi-Fi
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026
Wi-Fi standard
802.11a/b/g/n/ac/ax1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: IEEE 802.11a/b/g/n/ac/ax. The manual router requirements list 802.11a/b/g/n/ac. The spec table is used.
Wi-Fi bands
2.4 GHz, 5 GHz, 6 GHz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: 2.4 GHz, 5 GHz and 6 GHz.
Built-in Ethernet speed
Not available

Streaming and control

Streaming protocols
AirPlay 2, Google Cast, Spotify Connect, Tidal Connect, UPnP, QPlay1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: KEF Connect, AirPlay, Google Cast, UPnP and Bluetooth. Streaming services: Spotify via Spotify Connect, Tidal via Tidal Connect and QQ Music via QPlay. The features list names multiroom through AirPlay 2 and Google Cast.
Voice assistants
Siri, Google Assistant4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 7.4: Siri controls playback while an iOS device streams to the XIO. Google Assistant does the same for an Android device. The bar has no built-in assistant and What Hi-Fi? lists no voice control.
Built-in microphone
Yes9Reviewwhathifi.com/tv-home-cinema/soundbars/kef-xioRead 15 October 2026Review: built-in microphones allow the XIO to measure the room and detect walls and furniture. Tom's Guide and T3 also mention built-in microphones. The maker pages do not state a microphone.
Microphone mute control
Not available
Companion apps
KEF Connect4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026The KEF Connect app sets up and controls the bar.
Companion app platforms
iOS, Android4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 4.4.1: KEF Connect for iOS 14 or above and Android 10 or above.
Multiroom audio
Yes1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Features list: multiroom via AirPlay 2 and Google Cast. TechRadar says the bar has no multiroom option. The maker and the manual say it has.4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 7.3 Multi-Room Streaming: AirPlay and Google Cast groups.
Remote included
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026In the Box: remote control with two AAA batteries.

Sound processing

Sound modes
Default, Music, Movie, Night, Dialogue, Direct4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 10.4.5 sound profiles: Default, Music, Movie, Night, Dialogue and Direct. The remote has two sound profile buttons that default to Dialogue and Night.
Automatic room calibration
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 10.4.2 Calibrate with IPT: it adjusts the EQ to the listening environment in about 45 seconds. The app also asks for the soundbar height and the room size.
Room calibration system
Intelligent Placement Technology (IPT)4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 10.4.2 names Intelligent Placement Technology.
Dialogue enhancement
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Dialogue sound profile: it emphasises vocal frequencies and reduces background noise.
Night mode
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Night sound profile: it compresses the dynamic range for quiet listening.
Equalizer controls
Treble trim, Bass extension, High-pass frequency, Subwoofer low-pass frequency, Subwoofer gain4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 10.4.4 Expert Mode: Treble Trim minus 3.0 to plus 3.0 dB, Bass Extension Less, Standard or Extra, High-Pass Frequency 50 to 120 Hz, Sub Out Low-Pass Frequency 40 to 250 Hz and Sub Gain minus 3.0 to plus 3.0 dB.
TV speaker integration
Not available

Power

Published operating power
400W1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026US spec table: 400 W maximum operating power. The EU page says 401 W. The manual says 400 W and is used. Idle power is 20 W.
Published standby power
0.45W4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 15.5: Non wireless mode standby 0.45 W with HDMI auto wake-up. The spec table says under 0.5 W for Non Wi-Fi mode. The same section lists Non Wi-Fi mode standby as 1.5 W, so the 0.45 W row is used as the bar with all radios off.
Published networked standby power
1.8W4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 15.5: ECO Standby (Network Standby) 1.8 W. The spec table says under 2.0 W. Standby with high power is 3 W.
Power supply
AC 100-240 V, 50/60 Hz1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: power input 100-240 V AC, 50/60 Hz.
Detachable rear battery life
Not available
Detachable rear charge time
Not available

Measured

We could not find any of these 8 fields. Show them
Low-frequency extension (measured)
Not available
High-frequency extension (measured)
Not available
Max sound pressure (measured)
Not available
Frequency response deviation (measured)
Not available
Measured latency
Not available
Operating power (measured)
Not available
Standby power (measured)
Not available
Soundbar weight (measured)
Not available

Dimensions and weight

Front and side, drawn to scale.

Soundbar dimensions
Width1,210Height70Depth165mm(47.6 × 2.8 × 6.5 in)1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: 70 x 1210 x 165 mm (H x W x D), 2.8 x 47.6 x 6.5 inches.
Soundbar weight
10,500g(23.1 lb)1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Spec table: 10.5 kg (23.1 lbs).
Component dimensions and weight
Not available
Package dimensions
Not available
Package weight
Not available
Wall mountable
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Section 4.6: wall mounting with the supplied template and brackets. The bar can also stand on a TV cabinet.

In the box

In the box
XIO soundbar, Remote control, AAA batteries, HDMI cable (2 m), Power cable (2 m), Wall mounting template, Wall mounting kit, Printed materials4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026In the Box (printed page 7): XIO, remote control, AAA batteries, printed materials, HDMI cable (2 m), power cable (2 m), wall mounting template and wall mounting kit. The kit drawing shows two small parts, each marked x4.
Wall mount hardware included
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026Wall mounting template and wall mounting kit are in the box.5Maker spec sheet (PDF)images.salsify.com/image/upload/s--BaxUJ50x--/490b1abdf40cac67829ed9c59a357e1827c56377.pdfRead 15 October 2026Brochure: the soundbar includes a wall-mount kit as a default feature.
HDMI cable included
Yes4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026HDMI cable of 2 m is in the box.
Optical cable included
No4Owner's manualimages.salsify.com/image/upload/s--yy9XvVWq--/aac3398ff8d2a938345e79dd74360807b5aeffa0.pdfRead 15 October 2026No optical cable appears in the In the Box page.

General

Series
Not available
Model numbers
SP4083M0AA, SP4083B0AA, SP4083M0BA, SP4083B0BA, SP4083M0CA, SP4083B0CA1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026US store lists SP4083M0CA for Silver Grey and SP4083B0CA for Slate Black. The UK store lists the BA models and the EU store the AA models. All six are stored.2Maker product pageuk.kef.com/products/xio-soundbarRead 15 October 2026UK store lists SP4083M0BA and SP4083B0BA.3Maker product pageeu.kef.com/products/xio-soundbarRead 15 October 2026EU store lists SP4083M0AA and SP4083B0AA.
GTIN / EAN
637203051142, 637203051210, 637203051159, 637203051227, 637203051166, 6372030512341Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026Barcodes (gtin12) from the page data of each store. US 637203051166 (Silver Grey) and 637203051234 (Slate Black). UK 637203051159 and 637203051227. EU 637203051142 and 637203051210.2Maker product pageuk.kef.com/products/xio-soundbarRead 15 October 2026UK barcodes 637203051159 (Silver Grey) and 637203051227 (Slate Black).3Maker product pageeu.kef.com/products/xio-soundbarRead 15 October 2026EU barcodes 637203051142 (Silver Grey) and 637203051210 (Slate Black).
Announced
8 July 20256Press articlecepro.com/news/xio-soundbar-from-kef-complements-modern-smart-home-living/619921Read 15 October 2026CEPro article of 8 July 2025 reports the new XIO soundbar from KEF. UK early access for members started the same day.
Status
Available1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026The product page is live in every store and lists a price.
Predecessor
Not available
Successor
Not available
Launch price (US)
$2,499.991Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026US page shows 2,499.99 USD, no tax included. This matches the launch price in July 2025 trade coverage. See the CEPro source.6Press articlecepro.com/news/xio-soundbar-from-kef-complements-modern-smart-home-living/619921Read 15 October 2026Article quotes KEF: available for a retail price point of 2,499.99 USD. US price, tax not stated.
Launch price (EU)
€2,2993Maker product pageeu.kef.com/products/xio-soundbarRead 15 October 2026EU and German stores show 2,299 EUR including VAT. The launch price is confirmed by the hifi.de test source below.7Reviewhifi.de/test/kef-xio-test-236581Read 15 October 2026hifi.de test of 9 July 2025 gives the manufacturer's recommended price of 2,299 EUR. Germany, VAT included.
Markets
US, GB, EU1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026US, UK and EU KEF stores sell the XIO. Other regions may exist and are not stored.2Maker product pageuk.kef.com/products/xio-soundbarRead 15 October 2026UK store, price 1,999 GBP. No GBP price field exists in the schema.3Maker product pageeu.kef.com/products/xio-soundbarRead 15 October 2026EU store, priced in euro. The German store shows the same models and price.
Colours
Silver Grey, Slate Black1Maker product pageus.kef.com/products/xio-soundbarRead 15 October 2026US and UK stores name the colours Silver Grey and Slate Black. The EU store adds (EU) to each name.2Maker product pageuk.kef.com/products/xio-soundbarRead 15 October 2026UK store names the colours Silver Grey and Slate Black.3Maker product pageeu.kef.com/products/xio-soundbarRead 15 October 2026EU store names the colours Silver Grey (EU) and Slate Black (EU).

Warranty

We could not find any of these 1 fields. Show them
Manufacturer warranty (source market)
Not available

Compare with

Pick a soundbar to see both side by side. Differences are marked yellow.

More soundbar comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)Launch price (EU)MarketsColours
SP4083M0AA637203051142Not available€2,299EUSilver Grey
SP4083B0AA637203051210Not available€2,299EUSlate Black
SP4083M0BA637203051159Not availableNot availableGBSilver Grey
SP4083B0BA637203051227Not availableNot availableGBSlate Black
SP4083M0CA637203051166$2,499.99Not availableUSSilver Grey
SP4083B0CA637203051234$2,499.99Not availableUSSlate Black
