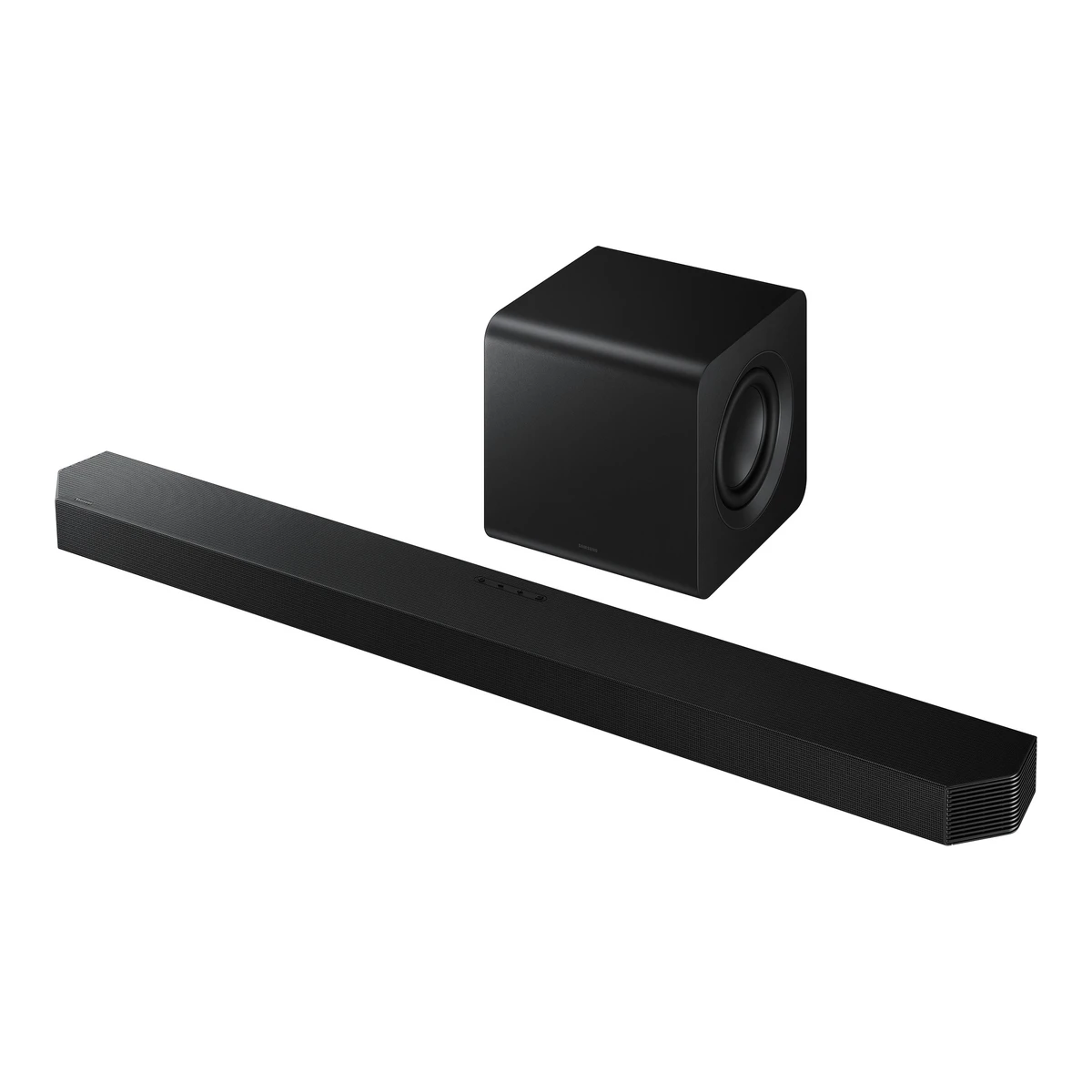

HW-Q800H

Released April 2026.1 Last checked 23 October 2026.

64 of 98 fields known.

At a glance

SourceCalculatedHide missing

System channel configuration: 5.1.22
Physical drivers in the package: 112
Physical drivers in the bar: Not available
Up-firing drivers in the package: Not available
Driver layout: Component Driver type Count Diameter (mm) Orientation
Subwoofer Active woofer 1 165.1 Side-firing
Source4
Separate subwoofer included: Yes2
Included subwoofer connection: Wireless2
Included subwoofer driver diameter: 165.1mm4
Rear speakers included: 02
Included rear speaker connection: Not available
Detachable rear speakers: No5
Compatible optional subwoofers: Not available
Compatible optional rear speakers: SWA-9500S4
Total RMS audio output power: Not available
Total peak audio output power: Not available
Published frequency response lower limit: Not available
Published frequency response upper limit: Not available

Component	Driver type	Count	Diameter (mm)	Orientation
Subwoofer	Active woofer	1	165.1	Side-firing

Dolby Atmos: Yes2
DTS:X: Not available
Supported audio formats: Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, LPCM, Eclipsa Audio2
Audio formats by connection: Connection Format
HDMI input Dolby Atmos
HDMI eARC Dolby Atmos
Network Dolby Atmos
Source5
Music file formats: MP3, AAC, OGG, FLAC, WAV, ALAC, AIFF2
Max wired audio sample rate: Not available
Max music file sample rate: Not available
Max wired audio bit depth: Not available
Max music file bit depth: Not available

Ports on the bar: Connector Count Role
HDMI 1 Audio and video input
HDMI 1 Video output to TV and eARC/ARC audio input
Optical 1 Digital audio input
USB-A 1 SERVICE firmware update
AC power 1 Soundbar AC power input
Source5
HDMI ARC: Yes2
HDMI eARC: Yes2
HDMI-CEC: Yes2
HDMI video passthrough: Yes2
Video passthrough modes: Width (px) Height (px) Refresh rate (Hz)
3840 2160 60
Source2
HDR passthrough formats: HDR10+2
VRR passthrough: Not available
ALLM passthrough: Not available
HDCP version: Not available
Bluetooth audio input: Yes2
Bluetooth version: 5.32
Bluetooth audio codecs: SBC5
Wi-Fi: Yes2
Wi-Fi standard: Not available
Wi-Fi bands: 5 GHz5
Built-in Ethernet speed: Not available

Connector	Count	Role
HDMI	1	Audio and video input
HDMI	1	Video output to TV and eARC/ARC audio input
Optical	1	Digital audio input
USB-A	1	SERVICE firmware update
AC power	1	Soundbar AC power input

Width (px)	Height (px)	Refresh rate (Hz)
3840	2160	60

Streaming protocols: AirPlay, Google Cast, Spotify Connect, Tidal Connect, Roon Ready2
Voice assistants: Amazon Alexa, Google Assistant3
Built-in microphone: Yes5
Microphone mute control: Yes5
Companion apps: Samsung Sound, SmartThings3
Companion app platforms: Android, iOS3
Multiroom audio: Yes5
Remote included: Yes2

We could not find any of these 8 fields. Show them

Front and side, drawn to scale.

Soundbar dimensions: Width1,110.7Height60.4Depth120mm(43.7 × 2.4 × 4.7 in)2
Soundbar weight: 5,100g(11.2 lb)2
Component dimensions and weight: Component Width (mm) Height (mm) Depth (mm) Weight (g)
Subwoofer 249 251.8 249 7,200
Source2
Package dimensions: Width1,182Height404Depth291mm(46.5 × 15.9 × 11.5 in)2
Package weight: 15,300g(33.7 lb)2
Wall mountable: Yes5

Component	Width (mm)	Height (mm)	Depth (mm)	Weight (g)
Subwoofer	249	251.8	249	7,200

In the box: Soundbar, Wireless subwoofer, Remote control, 2 power cables, HDMI cable, Wall-mounting guide, 2 holder screws, 2 M4 x L10 screws, 2 wall-mounting brackets, 4 rubber feet, User manual5 7
Wall mount hardware included: Yes2
HDMI cable included: Yes7
Optical cable included: No5
