TV and audio / Soundbars
SennheiserSoundbar

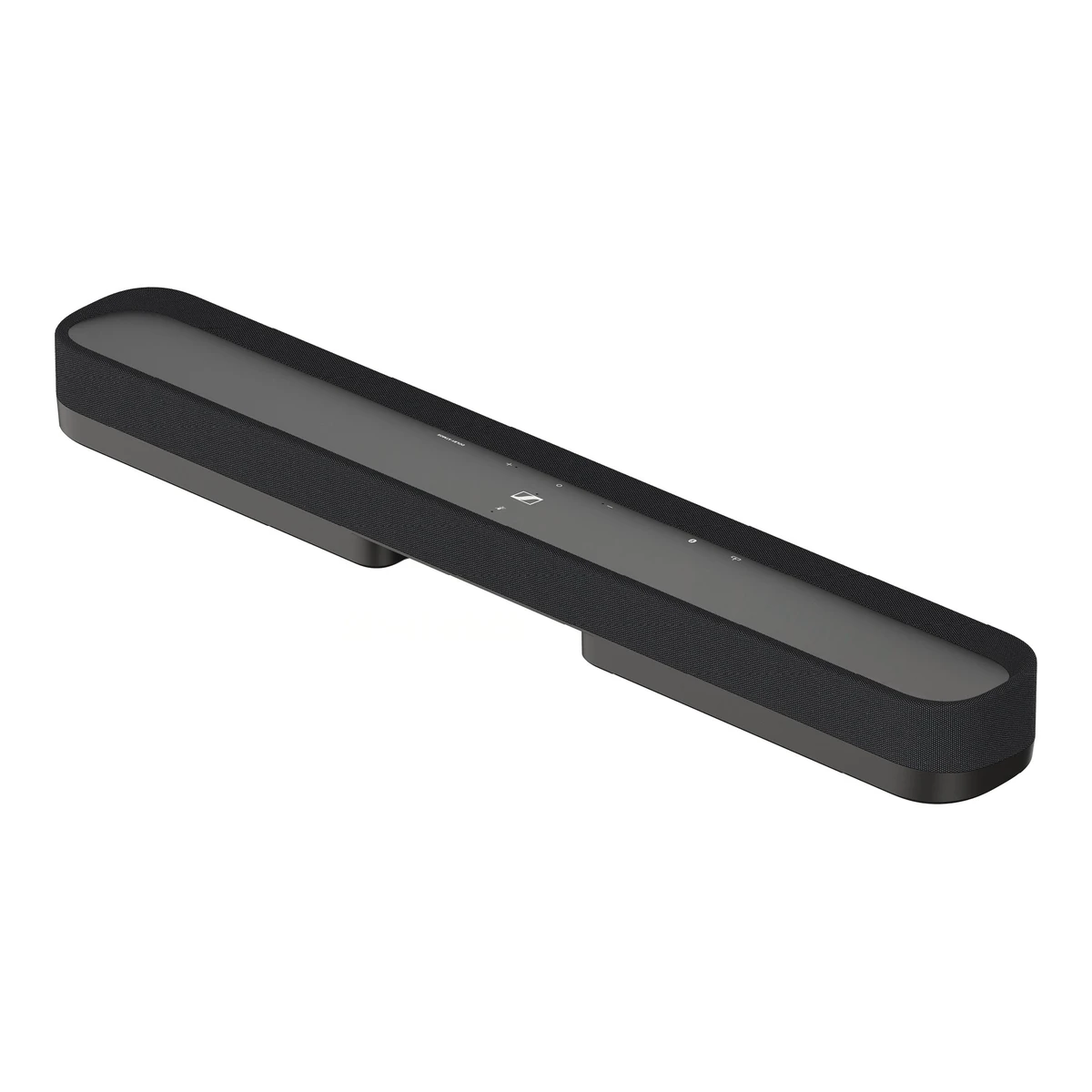

AMBEO Soundbar Mini
Released September 2023.4Press releasecdn.uc.assets.prezly.com/9265e76f-1ef5-42a5-a06d-7d67fef46252/-/inline/no/press-releasesennheiser-ambeo-soundbar-mini.pdfRead 8 October 2026Maker announcement states order availability 1 September 2023. Last checked 16 October 2026.
- System channel configuration
- 7.1.4
- Dolby Atmos
- Yes
- Separate subwoofer included
- No
- HDMI eARC
- Yes
68 of 98 fields known.
At a glance
Ports
- HDMI 2.1
- USB-A
- AC power
Audio system
- Physical drivers in the package
- 63Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Physical drivers in the bar
- 63Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Driver layout
Component Driver type Count Diameter (mm) Orientation Soundbar Cellulose full-range 2 40 Front left and right Soundbar Cellulose full-range 2 40 Side left and right Soundbar Cellulose woofer 2 100 Front left and right - Included subwoofer connection
- Not available
- Included subwoofer driver diameter
- Not available
- Included rear speaker connection
- Not available
- Compatible optional subwoofers
- Sennheiser AMBEO Sub3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Up to four wireless AMBEO Subs can be added separately. Optional subs contribute no specifications to this reference package.
- Compatible optional rear speakers
- Not available
- Total peak audio output power
- Not available
- Published frequency response lower limit
- 43Hz3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Maker response limit at -3 dB, standalone bar.
- Published frequency response upper limit
- 20kHz3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Maker response limit at -3 dB, standalone bar.
Audio formats
- Supported audio formats
- LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS-HD LBR, DTS:X, MPEG-H, Sony 360 Reality Audio3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Shared supported surround formats table p.82. Lossless TrueHD and DTS-HD formats require an appropriate digital route.
- Audio formats by connection
Connection Format HDMI eARC LPCM HDMI eARC Dolby Digital HDMI eARC Dolby Digital Plus HDMI eARC Dolby TrueHD HDMI eARC Dolby Atmos HDMI eARC DTS HDMI eARC DTS-ES Discrete 6.1 HDMI eARC DTS-ES Matrix 6.1 HDMI eARC DTS 96/24 HDMI eARC DTS-HD High Resolution Audio HDMI eARC DTS-HD Master Audio HDMI eARC DTS-HD LBR HDMI eARC DTS:X HDMI eARC MPEG-H HDMI eARC Sony 360 Reality Audio HDMI ARC LPCM stereo HDMI ARC Dolby Digital HDMI ARC DTS Digital Surround HDMI ARC DTS 96/24 HDMI ARC DTS-ES Discrete/Matrix - Music file formats
- DSD, MP3, AAC, HE-AAC, LPCM, FLAC, AIFF, ALAC, Vorbis3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Playable network-streaming file formats p.81. USB is service/power only.
- Max wired audio sample rate
- Not available
- Max music file sample rate
- Not available
- Max wired audio bit depth
- Not available
- Max music file bit depth
- Not available
Connectivity
- Ports on the bar
Connector Count Version Role HDMI 1 2.1 TV output with ARC and eARC USB-A 1 Not available Service updates and 5 V 1 A accessory power AC power 1 Not available Power input - Video passthrough modes
- Not available
- HDR passthrough formats
- Not available
- VRR passthrough
- Not available
- ALLM passthrough
- Not available
- Wi-Fi standard
- 802.11a/b/g/n/ac/ax3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Wi-Fi bands
- 2.4 GHz, 5 GHz3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Built-in Ethernet speed
- Not available
Streaming and control
- Streaming protocols
- Google Cast, AirPlay 2, Spotify Connect, Tidal Connect, UPnP3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Voice assistants
- Amazon Alexa, Google Assistant, Siri3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Alexa is built-in and uses bar microphones. Google Assistant requires an external device. Siri casting uses a separate Siri-enabled device via AirPlay, per maker press release. Availability depends on language and region.4Press releasecdn.uc.assets.prezly.com/9265e76f-1ef5-42a5-a06d-7d67fef46252/-/inline/no/press-releasesennheiser-ambeo-soundbar-mini.pdfRead 8 October 2026Alexa built-in, external Google Assistant device and Siri casting integration. The Mini release makes the separate Siri device route explicit.
- Companion apps
- Sennheiser Smart Control3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
Sound processing
- Sound modes
- Adaptive, Music, Movie, News, Neutral, Sports3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Room calibration system
- AMBEO Self-Calibration3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Equalizer controls
- Foundation, Low-Mid, Clarity and Brilliance3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026User-adjustable Foundation bass, Low-Mid midrange and Clarity and Brilliance treble controls described p.70.
- TV speaker integration
- Not available
Power
- Published operating power
- Not available
- Published networked standby power
- 1.9W3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Standby with network connection is 1.9 W, standalone bar.
- Power supply
- 100 to 240 V AC, 50/60 Hz3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
- Detachable rear battery life
- Not available
- Detachable rear charge time
- Not available
Measured
- Low-frequency extension (measured)
- Not available
- High-frequency extension (measured)
- Not available
- Max sound pressure (measured)
- Not available
- Frequency response deviation (measured)
- Not available
- Measured latency
Connection Latency (ms) Bluetooth 700 - Operating power (measured)
- Not available
- Standby power (measured)
- Not available
- Soundbar weight (measured)
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Soundbar dimensions
- Width700Height69Depth101mm(27.6 × 2.7 × 4 in)3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Maker approximate dimensions including tabletop feet from current manual p.79. The early spec sheet gives 700 x 65 x 100 mm. Current manual gives 700 x 69 x 101 mm including feet.
- Component dimensions and weight
- Not available
- Package dimensions
- Width790Height135Depth208mm(31.1 × 5.3 × 8.2 in)2Maker spec sheet (PDF)cdn.uc.assets.prezly.com/caa99279-0bf2-4bcc-a326-2ee015abf7ed/-/inline/no/AMBEO_Soundbar_Mini_Spec%20Sheet.pdfRead 8 October 2026Single product retail packaging. Outer master carton excluded.
In the box
- In the box
- AMBEO Soundbar Mini, Remote control with CR2032 battery, Premium high-speed HDMI cable, Power cord, Quick guide, Safety guide, Compliance sheet3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026
General
- Series
- AMBEO1Maker product pageus.sennheiser-hearing.com/products/ambeo-soundbar-miniRead 8 October 2026
- Model numbers
- SB02S, 700137, 7001362Maker spec sheet (PDF)cdn.uc.assets.prezly.com/caa99279-0bf2-4bcc-a326-2ee015abf7ed/-/inline/no/AMBEO_Soundbar_Mini_Spec%20Sheet.pdfRead 8 October 2026US and EU country-specific standalone articles in the Technical Data table. Regional power cords differ. China-specific hardware is excluded.
- GTIN / EAN
- 4260752330152, 810091270158, 4260752330145, 8100912701412Maker spec sheet (PDF)cdn.uc.assets.prezly.com/caa99279-0bf2-4bcc-a326-2ee015abf7ed/-/inline/no/AMBEO_Soundbar_Mini_Spec%20Sheet.pdfRead 8 October 2026US and EU EAN and UPC codes in the Technical Data table.
- Announced
- 31 August 20234Press releasecdn.uc.assets.prezly.com/9265e76f-1ef5-42a5-a06d-7d67fef46252/-/inline/no/press-releasesennheiser-ambeo-soundbar-mini.pdfRead 8 October 2026Maker announcement for the standalone bar.
- Status
- Available1Maker product pageus.sennheiser-hearing.com/products/ambeo-soundbar-miniRead 8 October 2026
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
Links
- Product page
- us.sennheiser-hearing.com/products/ambeo-soundbar-mini1Maker product pageus.sennheiser-hearing.com/products/ambeo-soundbar-miniRead 8 October 2026
- Spec sheet
- cdn.uc.assets.prezly.com/caa99279-0bf2-4bcc-a326-2ee015abf7ed/-/inline/no/AMBEO_Soundbar_Mini_Spec%20Sheet.pdf2Maker spec sheet (PDF)cdn.uc.assets.prezly.com/caa99279-0bf2-4bcc-a326-2ee015abf7ed/-/inline/no/AMBEO_Soundbar_Mini_Spec%20Sheet.pdfRead 8 October 2026
- Manual
- cdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdf3Owner's manualcdn.sennheiser-hearing.com/product-documents/product-downloads/ambeo-soundbar-plus/Instruction%20manual%20AMBEO%20Soundbar%20system%20SB02/Instruction_manual_AMBEO_Soundbar_system_SB02.pdfRead 8 October 2026Instruction manual version 07/25 A04. Plus specifications pp.78 and 80, Mini pp.79 and 80. Shared audio and network tables pp.81 to 82. Package contents p.7.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 2years1Maker product pageus.sennheiser-hearing.com/products/ambeo-soundbar-miniRead 8 October 2026US maker store includes a two-year manufacturer warranty.
