TV and audio / Soundbars

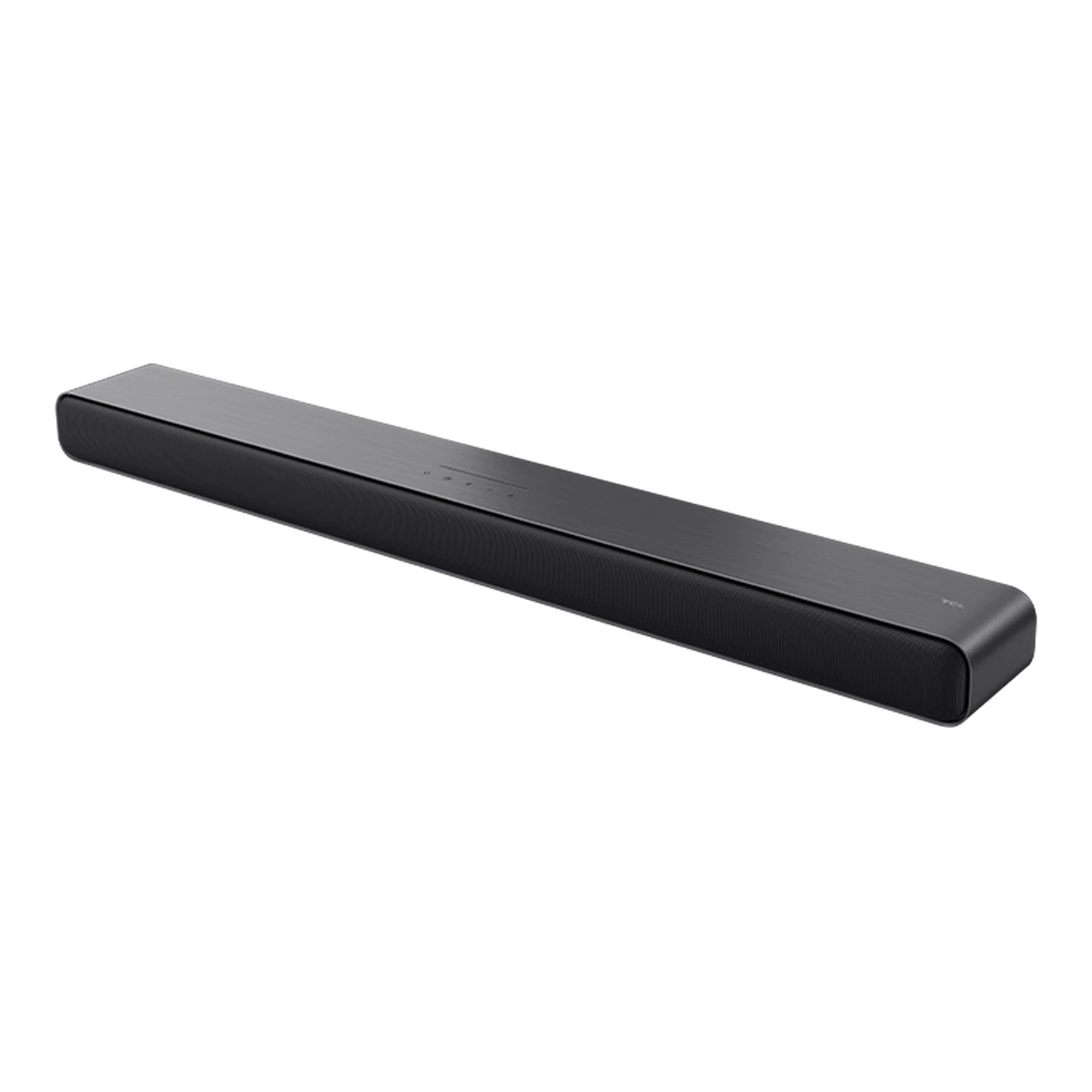

TCL S45H

TCLSoundbar

S45H

Released May 2024.5Press articlegstylemag.com/2024/05/15/tcl-2024-sound-bars-dolby-atmosRead 15 October 2026Reprint of the TCL release of 2024-05-13 says the S45H is now available at Amazon, Best Buy, Target, Walmart and other retailers. The TCL USA product page was created in December 2025, which is a store page date and not the launch. Last checked 15 October 2026.

System channel configuration
2.0
Dolby Atmos
Yes
Separate subwoofer included
No
HDMI eARC
Yes

51 of 98 fields known.

Compare with another soundbarDownload JSONDownload CSVGet it from the API

At a glance

Ports

  • HDMI
  • Optical
  • 3.5 mm audio
  • USB-A
  • AC power

All specs

SourceCalculated

Audio system

System channel configuration
2.01Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table description: 2.0 Channel Soundbar System. The feature list says 2.0 Channel S Class Sound Bar.
Physical drivers in the package
21Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Total Speakers 2.
Physical drivers in the bar
21Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Total Speakers 2 for a system with no subwoofer. Driver sizes and layout are not published.
Up-firing drivers in the package
05Press articlegstylemag.com/2024/05/15/tcl-2024-sound-bars-dolby-atmosRead 15 October 2026Release text: all new TCL sound bars feature Dolby Atmos, with the new Q Class models also including up-firing drivers. The S Class S45H is a 2.0 bar with a built-in bass reflex port.
Driver layout
Not available
Separate subwoofer included
No2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026What's in the box lists no subwoofer. The product is the 2.0 channel bar. The S55H is the model with a wireless subwoofer.
Included subwoofer connection
Not available
Included subwoofer driver diameter
Not available
Rear speakers included
02Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Box contents list no rear speakers.
Included rear speaker connection
Not available
Detachable rear speakers
Not available
Compatible optional subwoofers
Not available
Compatible optional rear speakers
Not available
Total RMS audio output power
24.5W2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: FTC Power Output Rating 24.5 W, impedance 8 ohm. Distortion is not stated. The rating covers the sound bar, which is the whole system.
Total peak audio output power
100W1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Total Audio Power 100 and the feature list says up to 100 Watts Total Power. No rating conditions or RMS label are given. The EU S45HE is listed by retailers at 50 W and is a separate model.
Published frequency response lower limit
180Hz2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: sound bar frequency response 180Hz-20KHz. There is no subwoofer, so the bar range is the system range. Bass comes from a built-in bass reflex port.
Published frequency response upper limit
20kHz2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: sound bar frequency response 180Hz-20KHz. No tolerance is stated.

Audio formats

Dolby Atmos
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Dolby Processing: Dolby Atmos. The sheet lists two speakers and no height channel, so this is processing for a stereo bar.
DTS:X
Not available
Supported audio formats
Dolby Atmos1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Dolby Processing: Dolby Atmos. DTS Virtual:X is listed as a processing feature, not as a decoded format.
Audio formats by connection
Not available
Music file formats
MP3, WMA, WAV, FLAC2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026USB playback supports MP3, WMA, WAV and FLAC on devices up to 64 GB, within 5 folder levels.
Max wired audio sample rate
Not available
Max music file sample rate
Not available
Max wired audio bit depth
Not available
Max music file bit depth
Not available

Connectivity

Ports on the bar
ConnectorCountRole
HDMI1HDMI eARC/ARC connection to the TV
Optical1Digital optical audio input
3.5 mm audio1AUX audio input
USB-A1Music playback and firmware update, 5 V 500 mA max
AC power1Detachable AC power cord input
Source2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Overview of the Sound Bar: AC input, AUX, HDMI (eARC), optical and USB Type A. USB is 5 V 500 mA max and is also used for firmware updates.
HDMI ARC
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026The manual says to connect the HDMI eARC connector to the TV HDMI (eARC/ARC) connector.
HDMI eARC
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table lists HDMI eARC with the value 2.0. The meaning of 2.0 is not explained, so no port version is stored. The manual calls the port HDMI eARC/ARC.
HDMI-CEC
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Manual tells the user to enable CEC on the TV for the HDMI eARC connection.
HDMI video passthrough
No1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: HDMI Input No. The only HDMI connector is the eARC connection to the TV.
Video passthrough modes
Not available
HDR passthrough formats
Not available
VRR passthrough
Not available
ALLM passthrough
Not available
HDCP version
Not available
Bluetooth audio input
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: Bluetooth with A2DP and AVRCP.
Bluetooth version
5.21Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Bluetooth Version 5.2. The manual agrees.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: Bluetooth version 5.2. No codec list is published.
Bluetooth audio codecs
Not available
Wi-Fi
Not available
Wi-Fi standard
Not available
Wi-Fi bands
Not available
Built-in Ethernet speed
Not available

Streaming and control

Streaming protocols
Not available
Voice assistants
Not available
Built-in microphone
Not available
Microphone mute control
Not available
Companion apps
TCL Home2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026The sound bar can be fully controlled via the TCL Home App.
Companion app platforms
iOS, Android4Maker product pagesupport.tcl.com/en_US/tcl-home-app-overviewRead 15 October 2026TCL support page says the TCL Home app runs on iOS 10.0 or higher and Android 5.0 or higher. The page does not name sound bars. The S45H manual says to control the sound bar with the TCL Home App from the app stores.
Multiroom audio
Not available
Remote included
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026What's in the box shows a remote control with 2 AAA batteries. The remote is described in Overview of the Remote Control.

Sound processing

Sound modes
Standard, Movie, Music, Voice, Game, Sports1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table EQ Settings: Standard, Movie, Music, Voice, Game, Sports.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Remote cycles Standard, Movie, Music, Voice, Game and Sports. Surround Enhance and Voice Enhance levels are separate.
Automatic room calibration
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Feature list: Ai Sonic Auto Room Calibration that tailors the sound to the room. The manual says scenes take effect only after being set in the TCL Home app.
Room calibration system
TCL AI Sonic-Adaptation1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Room Calibration: TCL Ai Sonic. The manual names the remote menu AI Sonic-Adaptation.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Remote key opens the AI Sonic-Adaptation menu with Position 1, 2, 3 and OFF scenes. Scenes take effect only after being set in the TCL Home app.
Dialogue enhancement
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Voice sound mode and a Voice Enhance key on the remote.
Night mode
Yes2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Night Mode key on the remote.
Equalizer controls
Bass, Treble2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Treble and bass keys on the remote.
TV speaker integration
TCL Tutti Choral2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026TCL Tutti Choral adds an Internal Speaker+Sound Bar (HDMI) TV output option. It works with some TCL TVs only.

Power

Published operating power
38W2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: power consumption 38W.
Published standby power
0.5W2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Published as < 0.5 W after a 3 second long press of the power button. The manual also lists < 2 W with the TCL Home app on after 19 minutes without signal. That figure is not stored as networked standby.
Published networked standby power
Not available
Power supply
AC 100-240 V, 50/60 Hz, with a detachable AC power cord.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Specifications: Power Supply AC 100-240V 50/60Hz. The product page spec table lists the power cord as Detachable, 14V/2.0A, which the manual does not explain.
Detachable rear battery life
Not available
Detachable rear charge time
Not available

Measured

We could not find any of these 8 fields. Show them
Low-frequency extension (measured)
Not available
High-frequency extension (measured)
Not available
Max sound pressure (measured)
Not available
Frequency response deviation (measured)
Not available
Measured latency
Not available
Operating power (measured)
Not available
Standby power (measured)
Not available
Soundbar weight (measured)
Not available

Dimensions and weight

Front and side, drawn to scale.

Soundbar dimensions
Width810Height59.9Depth98mm(31.9 × 2.4 × 3.9 in)2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Published as 31.89 x 2.36 x 3.86 in (W x H x D). Converted exactly and rounded to 0.1 mm. The S55H manual lists the same bar size.
Soundbar weight
2,046g(4.5 lb)2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Published as 4.51 lbs. Converted exactly and rounded to 1 g.
Component dimensions and weight
Not available
Package dimensions
Width925.1Height150.1Depth163.1mm(36.4 × 5.9 × 6.4 in)1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Package Size (WxHxD) 36.42 x 5.91 x 6.42 in. Converted exactly and rounded to 0.1 mm.
Package weight
3,075g(6.8 lb)1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table Package Weight 6.78 lbs. Converted exactly and rounded to 1 g.
Wall mountable
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Wall Mountable Yes.

In the box

In the box
Sound bar, HDMI cable, Remote control, 2 AAA batteries, Power cord, 2 wall anchors, 2 wall mount brackets, 2 wall mounting screws (M5 x 40 mm), Wall mount template, Warranty card, Manual2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Manual What's in the box. The product page spec table also lists an RCA 3.5 mm cable as Yes, which the manual does not show. The manual says the audio cable is not supplied. The cable is left out.
Wall mount hardware included
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Wall Mount kit Yes. The manual shows 2 brackets, 2 screws, 2 anchors and a template.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Manual wall mount steps use the supplied template, brackets, anchors and M5 x 40 mm screws.
HDMI cable included
Yes1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Feature list says free HDMI cable. The manual box contents show an HDMI cable.2Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/6031214/S45H-US_UM_V2.1_20251230.pdfRead 15 October 2026Box contents show an HDMI cable.
Optical cable included
No1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table: Optical Cable No.

General

Series
S Class1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026Spec table title: TCL S Class - S45H.
Model numbers
S45H1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026
GTIN / EAN
Not available
Announced
13 May 20246Press articleaphnetworks.com/news/28662-tcl-reveals-2024-soundbars-dolby-atmos-and-auto-calibrationRead 15 October 2026Article of 2024-05-13, quoting CNET, reports the TCL announcement of the S45H and S55H.
Status
Available1Maker product pageus.tcl.com/products/tcl-s45h-s-class-2-0-channel-sound-bar-with-dolby-atmos-dts-virtual-x-and-bluetooth-music-streamingRead 15 October 2026The TCL USA store offers the soundbar at 79.99 USD. The current price is not a launch price.
Predecessor
Not available
Successor
Not available
Launch price (US)
$179.995Press articlegstylemag.com/2024/05/15/tcl-2024-sound-bars-dolby-atmosRead 15 October 2026The S45H is now available for 179.99 USD MSRP. US price, tax treatment not stated.
Launch price (EU)
Not available
Markets
US5Press articlegstylemag.com/2024/05/15/tcl-2024-sound-bars-dolby-atmosRead 15 October 2026US launch.
Colours
Not available

Warranty

Manufacturer warranty (source market)
1year3Maker product pagetclusa.helpjuice.com/tcl-sound-bar-warranty-informationRead 15 October 2026TCL North America sound bar warranty: one year for parts and labor for non-commercial use, for units bought new from an authorized dealer in the US or Canada.

Compare with

Pick a soundbar to see both side by side. Differences are marked yellow.

More soundbar comparisons

Sources

We read 6 sources for this soundbar. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 22 fields
  2. Read 15 October 2026Backs 28 fields
  3. Read 15 October 2026Backs 1 field
  4. Read 15 October 2026Backs 1 field
  5. Read 15 October 2026Backs 4 fields
  6. Read 15 October 2026Backs 1 field

See a wrong value? Tell us and name the field.
