PC parts / SSDs

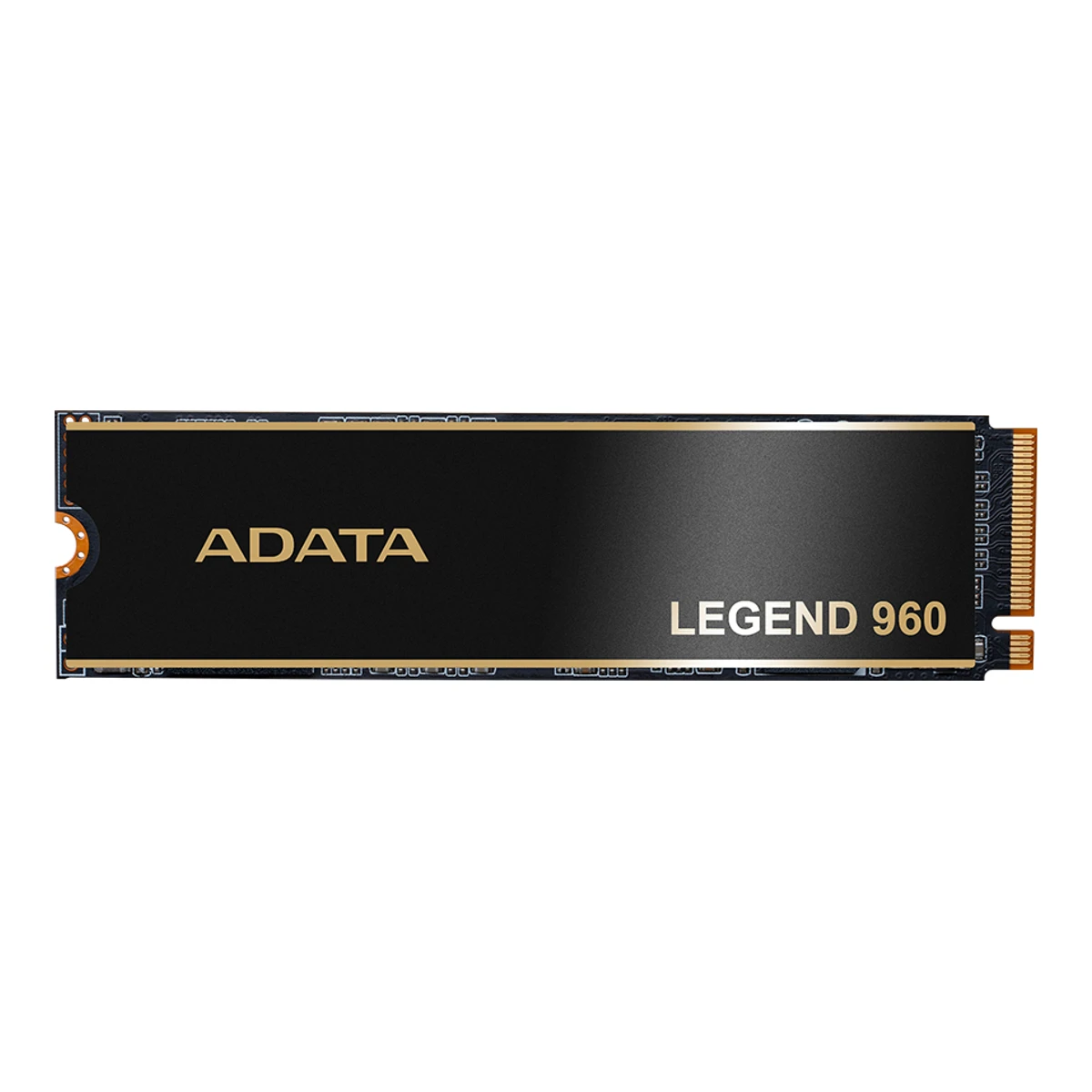

ADATA LEGEND 960

ADATASSD

LEGEND 960

Released August 2022.2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026The release is the launch announcement. Tom's Hardware's news of the same day says retail availability in 1TB and 2TB follows in the coming days and the 4TB later in August. TechRadar says the drive was released in October 2022. August 2022 is stored as the announcement and first availability month Last checked 16 October 2026.

Interface
PCIe NVMe
Form factor
M.2 2280
Capacity
1 TB, 2 TB, 4 TB
Read speed
7,400MB/s

41 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
Not available
Model numbers
ALEG-960-1TCS, ALEG-960-2TCS, ALEG-960-4TCS5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026Icecat product codes ALEG-960-1TCS and ALEG-960-2TCS. The 4TB part number ALEG-960-4TCS comes from Tom's Hardware's spec table6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Spec table part numbers: ALEG-960-1TCS, ALEG-960-2TCS and ALEG-960-4TCS
GTIN / EAN
4711085937506, 47110859375134Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 2026Icecat sheet for ALEG-960-1TCS, published 2025-07-28 and based on the manufacturer's data. EAN 47110859375065Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026Icecat sheet for ALEG-960-2TCS, published 2025-10-30. EAN 4711085937513. The sheet lists the same temperature, size, weight and MTBF as the 1TB sheet. No GTIN was found for the 4TB
Announced
2 August 20222Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026ADATA's press release as printed by Guru3D, published 2022-08-02
Status
Available6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026The review page, loaded on 2026-10-15, still shows a retailer deal of $567.83 for the 2TB. Amazon US ranked the 1TB at 358 on 2026-10-14. Stock was not confirmed, and the ADATA page could not be read
Predecessor
Not available
Successor
Not available
Launch price (US)
From $129.992Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 20263Press articletomshardware.com/news/adata-legend-960-ssd-pc-ps5Read 15 October 20264Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 20265Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20266Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 20267Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 20268Reviewthefpsreview.com/2022/10/04/adata-legend-960-1tb-gen4-x4-m-2-ssd-reviewRead 15 October 2026
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
M.2 22802Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Title and text: LEGEND 960 PCIe Gen4 x4 M.2 2280 solid state drive5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026Form factor M.2. The 2280 length comes from the press release title and the drive name
Capacity
1 TB, 2 TB, 4 TB5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026Capacity 2 TB for ALEG-960-2TCS and 1 TB for ALEG-960-1TCS. ADATA gives no byte definition in these sheets6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026The review lists 1TB, 2TB and 4TB. It says the 4TB was not available at the time of review

Interface

Interface
PCIe NVMe2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026PCIe Gen4 x4 NVMe, backward compatible with PCIe 3.05Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026Interface PCI Express 4.0, NVMe, 3D NAND
PCIe generation
42Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026PCIe Gen4, the highest generation
PCIe lanes
42Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026x45Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 2026PCI Express interface data lanes x4
NVMe version
1.42Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Compliant with NVMe 1.4
Detachable cable
Not available

Hardware

Controller
Silicon Motion SM22643Press articletomshardware.com/news/adata-legend-960-ssd-pc-ps5Read 15 October 2026Silicon Motion SM2264 with SLC caching and a DRAM cache buffer6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Spec table: SM2264 for 1TB, 2TB and 4TB. Text: a Silicon Motion SM2264, eight channels, 12 nm, quad-core Arm Cortex-R8, 1600 MT/s. FPS Review names it the SMI SM2264
Flash type
TLC6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Text: Micron 176-layer TLC (B47R) with thirty-two 64Gb dies in four packages
Flash memory
Micron 176-layer TLC (B47R)6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Spec table: 176-Layer Micron TLC for all capacities. FPS Review writes ADATA branded (Micron B47R) 176-layer 3D TLC and PCPer writes Micron B47R 176-layer 3D TLC
Flash layers
1766Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026176 layers
DRAM cache
DRAM6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Spec table: DDR4 for all capacities. The 2TB sample has Samsung K4A8G165WC-BCTD DDR4
DRAM cache size
2GB6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Text: the DRAM package is 1GB and the 2TB has two of them, 2GB in total. The 1TB DRAM size is not stated, so the 1TB row has none
Component sides
Double-sided6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Text: one DRAM and two NAND packages per side on the 2TB sample, so double-sided. FPS Review says the 1TB sample is also double-sided with flash on both sides8Reviewthefpsreview.com/2022/10/04/adata-legend-960-1tb-gen4-x4-m-2-ssd-reviewRead 15 October 2026The 1TB sample is double-sided with flash on both sides

Performance

Sequential read (claimed)
7,400MB/s2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Sequential read and write speeds of 7,400/6,800 MB per second, the 2TB figures. The release gives no test tool or host, and says the 1TB write is lower elsewhere. Base value is the 2TB model5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20262TB sheet: read speed 7400 MB/s. The ADATA data behind the sheet gives no test tool or host. Base value is the 2TB model
Sequential write (claimed)
6,800MB/s2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Same sentence as read speed. Base value is the 2TB model5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20262TB sheet: write speed 6800 MB/s. The 1TB sheet says 6000 MB/s
Random 4K read (claimed)
750,000IOPS2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 20264K random read/write of up to 750K/630K IOPS, the 2TB figures. The release gives no queue depth or threads. Base value is the 2TB model5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20262TB sheet: random read 4KB 750000 IOPS. The 1TB sheet says 730000. Queue depth is not given
Random 4K write (claimed)
630,000IOPS2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Same sentence as random read. Base value is the 2TB model5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20262TB sheet: random write 4KB 630000 IOPS. The 1TB sheet says 610000

Endurance and reliability

Endurance (TBW)
1,560TB3Press articletomshardware.com/news/adata-legend-960-ssd-pc-ps5Read 15 October 2026Adata claims an endurance rating of 1,560 terabytes written, the 2TB figure. Base value is the 2TB model5Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-2tcs.pdfRead 15 October 20262TB sheet: TBW rating 1560. The 1TB sheet says 780
MTBF or MTTF (claimed)
2,000,000h3Press articletomshardware.com/news/adata-legend-960-ssd-pc-ps5Read 15 October 2026News of 2022-08-02 on the ADATA announcement: endurance of 1,560 TBW and an MTBF of 2 million hours with a 5-year warranty. The maker's MTBF is the same for all capacities in Icecat's 1TB and 2TB sheets4Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 2026Mean time between failures 2,000,000 h
Operating temperature
Min0Max70°C4Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 2026Operating temperature range 0 to 70 C. The storage range of -40 to 85 C is not stored

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

Sequential read (measured)
7,120MB/s7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 20262TB, page 2 of the review, published 2023-03-15. Test bench: Intel Core i9-12900K, Asus ROG Maximus Z690 Formula, 2x16GB DDR5-5600, Windows 11 Pro, drive tested as a secondary device. Each SSD is prefilled to 50% capacity. Active cooling for all SSDs unless noted. CrystalDiskMark peak sequential read 1MB QD8 is 7,120 MBps, read from chart. The test size is not stated. KitGuru did not review the drive
Sequential write (measured)
6,596MB/s7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026CrystalDiskMark peak sequential write 1MB QD8 is 6,596 MBps, read from chart
Random 4K read at queue depth 1 (measured)
87.08MB/s7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026CrystalDiskMark random read 4KB QD1 is 21,259 IOPS, read from chart. Converted as IOPS x 4096 / 1,000,000 to 87.08 MB/s
Random 4K write at queue depth 1 (measured)
300.51MB/s7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026CrystalDiskMark random write 4KB QD1 is 73,366 IOPS, read from chart. Converted to 300.51 MB/s
Write cache size (measured)
200GB7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026Iometer sequential write, 1MB QD32, 15 minutes. Text: the 2TB writes in pSLC mode for just over 30 seconds at just under 6.5 GBps, demonstrating a cache of almost 200GB. Stored as 200
Write speed after the cache (measured)
3,590MB/s7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026Same test. Text: the TLC mode is 3.59 GBps, stored as 3590. The 1.28 GBps folding state that follows is not stored
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
80°C7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026Text: the 2TB idled at 34 C and after 1TB of consistent writes hit up to 80 C but did not quite throttle. Ambient is typically 24 C, the load is sustained writes at full speed, and the page names a sensor and an infrared thermometer without saying which gave 80 C. The review says the included heatspreader keeps the drive from throttling, so the drive was most likely tested with it fitted
Idle power (measured)
682mW7Measurementtomshardware.com/reviews/adata-legend-960-ssd-review/2Read 15 October 2026Quarch power module, idle power with ASPM and LPM disabled is 682 mW, read from chart

Cooling and build

Heatsink
With heatsink6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Text: the drive comes with an installable heatsink or heatspreader that is easy to apply. FPS Review says it is in the box and not fitted. The separate LEGEND 960 MAX has a larger heatsink and is not this product. Stored as with_heatsink as for other drives with a heatsink in the box
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
AES 256-bit hardware encryption2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026LDPC and AES 256-bit encryption. Icecat's sheet lists hardware encryption with 256-bit AES
Software
ADATA SSD ToolBox6Reviewtomshardware.com/reviews/adata-legend-960-ssd-reviewRead 15 October 2026Text: ADATA provides a download for its SSD Toolbox software package. PCPer names it the ADATA SSD ToolBox

Compatibility

Platforms
PC (no OS named), PS52Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Supports the latest Intel and AMD platforms, desktop and notebook PCs, and works with PS5 consoles as expanded storage. The release names no operating system, so pc is stored. Tom's Hardware's news says the maximum read falls to 6,400 MBps in a PS5. The PS5 needs a heatsink and the drive has one in the box

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length80Width22Height3.13mm(3.1 × 0.9 × 0.1 in)4Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 2026Width 22 mm, depth 80 mm, height 3.13 mm. The cooling type row reads heatsink. FPS Review prints ADATA's size as 80 x 22 x 3.13 mm with the heatsink and 80 x 22 x 2.15 mm without. The drive is stored with its heatsink since one is in the box8Reviewthefpsreview.com/2022/10/04/adata-legend-960-1tb-gen4-x4-m-2-ssd-reviewRead 15 October 2026Review of the 1TB ALEG-960-1TCS, 2022-10-04: the size is 80x22x3.13mm with the heatsink and 80x22x2.15mm without
Weight
11g(0.4 oz)4Spec databaseshop.aodatacloud.es/medias/datasheet_aleg-960-1tcs.pdfRead 15 October 2026Weight 11 g. FPS Review prints 11 g with the heatsink and 8 g without8Reviewthefpsreview.com/2022/10/04/adata-legend-960-1tb-gen4-x4-m-2-ssd-reviewRead 15 October 2026It weighs 11g with the heatsink and 8g without

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years2Press releaseguru3d.com/story/adata-legend-960-pcie-gen4-x4-m-2-2280-solid-state-driveRead 15 October 2026Backed by a 5-year warranty. No market is named

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINLaunch price (US)CapacityDRAM cache sizeComponent sidesSequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)Write cache size (measured)Write speed after the cache (measured)Highest temperature under load (measured)Idle power (measured)
ALEG-960-1TCS4711085937506$129.991 TBNot availableDouble-sided7,400 MB/s6,000 MB/s730,000 IOPS610,000 IOPS780 TBNot availableNot availableNot availableNot availableNot availableNot availableNot availableNot available
ALEG-960-2TCS4711085937513$259.992 TB2 GBDouble-sided7,400 MB/s6,800 MB/s750,000 IOPS630,000 IOPS1,560 TB7,120 MB/s6,596 MB/s87.08 MB/s300.51 MB/s200 GB3,590 MB/s80 °C682 mW
ALEG-960-4TCSNot availableNot available4 TBNot availableNot available7,400 MB/s6,800 MB/s700,000 IOPS550,000 IOPS3,120 TBNot availableNot availableNot availableNot availableNot availableNot availableNot availableNot available
