PC parts / SSDs

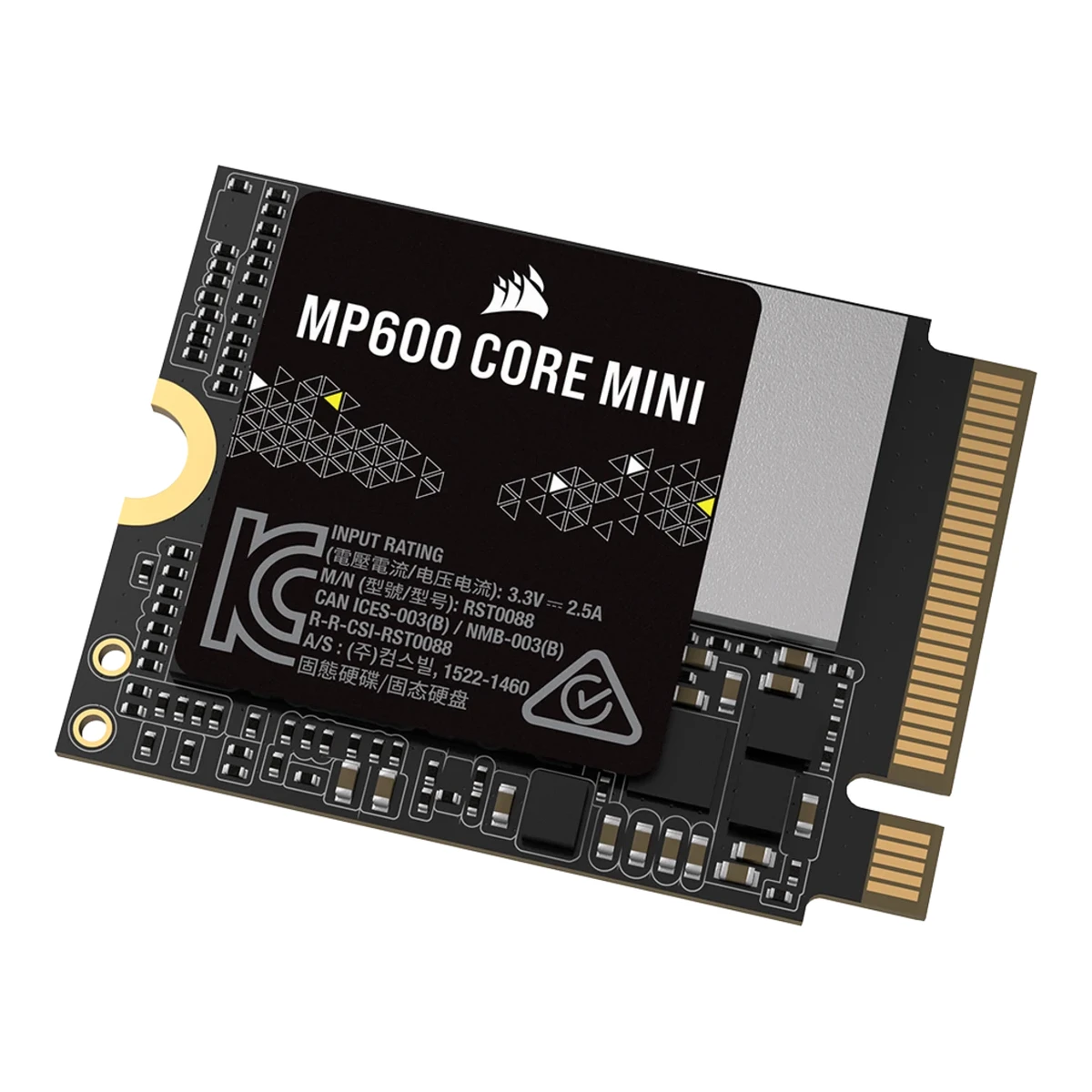

CORSAIR MP600 CORE MINI

CORSAIRSSD

MP600 CORE MINI

Released November 2023.5Reviewstoragereview.com/review/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026StorageReview published its review on 26 November 2023 and writes that Corsair just added this drive. The earliest Internet Archive capture of Corsair's 2TB CMN page is 3 November 2023. No source confirms 2023-10. 2023-11 is stored. Tom's Hardware reviewed the 2TB on 1 January 2024 Last checked 16 October 2026.

Interface
PCIe NVMe
Form factor
M.2 2230
Capacity
1 TB, 2 TB
Read speed
5,000MB/s

36 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
MP6001Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Corsair names the drive MP600 CORE MINI, in its MP600 line. The 2023 MP600 MINI is a separate product with TLC flash and another controller
Model numbers
CSSD-F1000GBMP600CMN, CSSD-F2000GBMP600CMN1Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026SKU: CSSD-F2000GBMP600CMN on the 2TB page. The 1TB page shows SKU CSSD-F1000GBMP600CMN. The R2 SKUs are not stored, see the R2 source
GTIN / EAN
840006677581, 84000667762810Retailer pagepc4u.co.jp/view/item/000000088481Read 15 October 2026PC4U Japan listing of CSSD-F2000GBMP600CMN reads JAN 0840006677628. Stored as 12 digits without the leading zero. The same code was found on a Danish retailer in search results11Retailer pagepbtech.com/product/HDDCOR60011/Corsair-MP600-CORE-MINI-1TB-NVMe-M2-2230-InternalRead 15 October 2026PB Tech lists MPN CSSD-F1000GBMP600CMN with UPC 840006677581, as quoted in web search result text, and a UK retailer is quoted with EAN 0840006677581. The PB Tech page returned 403 to a direct request, so it was not opened
Announced
Not available
Status
Available1Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Page is live on 2026-10-15 with limited availability. Corsair's US store sells the same name under R2 SKUs, see the R2 source4Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmnr2/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnr2Read 15 October 2026Corsair US store page for the 2TB under SKU CSSD-F2000GBMP600CMNR2, in stock on 2026-10-15. The 1TB R2 page (CSSD-F1000GBMP600CMNR2) is also live. The R2 pages carry the same name, overview text and QLC and NVMe 1.4 claims, but no Tech Specs tab, a different Declaration of Conformity number and a much higher price. No source says what R2 changes. The R2 SKUs are kept as aliases only and the stored specs are for the CMN drives
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
M.2 22302Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Tech Specs, Storage Form Factor and Form Factor: M.2 2230
Capacity
1 TB, 2 TB1Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Capacity selector offers 1 TB and 2 TB

Interface

Interface
PCIe NVMe2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Tech Specs, Interface: PCIE 4 x 4 and Memory Type PCIe Gen 4.0 x4
PCIe generation
42Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Tech Specs, Memory Type PCIe Gen 4.0 x4
PCIe lanes
42Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Tech Specs, Interface PCIE 4 x 4
NVMe version
1.41Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Overview block reads High-Speed PCIe Gen4 x4 NVMe 1.4 M.2 Interface
Detachable cable
Not available

Hardware

Controller
Phison E21T5Reviewstoragereview.com/review/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specification table, Controller: Phison PS5021-E21T. Tom's Hardware prints Phison E21T. KitGuru prints Phison PS5021-E21-486Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specifications table, Controller: Phison E21T, 1TB and 2TB8Reviewkitguru.net/components/ssd-drives/simon-crisp/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Phison PS5021-E21 4-channel controller, a single 176-layer 3D QLC package, firmware ELFMC1.0, review of the 1TB
Flash type
QLC1Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Overview block reads High-Density 3D QLC NAND Technology
Flash memory
Micron 176-layer QLC6Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specifications table, Memory: Micron 176-Layer QLC, 1TB and 2TB. The review is of the 2TB and says a single package8Reviewkitguru.net/components/ssd-drives/simon-crisp/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Spec box: 176-layer 3D QLC NAND. KitGuru names no flash maker
Flash layers
1766Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026176 layers, from Memory: Micron 176-Layer QLC8Reviewkitguru.net/components/ssd-drives/simon-crisp/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026176 layers, spec box
DRAM cache
None, uses host memory (HMB)6Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specifications table, DRAM: N/A (HMB). The text says the 2TB has an SSD controller, a single NAND flash package and no DRAM. KitGuru also says HMB8Reviewkitguru.net/components/ssd-drives/simon-crisp/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Introduction: the PS5021-E21 is a DRAM-less design, so the Core Mini uses HMB. Spec box: Cache: None (HMB technology)
DRAM cache size
Not available
Component sides
Single-sided6Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026A Closer Look: the drive satisfies the M.2 2230 form factor requirements and is single-sided

Performance

Sequential read (claimed)
5,000MB/s2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Archived 2TB page (CSSD-F2000GBMP600CMN, captured 2025-09-12), SSD Max Sequential Read CDM: Up to 5000MB/s. The disclaimer says performance is based on internal testing at Corsair at launch. Host and queue depth are not stated
Sequential write (claimed)
3,800MB/s2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026SSD Max Sequential Write CDM: Up to 3800MB/s, 2TB page and 1TB page alike
Random 4K read (claimed)
550,000IOPS2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Max Random Read QD32 IOMeter: Up to 550k on the 2TB page and Up to 650K on the 1TB page
Random 4K write (claimed)
900,000IOPS2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Max Random Write QD32 IOMeter: Up to 900K on both pages

Endurance and reliability

Endurance (TBW)
450TB2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026SSD TBW: 450 on the 2TB page and 250 on the 1TB page. The disclaimer says endurance is rated on the JEDEC JESD218 client workload
MTBF or MTTF (claimed)
1,500,000h5Reviewstoragereview.com/review/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specification table, MTBF: 1.5 million hours, one figure for both capacities. It is MTBF, not MTTF. Corsair's own page does not state it
Operating temperature
Min0Max65°C2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026SSD Operating Temperature: 0C to +65C. StorageReview and Tom's Hardware print 0 to 70C. The maker's page is used. The storage range of -40C to +85C is not stored

Power

Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
4.1W6Reviewtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Corsair rates the drive at a maximum 4.0W and 4.1W for the 1TB and 2TB SKUs. StorageReview prints the same two numbers as R 4.0 and R 4.1, with W 3.8 and W 3.9, under Power Consumption R/W. The maker's wording is not available, so only the maximum is stored and the read and write fields are left empty
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
5mW2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026DEVSLP: PS4: <5mW, stored as 5. The figure is an upper bound as published

Measured

Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
500GB7Measurementtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-review/2Read 15 October 20262TB. Iometer sequential write, 1 MiB blocks, QD32, 15 minutes. Text: the cache is one-fourth of the drive capacity, or about 500GB, written at just below 3.3 or 4.0 GB/s depending on the PCIe mode. The PCIe 4.0 chart shows the drop at about 125 seconds, which agrees. Stored as 500, an approximate figure
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
63°C7Measurementtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-review/2Read 15 October 20262TB. Text: the maximum temperature reached in testing was 63C in PCIe 4.0 mode and 57C in 3.0. Composite sensor polled during testing with a 24C ambient, active cooling on a bare drive. The page does not name the test that gave the maximum, and its suite includes the 15-minute Iometer sustained write. The text elsewhere says ambient is calibrated as 25C
Idle power (measured)
788mW7Measurementtomshardware.com/pc-components/ssds/corsair-mp600-core-mini-ssd-review/2Read 15 October 20262TB, read from chart. Quarch PPM idle power with ASPM/LPM disabled in the default PCIe 4.0 mode, 788.0 mW. The PCIe 3.0 chart reads 516.0 mW. Bench: Intel Core i9-12900K, Asus ROG Maximus Z790 Hero, Windows 11 Pro, each SSD prefilled to 50 percent capacity

Cooling and build

Heatsink
Without heatsink2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Package Contents lists only the drive, and the page shows no heatsink
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
AES 256-bit hardware encryption5Reviewstoragereview.com/review/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Specification table, Encryption: AES 256-bit, next to Shock Resistant 1500G. Tom's Hardware prints Security N/A. A distributor and retailer listings also name 256-bit AES. Treated as hardware encryption, since it is listed as a drive spec and the E21T supports it
Software
Corsair SSD Toolbox2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Downloads tab lists CORSAIR SSD Toolbox 2.0 Preview

Compatibility

Platforms
Windows, macOS, Other2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026SSD Compatibility row: M.2 2230 Interface Connector, Windows 11, Windows 10, Mac OS X. The page description names the Steam Deck, ASUS ROG Ally and Microsoft Surface, which are handheld and tablet PCs and are stored as other

Dimensions and weight

Dimensions
Length30Width22mm(1.2 × 0.9 in)8Reviewkitguru.net/components/ssd-drives/simon-crisp/corsair-mp600-core-mini-ssd-reviewRead 15 October 2026Spec box, Dimensions: 22 x 30mm, so 30 mm long and 22 mm wide. No thickness is given. KitGuru's spec box also lists a drive weight of 3g, which is not stored since Corsair prints 0.025 kg
Weight
Not available

In the box

In the box
MP600 CORE MINI M.2 SSD2Maker product pageweb.archive.org/web/20250912132005/https://www.corsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Package Contents tab, verbatim: MP600 CORE MINI M.2 SSD
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years1Maker product pagecorsair.com/us/en/p/data-storage/cssd-f2000gbmp600cmn/mp600-core-mini-2tb-pcie-4-0-gen4-x4-nvme-m-2-ssd-cssd-f2000gbmp600cmnRead 15 October 2026Overview block reads Five-Year Warranty. StorageReview adds with registration. The page names no market

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINCapacitySequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Max power consumption (claimed)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)Write cache size (measured)Highest temperature under load (measured)Idle power (measured)
CSSD-F1000GBMP600CMN8400066775811 TB5,000 MB/s3,800 MB/s650,000 IOPS900,000 IOPS250 TB4 W5,138 MB/s3,948 MB/s65.25 MB/s258.46 MB/sNot availableNot availableNot available
CSSD-F2000GBMP600CMN8400066776282 TB5,000 MB/s3,800 MB/s550,000 IOPS900,000 IOPS450 TB4.1 WNot availableNot availableNot availableNot available500 GB63 °C788 mW
