PC parts / SSDs

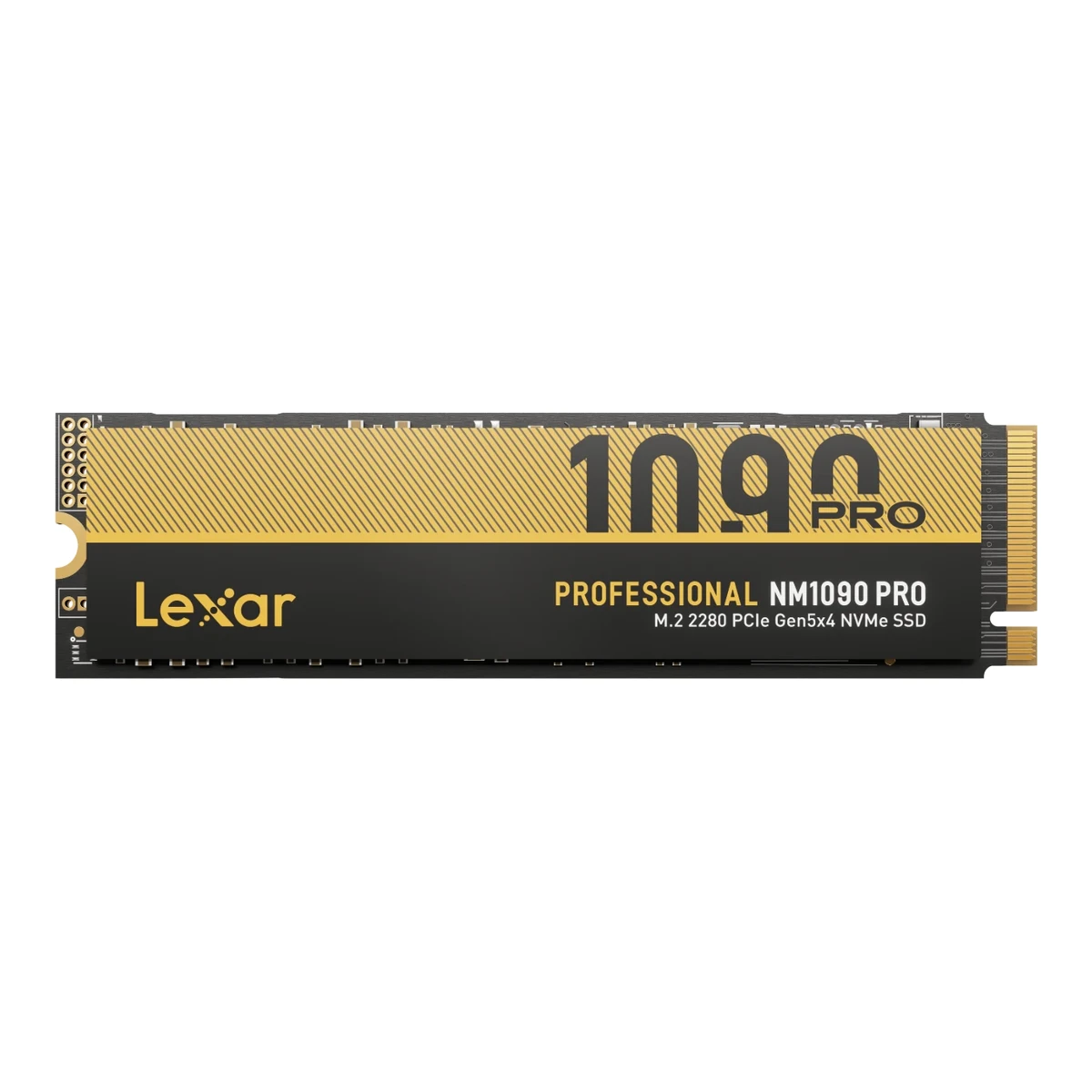

Lexar Professional NM1090 PRO

LexarSSD

Professional NM1090 PRO

Released April 2025.4Press releaseamericas.lexar.com/news/lexar-launches-new-line-of-pcie-4-0-and-pcie-5-0-ssds-designed-to-enhance-gameplay-and-professional-applicationsRead 14 October 2026US press release dated 24 April 2025, drive listed on Amazon. The 4TB followed in summer 2025 Last checked 14 October 2026.

Interface
PCIe NVMe
Form factor
M.2 2280
Capacity
1 TB, 2 TB, 4 TB, 8 TB
Read speed
14,000MB/s

33 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

At a glance

All specs

SourceCalculated

General

Series
NM10901Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Lexar names the drive Professional NM1090 PRO, a PRO version of the NM1090 line. The older NM1090 is a separate product with a fan heatsink
Model numbers
LNM109P001T-RNNNU, LNM109P001T-RNNNG, LNM109P002T-RNNNU, LNM109P002T-RNNNG, LNM109P004T-RNNNU, LNM109P004T-RNNNG, LNM109P008T-RNNNU2Maker product pageamericas.lexar.com/product/lexar-professional-nm1090-pro-pcie-5-0-nvme-m-2-2280-ssdRead 14 October 2026North America part numbers LNM109P001T-RNNNU, LNM109P002T-RNNNU, LNM109P004T-RNNNU and LNM109P008T-RNNNU. The page shows current MSRPs of $299.99, $599.99 and $999.99, which are not launch prices5Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Spec table lists the North America part numbers LNM109P001T-RNNNU, LNM109P002T-RNNNU and LNM109P004T-RNNNU9Retailer pagecatalog.onliner.by/ssd/lexar/lnm109p002trnnngRead 14 October 2026Global part numbers LNM109P001T-RNNNG, LNM109P002T-RNNNG and LNM109P004T-RNNNG are on the Onliner pages lnm109p001trnnng, lnm109p002trnnng and lnm109p004trnnng. The 8TB is only known as -RNNNU from Lexar's Americas page
GTIN / EAN
843367136780, 843367136797, 84336713680310Retailer pageshop.eltelnetworks.dk/lexar-professional-nm1090-pro-4/cat-p/c/p1005856476Read 14 October 2026EANs by global part number, 13-digit form with a leading zero, stored as 12-digit UPC. 1TB LNM109P001T-RNNNG 0843367136780 and 4TB LNM109P004T-RNNNG 0843367136803 (eltelnetworks.dk listings), 2TB LNM109P002T-RNNNG 0843367136797 (awd-it.co.uk listing). All pass the UPC check digit. No code found for the -RNNNU versions or the 8TB11Retailer pageawd-it.co.uk/lexar-professional-nm1090-pro-2tb-pcie-5-0-m-2-nvme-ssd-lnm109p002t-rnnng-read-14-000mb-s-write-13-000mb-s.htmlRead 14 October 20262TB LNM109P002T-RNNNG, EAN 843367136797
Announced
3 March 20253Press releaselexar.com/global/news/Lexar-Announces-Professional-NM1090-PRO-SSDRead 14 October 2026Lexar global announcement dated 3 March 2025
Status
Available4Press releaseamericas.lexar.com/news/lexar-launches-new-line-of-pcie-4-0-and-pcie-5-0-ssds-designed-to-enhance-gameplay-and-professional-applicationsRead 14 October 2026Still sold in 2026, with the 8TB listed on Lexar's global page
Predecessor
Not available
Successor
Not available
Launch price (US)
$269.994Press releaseamericas.lexar.com/news/lexar-launches-new-line-of-pcie-4-0-and-pcie-5-0-ssds-designed-to-enhance-gameplay-and-professional-applicationsRead 14 October 2026US launch prices: 1TB $179.99 and 2TB MSRP $269.99, excl. sales tax. No price for the 4TB
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
M.2 22801Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026
Capacity
1 TB, 2 TB, 4 TB, 8 TB1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Capacities 1TB, 2TB, 4TB, 8TB. Americas page footnote says 1GB = 1 billion bytes

Interface

Interface
PCIe NVMe1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026PCIe Gen 5x4, M.2 2280
PCIe generation
51Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026
PCIe lanes
41Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026
NVMe version
2.05Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Spec table reads PCIe 5.0 x4 NVMe 2.08Reviewthessdreview.com/our-reviews/nvme/lexar-professional-nm1090-pro-gen5-2tb-ssd-reviewRead 14 October 2026Review says the drive uses the NVMe 2.0 protocol
Detachable cable
Not available

Hardware

Controller
Silicon Motion SM25085Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Spec table reads SMI SM2508 for 1TB, 2TB and 4TB. Review dated 2025-09-117Reviewstoragereview.com/review/lexar-professional-nm1090-pro-review-affordable-gen5-performanceRead 14 October 2026Lexar uses a 6nm Silicon Motion SM2508, per the review. Lexar's own pages say only 6nm controller8Reviewthessdreview.com/our-reviews/nvme/lexar-professional-nm1090-pro-gen5-2tb-ssd-reviewRead 14 October 2026Silver SMI SM2508 8-channel controller under the graphene label, with a Foresee buffer memory chip
Flash type
TLC1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026
Flash memory
Micron B58R TLC5Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Flash appears to be 232-Layer TLC from Micron per the review. TheSSDReview names it Micron B58R. Lexar does not name the maker8Reviewthessdreview.com/our-reviews/nvme/lexar-professional-nm1090-pro-gen5-2tb-ssd-reviewRead 14 October 2026Memory is branded Longsys but is Micron's 232-layer 3D TLC B58R flash. Two 512GB raw NAND chips sit on each side of the 2TB PCB
Flash layers
2321Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026232-layer 3D TLC NAND. The flash maker is not named by Lexar
DRAM cache
DRAM1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026DRAM-based with SLC dynamic cache5Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Foresee LPDDR4x on the 4TB
DRAM cache size
2GB1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Dram Capacity: 1TB 2GB, 2TB 2GB, 4TB 4GB, 8TB 8GB. The text says DRAM and SLC caches. PCWorld says 1GB of DRAM per TB, which would make the 1TB 1GB, so Lexar's figure is stored
Component sides
Double-sided5Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026The review says the NM1090 Pro is not single-sided, and the spec table reads M.2 2280 (Double-sided) for 1TB, 2TB and 4TB. The 8TB is not covered, so its row leaves it out8Reviewthessdreview.com/our-reviews/nvme/lexar-professional-nm1090-pro-gen5-2tb-ssd-reviewRead 14 October 20262TB is a two-sided SSD, with chips on both sides of the PCB

Performance

Sequential read (claimed)
14,000MB/s1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Specifications text, up to values. 1TB 14,000 MB/s read and 10,000 write, 2TB and 4TB 14,000 and 13,000, 8TB 14,400 and 13,400. Speeds are based on internal testing per Lexar's footnote
Sequential write (claimed)
13,000MB/s1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026
Random 4K read (claimed)
2,100,000IOPS1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Up to values: 1TB 1650K, 2TB 2100K, 4TB 2100K, 8TB 2000K IOPS. Test conditions and queue depth are not stated
Random 4K write (claimed)
1,800,000IOPS1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Up to values: 1TB 1800K, 2TB 1800K, 4TB 1700K, 8TB 2100K IOPS

Endurance and reliability

Endurance (TBW)
1,400TB1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 20261TB 700, 2TB 1400, 4TB 2800, 8TB 5600 TBW2Maker product pageamericas.lexar.com/product/lexar-professional-nm1090-pro-pcie-5-0-nvme-m-2-2280-ssdRead 14 October 20268TB 5600, 4TB 2800, 2TB 1400, 1TB 700 TBW
MTBF or MTTF (claimed)
1,500,000h1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026MTBF 1,500,000 hours
Operating temperature
Min0Max70°C1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 20260 to 70 C. Storage range -40 to 85 C is not stored

Power

We could not find any of these 6 fields. Show them
Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
Not available
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
4,828points7Reviewstoragereview.com/review/lexar-professional-nm1090-pro-review-affordable-gen5-performanceRead 14 October 20262TB, score 4,828 in the 3DMark Storage benchmark. Test rig AMD Ryzen 7 9800X3D, Asus ROG Crosshair X870E Hero, Windows 11 Pro, RTX 4090. Review dated 2025-06-04. The review's spec table shows different speeds for some capacities than Lexar's current pages, and Lexar's pages are used
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

Heatsink
Without heatsink1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026No heatsink version is listed on Lexar's pages. The drive has a graphene label and a 6nm controller for heat control. A PCWorld line that mentions a version with a heavier heatsink is not backed by a Lexar listing
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

Security
Not available
Software
Lexar DiskMaster2Maker product pageamericas.lexar.com/product/lexar-professional-nm1090-pro-pcie-5-0-nvme-m-2-2280-ssdRead 14 October 2026Lexar DiskMaster SSD Management tool, for firmware updates, drive health and secure erase5Reviewtomshardware.com/pc-components/ssds/lexar-nm1090-pro-4tb-ssd-reviewRead 14 October 2026Review names Lexar DiskMaster and Lexar DataShield as downloads

Compatibility

We could not find any of these 1 fields. Show them
Platforms
Not available

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length80Width22Height3.8mm(3.1 × 0.9 × 0.1 in)2Maker product pageamericas.lexar.com/product/lexar-professional-nm1090-pro-pcie-5-0-nvme-m-2-2280-ssdRead 14 October 2026Dimensions (L x W x H) 80 x 22 x 3.8 mm for the line. Lexar's global page gives 3.6 mm for 1TB and 2TB and 3.9 mm for 4TB and 8TB. The 3.8 mm value matches the B&H and Onliner listings and the double-sided module height, so it is stored
Weight
8g(0.3 oz)1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 20261TB-2TB 8 g, 4TB 8.5 g, 8TB 9.6 g

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years1Maker product pagelexar.com/global/products/Lexar-Professional-NM1090-PRO-PCIe-5-0-NVMe-M-2-2280-SSDRead 14 October 2026Five-year limited warranty2Maker product pageamericas.lexar.com/product/lexar-professional-nm1090-pro-pcie-5-0-nvme-m-2-2280-ssdRead 14 October 2026Five-year limited warranty

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINModel numbersLaunch price (US)CapacityFlash memoryFlash layersDRAM cache sizeComponent sidesSequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Write cache size (measured)Write speed after the cache (measured)3DMark Storage BenchmarkHighest temperature under load (measured)Idle power (measured)HeatsinkDimensionsWeight
LNM109P001T-RNNNG843367136780LNM109P001T-RNNNG, LNM109P001T-RNNNU$179.991 TBMicron B58R TLC2322 GBDouble-sided14,000 MB/s10,000 MB/s1,650,000 IOPS1,800,000 IOPS700 TBNot availableNot availableNot availableNot availableNot availableWithout heatsinkLength 80, Width 22, Height 3.8 mm8 g
LNM109P002T-RNNNG843367136797LNM109P002T-RNNNG, LNM109P002T-RNNNU$269.992 TBMicron B58R TLC2322 GBDouble-sided14,000 MB/s13,000 MB/s2,100,000 IOPS1,800,000 IOPS1,400 TBNot availableNot available4,828 pointsNot availableNot availableWithout heatsinkLength 80, Width 22, Height 3.8 mm8 g
LNM109P004T-RNNNG843367136803LNM109P004T-RNNNG, LNM109P004T-RNNNUNot available4 TBMicron B58R TLC2324 GBDouble-sided14,000 MB/s13,000 MB/s2,100,000 IOPS1,700,000 IOPS2,800 TB814 GB6,600 MB/sNot available81 °C1,453 mWWithout heatsinkLength 80, Width 22, Height 3.8 mm8.5 g
LNM109P008T-RNNNUNot availableLNM109P008T-RNNNUNot available8 TBNot availableNot available8 GBNot available14,400 MB/s13,400 MB/s2,000,000 IOPS2,100,000 IOPS5,600 TBNot availableNot availableNot availableNot availableNot availableWithout heatsinkLength 80, Width 22, Height 3.8 mm9.6 g

Sources

We read 11 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 14 October 2026Backs 22 fields
  2. Read 14 October 2026Backs 6 fields
  3. Read 14 October 2026Backs 1 field
  4. Read 14 October 2026Backs 4 fields
  5. Read 14 October 2026Backs 8 fields
  6. Read 14 October 2026Backs 1 field
  7. Read 14 October 2026Backs 2 fields
  8. Read 14 October 2026Backs 4 fields
  9. Read 14 October 2026Backs 1 field
  10. Read 14 October 2026Backs 1 field
  11. Read 14 October 2026Backs 1 field
