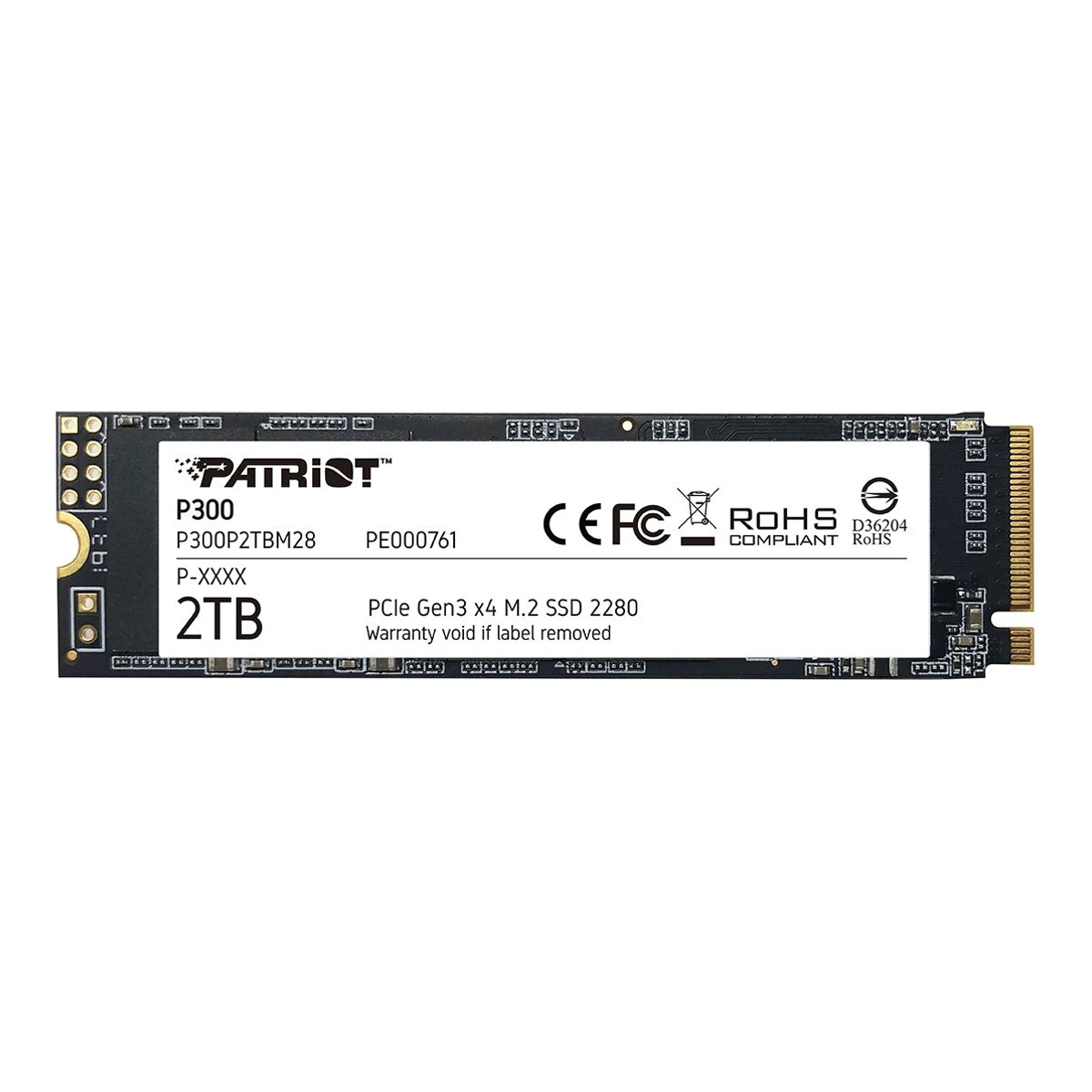

Patriot P300

PatriotSSD

P300

Released February 2020.8Press articletomshardware.com/news/patriot-p300-ssd-m2-nvme-specsRead 15 October 2026The same news says the P300 is already available at Amazon, Newegg and Patriot's webstore. The launch prices in the news and the review differ, so no launch MSRP is stored Last checked 16 October 2026.

Interface
PCIe NVMe
Form factor
M.2 2280
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB
Read speed
2,100MB/s

28 of 63 fields known.

Compare with another SSDDownload JSONDownload CSVGet it from the API

All specs

SourceCalculated

General

Series
Not available
Model numbers
P300P128GM28, P300P256GM28, P300P512GM28, P300P1TBM28, P300P2TBM281Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Part Number table: P300P2TBM28 (2TB), P300P1TBM28 (1TB), P300P512GM28 (512GB), P300P256GM28 (256GB) and P300P128GM28 (128GB). Tom's Hardware lists the US launch parts with a US suffix, such as P300P128GM28US
GTIN / EAN
814914026748, 814914026519, 814914026526, 814914026533, 8149140273181Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026EAN / UPC Code column: 0814914027318 (2TB), 0814914026533 (1TB), 0814914026526 (512GB), 0814914026519 (256GB) and 0814914026748 (128GB). Stored as 12-digit UPC without the leading zero
Announced
13 February 20208Press articletomshardware.com/news/patriot-p300-ssd-m2-nvme-specsRead 15 October 2026Tom's Hardware news of 2020-02-13 reports Patriot's announcement of the P300 that day
Status
Available7Maker product pagepatriotmemory.com/products/p300-pcie-m-2-internal-ssdRead 15 October 2026The page is live in 2026 and links the P300 SKU sheets. Amazon US still listed the 512GB model in stock in October 2026
Predecessor
Not available
Successor
Not available
Launch price (US)
Not available
Launch price (EU)
Not available
Markets
Not available
Colours
Not available
Form factor
M.2 22801Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Form Factor and Interface row reads M.2 2280 PCIe Gen3 x4 NVMe 1.3
Capacity
128 GB, 256 GB, 512 GB, 1 TB, 2 TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Model / Capacity header: 2TB, 1TB, 512GB, 256GB and 128GB. Patriot does not publish a byte definition for the capacities

Interface

Interface
PCIe NVMe1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026M.2 2280 PCIe Gen3 x4 NVMe 1.3
PCIe generation
31Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026PCIe Gen3
PCIe lanes
41Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026x4
NVMe version
1.31Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026NVMe 1.3 as published
Detachable cable
Not available

Hardware

Controller
Not available
Flash type
TLC9Reviewtomshardware.com/reviews/patriot-p300-m2-nvmeRead 15 October 2026Review, specs table: Kioxia 96L TLC for the US version, and BiCS4 96L TLC on the 1TB sample. Tom's says the non-US version has an SM2263XT controller and 96L NAND, and does not name its flash type. KitGuru says all versions use 96-layer 3D TLC10Reviewkitguru.net/components/ssd-drives/simon-crisp/patriot-p300-regional-1tb-nvme-ssd-review/all/1Read 15 October 2026KitGuru, 2020-08: there are two versions of the P300, the US one with a Phison PS5013-E13T controller and the Regional one with a Silicon Motion SM2263XT controller. All versions use 96-layer 3D TLC NAND
Flash memory
Not available
Flash layers
969Reviewtomshardware.com/reviews/patriot-p300-m2-nvmeRead 15 October 2026Review: 96L flash on the US version. Controller and flash maker are not stored, since the US version (Phison PS5013-E13T, Kioxia) and the Regional version (Silicon Motion SM2263XT, flash maker not named) differ10Reviewkitguru.net/components/ssd-drives/simon-crisp/patriot-p300-regional-1tb-nvme-ssd-review/all/1Read 15 October 2026Same statement: 96-layer 3D TLC NAND with two 512GB packages on the 1TB Regional sample
DRAM cache
None, uses host memory (HMB)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Feature list names HMB technology, so the drive has no DRAM chip and borrows host memory. Tom's Hardware also calls the design DRAMless with HMB9Reviewtomshardware.com/reviews/patriot-p300-m2-nvmeRead 15 October 2026Review: DRAMless design with Host Memory Buffer support on the Phison E13T. The SM2263XT in the Regional version is also DRAMless10Reviewkitguru.net/components/ssd-drives/simon-crisp/patriot-p300-regional-1tb-nvme-ssd-review/all/1Read 15 October 2026The SM2263XT is DRAM-less and uses HMB for caching
DRAM cache size
Not available
Component sides
Not available

Performance

Sequential read (claimed)
2,100MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Seq. Read/Write (MB/s): 2,100 / 1,650 (2TB and 1TB), 1,700 / 1,100 (512GB and 256GB) and 1,600 / 600 (128GB). The SKU sheets say the ATTO and CrystalDiskMark figures are the same. The sheet names no host. Base value is the 2TB model
Sequential write (claimed)
1,650MB/s1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Same row as read speed. Base value is the 2TB model
Random 4K read (claimed)
290,000IOPS2Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P128_GM_28_0f22cb1cc4.pdfRead 15 October 2026SKU sheet for P300P128GM28, PDF created 2022-12-12. 4K Aligned Random Read up to 290K IOPs3Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P256_GM_28_33f000477b.pdfRead 15 October 2026SKU sheet for P300P256GM28, PDF created 2022-12-12. 4K Aligned Random Read up to 290K IOPs4Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P512_GM_28_68f464e5f4.pdfRead 15 October 2026SKU sheet for P300P512GM28, PDF created 2022-12-12. 4K Aligned Random Read up to 290K IOPs5Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P1_TBM_28_b08c96949c.pdfRead 15 October 2026SKU sheet for P300P1TBM28, PDF created 2022-12-12. 4K Aligned Random Read up to 290K IOPs6Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P2_TBM_28_01b526d9f9.pdfRead 15 October 2026SKU sheet for P300P2TBM28, PDF created 2022-12-12. 4K Aligned Random Read up to 290K IOPs
Random 4K write (claimed)
260,000IOPS2Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P128_GM_28_0f22cb1cc4.pdfRead 15 October 20264K Aligned Random Write up to 150K IOPs, lower than the other capacities. Random read is up to 290K IOPs. Sheet does not name queue depth3Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P256_GM_28_33f000477b.pdfRead 15 October 2026Up to 260K IOPs write and 290K IOPs read4Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P512_GM_28_68f464e5f4.pdfRead 15 October 2026Up to 260K IOPs write and 290K IOPs read5Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P1_TBM_28_b08c96949c.pdfRead 15 October 2026Up to 260K IOPs write and 290K IOPs read6Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P2_TBM_28_01b526d9f9.pdfRead 15 October 2026Up to 260K IOPs write and 290K IOPs read. Base value

Endurance and reliability

Endurance (TBW)
960TB1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Endurance (TBW): 960 TB (2TB), 480 TB (1TB), 240 TB (512GB), 120 TB (256GB) and 60 TB (128GB). Tom's Hardware lists the older US launch values of 40 to 640 TB. The maker's current sheet is stored. Base value is the 2TB model
MTBF or MTTF (claimed)
1,500,000h1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026MTBF 1,500,000 hours for all capacities
Operating temperature
Min0Max70°C1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Operating Temperature 0 C to 70 C

Power

Power while reading (claimed)
Not available
Power while writing (claimed)
Not available
Max power consumption (claimed)
2.38W2Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P128_GM_28_0f22cb1cc4.pdfRead 15 October 2026Power Consumption: Full 2.07 W, Idle 0.37 W. Patriot does not define Full, so it is stored as the maximum power figure. The plain idle figure has no low-power state and is not stored3Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P256_GM_28_33f000477b.pdfRead 15 October 2026Full 2.07 W, Idle 0.37 W4Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P512_GM_28_68f464e5f4.pdfRead 15 October 2026Full 2.07 W, Idle 0.37 W5Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P1_TBM_28_b08c96949c.pdfRead 15 October 2026Full 2.07 W, Idle 0.37 W6Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/P300_P2_TBM_28_01b526d9f9.pdfRead 15 October 2026Power Consumption: Full 2.38 W, Idle 0.38 W. Base value. The plain idle figure is not stored
Average power in light use (claimed)
Not available
Idle power (claimed)
Not available
Sleep power (claimed)
Not available

Measured

We could not find any of these 9 fields. Show them
Sequential read (measured)
Not available
Sequential write (measured)
Not available
Random 4K read at queue depth 1 (measured)
Not available
Random 4K write at queue depth 1 (measured)
Not available
Write cache size (measured)
Not available
Write speed after the cache (measured)
Not available
3DMark Storage Benchmark
Not available
Highest temperature under load (measured)
Not available
Idle power (measured)
Not available

Cooling and build

Heatsink
Without heatsink7Maker product pagepatriotmemory.com/products/p300-pcie-m-2-internal-ssdRead 15 October 2026The maker's product photos show a plain white label on the board and no heatsink. Tom's Hardware also describes a white sticker. Only the bare drive is sold
RGB lighting
Not available
Dust and water rating
Not available
Drop test height
Not available

Security and software

We could not find any of these 2 fields. Show them
Security
Not available
Software
Not available

Compatibility

Platforms
Windows1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Operating System row: Windows 7, 8.0, 8.1, 10 and 11, which may need drivers. No other operating system is named

Dimensions and weight

Front and side, drawn to scale.

Dimensions
Length80Width22Height3.8mm(3.1 × 0.9 × 0.1 in)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Dimension row: 3.15 in (L) x 0.87 in (W) x 0.15 in (H), or 8 cm x 2.2 cm x 0.38 cm. Stored as 80 x 22 x 3.8 mm
Weight
9g(0.3 oz)1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Weight row: 0.02 lb / 9 g for all capacities. The SKU sheets read 0.01 lbs / 9 gm

In the box

We could not find any of these 2 fields. Show them
In the box
Not available
Cables included
Not available

Warranty

Manufacturer warranty (source market)
5years1Maker spec sheet (PDF)patriot-cms-media.sgp1.cdn.digitaloceanspaces.com/Patriot_Product_Sheet_P300_9bb594b674.pdfRead 15 October 2026Warranty 5-Year Warranty. The sheet names no market. Tom's Hardware lists a 3 year warranty for the 2020 US launch parts

Compare with

Pick a SSD to see both side by side. Differences are marked yellow.

More SSD comparisons

Variants

Each variant lists only what differs from the specs above.

Model numberGTINCapacityComponent sidesSequential read (claimed)Sequential write (claimed)Random 4K read (claimed)Random 4K write (claimed)Endurance (TBW)Max power consumption (claimed)Sequential read (measured)Sequential write (measured)Random 4K read at queue depth 1 (measured)Random 4K write at queue depth 1 (measured)Write cache size (measured)Write speed after the cache (measured)Idle power (measured)
P300P128GM28814914026748128 GBNot available1,600 MB/s600 MB/s290,000 IOPS150,000 IOPS60 TB2.07 WNot availableNot availableNot availableNot availableNot availableNot availableNot available
P300P256GM28814914026519256 GBNot available1,700 MB/s1,100 MB/s290,000 IOPS260,000 IOPS120 TB2.07 WNot availableNot availableNot availableNot availableNot availableNot availableNot available
P300P512GM28814914026526512 GBNot available1,700 MB/s1,100 MB/s290,000 IOPS260,000 IOPS240 TB2.07 WNot availableNot availableNot availableNot availableNot availableNot availableNot available
P300P1TBM288149140265331 TBSingle-sided2,100 MB/s1,650 MB/s290,000 IOPS260,000 IOPS480 TB2.07 W2,135 MB/s1,733 MB/s62.96 MB/s236.9 MB/s24 GB430 MB/s409 mW
P300P2TBM288149140273182 TBNot available2,100 MB/s1,650 MB/s290,000 IOPS260,000 IOPS960 TB2.38 WNot availableNot availableNot availableNot availableNot availableNot availableNot available

Sources

We read 12 sources for this SSD. The numbers match the markers in the sheet.

  1. Read 15 October 2026Backs 20 fields
  2. Read 15 October 2026Backs 4 fields
  3. Read 15 October 2026Backs 4 fields
  4. Read 15 October 2026Backs 4 fields
  5. Read 15 October 2026Backs 4 fields
  6. Read 15 October 2026Backs 4 fields
  7. Read 15 October 2026Backs 3 fields
  8. Read 15 October 2026Backs 2 fields
  9. Read 15 October 2026Backs 4 fields
  10. Read 15 October 2026Backs 4 fields
  11. Read 15 October 2026Backs 1 field
  12. Read 15 October 2026Backs 1 field
