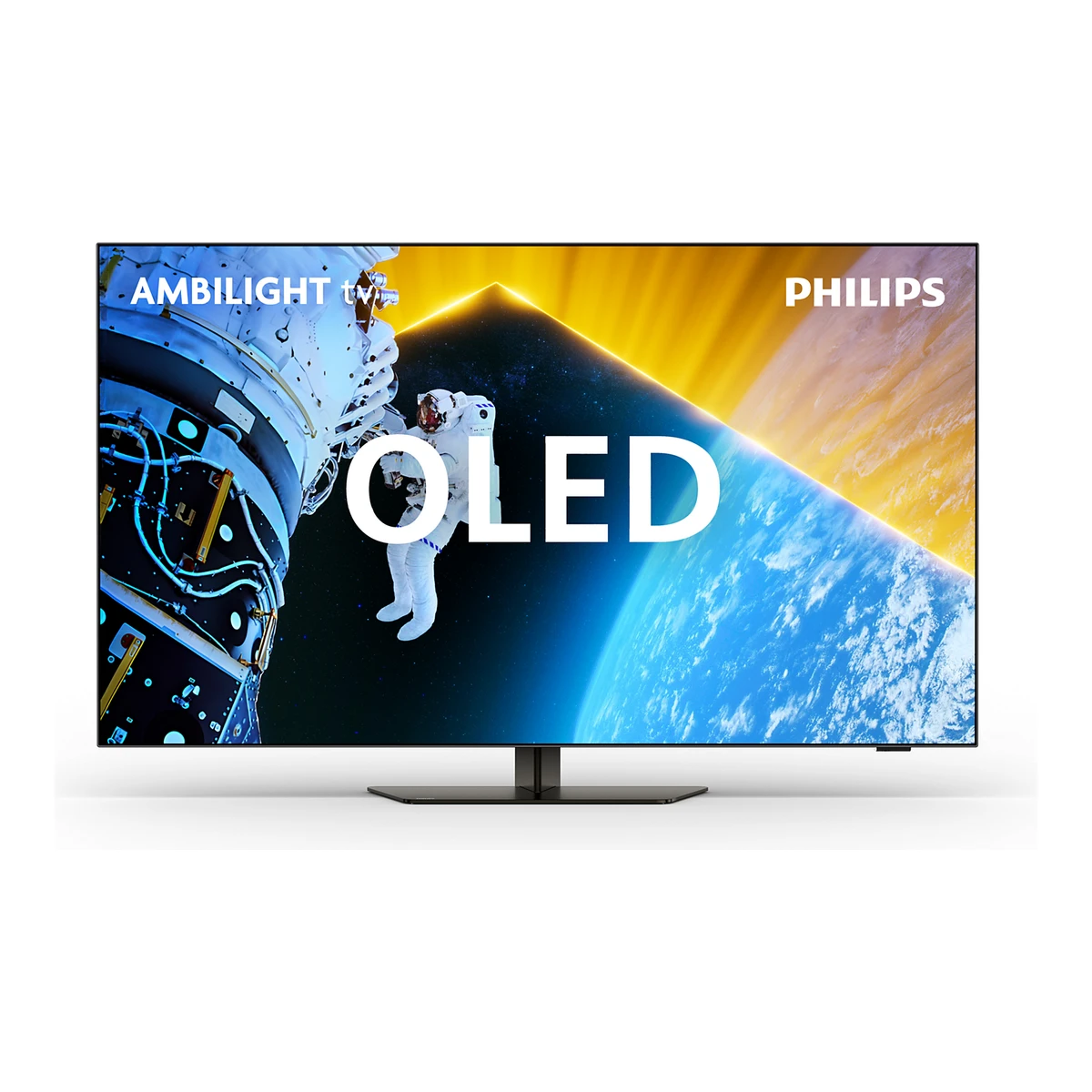

OLED809

General

Series

Not available

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

65OLED809/121Maker product pagephilips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tvRead 5 October 2026Only exact European 65OLED809/12 is represented. OLED819/849/859/889 variants, UK /05 and other sizes are excluded. North American Philips licensee models are distinct.

GTIN / EAN

87188630420522Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

Not available

Status

Not available

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

Not available

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

EU5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026Original exact-model EU regulatory Product Information Sheet identifies 65OLED809/12. No US/Canadian Philips licensee hardware is merged.

ColoursiThe maker's own colour names

Not available

SegmentiLifestyle is art and design TVs

Standard1Maker product pagephilips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tvRead 5 October 2026

Model yeariThe year the maker sells it as

20246Press releasetpvision.com/blog/2024-ambilight-tv-rangeRead 5 October 2026Maker explicitly identifies the 2024 OLED809 family.

Display

Screen size classiAdvertised diagonal size class. The measured viewable diagonal is listed separately.

65in(165.1 cm)1Maker product pagephilips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tvRead 5 October 2026

Sizes coverediAdvertised sizes represented by the verified model rows. Other sizes in a maker family may be excluded when their differences cannot be represented.

65in1Maker product pagephilips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tvRead 5 October 2026Only the verified 65-inch reference is represented.

Viewable size

Not available

Native resolution

3840 × 2160px2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Pixel density (size class)iCalculated from advertised screen-size class and native resolution. It is not calculated from the measured viewable diagonal.

67.8ppi=CalculatedFrom Screen size class and Native resolution

Screen surface

Not available

Anti-reflection coating

Not available

Panel

Display typeiQLED is a quantum dot LCD without mini LED

OLED2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Display type (as published)

4K Ultra HD OLED2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Panel type

Not available

Backlight

Not available

Local dimmingiThe backlight is dimmed in separate zones. Global dimming of the whole backlight is not local dimming, so it is false.

Not available

Local dimming zonesiIndependently controlled backlight zones for the exact screen size. Excludes LED count, self-emissive pixels and a series-wide up-to zone claim.

Not available

Panel maker

Not available

Panel generation

OLED_EX6Press releasetpvision.com/blog/2024-ambilight-tv-rangeRead 5 October 2026Maker OLED809 paragraph explicitly names OLED_EX panels and lists the 65-inch size. Only the 65-inch reference is represented. No generation number, subpixel order or panel supplier is inferred solely from that branded name. The family 1300-nit claim is not stored as an exact-size measurement.

Subpixel layout

Not available

Native colour depthiNative panel bits per colour channel. A displayed colour count or HDR input bit depth does not establish native panel depth.

Not available

Native panel refresh rateiPanel refresh rate explicitly stated by the maker. Separate from the highest accepted PC or VRR input rate.

120Hz2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Both highlights and exact specification table expressly state native 120 Hz. Accepted 144 Hz PC signals are separate. Regulatory image test frequency independently agrees 120 Hz.

DCI-P3 coverage (claimed)iGamut area coverage claimed by the maker. State the coordinate system in source notes. Colour volume or colour-ratio claims do not belong here.

Not available

Rec. 2020 coverage (claimed)iGamut area coverage claimed by the maker. State the coordinate system in source notes. Colour volume or colour-ratio claims do not belong here.

Not available

Peak HDR brightness (claimed)iMaker upper brightness claim for the stated size or series. Source notes identify screen size, test window and conditions when published.

Not available

HDR and picture

HDR formats

Dolby Vision, HDR10, HDR10+, HDR10+ Adaptive, HLG2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact Supported HDR table names the stored formats. Dolby Vision IQ is not present and is not inherited from other Philips OLED models.

Filmmaker Mode

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

HGiGiHDR tone mapping for games

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Picture processor

P5 AI Perfect Picture Engine2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Motion interpolation

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Black frame insertion

Not available

Ambient light sensoriSensor in the TV that measures room lighting. A remote microphone or a generic auto-brightness setting alone does not establish a fitted light sensor.

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Calibration software

Not available

Motion and gaming

Maximum accepted refresh rate per resolution and inputiHighest verified accepted rate without frame skipping at each resolution and input under the source conditions. Preset timing lists alone do not establish a maximum. Source notes identify ports, VRR, PC mode and any restrictions.

Maximum accepted refresh rate per resolution and input. The top rate is in bold.

Resolution	HDMI 2.1
3840 × 2160Native	144Hz

Source3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 31 explicitly labels Maximum supported HDMI timing at 3840x2160 through 144 Hz. Footnote restricts 4K 144 Hz to HDMI 1/2 in Optimal Auto Game mode. Its sub-sampling lists do not give an unambiguous bit-depth/chroma pairing specifically at 144 Hz, so those columns are omitted. Lower-resolution preset entries are supported rates, not absolute accepted maxima, and are omitted.

Show as source table

Width (px)	Height (px)	Input	Input version	Maximum accepted rate (Hz)
3840	2160	HDMI	2.1	144

Maximum accepted refresh rateiHighest verified accepted input rate across the stored resolution rows. Excludes motion interpolation ratings.

144Hz=CalculatedFrom Maximum accepted refresh rate per resolution and input

Maximum accepted refresh rate at 4KiHighest verified accepted input rate at the TV's native resolution, under the documented mode conditions. That is 3840 × 2160 on a 4K TV and 7680 × 4320 on an 8K TV.

144Hz=CalculatedFrom Maximum accepted refresh rate per resolution and input and Native resolution

Adaptive synciSupported VRR protocols and maker-published license tiers. G-SYNC compatibility is not the same as formal NVIDIA certification unless the source explicitly states certification.

HDMI VRR, FreeSync Premium, G-SYNC Compatible2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact Supported HDMI gaming table names HDMI VRR, FreeSync Premium and Nvidia G-Sync compatibility. No formal NVIDIA certification is asserted.

VRR range per inputiPublished variable refresh rate interval. A maximum without a minimum is not a complete interval. State LFC separately and do not infer a lower limit from it.

Input	Min (Hz)	Max (Hz)
HDMI	40	144

Source3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 76 explicitly states 1080p/1440p/2160p VRR 40-144 Hz with Automatic or Optimal Auto Game 144 Hz Pro. Some resolution/rate combinations depend on input source. No LFC support is inferred.

Low framerate compensation

Not available

Dolby Vision gaming

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Auto game mode (ALLM)

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Game menu features

Not available

Input lag (claimed)

Not available

Smart platform

Smart platform

Google TV2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

OS at launch

Not available

Latest OS

Not available

OS upgrade support periodiMaker commitment to operating-system upgrades, counted from the stated start date. Source notes distinguish OS upgrades from security patches and availability of firmware files.

Not available

Chipset

Not available

RAM

Not available

Total internal storageiPublished physical storage capacity. Space available to install apps is smaller and must not be substituted.

16GB2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Voice assistants

Google Assistant2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact leaflet says Google Assistant built in with remote microphone. External Alexa compatibility is separate.3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026

Hands-free microphone

Not available

Casting

Not available

Smart home

Matter, HomeKit, Alexa2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact leaflet explicitly names Works with Alexa. Matter and Control4 carry a future 2024 firmware footnote, while the current complete guide implements their setup. Matter and HomeKit are separately sourced to actual manual controls. Control4 is an unsupported schema option.3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 38 gives actual Matter QR/setup-code integration and Control4 setup, resolving the leaflet future 2024 firmware language for current documented functionality. Control4 has no schema option and is omitted with this gap note. Printed page 40 implements Apple HomeKit setup. Alexa compatibility is explicitly in the exact leaflet and separate from built-in Google Assistant. AirPlay is generic and its generation is unstated, so AirPlay 2 is not assumed.

Art or ambient mode

Not available

Tuners

TunersiA tuner the maker calls ATSC with no version is ATSC 1.0. ATSC 3.0 is always named as such.

DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S22Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Tuners per broadcast standardiNumber of independent tuners for the specified digital broadcast standard. Analog and satellite counts may differ. Recording also depends on regional software support.

Not available

Antenna inputs

Type	Count
Terrestrial and cable	1
Satellite	1

Source3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 76 describes one satellite and one antenna connector. Multiple supported broadcast formats are separate from physical tuner count.4Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026

CI+ slot

Yes3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026

Record to USB

Not available

Broadcast platforms

HbbTV2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Audio

Physical speaker channelsiMaker channel layout of the built-in speaker system. Excludes virtual surround up-mixing and connected soundbars.

2.12Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Physical speaker driversiNumber of built-in sound-producing drivers, including subwoofers and screen actuators. Channel count does not by itself establish driver count.

52Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact Sound table explicitly describes four 10 W mid-high speakers plus one 30 W subwoofer, five physical drivers. This is separate from 2.1 channel layout and virtual height processing.

Total built-in speaker poweriPublished total output power of the TV’s built-in speaker system. Excludes optional speakers, soundbars and virtual channels.

70W2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Built-in subwoofer

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Up-firing speakers

Not available

Audio formatsiFormats explicitly decoded by the TV. Virtual speaker processing such as DTS Virtual:X belongs in Audio features. Bluetooth codec direction must be stated before it is listed as a decoder. Dolby Audio (formats not named) is for a maker that lists Dolby Audio without naming the Dolby formats.

Dolby Digital, Dolby Atmos, DTS:X, MP3, AAC2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact codec names Dolby Digital MS12 and DTS:X, Sound Enhancement explicitly names Dolby Atmos. Music Playback Formats states MP3 and AAC. WAV/FLAC lack exact schema options and are not remapped to PCM.

eARC passthroughiWhat reaches a soundbar or receiver

Not available

Audio features

DTS Play-Fi, Room Calibration, Clear Dialogue, AI Sound, AI EQ, Dolby Volume Leveller, Dolby Bass Enhancement2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact Sound Enhancement table explicitly lists every stored audio feature. DTS Play-Fi and Room Calibration do not prove a built-in height speaker array.3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026

Bluetooth headphones

Yes3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Original Bluetooth accessories section explicitly supports TV sound to Bluetooth headphones or speakers. Radio version alone is not output proof.

Connectivity

Video inputsiPhysical input sockets on the exact reference model, grouped only when identical. HDMI revision, accepted 4K rate and link bandwidth are separate claims. Optional connection boxes are excluded unless included. Screen sizes of one line can have other ports, so it is per variant.

Type	Port	Version	Count	Max bandwidth (Gbps)	Max refresh rate at 4K (Hz)	eARC	HDCP
HDMI	HDMI 1	2.1	1	48	144	No	2.3
HDMI	HDMI 2	2.1	1	48	144	Yes	2.3
HDMI	HDMI 3 and 4	2.0	2	Not available	60	No	2.3

Source2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact leaflet names HDMI 1/2 revision 2.1 and 48 Gbps, HDMI 3/4 revision 2.0, eARC on 2 and HDCP 2.3 on all four. Original manual page 31 maximum timing and page 76 resolution/port restrictions establish 4K 144 Hz only on high 1/2 and exclude 100/120/144 at 4K on low 3/4, leaving 4K 60 Hz there. No 48 Gbps bandwidth is inferred for low ports.3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 20264Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026Original port drawing confirms four HDMI sockets and eARC HDMI 2. Its 4K 120 Hz labels do not supersede complete manual explicit 4K 144 Hz maximum under PC game conditions.

HDMI ports

4=CalculatedFrom Video inputs

HDMI ports with 4K 120 Hz

2=CalculatedFrom Video inputs

Highest HDMI version

2.1=CalculatedFrom Video inputs

Maximum HDMI link bandwidthiHighest verified link bandwidth in Gbps. An HDMI revision or supported resolution alone does not prove 40 or 48 Gbps.

48Gbps=CalculatedFrom Video inputs

HDMI features

ALLM, VRR, eARC, CEC2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 20263Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Original HDMI CEC/EasyLink setup, HDMI 2 ARC/eARC audio and Automatic Game/VRR instructions implement the named features. Manufacturer gaming table separately establishes ALLM.

USB peripheral portsiUSB sockets for media, storage or accessories. Count physical connectors. A connector without a published USB revision must leave the revision empty. The count can differ by screen size within one series, so it is per variant.

Connector	USB version	Count
USB-A	3.0	1
USB-A	2.0	1

Source3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 76 explicitly identifies USB 1=3.0 and USB 2=2.0. Rendered QSG page 2 independently shows both rectangular Type-A sockets. PML9009 assigns the opposite USB numbers and is not copied.4Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026

Ethernet speedi0.1 is 100 Mbit

Not available

Wi-FiiNewest Wi-Fi generation of this size. Some series change it between sizes.

Wi-Fi 62Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Wi-Fi bands

Not available

BluetoothiCan differ by screen size within one series, so it is per variant.

5.22Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Optical out

Yes3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026

Headphone out

Yes3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 76 explicitly names Headphones Stereo mini-jack 3.5 mm. Diameter is not inferred from a generic icon.

Included connection boxiWhether the TV uses an included external input box. Optional add-on boxes do not change this value.

Not available

Remote

Remote control

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Remote connection

Bluetooth, Infrared3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Original remote pairing instructions explicitly say the supplied remote uses Bluetooth and IR. TV Bluetooth 5.2 is not assigned to the remote.

Remote power

Rechargeable (USB-C)3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 12 explicitly supports USB-C charging and a wireless charging coil at the Philips logo. QSG page 2 shows both modes. The stored rechargeable USB-C enum is literal supported power, not an assertion that USB-C is the only charge method. Wireless charging has no separate current enum.4Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026

Voice button on remote

Yes2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 20264Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026

Pointer remoteiPoint and click like an air mouse

Not available

Stand and mounting

Stand

Centre pedestal4Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026Rendered original exact OLED809/819 42/48/55/65 assembly shows the center pedestal and separate base plate. Other OLED849/859 base styles and 77-inch feet are excluded.

Stand installation positionsiNumber of distinct supported width or height installation configurations. A two-foot stand is not automatically two positions.

Not available

Stand height adjustment

Not available

Space under the screen

72mm2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact Stand height to TV bottom edge explicitly 72 mm. No alternative height position is documented. Stand assembly 550 x 200 mm is not silently equated with the complete ground footprint.

Distance between feetiOuter edges, widest position

Not available

Stand footprintiOverall width and depth occupied by the stand in the documented installation position. Source notes identify wide, narrow or soundbar height positions.

Not available

VESA mount

300 x 3002Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

VESA screwiThread size only, such as M6 or M8. Screw length and hole depth go in the source note.

M64Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026Exact 65-inch wall table specifies 300 x 300 mm, four M6 screws, 10-15mm length. M5 x 14 stand screws are distinct.

Wall mount included

No3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Original wall mounting instructions explicitly say the wall bracket is sold separately. VESA compatibility does not prove an included mount.

OLED care

OLED care

Automatic panel refreshing, Manual clear residual image, Static image brightness reduction, Screen saver3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Printed page 4 normal automatic refreshing and manual Clear residual image, printed page 5 static image dimming/screen saver, printed page 46 manual deep refresh control. These actual care controls do not establish burn-in warranty coverage.

Burn-in covered by warranty

Not available

Burn-in warranty length

Not available

Dimensions and weight

Dimensions with stand

Width1,444Height900Depth280mm(56.9 × 35.4 × 11 in)2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact HxWxD 900x1444x280 mm including supplied stand. Named properties preserve original axis meanings.

Dimensions without stand

Width1,444Height831Depth111mm(56.9 × 32.7 × 4.4 in)2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact dimensions are labelled HxWxD, 831x1444x111 mm, reordered into named width/height/depth properties. Maximum body depth 111 mm is retained exactly as published, not replaced with another size or a thin panel thickness.

Thinnest depth

Not available

Weight with stand

27.8kg(61.3 lb)2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Weight without standiWhat the wall mount carries

22.9kg(50.5 lb)2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026

Power

• EU energy class SDRF5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026
  ABCDEFG
• EU energy class HDRF5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026
  ABCDEFG

Power supply

Internal5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026

On-mode power in SDR (EU label)iOn-mode power demand under the EU energy label test. Match the exact regional model and screen size.

102W5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026English page 1 exact on-mode SDR 102 W is regulatory test demand, not maximum operating watts.

On-mode power in HDR (EU label)iOn-mode power demand under the EU energy label test. Match the exact regional model and screen size.

102W5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026English page 1 exact on-mode HDR 102 W matches SDR demand. This is not peak/maximum operating consumption.

Maximum operating poweriMaker-stated maximum operating power for the exact model. Rated mains input power and typical or measured draw are distinct and must be qualified in source notes.

Not available

Standby poweriPublished standby power for the exact model. Source notes preserve less-than or maximum qualifiers.

0.3W5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026Regulatory sheet states 0.3 W, versus commercial leaflet less than 0.3 W. Exact regulatory numeric test demand takes precedence, with threshold qualifier preserved.

Networked standby

2W5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026

Energy per 1000 h SDR

102kWh2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact EU card 102 kWh per 1000 hours SDR. Regulatory watts are independently stored.

Energy per 1000 h HDR

102kWh2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Exact EU card 102 kWh per 1000 hours HDR, identical to SDR in both original regulatory and commercial tables. No different HDR demand is guessed.

Certifications

Picture certifications

IMAX Enhanced2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Leaflet page 2 explicitly calls IMAX Enhanced certified, beyond merely naming an IMAX picture preset.

ENERGY STAR

Not available

Other certifications

Not available

In the box

In the box

Remote control, Rechargeable lithium-ion remote battery, USB-C remote charging cable, Tabletop stand, Power cord, Quick Start Guide, Legal and safety brochure2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 20264Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/X41G48SV81317B_2K24_PHL_EU.UK_QSG_594x420%20%28A2%29_OLED8x9_42.48.55.65_v1_240709.pdfRead 5 October 2026

Links

Product page

www.philips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tv1Maker product pagephilips.co.uk/c-p/65OLED809_12/oled-4k-ambilight-tvRead 5 October 2026Current full production maker product and support pages were opened. All four original public documents were retrieved from the actual support metadata on the current Contentserv media host, not substituted with another model.

Spec sheet

tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdf2Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 2026Original exact 65OLED809/12 five-page English commercial leaflet, issue December 4, 2025. Full tables and footnotes read. Its high HDMI table says up to 4K 120 Hz while highlights and footnote allow 144 Hz PC VRR. Original complete manual explicitly gives 4K 144 Hz maximum on HDMI 1/2 and takes precedence for accepted-rate columns. Calman Ready is maker-claimed, but a preset alone does not establish external calibration server delivery, so software integration is omitted.

Manual

tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdf3Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026Original 92-page English Philips OLED809-family complete guide, revision 2025, explicitly includes 65OLED809. Current public support link was downloaded and read. Other model-specific panels, audio counts and stand types in generic menus are not inherited.

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

18647072Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Unallocated/All%20leaflets/Commercial%20leaflet/65OLED809_12_en_GB_b2c_PSS.pdfRead 5 October 20263Owner's manualtpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/OLED/800%20Series/2024_23_GTV_9972_S_EUAPLT_v22_250310_ENG_20250428_140142.pdfRead 5 October 2026

Warranty

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

2years5Maker spec sheet (PDF)tpvpxm.saas.contentserv.com/admin/rest/xcstream/stream/assets/HealthTech/TPV-TV/Consumer%20TV/Fiche_65OLED809_12.pdfRead 5 October 2026Exact European sheet specifies supplier minimum general guarantee of 2 years. Statutory rights and retailer extensions are separate.
