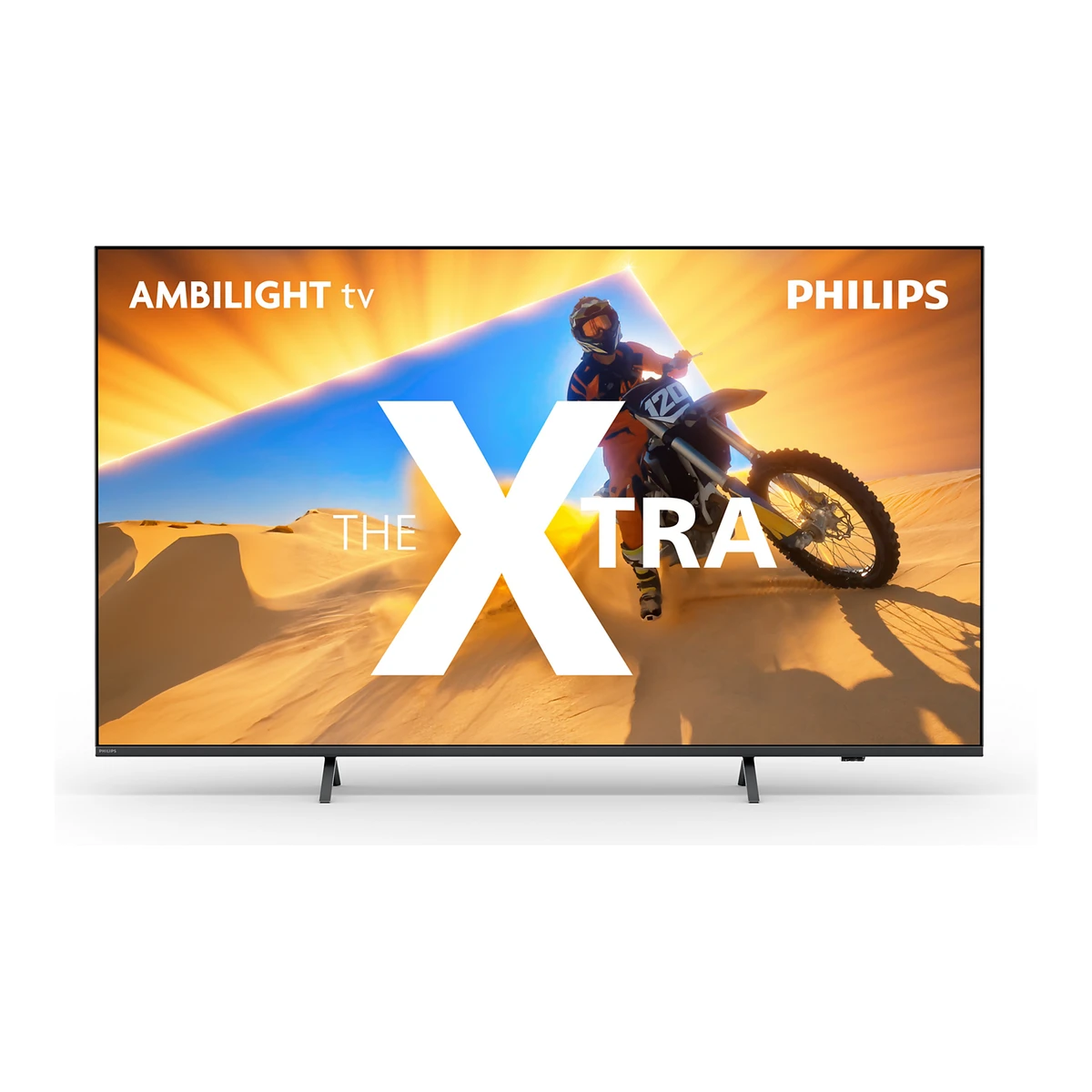

The Xtra PML9009

General

Series

Not available

Model numbersiMaker identifiers for this exact model and its listed variants. Excludes sibling models and other generations.

65PML9009/121Maker product pagephilips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tvRead 5 October 2026Only exact European 65PML9009/12 is represented. PML9019/9049/9059, UK /05, other sizes and North American Philips licensee products are excluded.

GTIN / EAN

87188630417892Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

AnnouncediThe maker's first announcement of this model. This is separate from first retail availability.

Not available

Status

Not available

PredecessoriThe model this one directly replaced, in the same line, tier and size, as the maker or a trusted review names it.

Not available

SuccessoriThe model that directly replaced this one, in the same line, tier and size. A revision such as a Slim or OLED model does not count when a next generation exists.

Not available

Launch price (US)iThe maker's US launch MSRP for the stated configuration, excluding tax. Current store prices and later discounts do not qualify.

Not available

Launch price (EU)iThe maker's euro launch price for the stated configuration, including VAT as published. Current store prices and later discounts do not qualify.

Not available

MarketsiISO country or region codes where this exact model or variant is sold. A source page's language does not establish availability.

EU5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Original exact /12 EU regulatory information sheet identifies European configuration. North American Philips licensee products are excluded.

ColoursiThe maker's own colour names

Not available

SegmentiLifestyle is art and design TVs

Standard1Maker product pagephilips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tvRead 5 October 2026

Model yeariThe year the maker sells it as

20246Press releasetpvision.com/blog/philips-2024-ambilight-tv-range-now-on-saleRead 5 October 2026Maker explicitly identifies the 2024 Ambilight range and names PML9009 with the 65-inch size.

Display

Screen size classiAdvertised diagonal size class. The measured viewable diagonal is listed separately.

65in(165.1 cm)1Maker product pagephilips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tvRead 5 October 2026

Sizes coverediAdvertised sizes represented by the verified model rows. Other sizes in a maker family may be excluded when their differences cannot be represented.

65in1Maker product pagephilips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tvRead 5 October 2026Only the verified 65-inch reference is represented.

Viewable size

Not available

Native resolution

3840 × 2160px2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Pixel density (size class)iCalculated from advertised screen-size class and native resolution. It is not calculated from the measured viewable diagonal.

67.8ppi=CalculatedFrom Screen size class and Native resolution

Screen surface

Not available

Anti-reflection coating

Not available

Panel

Display typeiQLED is a quantum dot LCD without mini LED

Mini-LED2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Original page 2 explicitly describes Quantum Dot Mini-LED, an LCD with quantum dots and Mini-LED backlighting. This is not RGB Mini-LED.

Display type (as published)

Quantum Dot Mini-LED2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Panel type

VA7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026October 28, 2024 review explicitly identifies its tested 65PML9009 and says a VA LCD panel. No subpixel stripe or panel supplier is inferred. The detailed test table reports unqualified P3 coverage of 92.5%, but never identifies DCI-P3 versus Display P3, so no named measured gamut-coverage field is stored. The SDR table also reports colour Delta E 2000 of 1.26, distinct from grayscale 1.79 and HDR grayscale Delta E ICTCP 2.60. SDR Films is described, but calibration adjustments and firmware are unstated. The measured colour-accuracy field requires a before-calibration result, so that optional field is omitted.

Backlight

Mini-LED2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Local dimmingiThe backlight is dimmed in separate zones. Global dimming of the whole backlight is not local dimming, so it is false.

Yes7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026

Local dimming zonesiIndependently controlled backlight zones for the exact screen size. Excludes LED count, self-emissive pixels and a series-wide up-to zone claim.

967Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact tested 65 review expressly counts 96 spatial zones in a 16 x 6 arrangement. This is not Ambilight emitter count or another-size total.

Panel maker

Not available

Panel generation

Not available

Subpixel layout

Not available

Native colour depthiNative panel bits per colour channel. A displayed colour count or HDR input bit depth does not establish native panel depth.

Not available

Native panel refresh rateiPanel refresh rate explicitly stated by the maker. Separate from the highest accepted PC or VRR input rate.

Not available

DCI-P3 coverage (claimed)iGamut area coverage claimed by the maker. State the coordinate system in source notes. Colour volume or colour-ratio claims do not belong here.

Not available

Rec. 2020 coverage (claimed)iGamut area coverage claimed by the maker. State the coordinate system in source notes. Colour volume or colour-ratio claims do not belong here.

Not available

Peak HDR brightness (claimed)iMaker upper brightness claim for the stated size or series. Source notes identify screen size, test window and conditions when published.

1,000nits6Press releasetpvision.com/blog/philips-2024-ambilight-tv-range-now-on-saleRead 5 October 2026Maker PML9009 paragraph expressly claims 1000-nit peak light output for its 55/65/75/85 family. Window, duration and picture mode are unstated. This is a claimed peak, kept separate from reviewer measurements.

HDR and picture

HDR formats

Dolby Vision, HDR10, HDR10+, HLG2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Filmmaker Mode

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Original complete guide printed pages 31-32 explicitly provides Filmmaker Mode picture styles, including HDR and Dolby Vision Filmmaker. This is an actual selectable mode, not a generic creator-intent slogan.

HGiGiHDR tone mapping for games

Not available

Picture processor

P5 Perfect Picture Engine2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Motion interpolation

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 34 Motion styles, Smoothness and blur controls implement frame interpolation. Exact-65 review also directly describes and measures interpolation.7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026

Black frame insertion

Not available

Ambient light sensoriSensor in the TV that measures room lighting. A remote microphone or a generic auto-brightness setting alone does not establish a fitted light sensor.

Yes2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 Power Saving Features explicitly names Light sensor. Regulatory Automatic Brightness Control test availability is not physical sensor absence.

Calibration software

Not available

Motion and gaming

Maximum accepted refresh rate per resolution and inputiHighest verified accepted rate without frame skipping at each resolution and input under the source conditions. Preset timing lists alone do not establish a maximum. Source notes identify ports, VRR, PC mode and any restrictions.

Maximum accepted refresh rate per resolution and input. The top rate is in bold.

Resolution	HDMI 2.1
3840 × 2160Native	144Hz12-bit, 4:2:2

Source7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact 65 Connectivity describes all four HDMI 2.1 inputs at 48 Gbps, 4K 120 support and TV support up to 144 frames per second from a PC. Original exact leaflet page 4 specifies the 4K 144 12-bit 4:2:2 signal on all four. Manual 58 requires Optimal or Optimal Auto Game for 120/144. Lower-resolution preset entries and VRR ceilings do not prove absolute accepted lower-resolution maxima and are omitted. Input DSC is unstated.

Show as source table

Width (px)	Height (px)	Input	Input version	Maximum accepted rate (Hz)	Bit depth (bits)	Chroma
3840	2160	HDMI	2.1	144	12	4:2:2

Maximum accepted refresh rateiHighest verified accepted input rate across the stored resolution rows. Excludes motion interpolation ratings.

144Hz=CalculatedFrom Maximum accepted refresh rate per resolution and input

Maximum accepted refresh rate at 4KiHighest verified accepted input rate at the TV's native resolution, under the documented mode conditions. That is 3840 × 2160 on a 4K TV and 7680 × 4320 on an 8K TV.

144Hz=CalculatedFrom Maximum accepted refresh rate per resolution and input and Native resolution

Adaptive synciSupported VRR protocols and maker-published license tiers. G-SYNC compatibility is not the same as formal NVIDIA certification unless the source explicitly states certification.

HDMI VRR, FreeSync Premium, G-SYNC Compatible2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 explicitly names HDMI VRR and AMD FreeSync Premium. Exact-65 TechFi functional test separately confirms G-SYNC compatibility. Formal NVIDIA certification is not asserted.7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact tested 65 Connectivity explicitly says AMD FreeSync and reports actual NVIDIA G-SYNC compatibility. Premium tier is separately maker-named. No formal NVIDIA certificate is asserted.

VRR range per inputiPublished variable refresh rate interval. A maximum without a minimum is not a complete interval. State LFC separately and do not infer a lower limit from it.

Input	Min (Hz)	Max (Hz)
HDMI	48	144

Source3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 58 explicitly gives 1080 p/1440 p/2160 p VRR 48-144 Hz with HDMI Ultra HD Optimal (Auto Game). It warns some resolutions and rates may not work on all sources. This VRR interval is not treated as an absolute fixed-rate input maximum or LFC proof.

Low framerate compensation

Not available

Dolby Vision gaming

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 32 explicitly provides the Dolby Vision Game picture style. Printed page 48 makes the Gaming Control Bar applicable to Game, HDR Game and Dolby Vision Game. An OLED809-only maker press paragraph is not applied to this PML9009.

Auto game mode (ALLM)

Yes2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Game menu features

Game Bar, Crosshair, Shadow control3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 48 implements the Game Bar/dashboard, crosshair and shadow control settings. It is not renamed Game Bar 2.0.

Input lag (claimed)

Not available

Measured

Input lag (measured)iDelay measured by a reviewer for each signal and documented input. Source notes identify the tested size and mode. Missing input, HDR or VRR cells mean the source did not specify them.

Width (px)	Height (px)	Refresh rate (Hz)	Input lag (ms)
3840	2160	60	16

Source7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact 65 gaming paragraph reports 16 ms at 4K 60 without the interpolation increase, versus 46 ms with interpolation. Uses HDMI Ultra HD Optimal Auto Game 144 Hz Pro. HDR/VRR flags and firmware are unstated and omitted. Its separate 7.4 ms 2K 120 label does not establish exact pixel dimensions, so that measurement is omitted.

Input lag at 4K 60 Hz (measured)iLowest measured value with the right settings

16ms=CalculatedFrom Input lag (measured) and Native resolution

Input lag at 4K 120 Hz (measured)iLowest measured value with the right settings

Not available

Input lag at 4K 144 Hz (measured)iLowest measured value with the right settings

Not available

SDR brightness in a real scene (measured)iMeasured by a reviewer, not claimed by the maker

Not available

HDR brightness in a real scene (measured)iMeasured by a reviewer, not claimed by the maker

Not available

HDR brightness per window (measured)iMeasured by a reviewer, not claimed by the maker

Window	Brightness (nits)
2%	827
10%	878
25%	974
100%	486

Source7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact 65 Films HDR picture mode. Prose reports 974 nits at a 25% window, 878 nits at 10% and 486 nits at full screen. The detailed test table additionally reports 827 nits at 2%. Peak versus sustained timing and firmware are unstated, so sustained flags are omitted. SDR white-window 556 is not stored as real-scene SDR brightness.

HDR peak brightness (measured)iMeasured by a reviewer, not claimed by the maker

974nits=CalculatedFrom HDR brightness per window (measured)

Full-screen HDR brightness (measured)iMeasured by a reviewer, not claimed by the maker

486nits=CalculatedFrom HDR brightness per window (measured)

Contrast ratio (measured)iNative, local dimming off. 1000 means 1000:1

6,180:17Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact 65 detailed test table labels 6180:1 native contrast. Local dimming measurement is kept separate. Picture mode in the nearby test description is Films. ANSI pattern/coordinate method and firmware are unstated.

Contrast with local dimming (measured)i1000 means 1000:1. Measured by a reviewer

9,9877Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact 65 detailed test table labels 9987:1 with dimming. This is separate from native 6180:1, not a maker marketing ratio.

Infinite contrast (measured)iOLED shows no measurable black level

Not available

DCI-P3 coverage (measured)iMeasured gamut area coverage. Source notes identify the tested size, picture mode and coordinate system if stated.

Not available

Rec. 2020 coverage (measured)iReviewer-measured Rec. 2020 gamut area coverage. Source notes identify the tested size, picture mode, method and coordinate system when stated. Excludes colour volume and maker claims.

Not available

Colour volume at 1,000 nits (measured)iDCI-P3. Measured by a reviewer

Not available

Colour volume at 10,000 nits (measured)iRec. 2020. Measured by a reviewer

Not available

Colour accuracy (measured Delta E)iBefore calibration. Measured by a reviewer

Not available

Gray uniformity deviation (measured)iStandard deviation of brightness on a 50% gray test image, expressed as a percentage. Lower is more uniform. Source notes identify the tested size and method.

Not available

Colour shift angle (measured)iThe angle where colour washes out

Not available

Reflections (measured)iMeasured by a reviewer, not claimed by the maker

Not available

Total pixel response time (measured)iTime for a complete pixel transition under the reviewer’s stated method. Source notes identify the refresh rate, tested size and settings.

Not available

PWM flicker frequency (measured)iOnly when the reviewer found PWM flicker

Not available

VRR range (measured)iMeasured by a reviewer, not claimed by the maker

Not available

4:4:4 chroma (measured)iText stays as sharp as on a PC screen

Not available

Power use SDR (measured)iMeasured by a reviewer, not claimed by the maker

Not available

Smart platform

Smart platform

TITAN OS2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

OS at launch

Not available

Latest OS

Not available

OS upgrade support periodiMaker commitment to operating-system upgrades, counted from the stated start date. Source notes distinguish OS upgrades from security patches and availability of firmware files.

Not available

Chipset

Not available

RAM

Not available

Total internal storageiPublished physical storage capacity. Space available to install apps is smaller and must not be substituted.

8GB2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 3 Memory size (Flash) explicitly states 8 GB. Nominal installed storage is not free application space.

Voice assistants

Amazon Alexa3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed pages 8 and 53 describe Alexa voice setup through the paired microphone remote. External Google Home control is separate from built-in Google Assistant.

Hands-free microphone

Not available

Casting

Not available

Smart home

Google Home, Alexa3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 54 explicitly requires an external Google Home device and account linking. Alexa setup is described separately. Printed page 42 explicitly implements Control4 integration but the schema has no Control4 option, so it is retained only in this note. Leaflet footnote says Matter/Control4 planned via 2024 firmware. No current Matter setup proof was found, so Matter is omitted. HomeKit is not established.

Art or ambient mode

Not available

Tuners

TunersiA tuner the maker calls ATSC with no version is ATSC 1.0. ATSC 3.0 is always named as such.

DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S22Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Tuners per broadcast standardiNumber of independent tuners for the specified digital broadcast standard. Analog and satellite counts may differ. Recording also depends on regional software support.

Not available

Antenna inputs

Type	Count
Terrestrial and cable	1
Satellite	1

Source3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 59 identifies one satellite and one antenna socket, with the original QSG independently depicting both. Tuner functions are not a count of physical tuners.4Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026

CI+ slot

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026

Record to USB

Not available

Broadcast platforms

HbbTV2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Audio

Physical speaker channelsiMaker channel layout of the built-in speaker system. Excludes virtual surround up-mixing and connected soundbars.

2.07Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026Exact tested 65 Sound section explicitly states a 2.0 audio system with 40 W. Channel count is separate from maker four physical full-range drivers.

Physical speaker driversiNumber of built-in sound-producing drivers, including subwoofers and screen actuators. Channel count does not by itself establish driver count.

42Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 3 Sound explicitly names four 10 W full-range speakers. This physical count is separate from the 2.0 playback channel layout established by the exact-65 review.

Total built-in speaker poweriPublished total output power of the TV’s built-in speaker system. Excludes optional speakers, soundbars and virtual channels.

40W2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Built-in subwoofer

Not available

Up-firing speakers

Not available

Audio formatsiFormats explicitly decoded by the TV. Virtual speaker processing such as DTS Virtual:X belongs in Audio features. Bluetooth codec direction must be stated before it is listed as a decoder. Dolby Audio (formats not named) is for a maker that lists Dolby Audio without naming the Dolby formats.

Dolby Atmos, Dolby Digital, DTS:X, MP3, AAC2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 3 codec explicitly names Dolby Digital MS 12, Dolby Atmos and DTS:X. Music Playback Formats explicitly names MP 3 and AAC. FLAC/WAV have no exact schema option and are not mapped to PCM. Passthrough does not prove TrueHD decoding.3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026

eARC passthroughiWhat reaches a soundbar or receiver

Not available

Audio features

Dolby Bass Enhancement, Clear Dialogue, AI Sound, AI EQ, Dolby Volume Leveller, DTS Play-Fi, Room Calibration2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 3 names the enhancement controls. Original page 2 explicitly supports DTS Play-Fi. The original manual printed page 37 separately describes Room Calibration. No up-firing speakers are inferred from height virtualisation.3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 37 describe DTS Play-Fi and Room Calibration. Printed page 58 explicitly names the stored sound enhancement family.

Bluetooth headphones

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 15 explicitly describes TV audio to a wireless speaker or headphones. Bluetooth version alone is not output proof.

Connectivity

Video inputsiPhysical input sockets on the exact reference model, grouped only when identical. HDMI revision, accepted 4K rate and link bandwidth are separate claims. Optional connection boxes are excluded unless included. Screen sizes of one line can have other ports, so it is per variant.

Type	Port	Version	Count	Max bandwidth (Gbps)	Max refresh rate at 4K (Hz)	eARC	HDCP
HDMI	HDMI 1, 3 and 4	2.1	3	48	144	No	2.3
HDMI	HDMI 2	2.1	1	48	144	Yes	2.3

Source2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 explicitly applies up-to 48 Gbps and 4K 144 Hz 12-bit 4:2:2 to all four physical HDMI sockets, identifies HDMI 2 eARC and HDCP 2.3 on all four. Exact tested-65 review independently names all four HDMI 2.1 revisions, bandwidth and up-to 144 input support. Current generic /05 tables are not substituted.4Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026Original page 2 shows four HDMI inputs with eARC explicitly on HDMI 2. Bandwidth/revision/4K caps are separately stated by the exact commercial leaflet and tested review.7Reviewtechfi.nl/televisies/philips-the-xtra-2024-review-philips-65pml9009-reviewRead 5 October 2026

HDMI ports

4=CalculatedFrom Video inputs

HDMI ports with 4K 120 Hz

4=CalculatedFrom Video inputs

Highest HDMI version

2.1=CalculatedFrom Video inputs

Maximum HDMI link bandwidthiHighest verified link bandwidth in Gbps. An HDMI revision or supported resolution alone does not prove 40 or 48 Gbps.

48Gbps=CalculatedFrom Video inputs

HDMI features

ALLM, VRR, eARC, CEC2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 20263Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 12 EasyLink implements HDMI CEC. Printed pages 44-45 HDMI Ultra HD implement automatic Game switching and VRR. Page 59 explicitly identifies HDMI 2 ARC/eARC.

USB peripheral portsiUSB sockets for media, storage or accessories. Count physical connectors. A connector without a published USB revision must leave the revision empty. The count can differ by screen size within one series, so it is per variant.

Connector	USB version	Count
USB-A	3.0	1
USB-A	2.0	1

Source3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 59 explicitly identifies USB 2 as USB 3.0 and USB 1 as USB 2.0. Rendered original QSG page 2 depicts both rectangular Type-A sockets.4Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026

Ethernet speedi0.1 is 100 Mbit

Not available

Wi-FiiNewest Wi-Fi generation of this size. Some series change it between sizes.

Wi-Fi 52Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 20263Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026

Wi-Fi bands

Not available

BluetoothiCan differ by screen size within one series, so it is per variant.

5.22Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 20263Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026

Optical out

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026

Headphone out

Yes3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 59 explicitly names Headphones Stereo mini-jack 3.5 mm. Diameter is not inferred solely from a headphone icon.

Included connection boxiWhether the TV uses an included external input box. Optional add-on boxes do not change this value.

Not available

Remote

Remote control

Yes2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Remote connection

Bluetooth, Infrared3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 8 explicitly says the supplied remote uses Bluetooth and IR. TV Bluetooth version is not assigned to the remote.

Remote power

AAA batteries4Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026Rendered QSG page 2 explicitly shows two AAA LR 03 1.5 V cells. Rechargeable power from OLED models is not inherited.

Voice button on remote

Yes2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Pointer remoteiPoint and click like an air mouse

Not available

Stand and mounting

Stand

Feet4Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026Rendered page 1 exact 9009/9019 55/65 assembly shows two separate supplied feet. Cable clips are not installation positions.

Stand installation positionsiNumber of distinct supported width or height installation configurations. A two-foot stand is not automatically two positions.

Not available

Stand height adjustment

Not available

Space under the screen

Not available

Distance between feetiOuter edges, widest position

Not available

Stand footprintiOverall width and depth occupied by the stand in the documented installation position. Source notes identify wide, narrow or soundbar height positions.

Not available

VESA mount

300 x 3002Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

VESA screwiThread size only, such as M6 or M8. Screw length and hole depth go in the source note.

M64Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026Original page 1 exact 65 wall table states 300 x 300 mm and four M6 screws, 14-18 mm. Original full guide printed page 10 agrees. Stand screws are M4 x 20 and distinct.

Wall mount included

No3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Printed page 10 explicitly describes the wall bracket as sold separately. Included feet do not imply an included wall mount.

Dimensions and weight

Dimensions with stand

Width1,451Height904Depth313mm(57.1 × 35.6 × 12.3 in)2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 exact-65 WxHxD 1451 x 904 x 313 mm including supplied feet. No installation-position count is inferred.

Dimensions without stand

Width1,451Height844Depth85mm(57.1 × 33.2 × 3.3 in)2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 exact-65 WxHxD 1451 x 844 x 85 mm. This is maximum complete-body depth, not a thinnest-screen measurement.

Thinnest depth

Not available

Weight with stand

21.5kg(47.4 lb)2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Weight without standiWhat the wall mount carries

21kg(46.3 lb)2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Power

• EU energy class SDRF5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026
  ABCDEFG
• EU energy class HDRG5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026
  ABCDEFG

Power supply

Internal5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Original exact-model EU sheet English page 1 specifies an internal supply. The separately published EPREL identity is sourced to the commercial leaflet.

On-mode power in SDR (EU label)iOn-mode power demand under the EU energy label test. Match the exact regional model and screen size.

98W5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Exact on-mode SDR regulatory test demand 98 W. This is not maximum operating watts.

On-mode power in HDR (EU label)iOn-mode power demand under the EU energy label test. Match the exact regional model and screen size.

215W5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Exact on-mode HDR regulatory test demand 215 W. This is not maximum operating watts.

Maximum operating poweriMaker-stated maximum operating power for the exact model. Rated mains input power and typical or measured draw are distinct and must be qualified in source notes.

Not available

Standby poweriPublished standby power for the exact model. Source notes preserve less-than or maximum qualifiers.

0.3W5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Exact regulatory sheet states 0.3 W. Commercial leaflet says less than 0.5 W. Regulatory numeric test demand takes precedence, with that threshold difference preserved.

Networked standby

2W5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026

Energy per 1000 h SDR

98kWh2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 EU card explicitly publishes 98 kWh per 1000 hours SDR. Regulatory watt demand is separately stored from its original document.

Energy per 1000 h HDR

215kWh2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Page 4 EU card explicitly publishes 215 kWh per 1000 hours HDR.

In the box

In the box

Remote control, Two AAA batteries, Tabletop stand, Power cord, Quick Start Guide, Legal and safety brochure2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 20264Owner's manualdocuments.philips.com/assets/20240301/2e327b8a066548e19dc4b126003313e1.pdfRead 5 October 2026

Links

Product page

www.philips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tv1Maker product pagephilips.co.uk/c-p/65PML9009_12/the-xtra-4k-qd-miniled-ambilight-tvRead 5 October 2026Current full maker product and support pages opened successfully. Original leaflet, complete guide, QSG and EU information sheet were recovered from the actual maker support document metadata and read.

Spec sheet

www.documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdf2Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026Original exact 65PML9009/12 four-page English commercial leaflet, issue December 4, 2025. Page 2 highlights explicitly say native 120 Hz while page 3 exact specification table says native 144 Hz. Original regulatory test frequency is 120 Hz, while maker launch calls a 144 Hz panel. Native refresh is omitted pending reconciliation. Accepted 144 Hz is separately verified. The /05 web table two-high/two-low HDMI assignment is not applied to this /12 document.

Manual

www.documents.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdf3Owner's manualdocuments.philips.com/assets/20240320/252c42d66feb46afa142b13900616f22.pdfRead 5 October 2026Original 76-page English 9009 Series user guide explicitly includes 65PML9009 on the cover. Actual sections and exact-size wall table were read. Generic unlisted display-size inventory is not used to add variants.

EPREL registration numberiId in the EU energy label database. Each size or model of a series has its own id, so it is per variant.

18986352Maker spec sheet (PDF)documents.philips.com/assets/20240216/9244bb968067486f8da3b11800d2edb1.pdfRead 5 October 2026

Warranty

Manufacturer warranty (source market)iThe maker's warranty period for the exact SKU or configuration and market named in the source note. It applies only to that stated market, not every regional variant. Statutory consumer rights are excluded. The base term is stored. An extension that needs registration goes in the source note.

2years5Maker spec sheet (PDF)documents.philips.com/assets/20240124/4c02e8c376a848de96fcb10100a3391f.pdfRead 5 October 2026Original exact European sheet specifies the supplier minimum general guarantee of two years. Statutory rights and retailer extensions are separate.
