TV and audio / TVs
TCLStandard TV

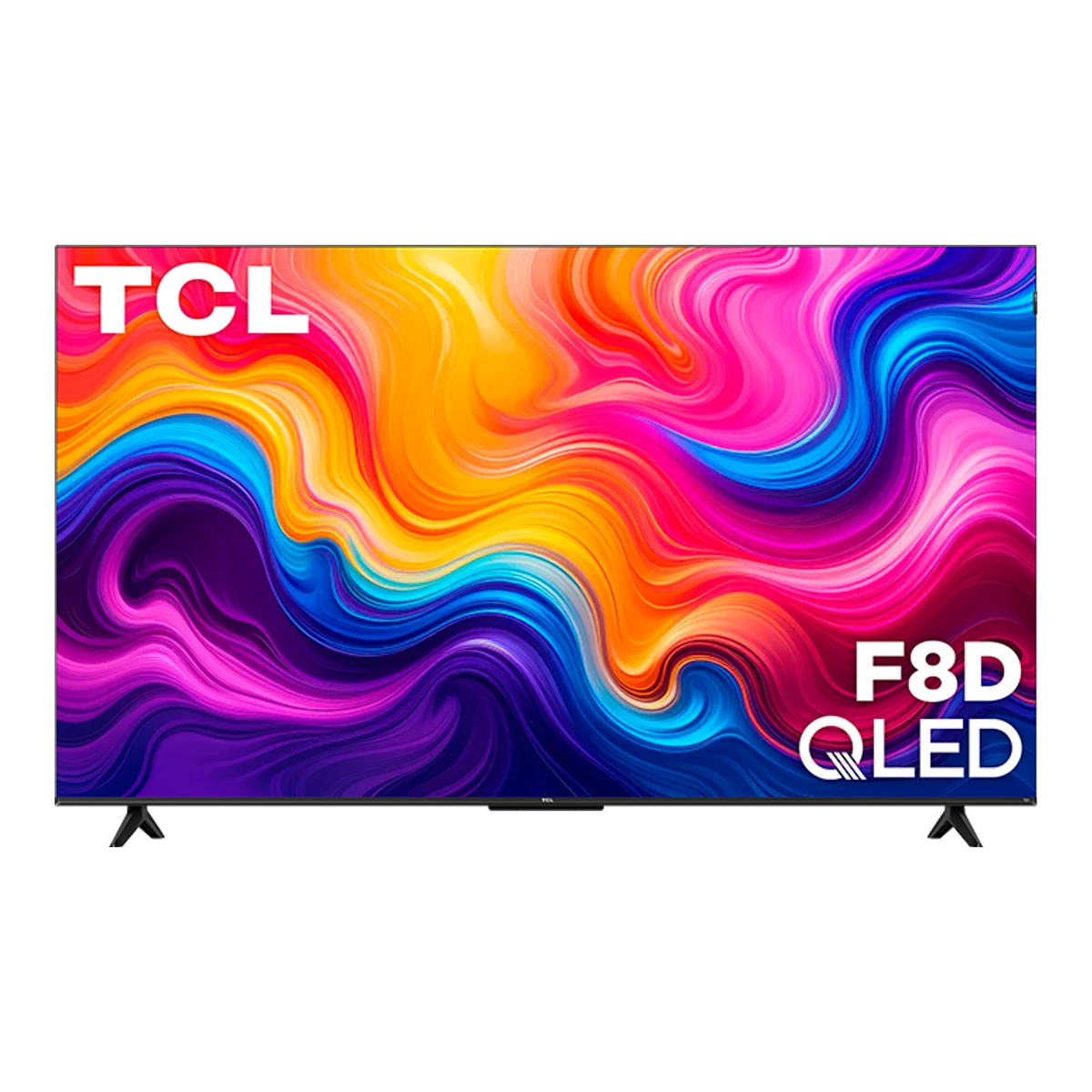

F8D Series 4K QLED Fire TV
Released April 2026.2Maker product pageus.tcl.com/blogs/blog/the-best-tcl-tv-deals-on-amazon-right-nowRead 16 October 2026TCL US blog post dated 2026-08-19 lists the F7D and F8D Series Fire TVs as current models. No launch announcement or exact release date was found. April 2026 is an approximate month. Last checked 16 October 2026.
- Screen size class
- 65in
- Display
- QLED
- Refresh rate
- 144Hz
- Up to 288 Hz at 1920 × 1080
- Input lag
- Not available
54 of 159 fields known.
At a glance
Ports
- 4 HDMI
- USB-A 3.0
- USB-A 2.0
General
- Model numbers
- 55F8D, 65F8D, 75F8D, 85F8D3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026The FCC section covers models 55F8D, 65F8D and 75F8D.5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Model Number 65F8D, Model Series F8D, Manufacturer TCL.
- GTIN / EAN
- 846042052801, 846042052818, 846042052825, 8460420528325Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026UPC 846042052818 for the 65 inch.
- Announced
- Not available
- Predecessor
- Not available
- Successor
- Not available
- Launch price (US)
- Not available
- Launch price (EU)
- Not available
- Colours
- Not available
Display
- Screen size class
- 65in(165.1 cm)1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026The 65 inch is the reference size.
- Sizes covered
- 55, 65, 75, 85in1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Size selector: 55, 65, 75 and 85 inch. TCL also sells 50 and 98 inch sets, which are not stored.
- Viewable size
- 64.5in(163.8 cm)5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026TCL dimension graphic in the listing images: 65 inch class, 64.5 inch diagonal.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026TCL dimension graphic: 55 inch class, 54.6 inch diagonal.7Retailer pageamazon.com/dp/B0GL9V75WVRead 16 October 2026TCL dimension graphic: 75 inch class, 74.5 inch diagonal.8Retailer pageamazon.com/dp/B0GLB13VQ6Read 16 October 2026TCL dimension graphic: 85 inch class, 84.5 inch diagonal.
- Native resolution
- 3840 × 2160px1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 20264K Ultra HD Resolution, 4 times the resolution of 1080p. Stored as 3840 x 2160.
- Pixel density (size class)
- 67.8ppi
- Screen surface
- Not available
- Anti-reflection coating
- Not available
Panel
- Display type (as published)
- QLED1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Page title and overview: QLED.
- Panel type
- Not available
- Backlight
- Direct-lit LED5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Manufacturer text on the listing: High Brightness Direct LED Backlight.
- Local dimming
- Not available
- Local dimming zones
- Not available
- Panel maker
- Not available
- Panel generation
- Not available
- Subpixel layout
- Not available
- Native colour depth
- Not available
- Native panel refresh rate
- 144Hz1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Overview says 144Hz panel refresh rate. The Specifications tab says 120 for the 55 inch. Amazon lists 120 Hz for 50 and 55 inch and 144 Hz for 65, 75, 85 and 98 inch. The sizes follow Amazon's per-size listings.5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Title and bullet: Native 144Hz Refresh Rate.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026Title: 55F8D with Native 120Hz Refresh Rate. Display Refresh Rate in Hertz 120.7Retailer pageamazon.com/dp/B0GL9V75WVRead 16 October 2026Title: Native 144Hz Refresh Rate, Game Accelerator 288.8Retailer pageamazon.com/dp/B0GLB13VQ6Read 16 October 2026Title: Native 144Hz Refresh Rate, Game Accelerator 288.
- DCI-P3 coverage (claimed)
- 93%5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Feature bullet: quantum dot color covering 93% of the DCI-P3 spectrum. The coordinate system is not stated.
- Rec. 2020 coverage (claimed)
- Not available
- Peak HDR brightness (claimed)
- Not available
HDR and picture
- HDR formats
- Dolby Vision, HDR10, HDR10+, HLG1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026HDR PRO+ with Dolby Vision, HDR10+, HDR10 and HLG.
- Filmmaker Mode
- Not available
- HGiG
- Not available
- Picture processor
- Not available
- Motion interpolation
- Yes1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Motion Rate 480 with MEMC frame insertion.
- Black frame insertion
- Not available
- Ambient light sensor
- Yes2Maker product pageus.tcl.com/blogs/blog/the-best-tcl-tv-deals-on-amazon-right-nowRead 16 October 2026F8D section: ambient sensors for automated picture quality enhancement. The same text appears in Amazon's feature bullets.5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Feature bullet: an ambient light sensor automatically adjusts picture brightness for the room.
- Calibration software
- Not available
Motion and gaming
- Maximum accepted refresh rate per resolution and input
Maximum accepted refresh rate per resolution and input. The top rate is in bold. Resolution HDMI 3840 × 2160Native 144Hz 1920 × 1080 288Hz Source3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026Signal Compatibility table for HDMI 1 and 2: 2160p up to 144 Hz and 1080p up to 288 Hz, with 144 Hz and 288 Hz only when VRR is on. HDMI 3 and 4 accept 2160p up to 60 Hz. The 1440p rows are not stored because the table lists signals and gives no confirmed maximum. The table is shared by the 55, 65 and 75 inch. The 55 inch rows use TCL's own port graphic on the Amazon listing: 4K/120Hz or 1080p/240 gaming. The 1080p gaming rates are twice the native panel rate. TCL does not say whether the panel shows every frame at those rates.5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026TCL port graphic in the listing images: HDMI 1 and HDMI 2 4K/144Hz or 1080p/288 gaming. Title: Game Accelerator 288 and VRR.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026TCL port graphic on the 55F8D listing: HDMI 1 and HDMI 2 4K@120Hz, 4K/120Hz or 1080p/240 gaming. Title: Game Accelerator 240 and VRR.Show as source table
Width (px) Height (px) Input Maximum accepted rate (Hz) 3840 2160 HDMI 144 1920 1080 HDMI 288 - Maximum accepted refresh rate
- 288Hz
- Maximum accepted refresh rate at 4K
- 144Hz
- Adaptive sync
- Not available
- VRR range per input
- Not available
- Low framerate compensation
- Not available
- Dolby Vision gaming
- Not available
- Auto game mode (ALLM)
- Yes1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Auto Game Mode (ALLM).
- Game menu features
- Not available
- Input lag (claimed)
- Not available
Measured
We could not find any of these 25 fields. Show them
- Input lag (measured)
- Not available
- Input lag at 4K 60 Hz (measured)
- Not available
- Input lag at 4K 120 Hz (measured)
- Not available
- Input lag at 4K 144 Hz (measured)
- Not available
- SDR brightness in a real scene (measured)
- Not available
- HDR brightness in a real scene (measured)
- Not available
- HDR brightness per window (measured)
- Not available
- HDR peak brightness (measured)
- Not available
- Full-screen HDR brightness (measured)
- Not available
- Contrast ratio (measured)
- Not available
- Contrast with local dimming (measured)
- Not available
- Infinite contrast (measured)
- Not available
- DCI-P3 coverage (measured)
- Not available
- Rec. 2020 coverage (measured)
- Not available
- Colour volume at 1,000 nits (measured)
- Not available
- Colour volume at 10,000 nits (measured)
- Not available
- Colour accuracy (measured Delta E)
- Not available
- Gray uniformity deviation (measured)
- Not available
- Colour shift angle (measured)
- Not available
- Reflections (measured)
- Not available
- Total pixel response time (measured)
- Not available
- PWM flicker frequency (measured)
- Not available
- VRR range (measured)
- Not available
- 4:4:4 chroma (measured)
- Not available
- Power use SDR (measured)
- Not available
Smart platform
- Smart platform
- Fire TV1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Fire TV Smart OS with voice remote.
- OS at launch
- Not available
- Latest OS
- Not available
- OS upgrade support period
- Not available
- Chipset
- Not available
- RAM
- Not available
- Total internal storage
- Not available
- Voice assistants
- Alexa, Alexa+1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Alexa+ text on the page. The Quick Start Guide names Voice Remote with Alexa.
- Hands-free microphone
- Not available
- Casting
- AirPlay 25Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Feature bullet: Apple AirPlay 2.
- Smart home
- Alexa, HomeKit1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Works with Amazon Alexa and Apple HomeKit.
- Art or ambient mode
- Not available
Tuners
- Tuners
- ATSC 1.0, Clear QAM, Analog3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026Signal compatibility table: Antenna/Cable input accepts NTSC, ATSC and QAM formats.
- Tuners per broadcast standard
- Not available
- Antenna inputs
Type Count Terrestrial and cable 1 - CI+ slot
- Not available
- Record to USB
- Not available
- Broadcast platforms
- Not available
Audio
- Physical speaker channels
- Not available
- Physical speaker drivers
- Not available
- Total built-in speaker power
- Not available
- Built-in subwoofer
- Not available
- Up-firing speakers
- Not available
- Audio formats
- Dolby Atmos1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Dolby Atmos audio.
- eARC passthrough
- Not available
- Audio features
- DTS Virtual:X5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Dolby Atmos and DTS Virtual:X from the built-in speakers.
- Bluetooth headphones
- Not available
Connectivity
- Video inputs
Type Port Count Max refresh rate at 4K (Hz) eARC HDMI HDMI 1-2 2 144 No HDMI HDMI 3 1 60 No HDMI HDMI 4 1 60 Yes Source3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026Step 4 port drawing: HDMI 1 and HDMI 2 (4K@144Hz), HDMI 3 (4K@60Hz), HDMI 4 (eARC/ARC, 4K@60Hz). HDMI 2 is marked SERVICE. No HDMI version, bandwidth or HDCP level is stated. No composite or component input is drawn. The 55 inch rows use 120 Hz because TCL's own port graphic on the 55F8D Amazon listing says 4K@120Hz.5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026TCL port graphic: HDMI 1 and 2 4K@144Hz, HDMI 3 4K@60Hz, HDMI 4 (eARC) 4K@60Hz, plus LAN, CABLE/ANT and optical audio out. Listing: 4 HDMI ports, 1 USB 2.0 and 1 USB 3.0.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026TCL port graphic on the 55F8D listing: HDMI 1 and 2 4K@120Hz, HDMI 3 and 4 4K@60Hz, HDMI 4 (eARC).- HDMI ports
- 4
- HDMI ports with 4K 120 Hz
- 2
- Highest HDMI version
- Not available
- Maximum HDMI link bandwidth
- Not available
- USB peripheral ports
Connector USB version Count USB-A 3.0 1 USB-A 2.0 1 - Ethernet speed
- Not available
- Wi-Fi bands
- Not available
- Bluetooth
- 5.45Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026Feature bullet: Bluetooth 5.4.
- Headphone out
- Not available
- Included connection box
- Not available
Remote
- Remote connection
- Not available
- Remote power
- AAA batteries3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026Two AAA batteries for the remote.
- Voice button on remote
- Yes3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026Voice button activates the microphone on the remote.
- Pointer remote
- Not available
Stand and mounting
- Stand installation positions
- Not available
- Stand height adjustment
- Not available
- Space under the screen
- Not available
- Distance between feet
- Not available
- Stand footprint
- Not available
- VESA screw
- M63Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026M6 for 55, 65 and 75 inch (M6x12mm, M6x12mm and M6x16mm). The 85 inch guide gives M8x20mm.4Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873645/85F8D%20QSG.pdfRead 16 October 202685 inch: VESA 600x300 with 4 M8x20mm screws.
OLED care
We could not find any of these 3 fields. Show them
- OLED care
- Not available
- Burn-in covered by warranty
- Not available
- Burn-in warranty length
- Not available
Dimensions and weight
Front and side, drawn to scale.
- Dimensions with stand
- Width1,445.26Height878.84Depth299.72mm(56.9 × 34.6 × 11.8 in)5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026TCL dimension graphic in the listing images, TV with stand: 56.90 x 34.60 x 11.80 in (W x H x D). The Item Dimensions field says the same. Item weight 26.9 lb is not stored because the listing does not say whether the stand is included.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026TCL dimension graphic, TV with stand: 48.30 x 29.50 x 10.00 in. Weight 19.8 lb is not stored.7Retailer pageamazon.com/dp/B0GL9V75WVRead 16 October 2026TCL dimension graphic, TV with stand: 65.60 x 40.40 x 13.70 in. Item weight 39.7 lb is not stored.8Retailer pageamazon.com/dp/B0GLB13VQ6Read 16 October 2026TCL dimension graphic, TV with stand: 74.40 x 45.90 x 15.10 in. The Item Dimensions field says 14.65 x 74.39 x 45.35 in, which differs. The graphic is used. No weight is listed.
- Dimensions without stand
- Width1,445.26Height833.12Depth73.66mm(56.9 × 32.8 × 2.9 in)5Retailer pageamazon.com/dp/B0GL9N36XSRead 16 October 2026TCL dimension graphic: TV without stand 56.90 x 32.80 x 2.90 in.6Retailer pageamazon.com/dp/B0GL9X4LFFRead 16 October 2026TCL dimension graphic, TV without stand: 48.30 x 28.00 x 2.80 in.7Retailer pageamazon.com/dp/B0GL9V75WVRead 16 October 2026TCL dimension graphic, TV without stand: 65.60 x 37.80 x 2.90 in.8Retailer pageamazon.com/dp/B0GLB13VQ6Read 16 October 2026TCL dimension graphic, TV without stand: the text block says 74.40 x 42.90 x 3.30 in. The drawing in the same graphic shows 42.80 in for the height. The text block is used.
- Thinnest depth
- Not available
- Weight with stand
- Not available
- Weight without stand
- Not available
Power
- Power supply
- Internal3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026The power cable plugs into the TV.
- On-mode power in SDR (EU label)
- Not available
- On-mode power in HDR (EU label)
- Not available
- Maximum operating power
- Not available
- Standby power
- Not available
- Networked standby
- Not available
- EU energy class SDR
- Not available
- EU energy class HDR
- Not available
- Energy per 1000 h SDR
- Not available
- Energy per 1000 h HDR
- Not available
Certifications
We could not find any of these 3 fields. Show them
- Picture certifications
- Not available
- ENERGY STAR
- Not available
- Other certifications
- Not available
In the box
- In the box
- TV, TV stands, Power cable, 4 x Stand screws, 2 x AAA batteries for remote, Quick start guide, TV remote3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026What's in the box: TV, TV stands, power cable, 4 stand screws, 2 AAA batteries for remote, quick start guide, TV remote.
Links
- Product page
- us.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexa1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026TCL US store page for the 55F8D. Its size selector offers 55, 65, 75 and 85 inch, all marked sold out on the access date. The Specifications tab repeats a Mini LED and Local Dimming template and lists 120 Hz for the 55 inch. It contradicts the overview text, so only the overview is used.
- Spec sheet
- Not available
- Manual
- static.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdf3Owner's manualstatic.helpjuice.com/helpjuice_production/uploads/upload/image/5306/direct/1786381873657/55-65-75F8D%20QSG.pdfRead 16 October 2026TCL Quick Start Guide for 55F8D, 65F8D and 75F8D, 18 pages. A full user manual was not found on support.tcl.com.
- EPREL registration number
- Not available
Warranty
- Manufacturer warranty (source market)
- 1year1Maker product pageus.tcl.com/products/tcl-f8d-series-4k-qled-with-dolby-vision-hdr-dolby-atmos-smart-tv-with-fire-tv-alexaRead 16 October 2026Store banner: 1-Year Warranty. The Quick Start Guide warranty statement gives one year of parts and labor for the US and Canada.
Compare with
Pick a TV to see both side by side. Differences are marked yellow.
Variants
Each variant lists only what differs from the specs above.
| Model number | GTIN | Screen size class | Viewable size | Native panel refresh rate | Maximum accepted refresh rate per resolution and input | Video inputs | VESA mount | VESA screw | Dimensions with stand | Dimensions without stand | ||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55F8D | 846042052801 | 55 in | 54.6 in | 120 Hz | Show 2 rows
| Show 3 rows
| 200 x 300 | M6 | Width 1,226.82, Height 749.3, Depth 254 mm | Width 1,226.82, Height 711.2, Depth 71.12 mm | ||||||||||||||||||||||||||||||||
| 65F8D | 846042052818 | 65 in | 64.5 in | 144 Hz | Show 2 rows
| Show 3 rows
| 200 x 300 | M6 | Width 1,445.26, Height 878.84, Depth 299.72 mm | Width 1,445.26, Height 833.12, Depth 73.66 mm | ||||||||||||||||||||||||||||||||
| 75F8D | 846042052825 | 75 in | 74.5 in | 144 Hz | Show 2 rows
| Show 3 rows
| 300 x 300 | M6 | Width 1,666.24, Height 1,026.16, Depth 347.98 mm | Width 1,666.24, Height 960.12, Depth 73.66 mm | ||||||||||||||||||||||||||||||||
| 85F8D | 846042052832 | 85 in | 84.5 in | 144 Hz | Show 2 rows
| Show 3 rows
| Not available | M8 | Width 1,889.76, Height 1,165.86, Depth 383.54 mm | Width 1,889.76, Height 1,089.66, Depth 83.82 mm |
Sources
We read 8 sources for this TV. The numbers match the markers in the sheet.
- Maker product pageus.tcl.com/blogs/blog/the-best-tcl-tv-deals-on-amazon-right-now
- Retailer pageamazon.com/dp/B0GL9N36XS
- Retailer pageamazon.com/dp/B0GL9X4LFF
- Retailer pageamazon.com/dp/B0GL9V75WV
- Retailer pageamazon.com/dp/B0GLB13VQ6
See a wrong value? Tell us and name the field.
